HiSiliconHI3516EV100 HDMI 4GEncoder Board
Project: Board Introduction | page_id: 886
| Single-Channel HDMI Encoder | |
|---|---|
| Model | XSWEDR-SHDMI-LC |
| Video Input | 1 HDMI input interface |
| Audio Input | 1 stereo analog audio input interface / HDMI embedded audio |
| Video Encoding Capability | 1280x720p@30fps |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/HTTP_TS/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC/OPUS |
| Video Encoding Bitrate | 35Kbps~10Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters |
| Network | Ethernet, 4G, WIFI |
| Power Supply | DC 12V |
| Operating Temperature | 0~70 degrees |
| Dimensions | 109x82mm |
| Weight | 51.8g |

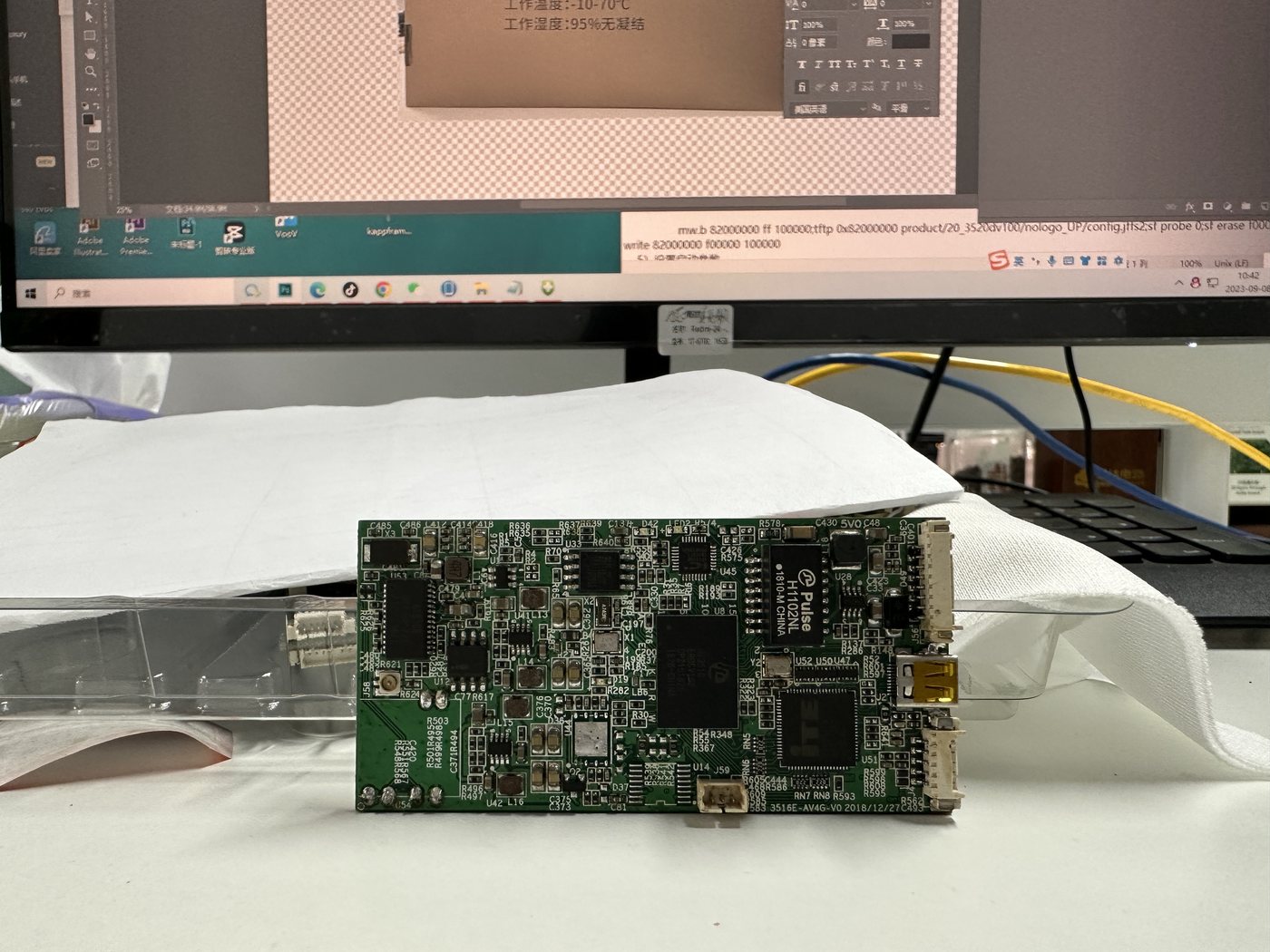

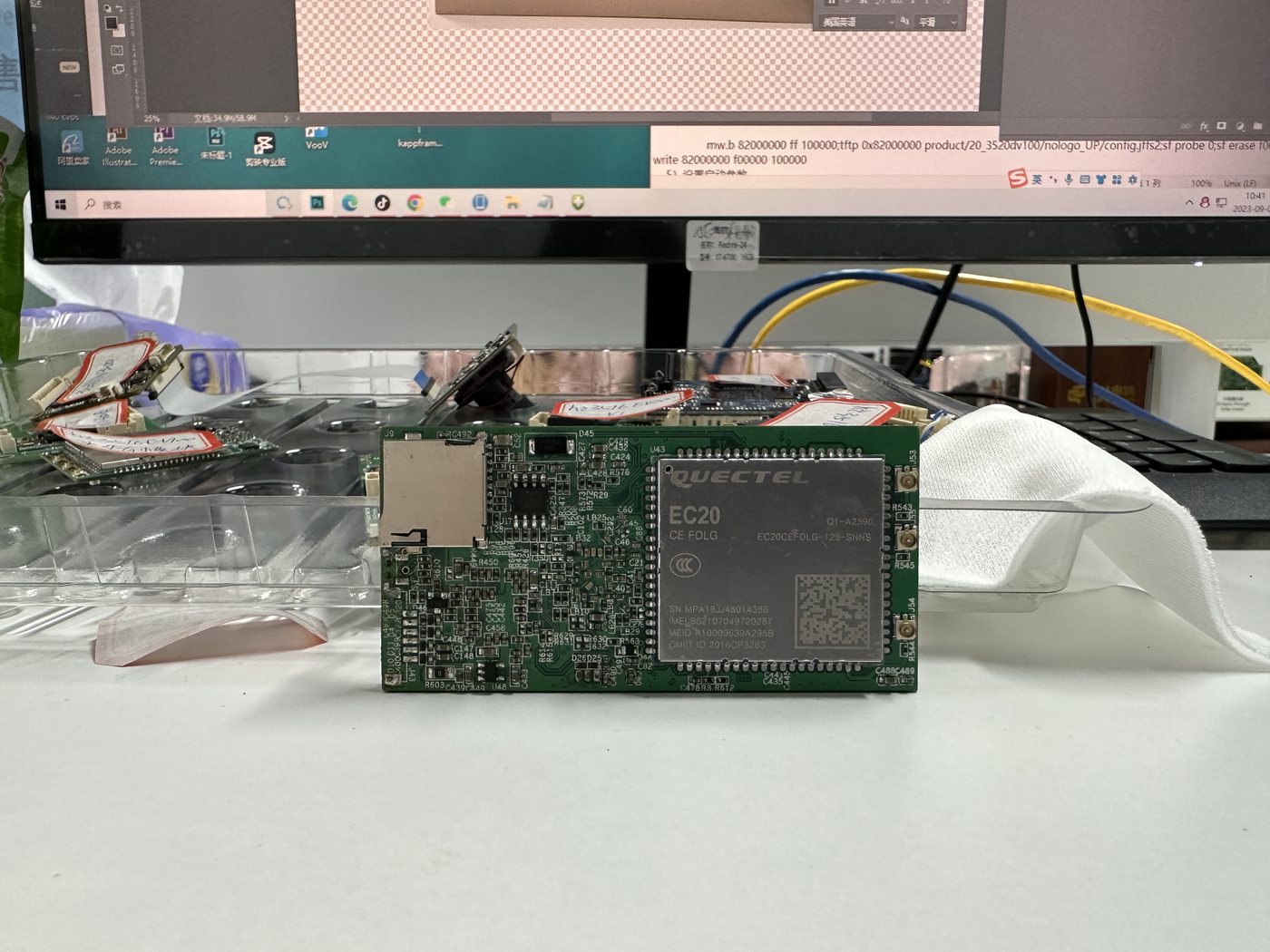

Product Images
