HiSiliconHI3521DV100DualHDMI+CVBS+SDIBoard

Dev Boards & Modules · HiSilicon

Project: Board Introduction | page_id: 1318

Product Introduction

Board Size: 145*122mm

Chip Specifications

HI3521DV100
Description
• Quad-core ARM Cortex A17 @1.4 GHz;
• Integrated Mali-T720 GPU;
• 4x4K@30 fps H.265/H.264 decoding+2x1080p@30 fps H.264 encoding;
• HDMI 2.0+BT1120+VGA+CVBS outputs, HDMI support up to 3840 x 2160@60 fps;
• 2xGMAC ports, 2xSATA 3.0+1xPCIe 2.0/SATA 3.0 interface, 2xUSB 2.0+1xUSB 3.0;

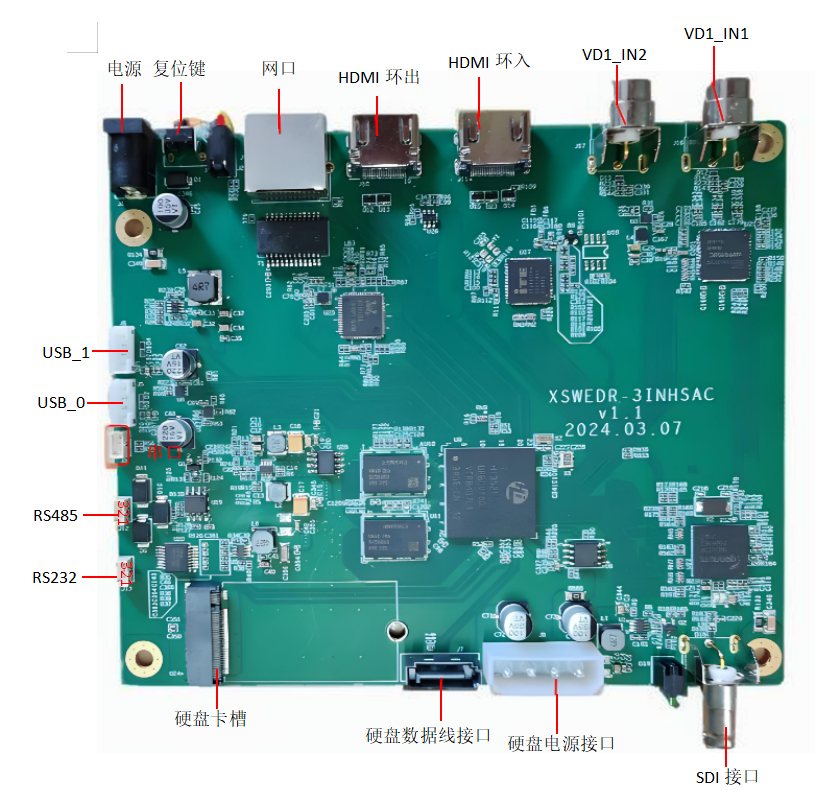

Interface Circuits

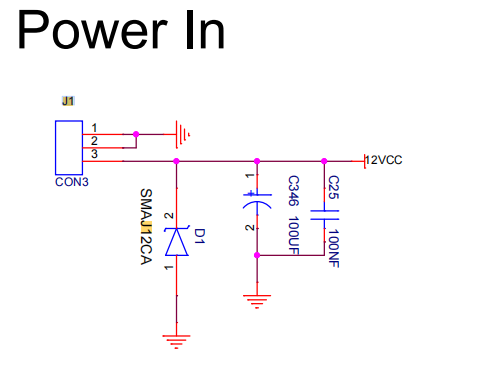

Power

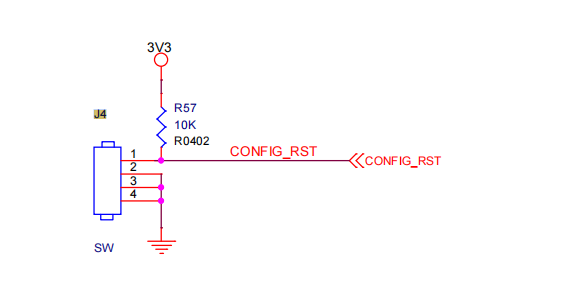

Reset Button

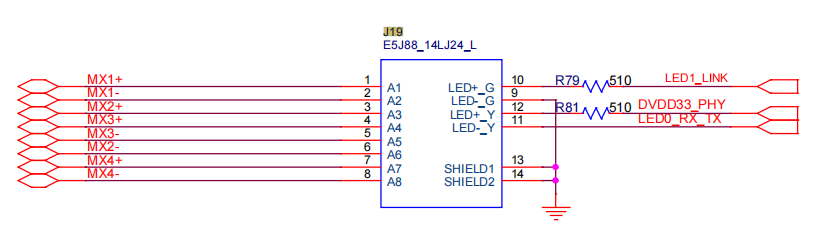

Network Port

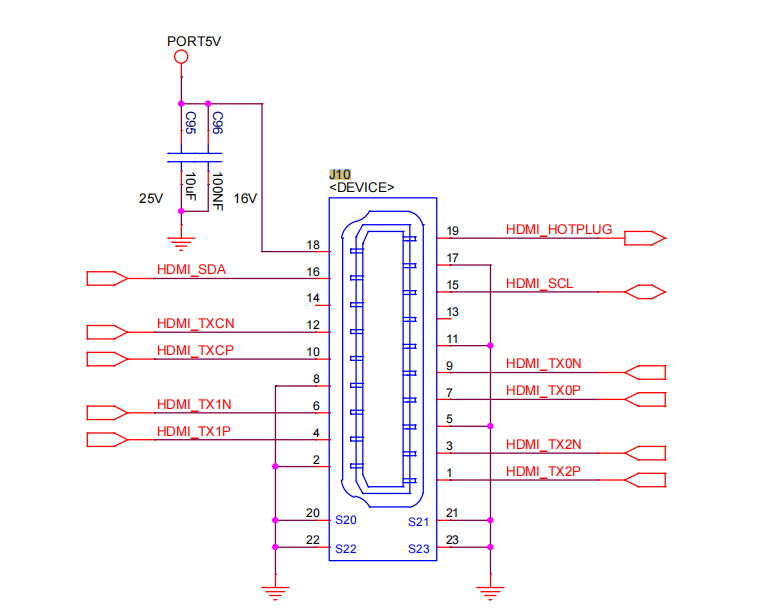

HDMI Loop-out

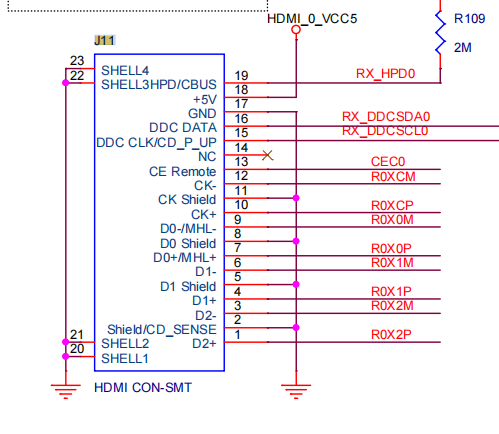

HDMI Loop-in

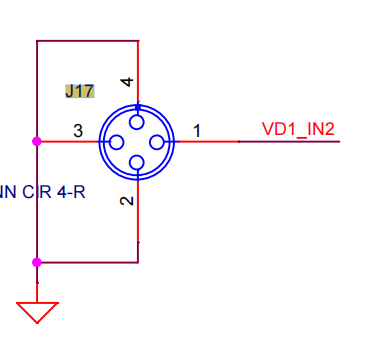

VD1_IN2

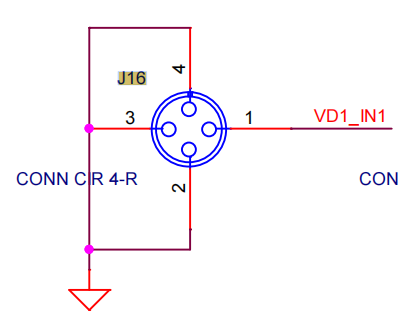

VD1_IN1

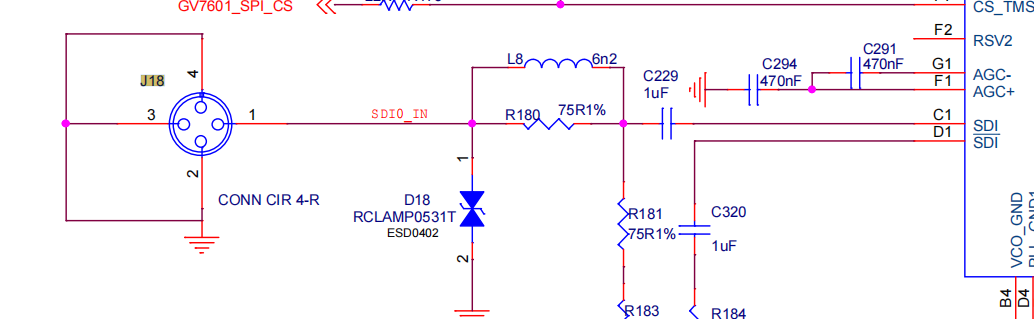

SDI_IN

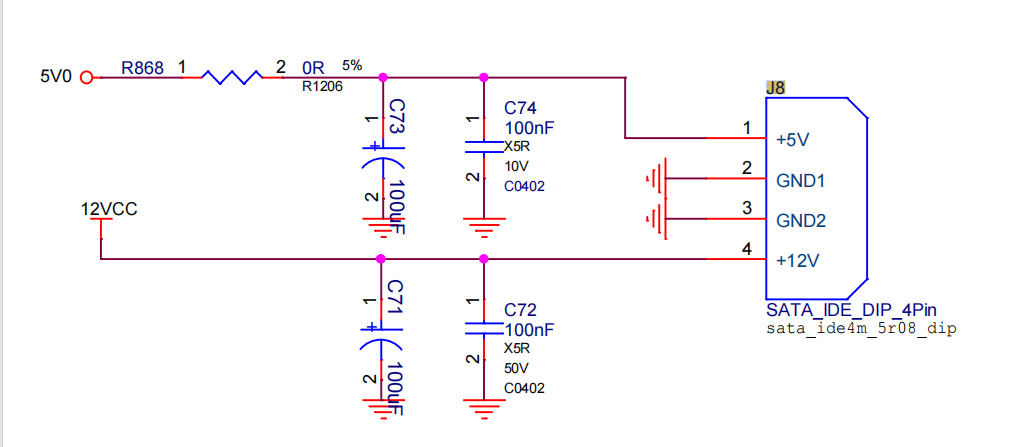

Hard Disk Power Interface

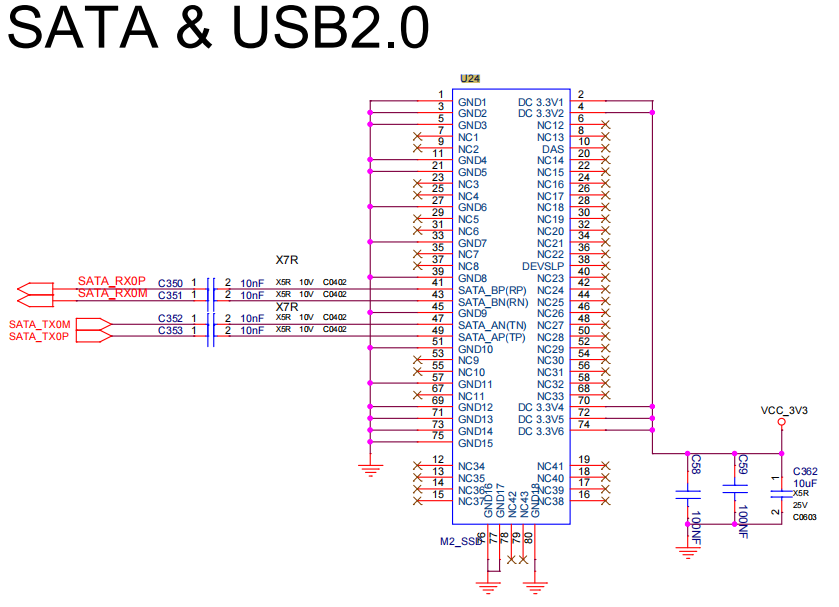

Hard Disk Data Cable Interface

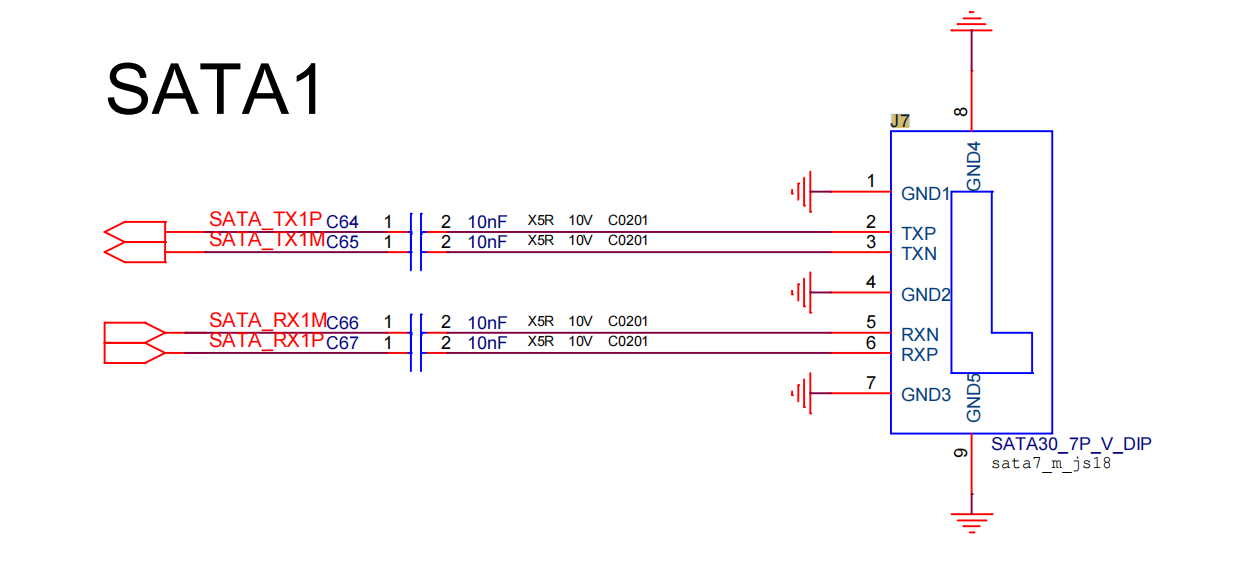

Hard Disk Interface

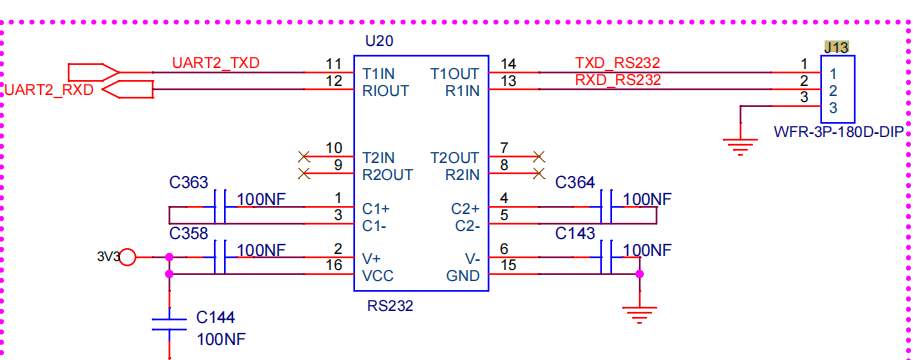

RS232

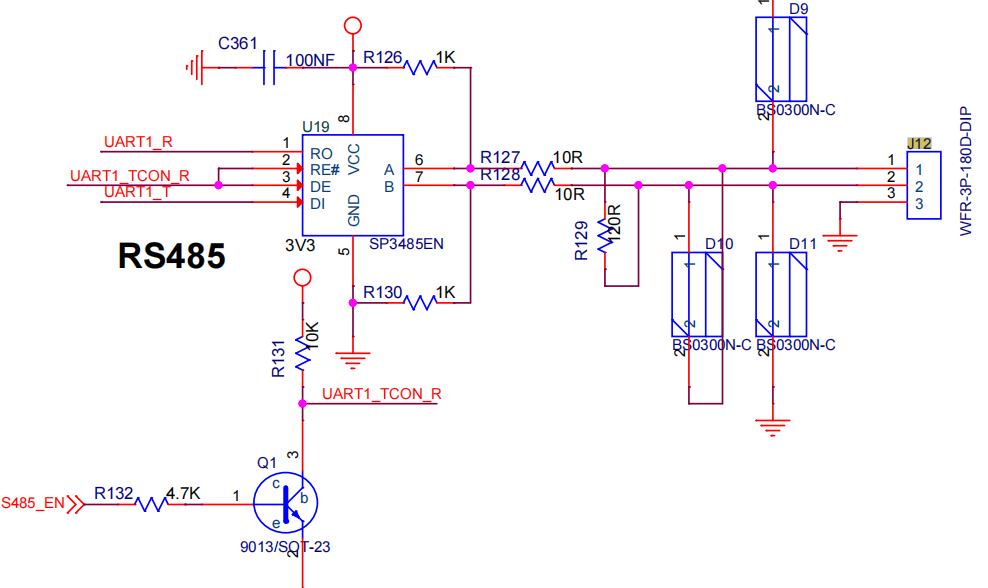

RS485

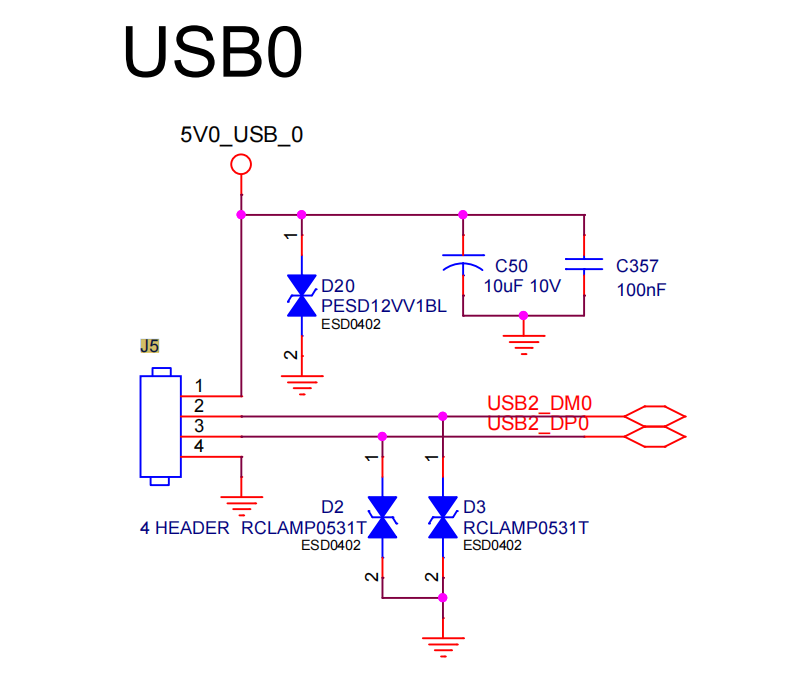

USB_0

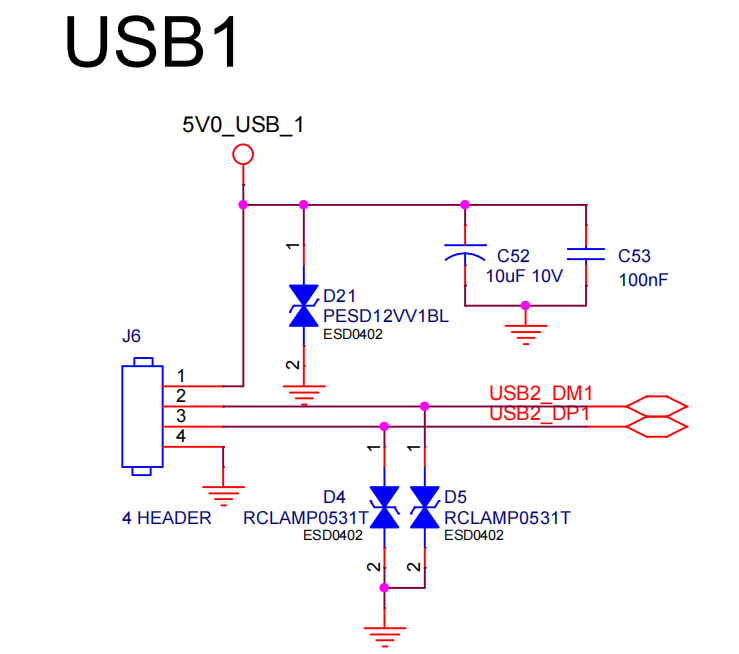

USB_1
