HI3521dv100 SingleHDMIEncoder Board
Project: Board Introduction | page_id: 1174
| HI3521dv100 Single-Channel HDMI Encoding Board | |
|---|---|
| Model | XSWENC-72S0PBE0G1W |
| CPU | HI3521DV100 |
| Video Encoding | Supports H.265/H.264 encoding/decoding, max resolution 1920x1080@60fps |
| Video Input | 1 x HDMI input, max resolution supports 1920x1080@60fps |
| Audio Input | HDMI embedded audio, sampling rate: 8K/12K/16K/24K/32K/44.1K/48K |
| Video Output | Max resolution supports 3840 × 2160 |
| Storage | SPI nor 128Mbit flash |
| USB | USB 2.0 |
| Network | RJ45 10/100/1000M |
| Operating Temperature | 0 to 70℃ |
| Service Life | Continuous operation life of more than 3 years |

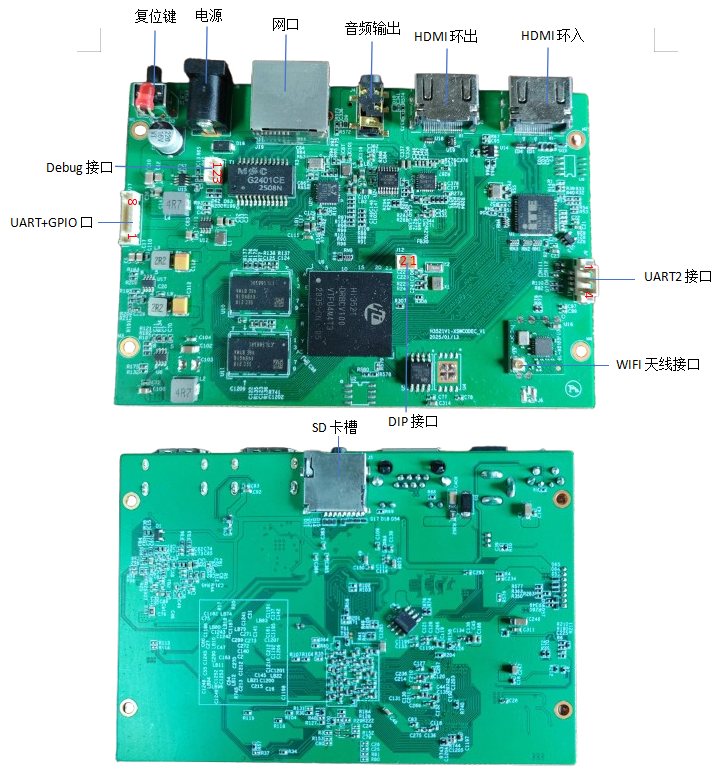

Product Introduction
Board Size: 110*75mm
Chip Specifications
ARM Cortex A7 dual core @Max.1.3GHz
32KB L1 I-Cache, 32KB L1 D-Cache
256KB L2 Cache
Supports NEON/FPU
Interface Circuits

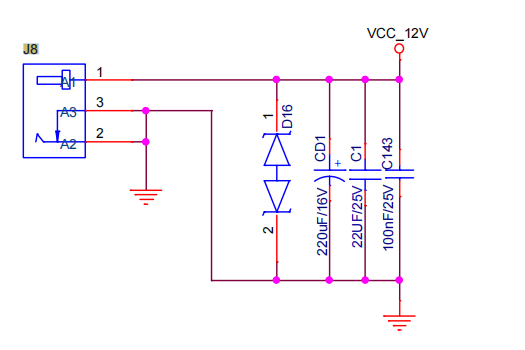

Power

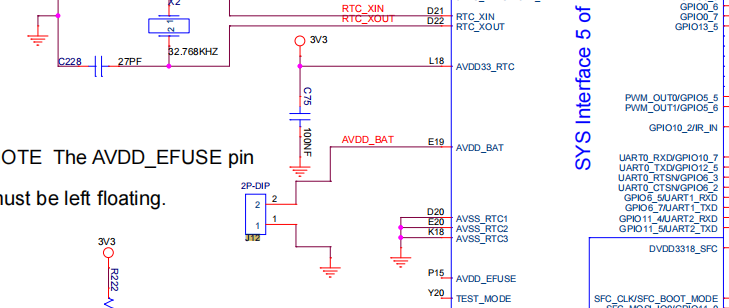

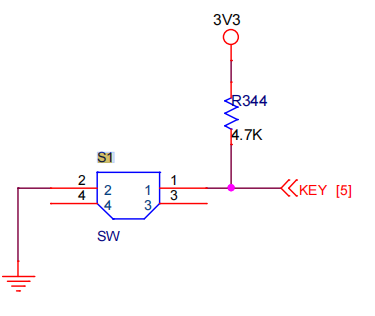

Reset Circuit

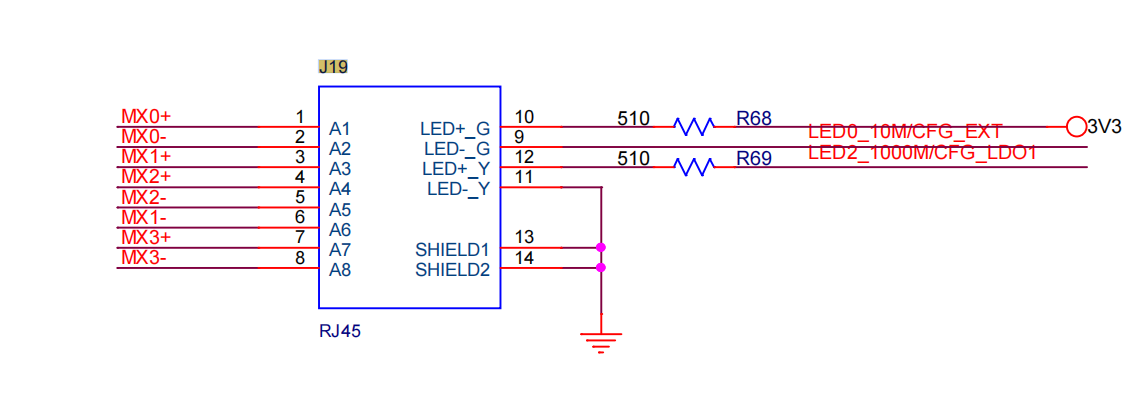

RJ45

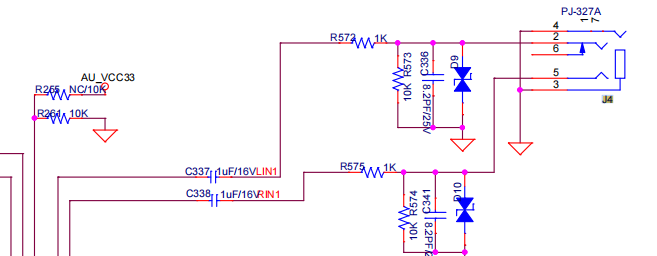

Audio Output

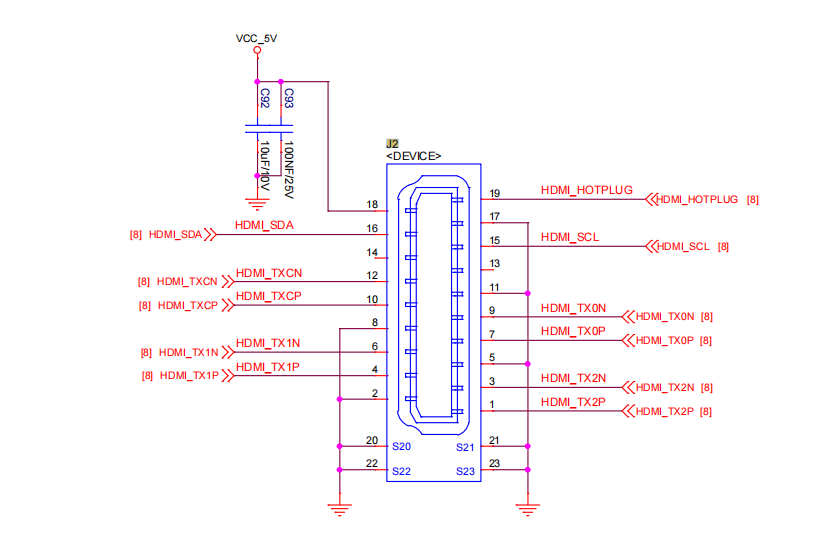

HDMI Loop-out

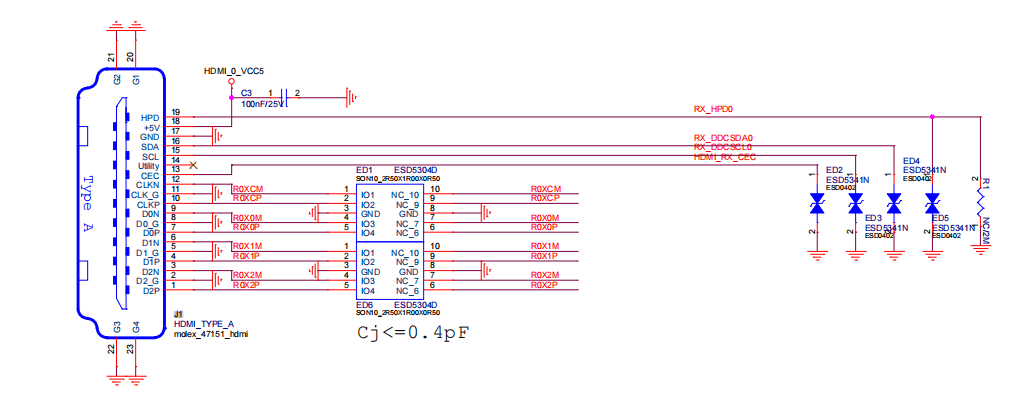

HDMI Loop-in

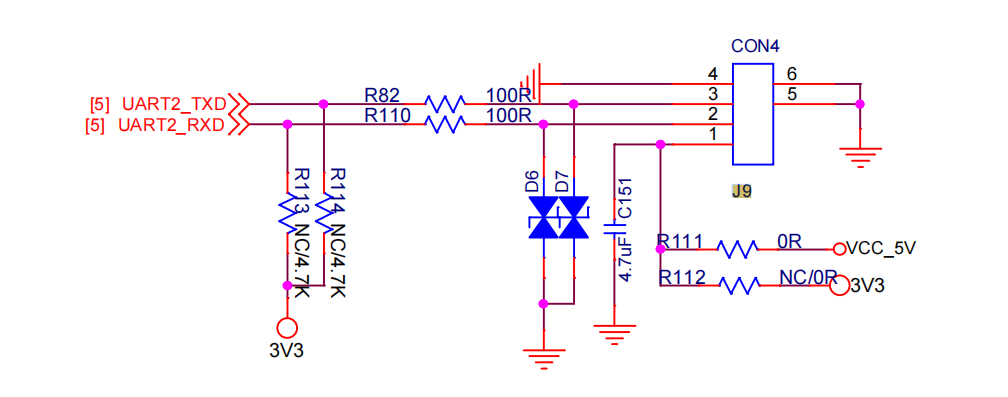

UART2 Interface
DIP Interface

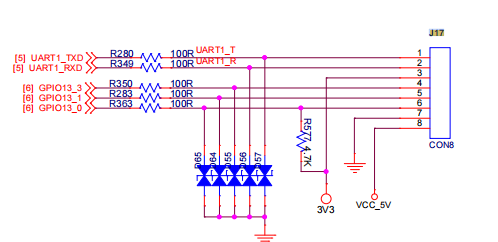

UART+GPIO Interface
Debug Interface
FAQ
| Question | Answer | |
|---|---|---|
| 1. Is it Android or Linux? | Linux | |
| 2. | ||
| 3. |
