HiSiliconHI3521DV100 4ChannelHDMIand4ChannelDPBoard

Dev Boards & Modules · HiSilicon

Project: Board Introduction | page_id: 1319

Product Introduction

Board Size: 220*100mm

Chip Specifications

HI3521DV100
Description
• Quad-core ARM Cortex A17 @1.4 GHz;
• Integrated Mali-T720 GPU;
• 4x4K@30 fps H.265/H.264 decoding+2x1080p@30 fps H.264 encoding;
• HDMI 2.0+BT1120+VGA+CVBS outputs, HDMI support up to 3840 x 2160@60 fps;
• 2xGMAC ports, 2xSATA 3.0+1xPCIe 2.0/SATA 3.0 interface, 2xUSB 2.0+1xUSB 3.0;

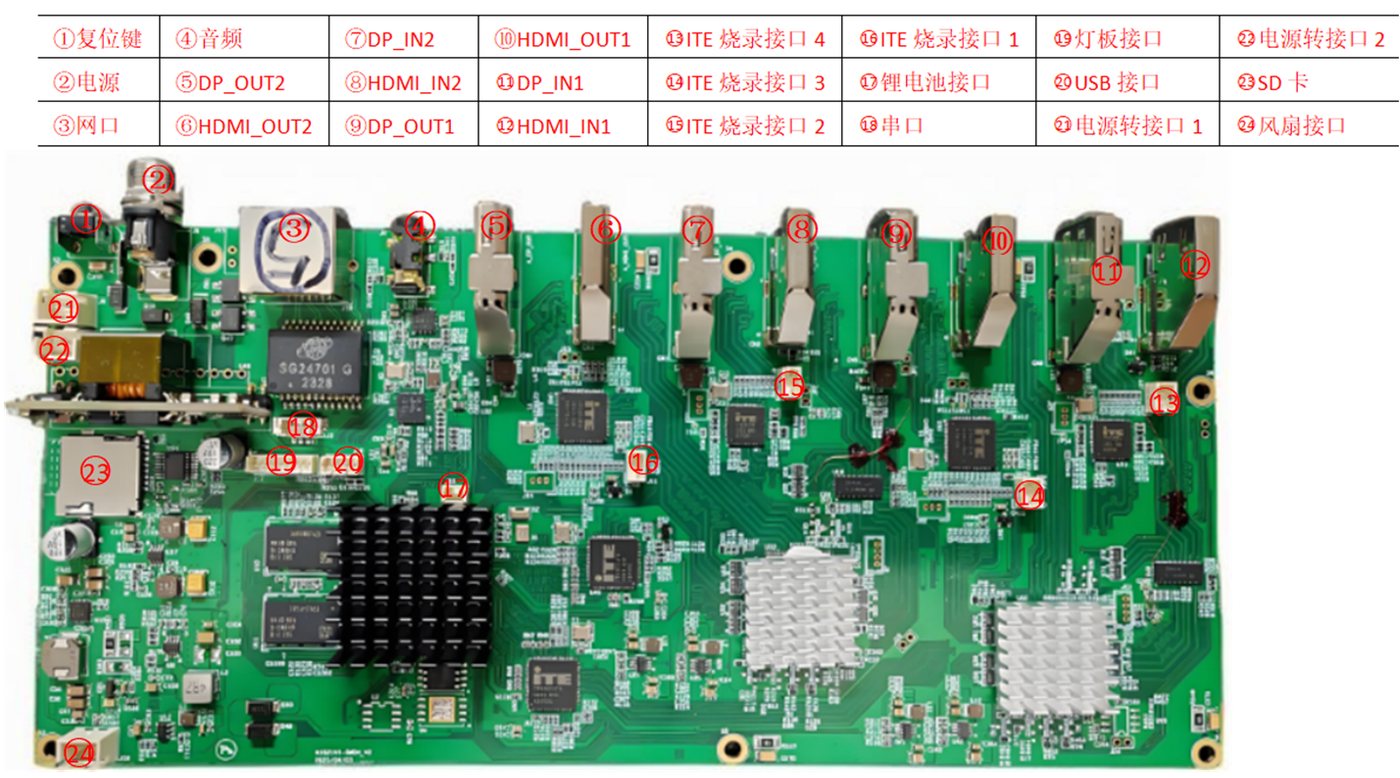

Interface Circuits

Power

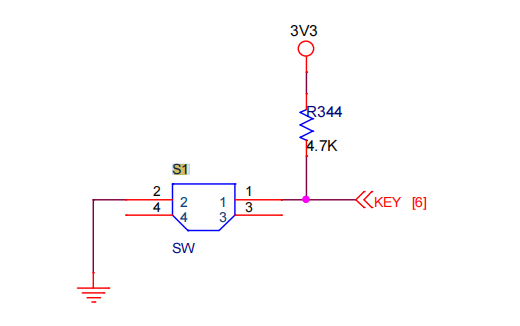

Board Reset Button

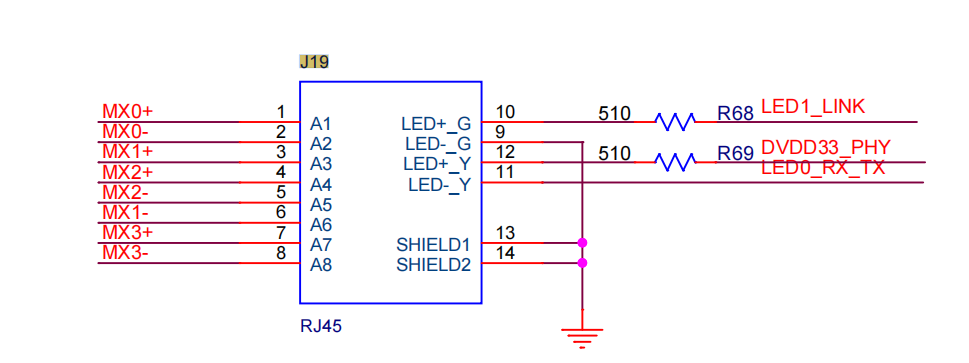

RJ45

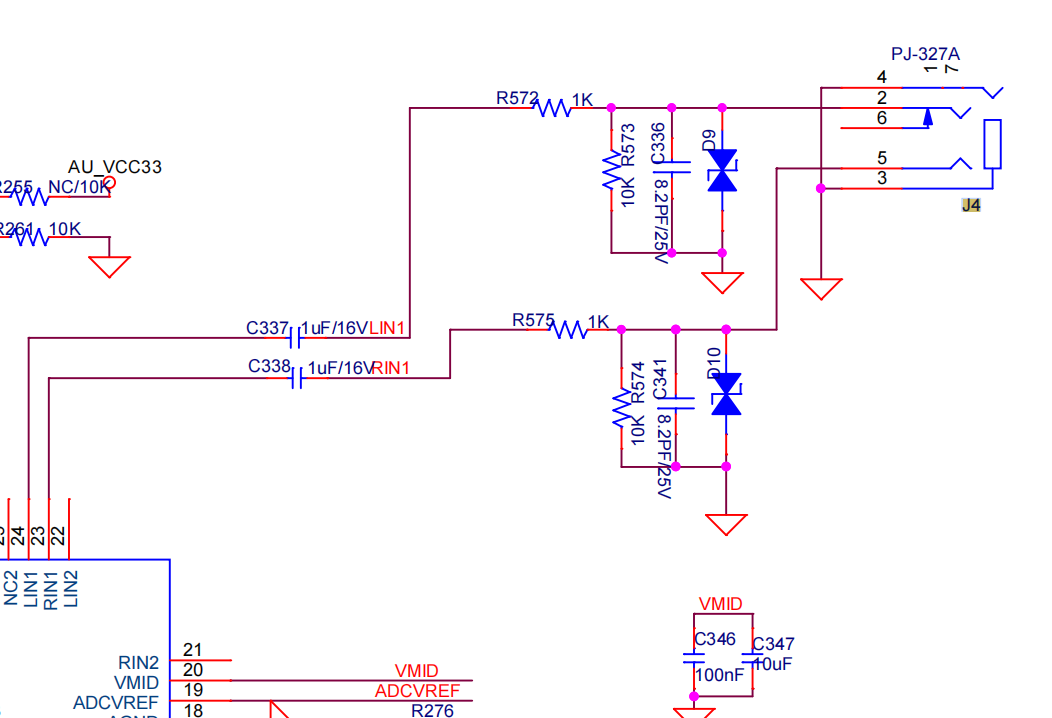

Audio

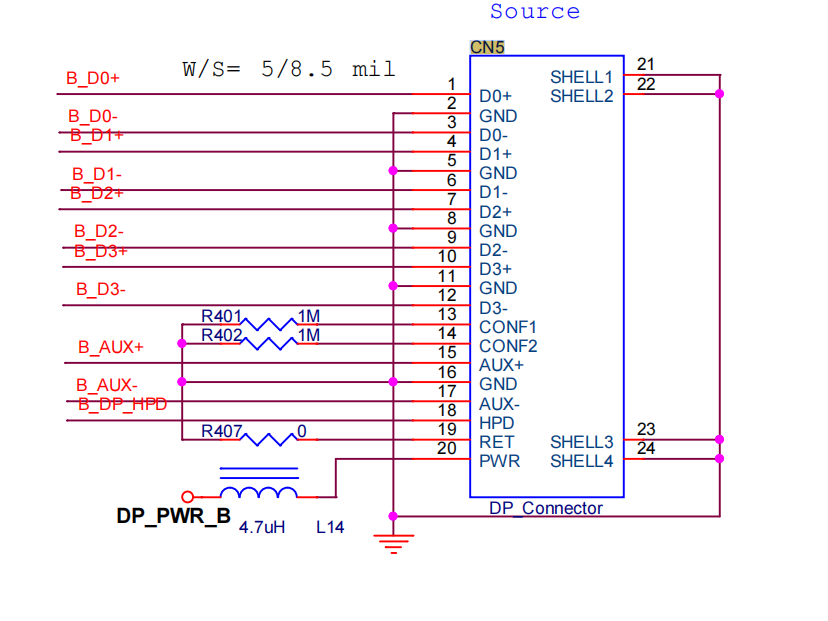

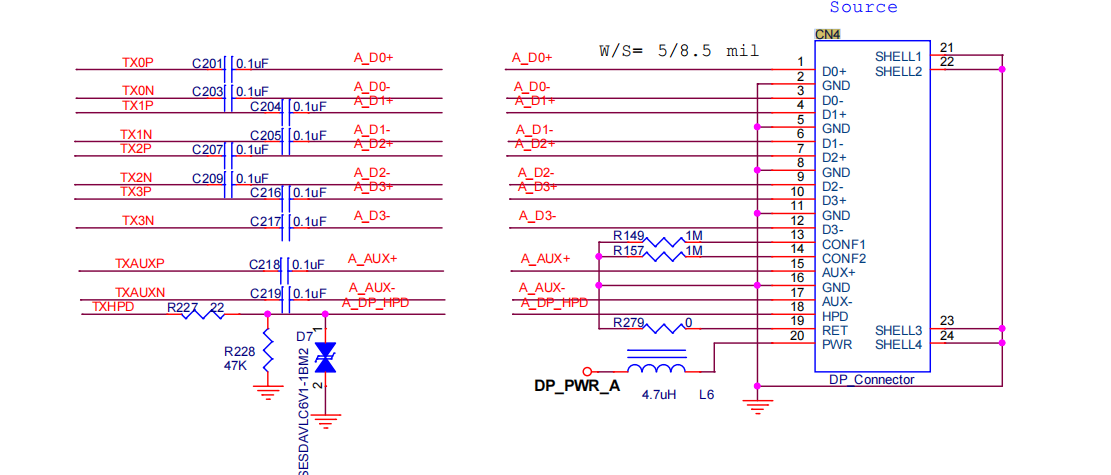

DP_OUT2

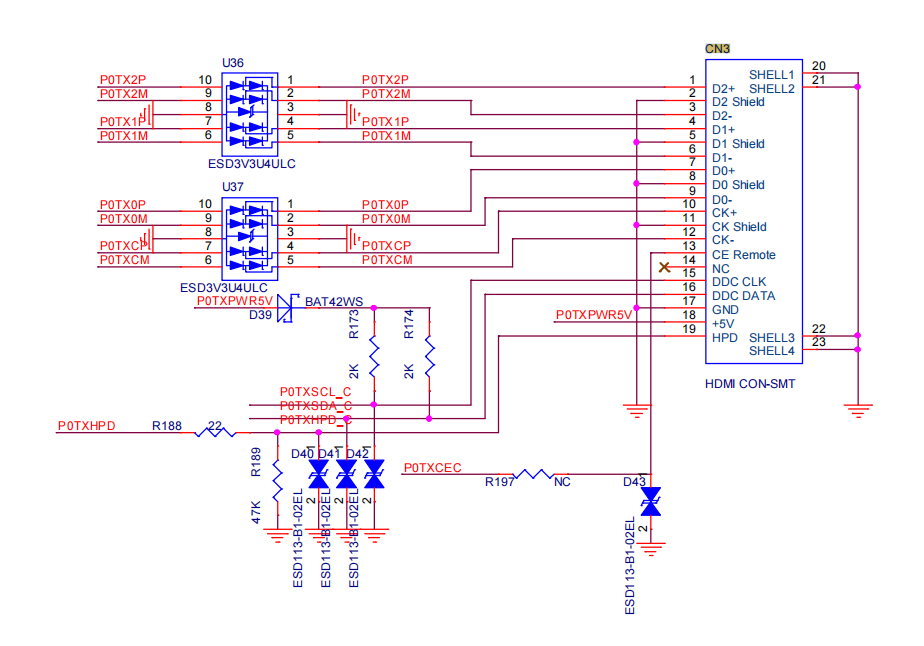

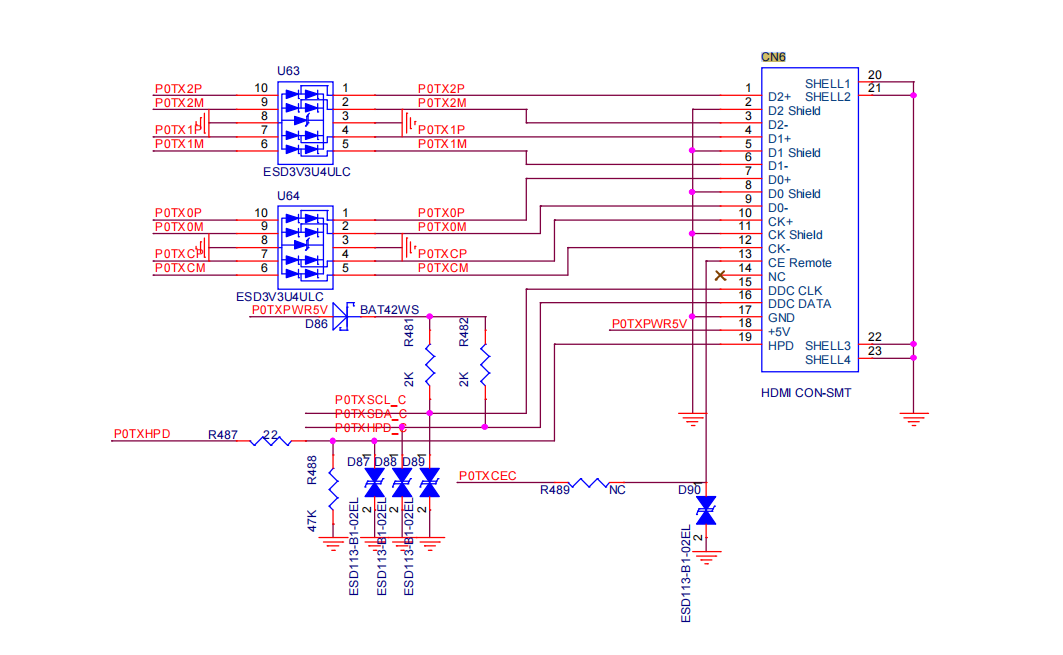

HDMI_OUT2

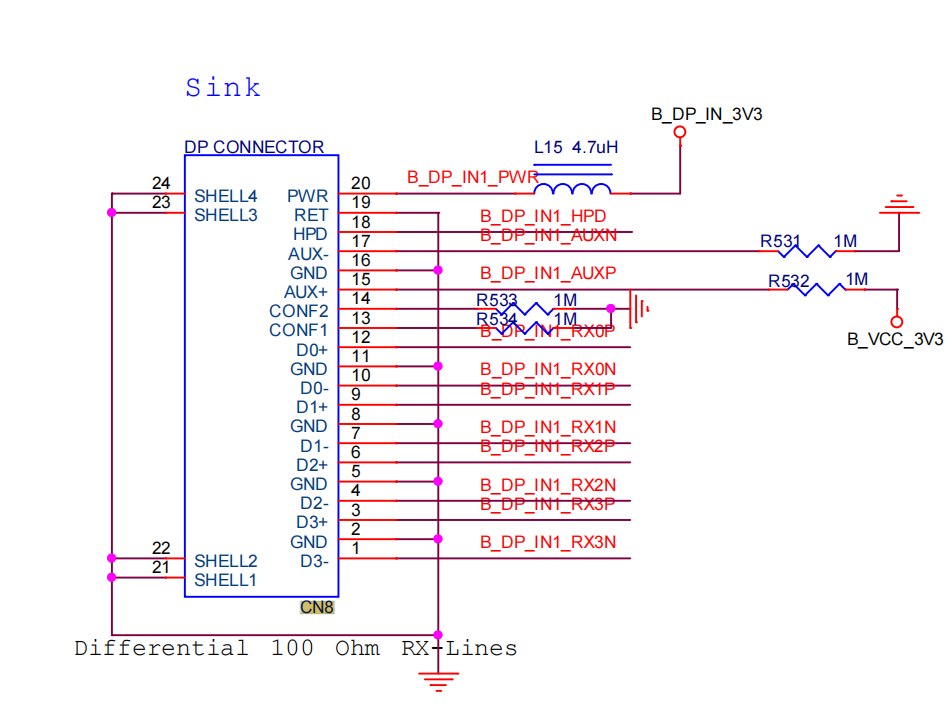

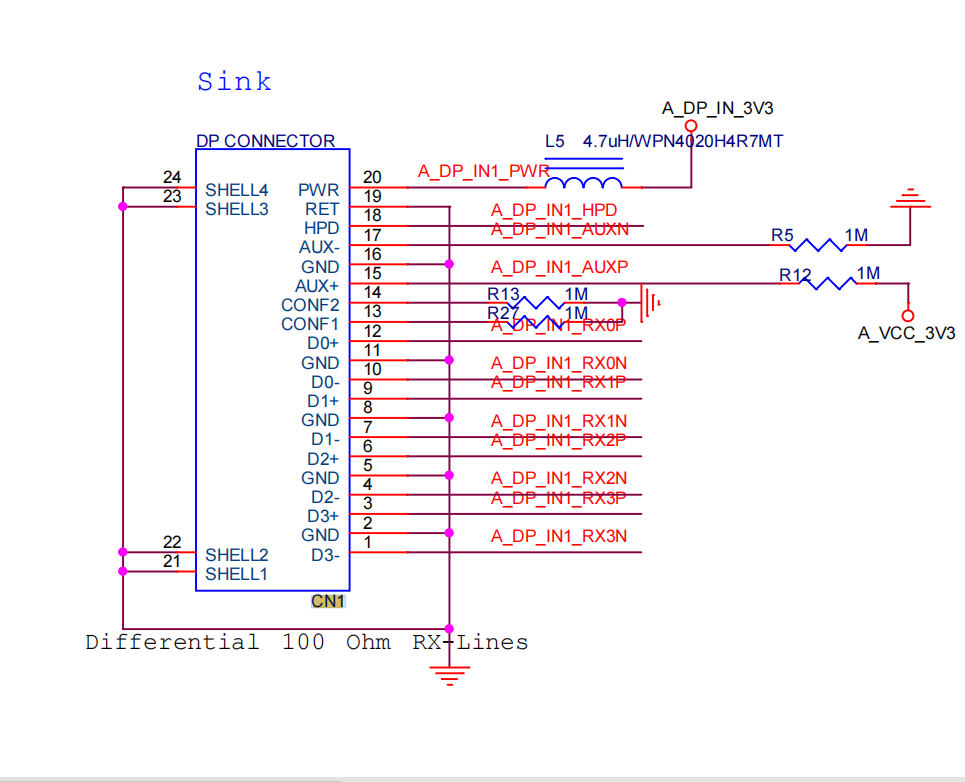

DP_IN2

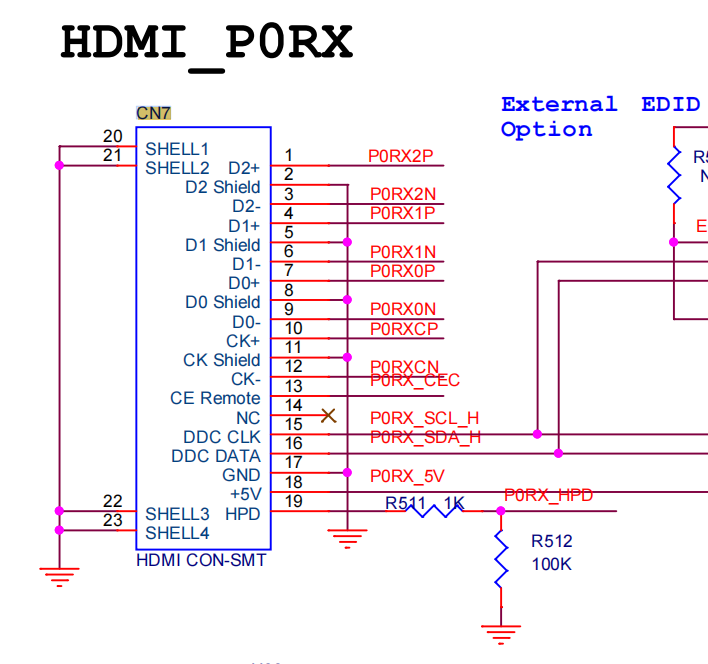

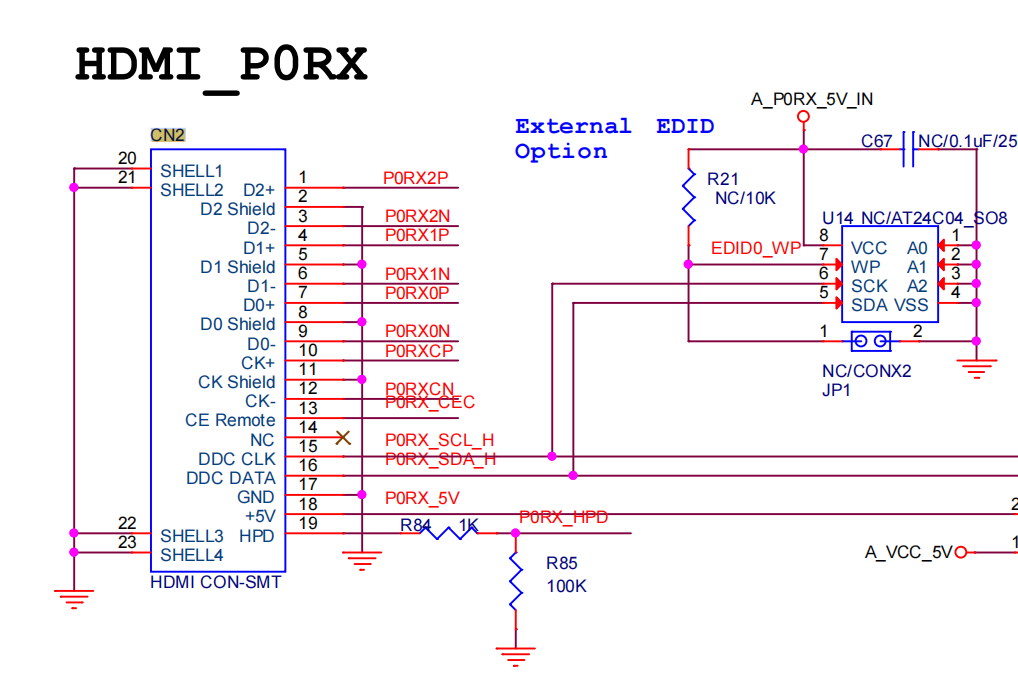

HDMI_IN2

DP_OUT1

HDMI_OUT1

DP_IN1

HDMI_IN1

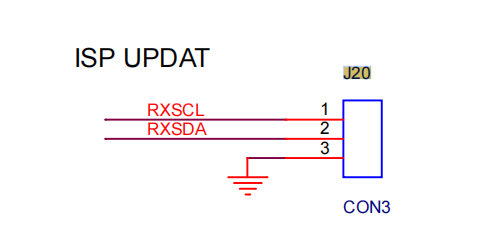

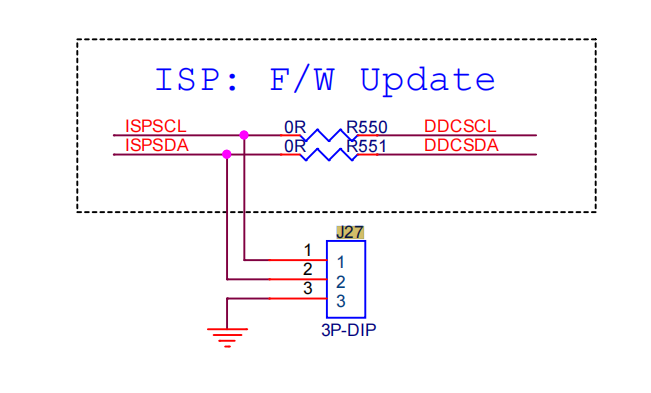

ITE Programming Interface 1

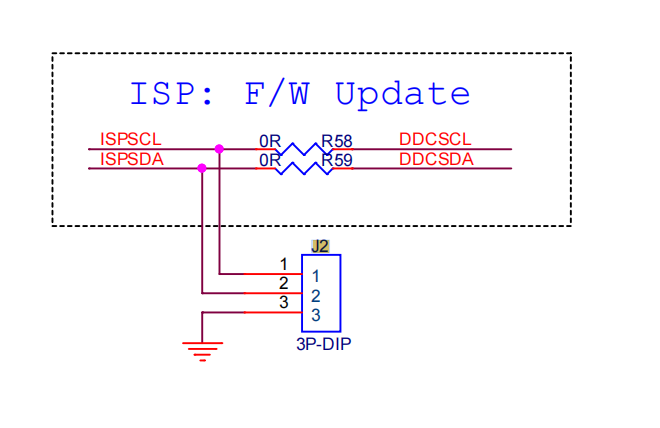

ITE Programming Interface 2

ITE Programming Interface 3

ITE Programming Interface 4

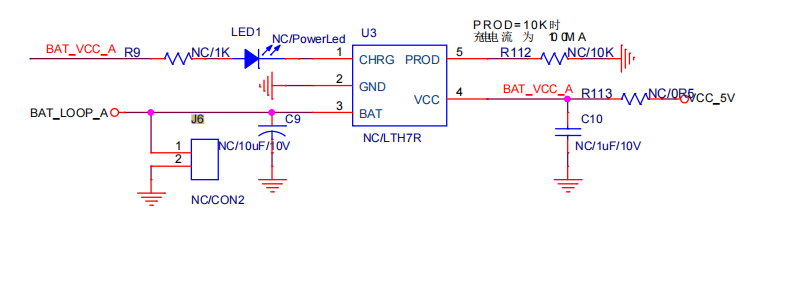

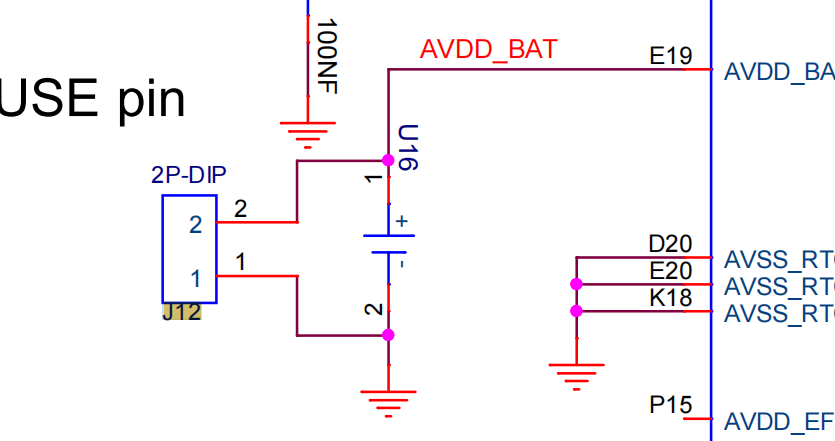

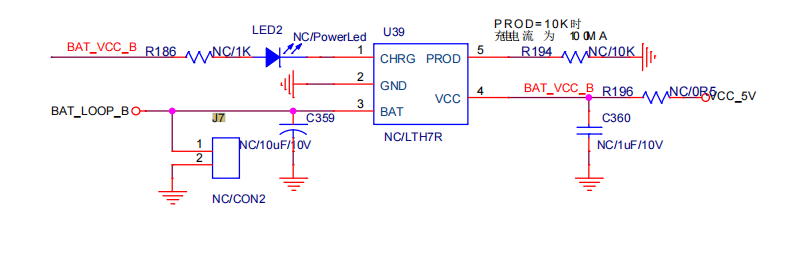

Lithium Battery Interface

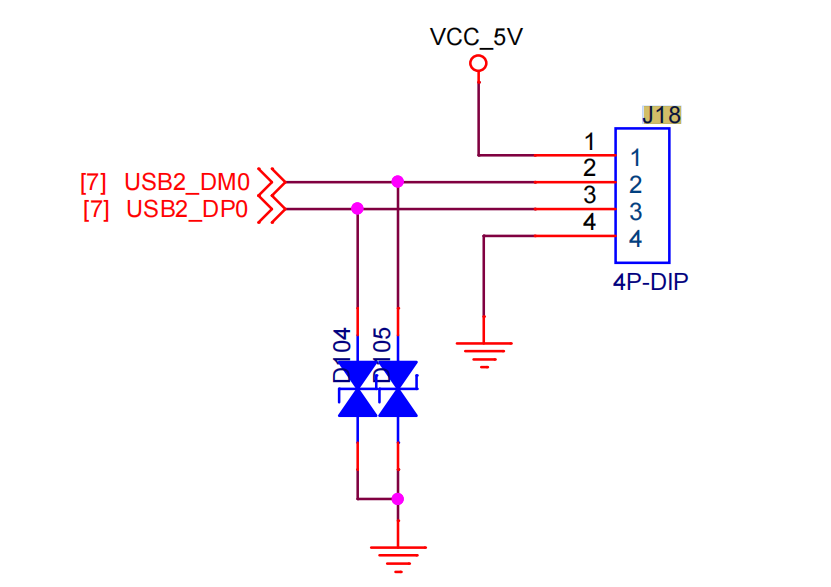

USB Interface

Light Board Interface

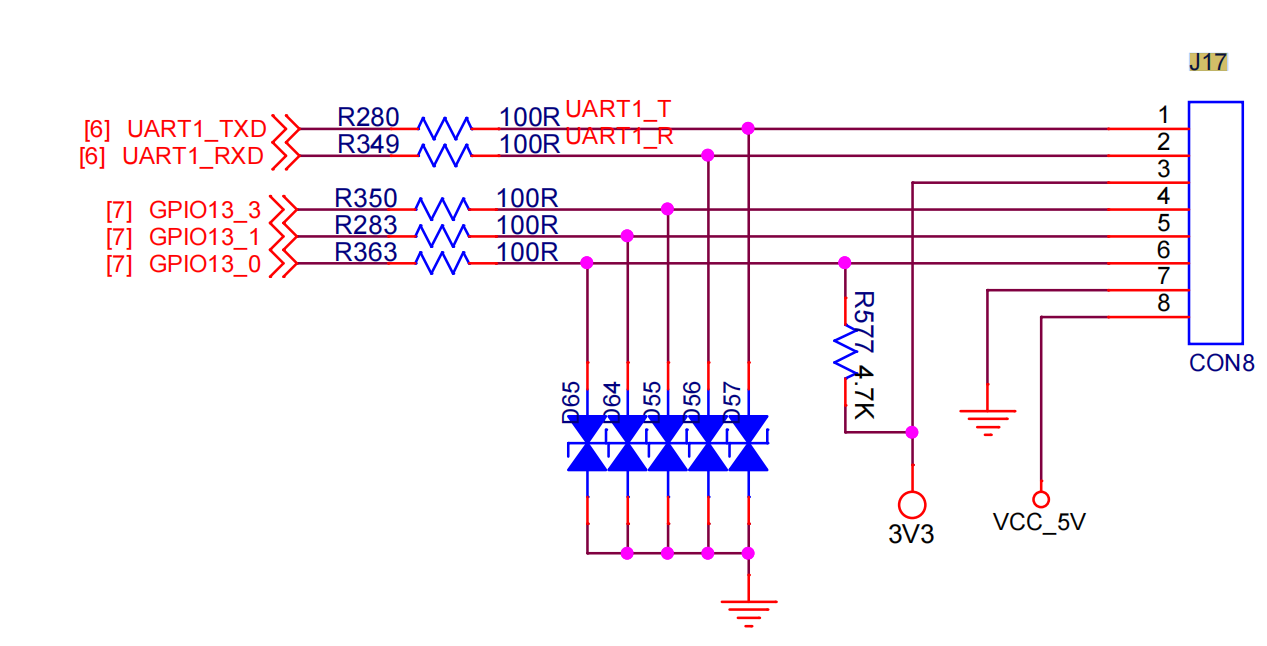

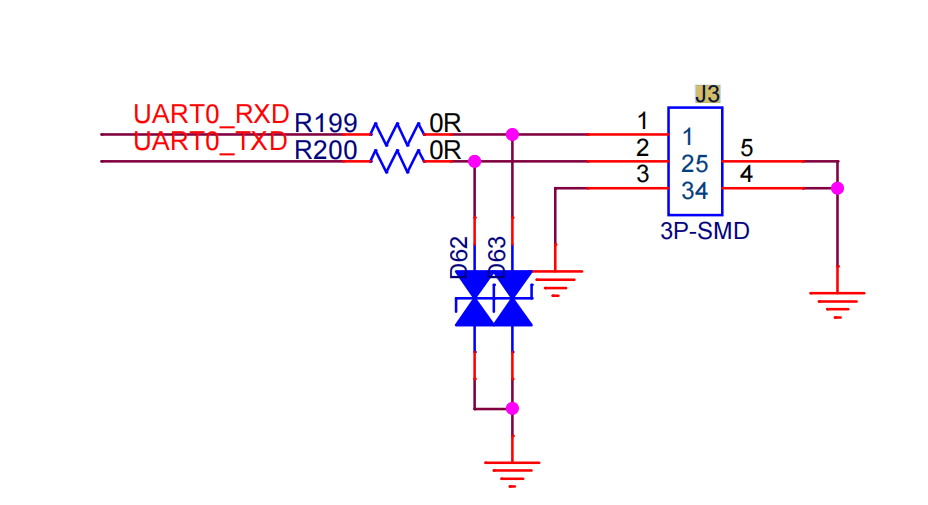

Serial Port

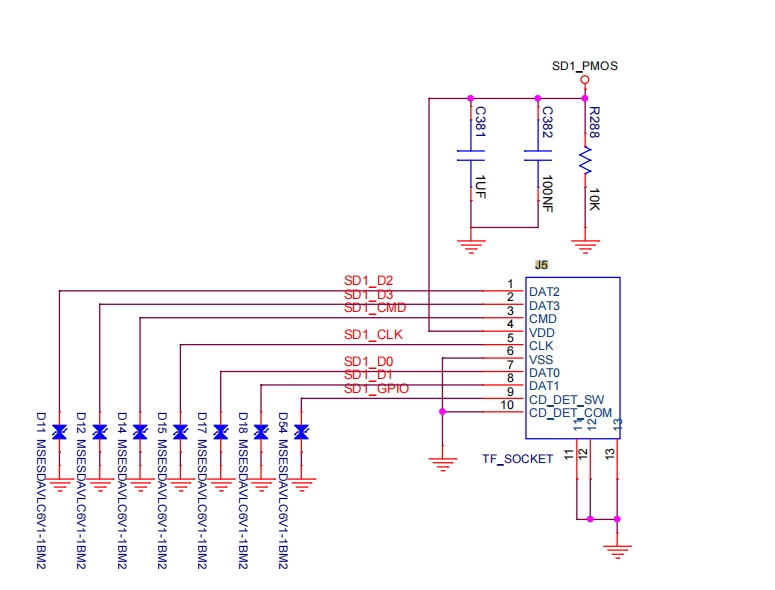

SD Card

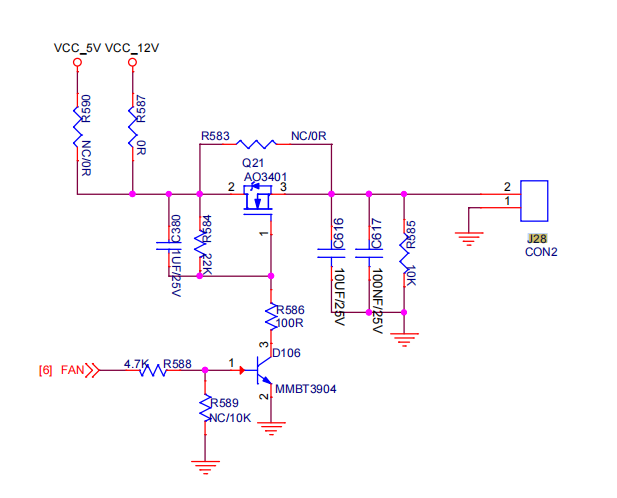

Fan

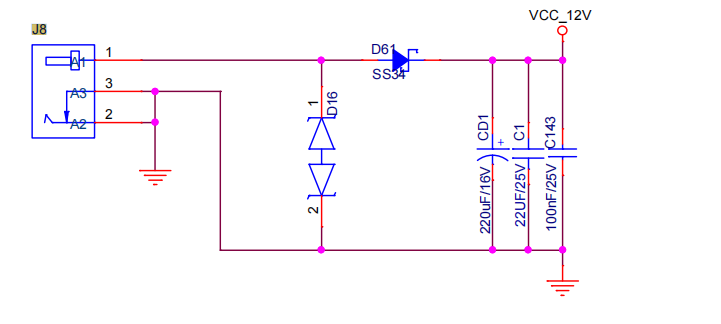

Power Adapter Interface
