HiSiliconhi3531DDualHDMI 4KBoard
Project: Board Introduction | page_id: 880
| HI3531DV100 Board | |
|---|---|
| Model | XSWTVR-8CT31DV100/TX |
| CPU | HI3531DV100 |
| Video Encoding/Decoding | Supports H.264/H265 encoding/decoding, simultaneous encode/decode max resolution 38400x2160@30fps x2 |
| Storage | SPI NOR 128Mbit flash |
| USB | USB 2.0 x1 |
| Video Input | Dual HDMI |
| Audio Input | Dual HDMI embedded audio |
| Video Output | HDMI |
| Storage Interface | 1 SATA, supports up to 16TB HDD |
| Network | RJ45 10/100/1000M |
| Operating Temperature | 0 to 70℃ |
| Service Life | Continuous operation lifespan of more than 2 years |

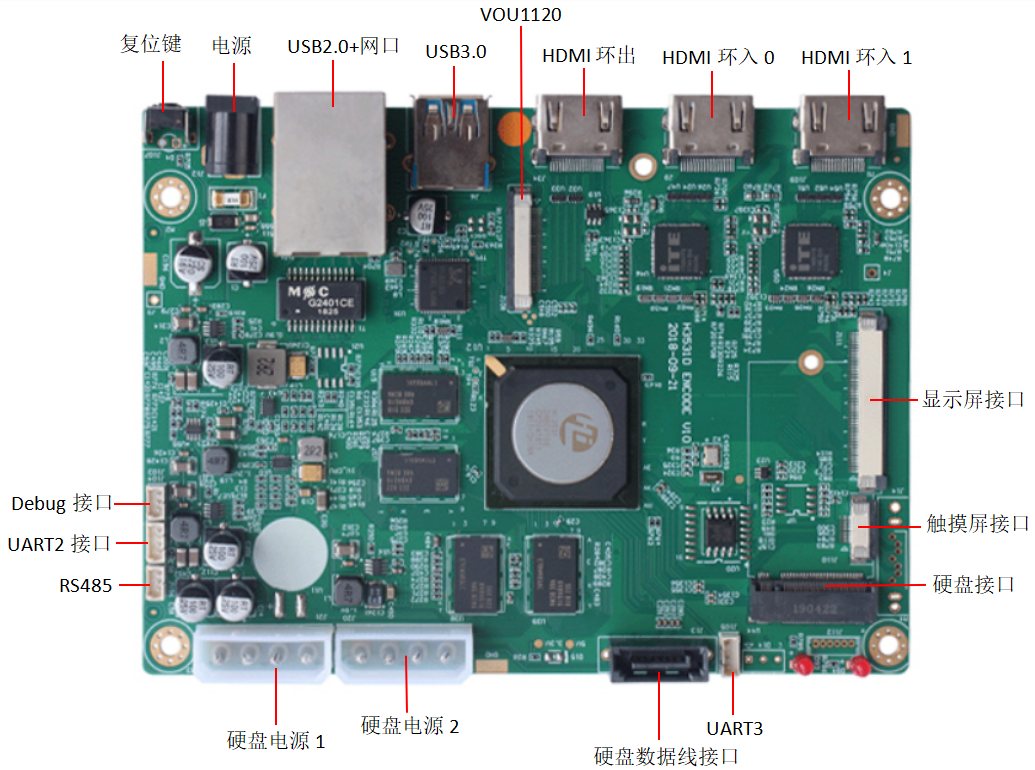

1. Product Images
Board size: 135*100mm
2. CPU Specifications
Features
• Quad-core ARM Cortex A17 @1.4 GHz;
• Integrated Mali-T720 GPU;
• 4x4K@30 fps H.265/H.264 decoding+2x1080p@30 fps H.264 encoding;
• HDMI 2.0+BT1120+VGA+CVBS outputs,HDMI support up to 3840 x 2160@60 fps;
• 2xGMAC ports,2xSATA 3.0+1xPCIe 2.0/SATA 3.0 interface,2xUSB 2.0+1xUSB 3.0;
3. Interface Circuits

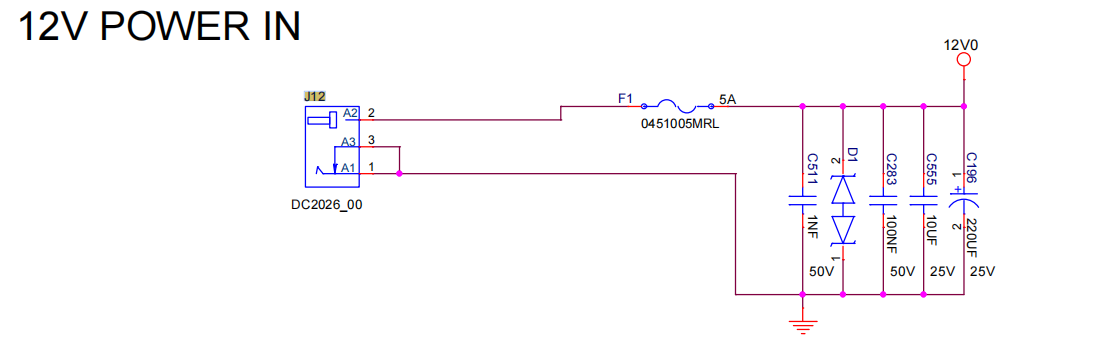

12V power supply

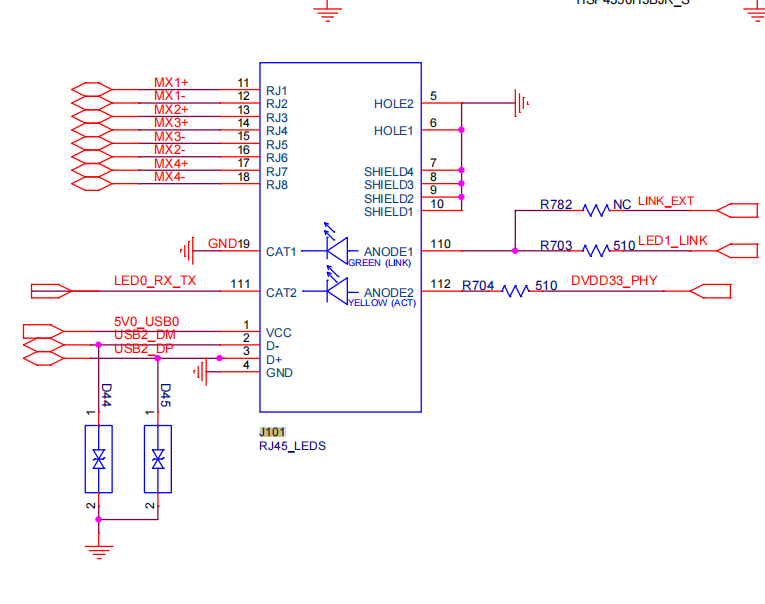

USB2.0 + Ethernet port

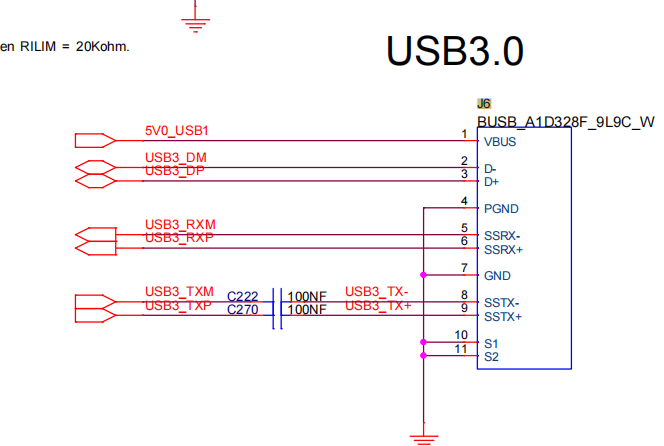

USB3.0

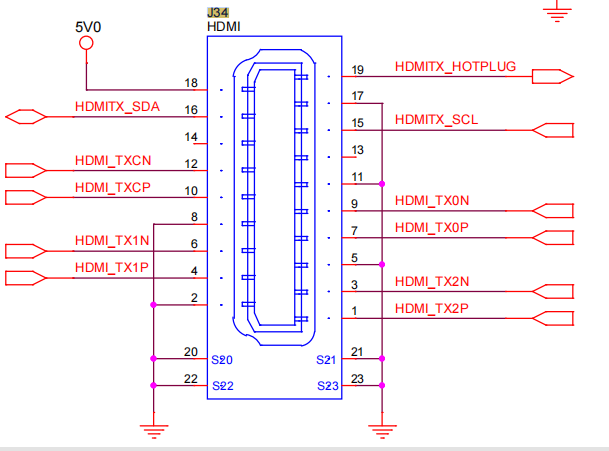

HDMI loop-out

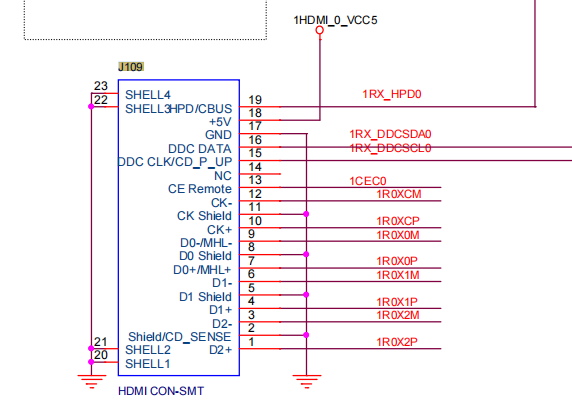

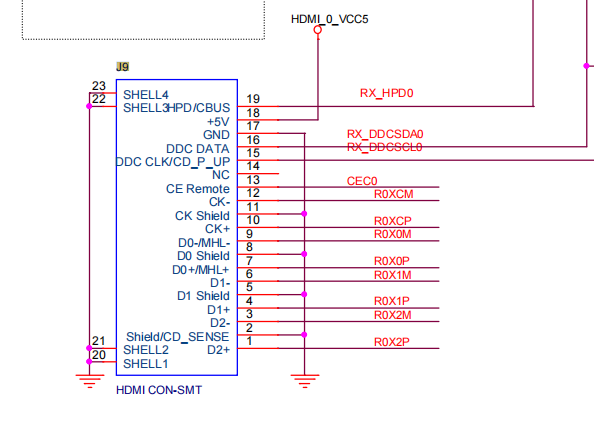

HDMI loop-in 0
HDMI loop-in 1

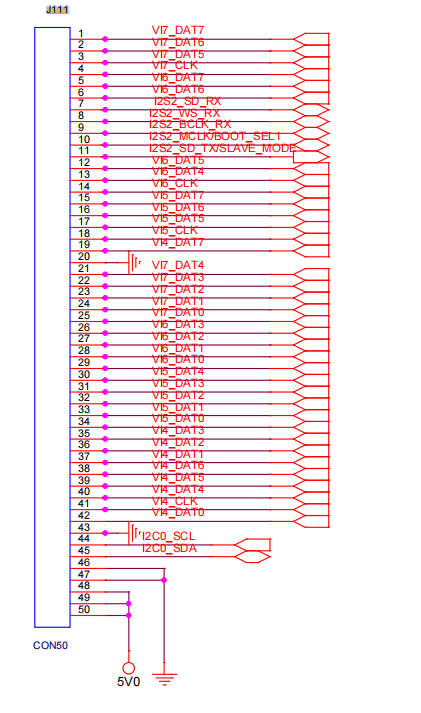

Display interface
Touch screen interface

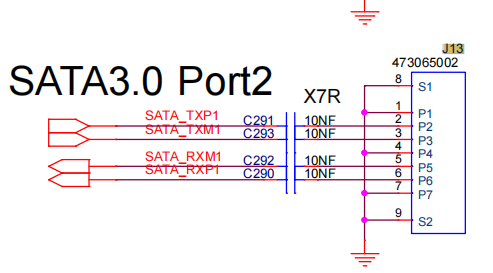

HDD interface

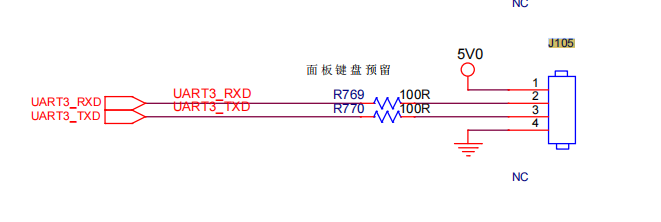

UART3
HDD data cable interface

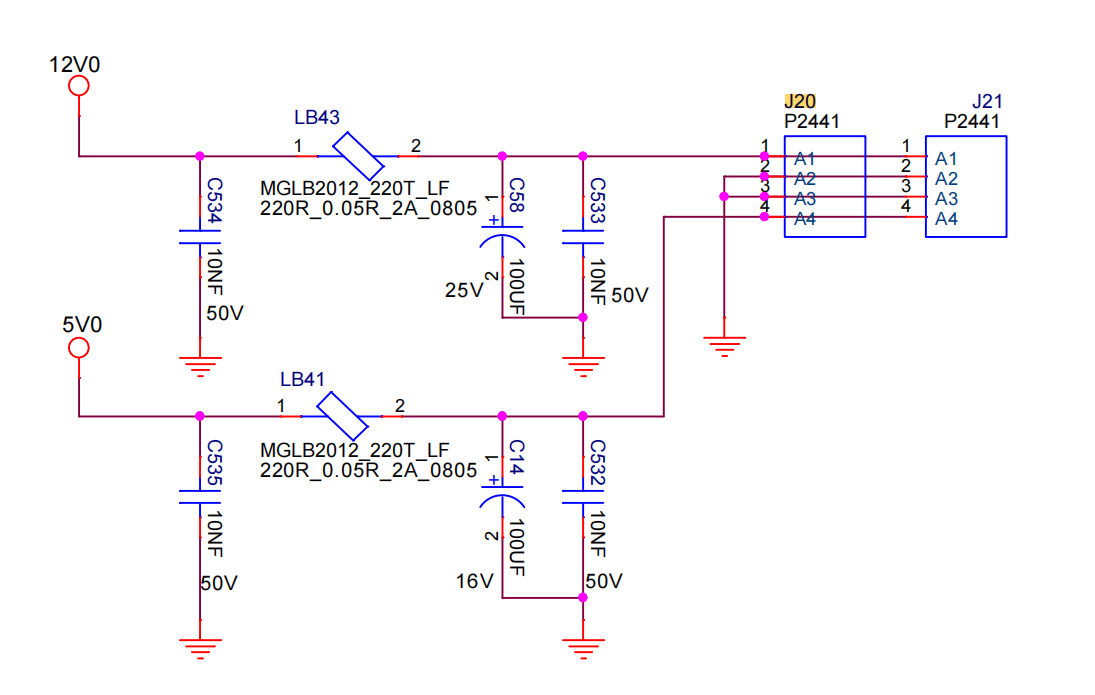

HDD power

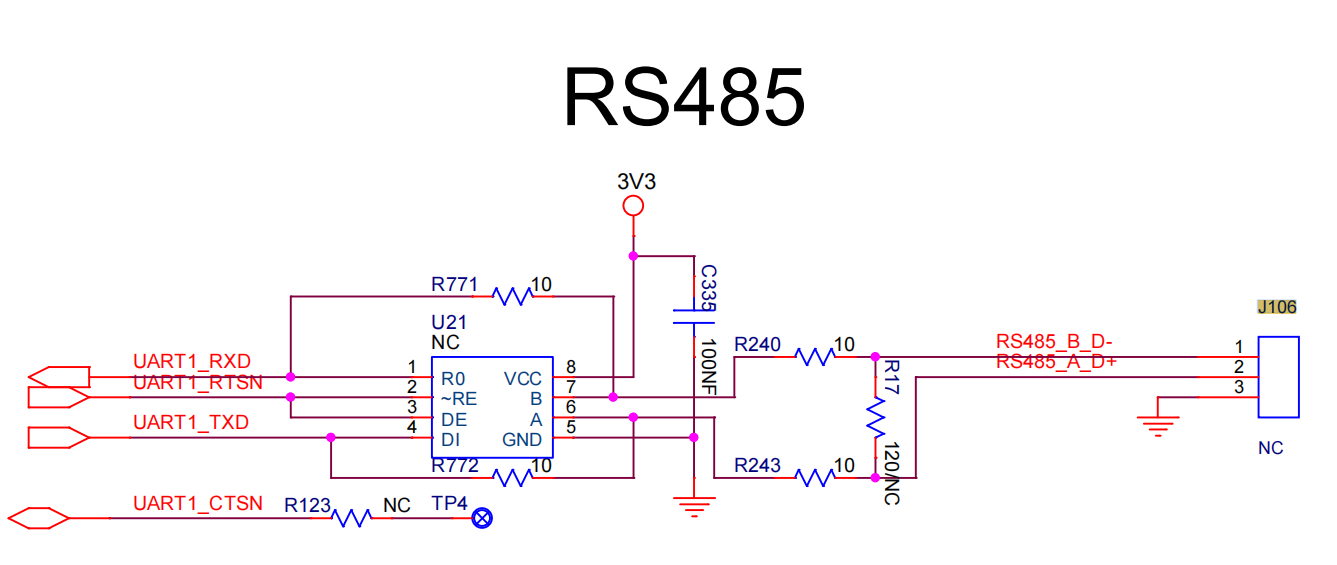

RS485
Board reset button

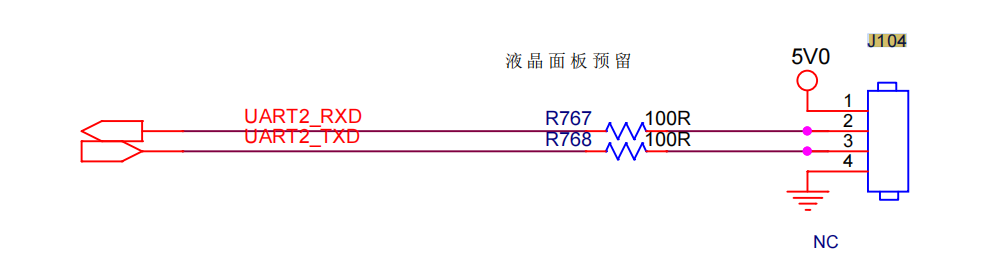

UART2 interface

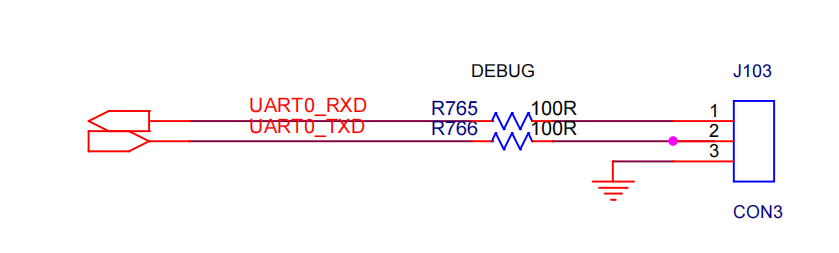

Debug interface
4. FAQ
