HiSilicon3521DualHDMIBoardwith4Gvariant

Dev Boards & Modules · HiSilicon

Project: Board Introduction | page_id: 1351

HI3521dv100 Dual-Channel HDMI Encoder
Model	H3521V1-XSWCODEC_V2
CPU	HI3521DV100
Video Encoding	Supports H.265/H.264 encoding/decoding, max resolution 1920x1080@60fps
Video Input	1 x HDMI input, max resolution supports 1920x1080@60fps
Audio Input	HDMI embedded audio, sampling rate: 8K/12K/16K/24K/32K/44.1K/48K
Video Output	None
Storage	SPI nor 128Mbit flash
USB	USB 2.0
Network	RJ45 10/100/1000M
Operating Temperature	0 to 70℃
Service Life	Continuous operation life of more than 3 years

Product Introduction

Board Size: 135*75mm

Chip Specifications

HI3521DV100
Description
• Quad-core ARM Cortex A17 @1.4 GHz;
• Integrated Mali-T720 GPU;
• 4x4K@30 fps H.265/H.264 decoding+2x1080p@30 fps H.264 encoding;
• HDMI 2.0+BT1120+VGA+CVBS outputs, HDMI support up to 3840 x 2160@60 fps;
• 2xGMAC ports, 2xSATA 3.0+1xPCIe 2.0/SATA 3.0 interface, 2xUSB 2.0+1xUSB 3.0;

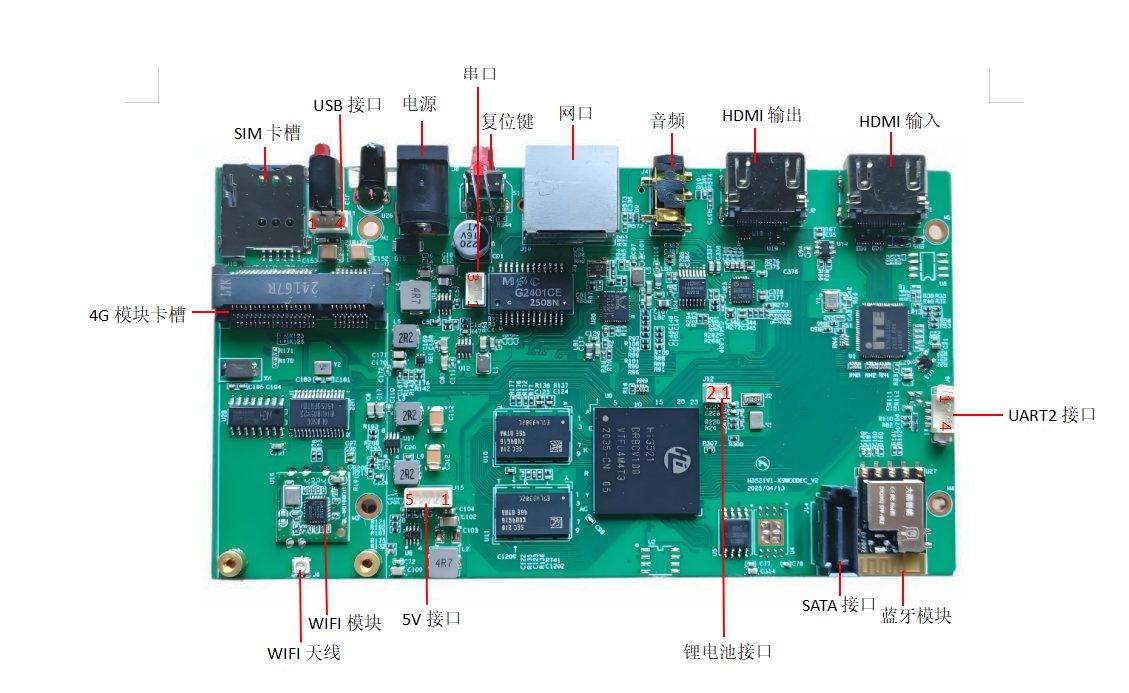

Interface Circuits

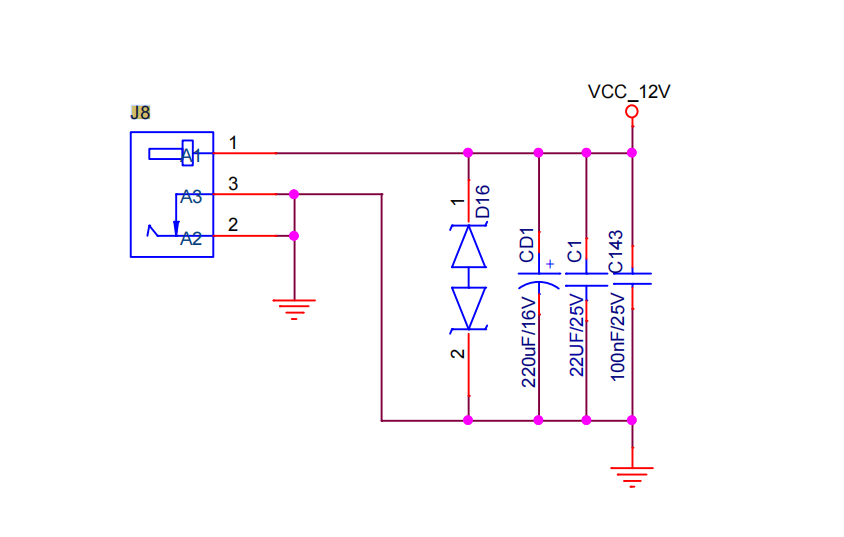

Power

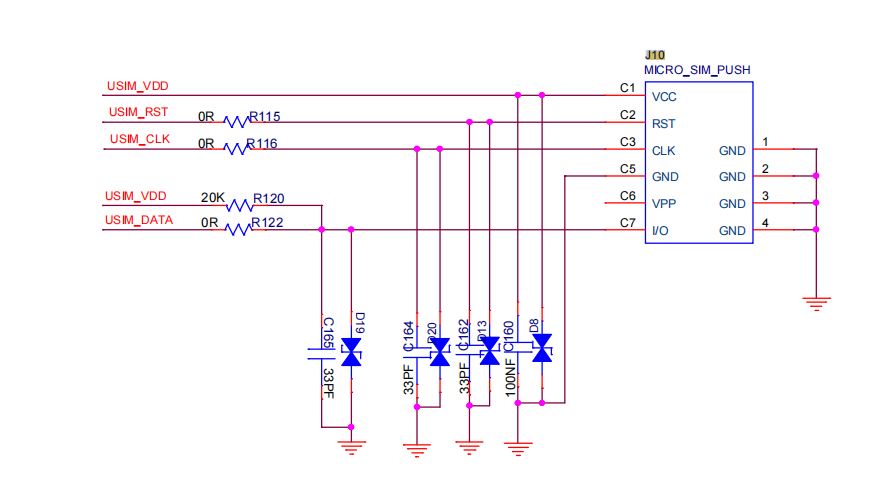

SIM Card

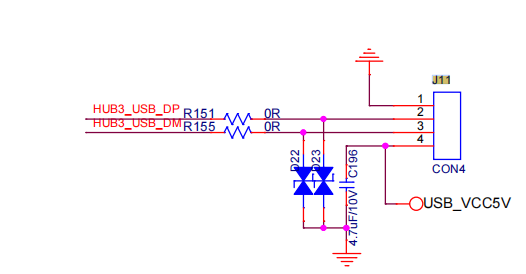

USB Interface

Reset Button

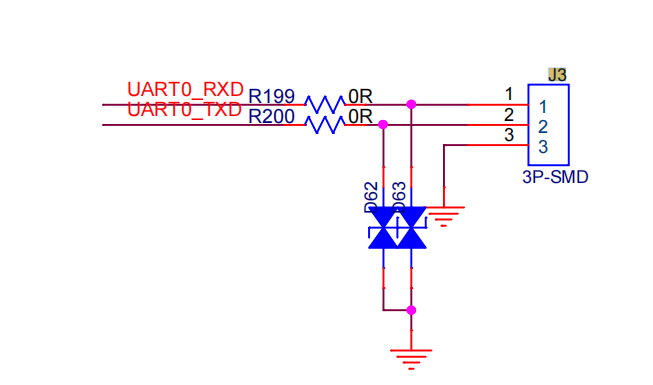

Serial Port

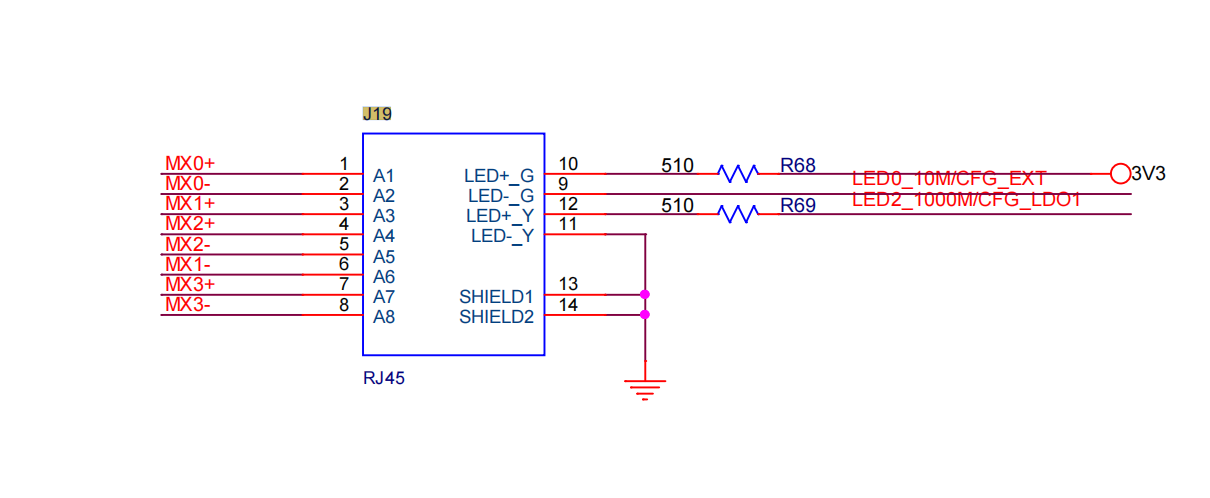

Network Port

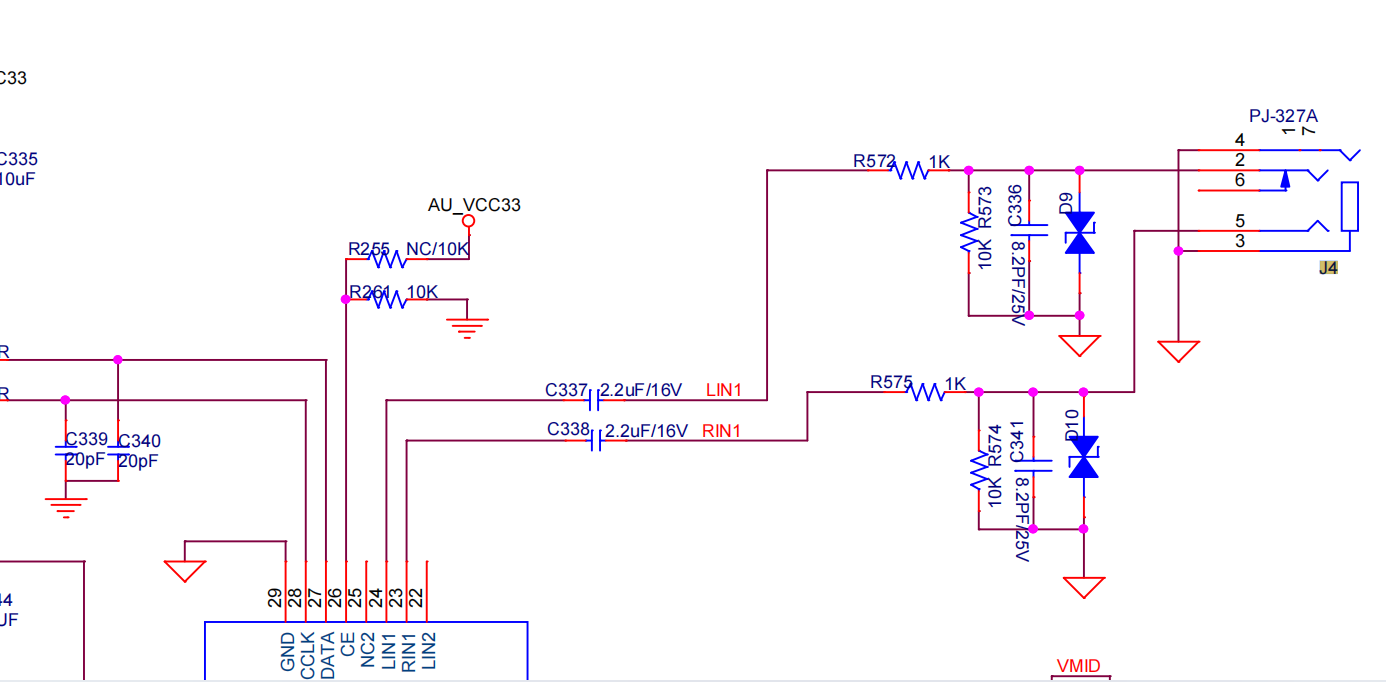

Audio

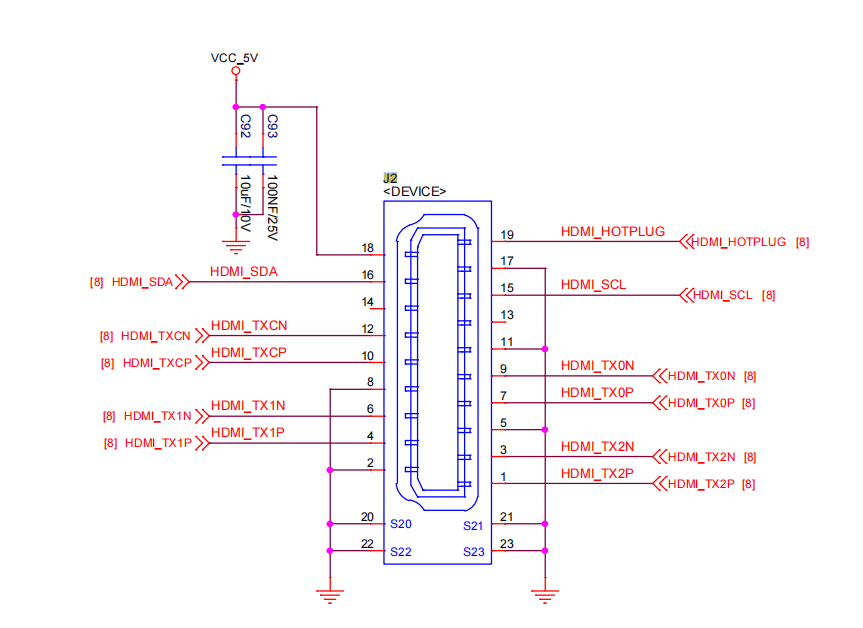

HDMI Output

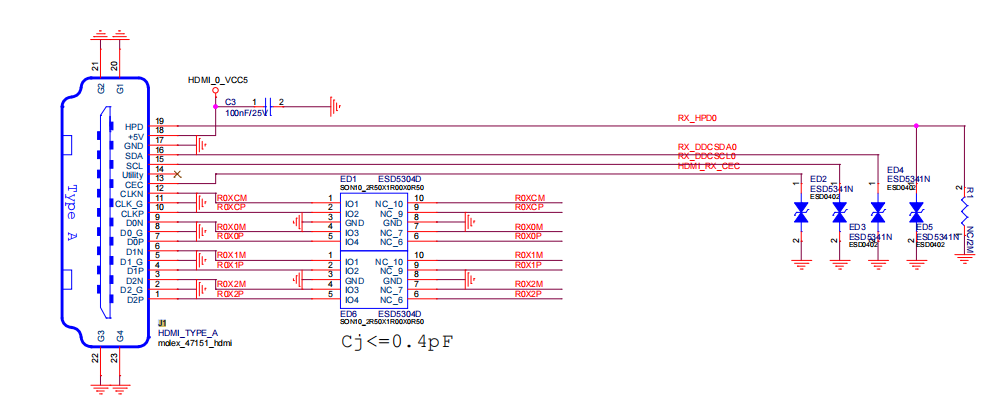

HDMI Input

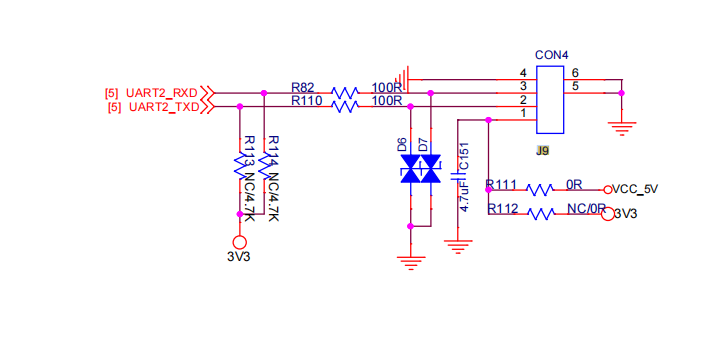

UART2 Interface

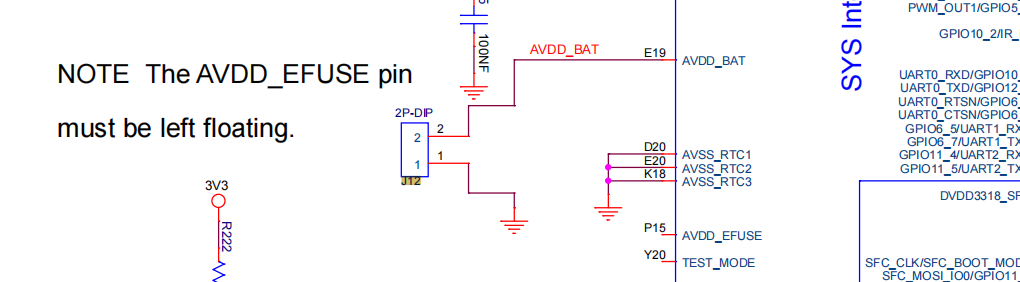

Lithium Battery Interface

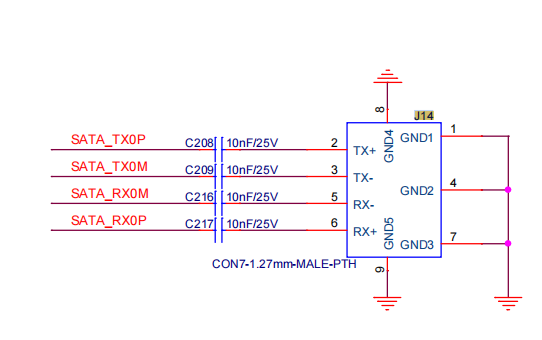

SATA Interface

5V Interface

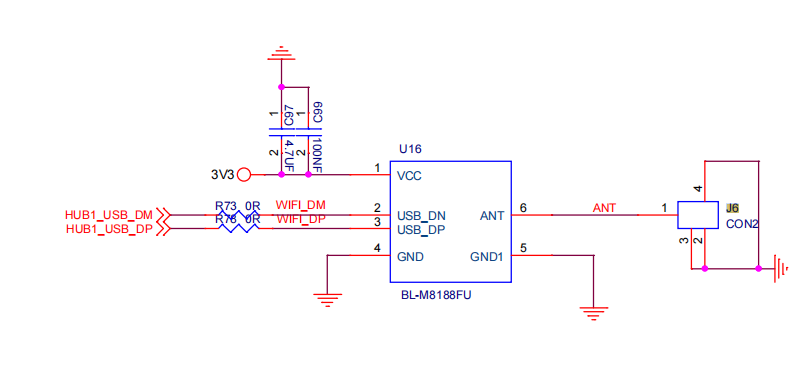

WiFi Antenna

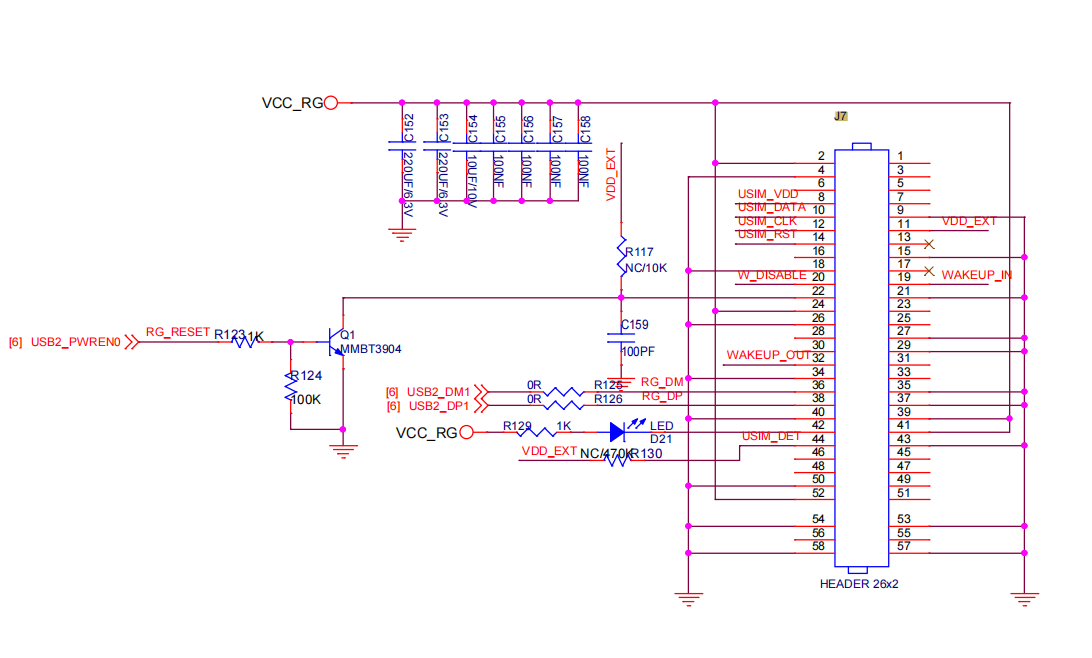

4G Module Card Slot

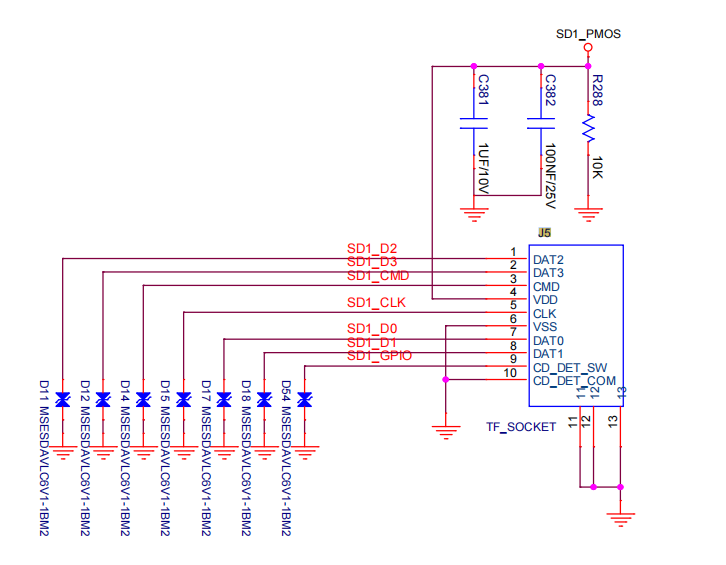

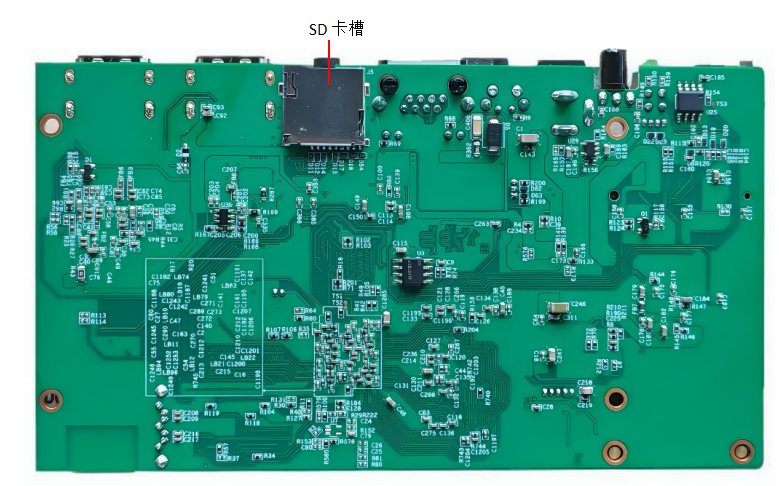

SD Card
