IngenicT41+SC830 4kNetwork Module
Project: Board Introduction | page_id: 898
| 8MP Camera | ||
|---|---|---|
| Category | Item | Specifications |
| Model | Main Chip | Ingenic T41XQ |
| Sensor | SmartSens SC830 | |
| Capture Parameters | Lens | 4mm (optional 2.8mm, 6mm, 8mm and other lenses to suit different installation scenarios) |
| Sensor Type | SC830 1/2.7'' 8MP sensor | |
| Minimum Illumination | 0.01lux/F1.2 (color), 0.01lux/F1.2 (black) | |
| Shutter | 1/3 second to 1/10000.000 second | |
| Day/Night Switching | Supports hardware photosensor and software photosensor | |
| Video Parameters | Video Compression Standard | H.264/H.265 |
| Compression Output Bitrate | 128Kbps~8000Kbps | |
| Number of Streams | Dual stream | |
| Max Image Size | 3840x2160 | |
| Max Frame Rate | 15FPS | |
| Image Settings | Brightness, contrast, saturation, exposure, vertical flip, horizontal mirror | |
| Audio Parameters | Audio Output | Supported |
| Audio Input | Supported | |
| Network | Access Protocol | HTTP-FLV/RTSP/WEBRTC/RTMP/WS-FLV/WS-RAW/ONVIF GB/T28181 |
| Network Protocol | Supports TCP/IP, DHCP, DNS, NTP, RTSP, RTMP live streaming | |
| Wired Network | 1 RJ45 10M/100M Ethernet port | |
| Functions | Local Client | Supported |
| Network Access | Supported | |
| Local Upgrade | Supported | |
| OSD Overlay | Supported, more than 2 custom regions, supports time display | |
| Storage | Storage Function | Supports up to 512GB SD card storage |
| Recording Download | Supports local and remote recording download | |
| Recording Playback | Supports remote recording playback | |
| Others | Operating Temperature and Humidity | -10℃~50℃, humidity less than 95% |
| Power Consumption | 3W MAX |

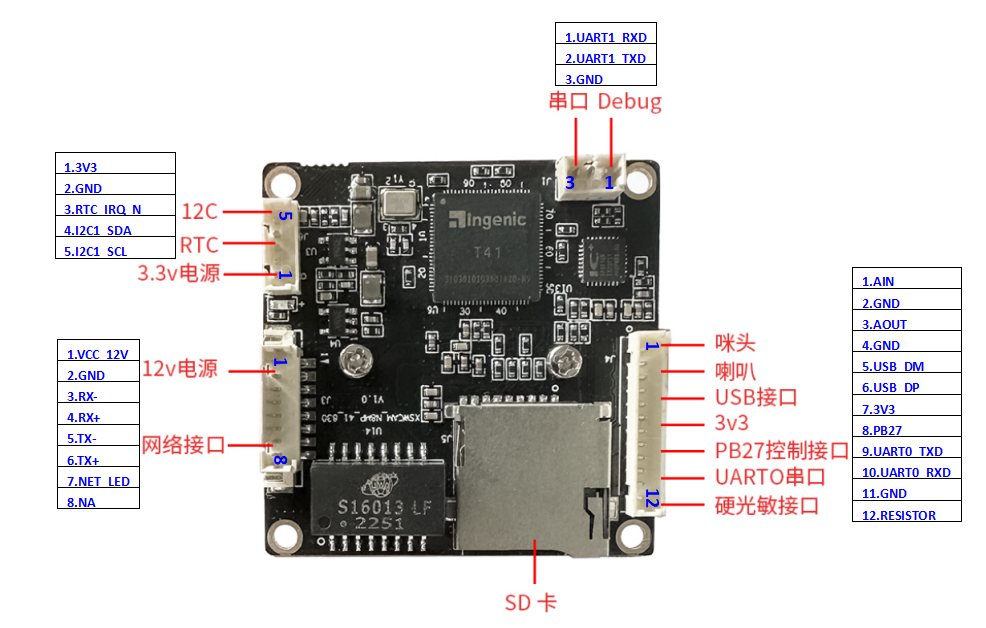

1. Product Images
Board size: 38*38mm
CPU Specifications
Features
• 1.0~1.4GHz XBurst2 dual-core CPU
• 4K (2160P) H.264/H.265/JPEG video encoding
• 1.2T@int8 / 4.8T@int4 AIE (NPU) hardware computing power
• Latest professional ISP with multi-level NR (2DNR/3DNR) and sharpening
• Integrated RTC, POR, DMIC and audio codec
• Magik 2.0 one-stop algorithm development platform
Applications
• Home camera
• AI camera
• Surveillance camera
• Video doorbell
• AI IP camera
• Video conferencing device
• Dash cam
• In-cabin DMS AIoT device
• Roomba robot
Interface Circuits

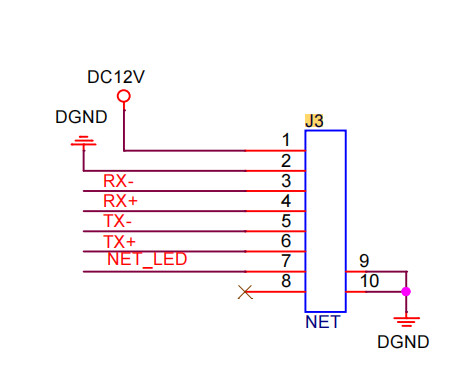

12V power supply + network interface

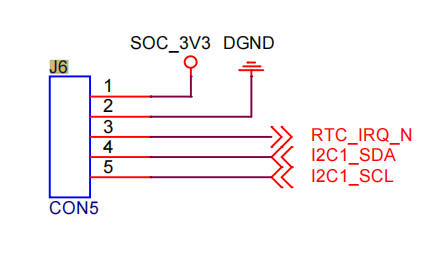

I2C interface

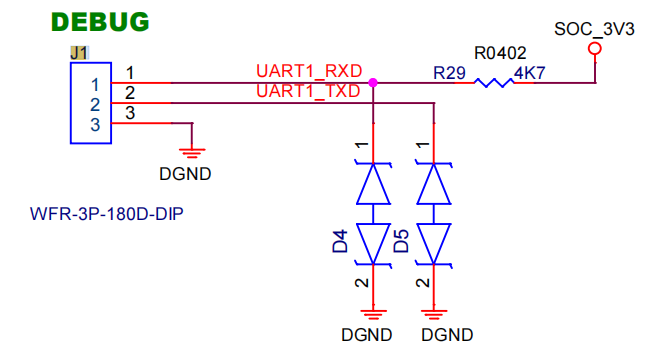

Debug interface

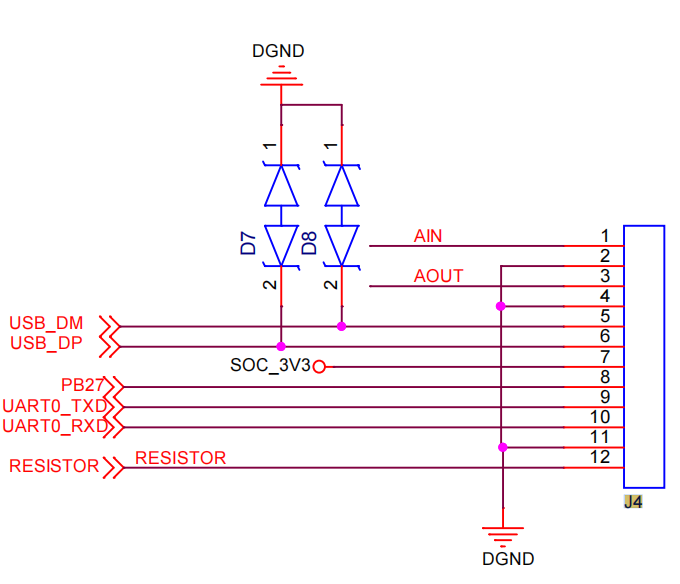

Microphone/speaker/USB/PB27/UART0/hardware photosensor interface

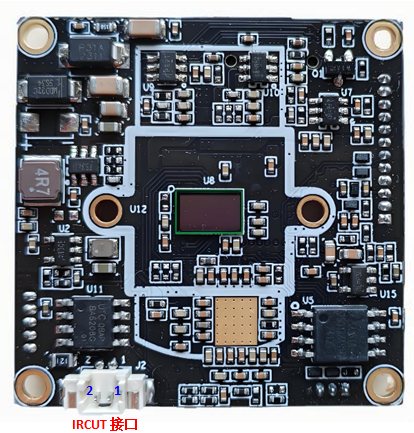

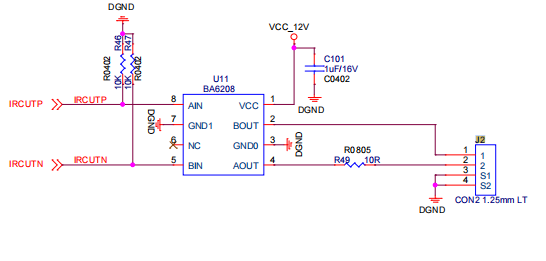

IR-CUT interface

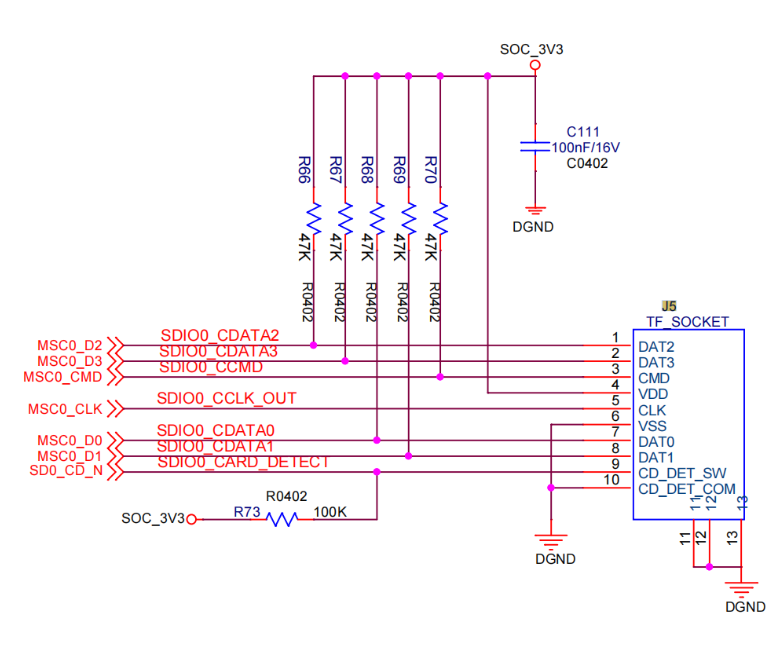

SD card interface
