IngenicT32+SC835Module
Project: Board Introduction | page_id: 1636
| Ingenic T32+SC835 Module | |
|---|---|
| CPU | Ingenic T32XQ |
| SENSOR | SC835 |
| Memory | 2Gbit 256MB |
| System | Linux |
| Algorithm | 1Tops@int8 hardware computing power / supports int16/int8/int4/int2 bit widths / supports preprocessing and post-processing hardware acceleration / Magik2.0 one-stop algorithm development platform / AES, DES, RSA and HASH digital true random number generator |
| Boot Time | Less than 15 seconds |
| Video Encoding | H.264/H.265/MJPEG, maximum performance: 3840x2160@25fps / supports CBR/VBR/CVBR/AVBR bitrate control / supports smart encoding and ROI function / JPEG maximum resolution support 16384x3072 |
| Audio Input | MIPI-CSI/DVP interface / The MIPI interface supports 4-lane MIPI-CSI@1.5Gbps and supports 2lane+2lane mode / BT601/BT656/BT1120 interface |
| Network | RJ45 10/100M |
| Starlight-Level ISP | Supports 3A / supports raw domain denoising / supports DPC, BLC, LSC, GAMMA, Defog and CSC functions / supports local tone mapping / supports 2-frame fusion HDR and sensor composite HDR / supports demosaicing / supports local contrast enhancement / supports multi-level noise reduction (spatial and temporal denoising) and sharpening / supports distortion correction / supports scaling, cropping, flip/mirror and rotation |
| Security | AES/RSA/SHA/TRNG/OTP, supports secure boot |
| Package | QFN96 package |
| Operating Temperature | 0 to 70℃ |
| Service Life | Continuous operation life of more than 5 years |
Product Introduction
Board Size: 38*38mm
Chip Specifications
Description
Supports 8MP@25FPS, supports 4K
1T@int8 computing power, with an upgraded architecture for improved utilization
Professional image processor Tiziano-v4.0 and video encoder Hera-v1.2, supports AI ISP image enhancement, supports multiple cameras, supports smart encoding
Low power consumption, fast boot and the Atlas technology are fully upgraded
Features
CPU
XBurst1 1.0~1.4GHz
128bit SIMD ISA
128KB L2 cache
MCU
600MHz RISC-V coprocessor
RV32IM instruction set
AI Engine
1Tops@int8 hardware computing power
Supports int16/int8/int4/int2 bit widths
Supports preprocessing and post-processing hardware acceleration
Magik2.0 one-stop algorithm development platform
Video Encoder
H.264 / H.265 / JPEG encoder
Maximum performance: 3840x2160@25fps
Supports CBR/VBR/CVBR/AVBR bitrate control
Supports smart encoding and ROI function
JPEG maximum resolution support 16384x3072
Image Signal Processor
Tiziano4.0
Supports 3A
Supports raw domain denoising
Supports DPC, BLC, LSC, GAMMA, Defog and CSC functions
Supports local tone mapping
Supports 2-frame fusion HDR and sensor composite HDR
Supports demosaicing
Supports local contrast enhancement
Supports multi-level noise reduction (spatial and temporal denoising) and sharpening
Supports distortion correction
Supports scaling, cropping, flip/mirror and rotation
Video Input Interface
MIPI-CSI/DVP interface
The MIPI interface supports 4-lane MIPI-CSI@1.5Gbps and supports 2lane+2lane mode
BT601/BT656/BT1120 interface
Video Output Interface
Supports Smart LCD interface
Supports RGB888/565/555 and NV12/21 input formats
Supports 800x600@60hz, 24BPP
Audio System
Integrated audio codec
Audio 3A functions (AEC/ANR/AGC)
Mert (AI noise reduction, AI echo cancellation)
Up to 4 DMIC channels
Security Engine
Encryption algorithms: AES, DES, RSA and HASH
Digital true random number generator
Memory Interface
DDR2/DDR3/DDR3L/LPDDR2/LPDDR3
SIP 512Mb/1Gb/2Gb or external memory
SPI Nor Flash/SPI Nand Flash
MSC/SD card interface
eMMC interface
Peripherals
I2C, SPI, UART, GPIO, PWM, SDIO
USB 2.0 OTG
Ethernet MAC RMII interface
High-precision RTC
Built-in temperature sensor function
Boot
Supports SPI/USB/MSC boot
Supports secure boot
Physical Specifications
QFN96 package
Low power consumption
Applications
Battery camera
Camera
USB Cam

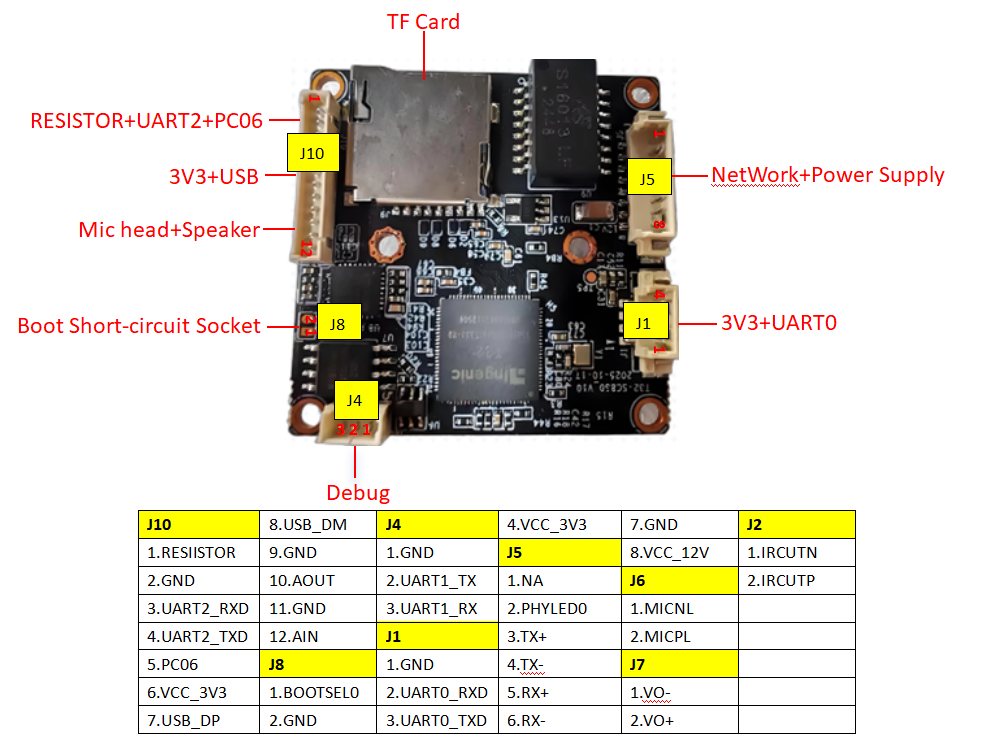

Interface Circuits

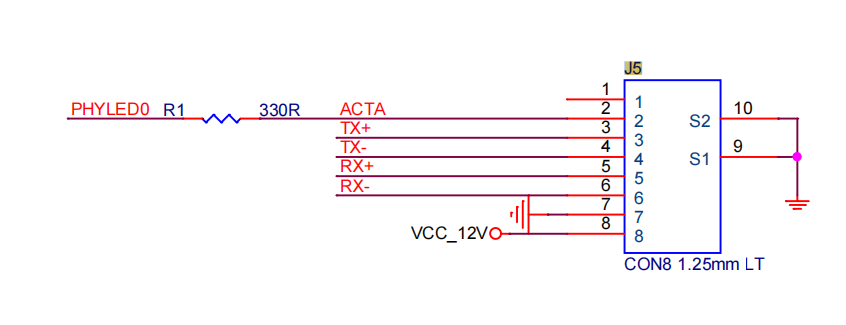

NetWork+Power Supply

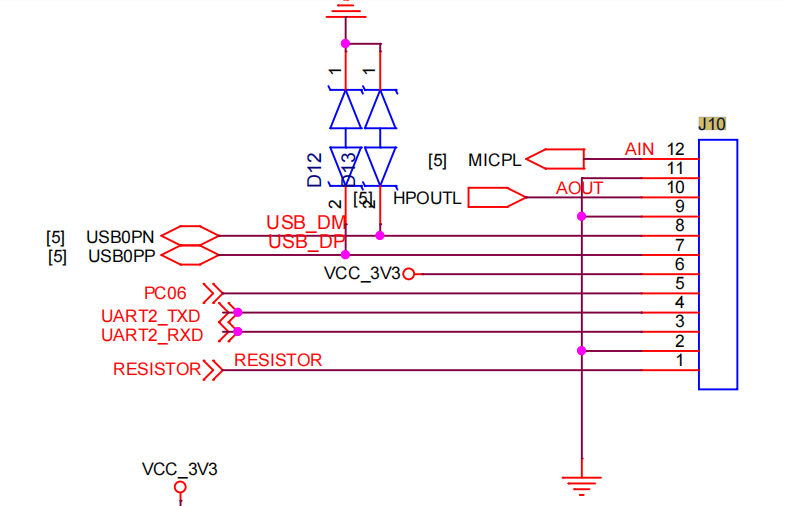

RESISTOR+UART2+PC06/3V3+USB/Mic head+Speaker

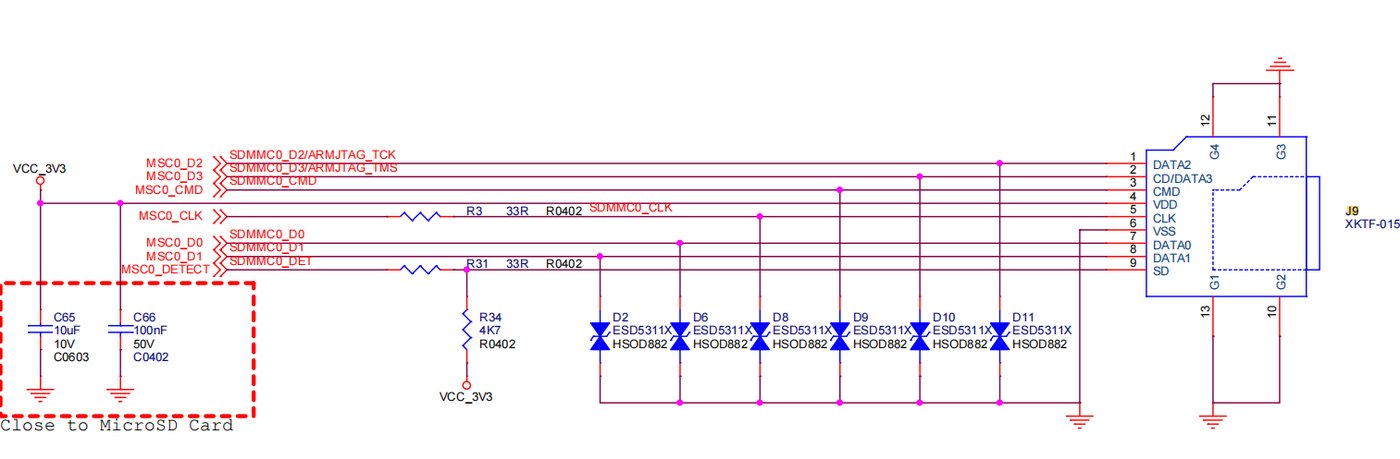

TF Card

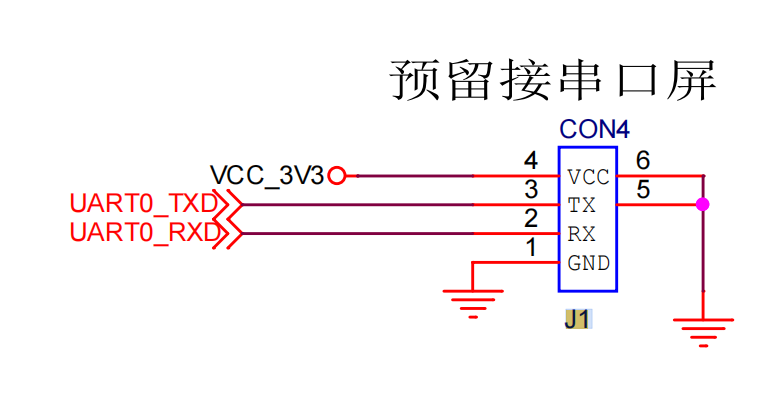

3V3+UART0

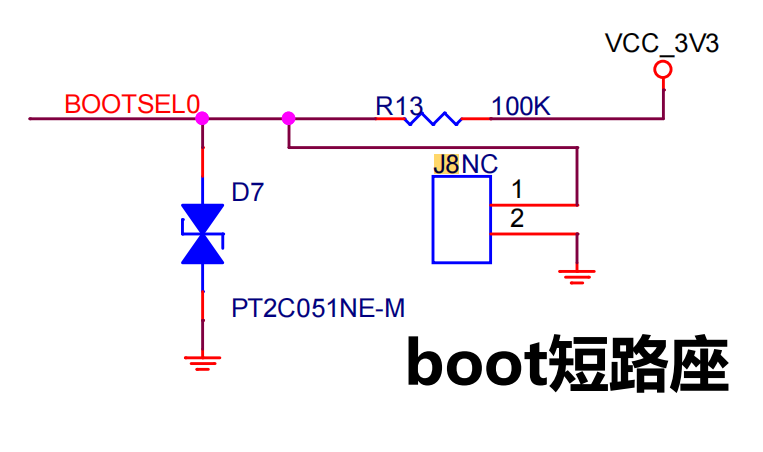

Boot Short-circuit Socket

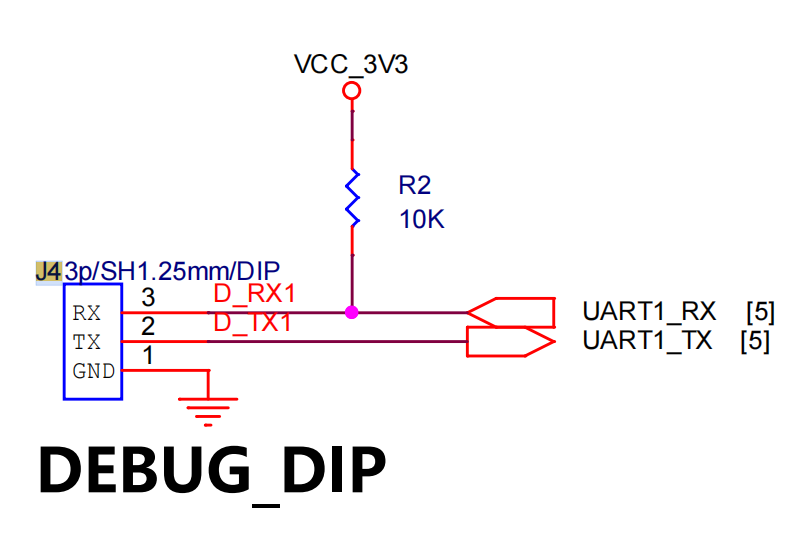

Debug

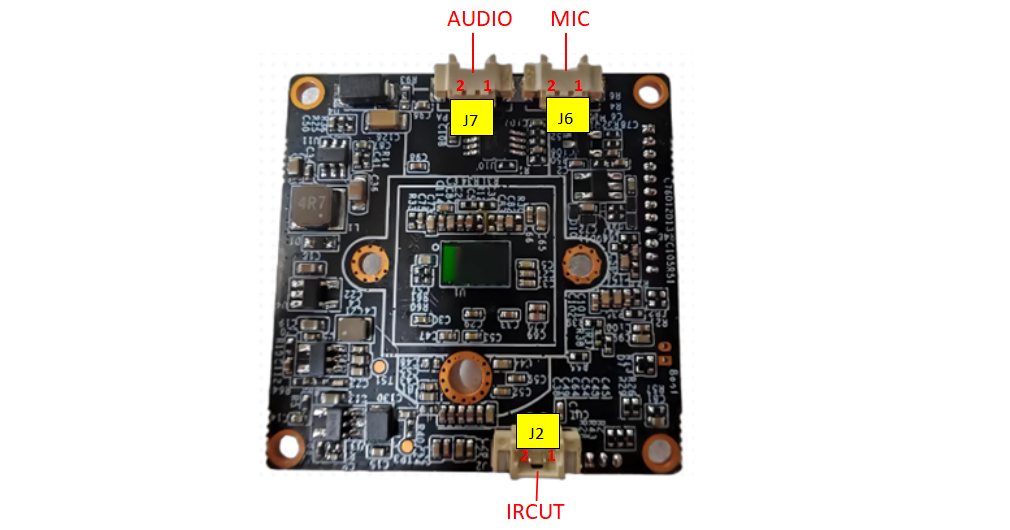

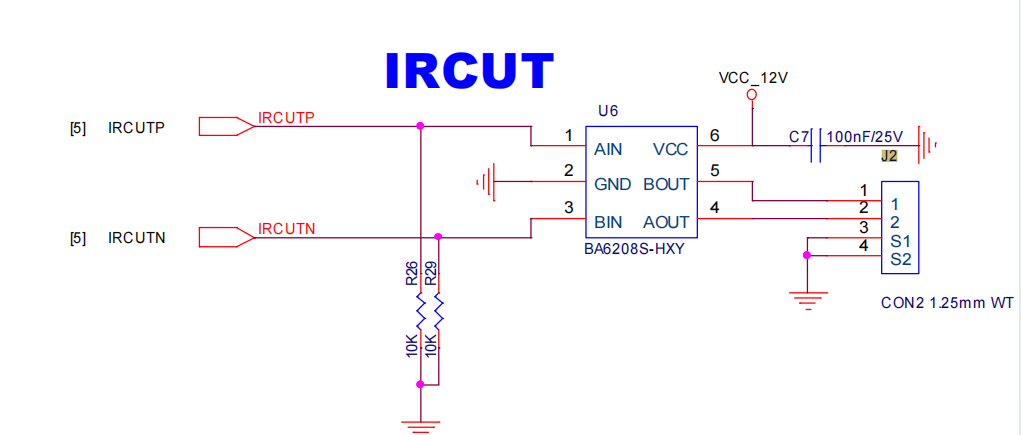

IRCUT

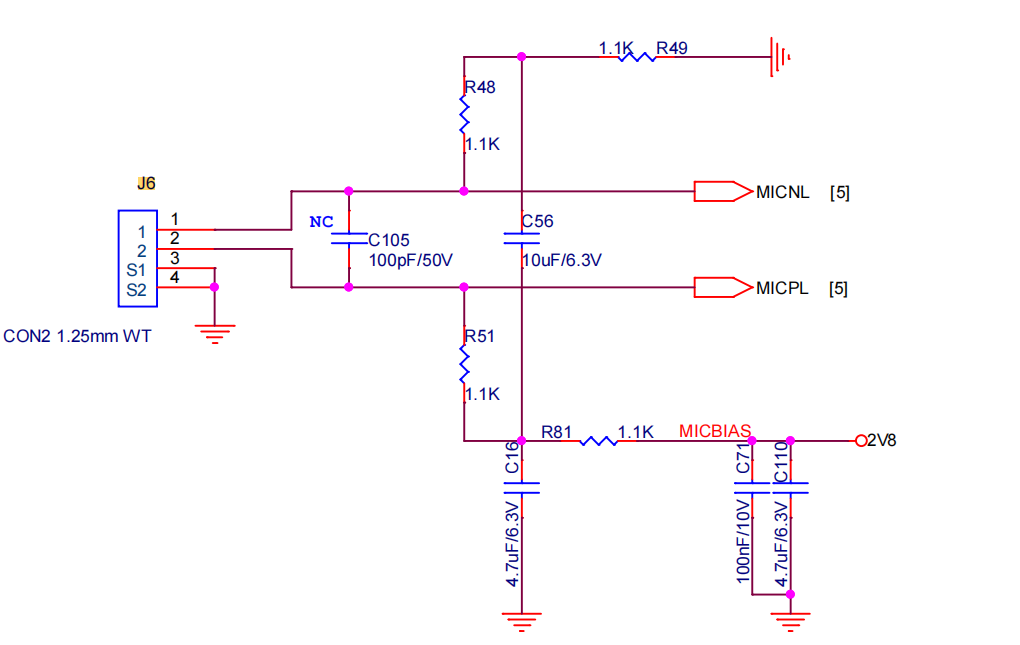

MIC

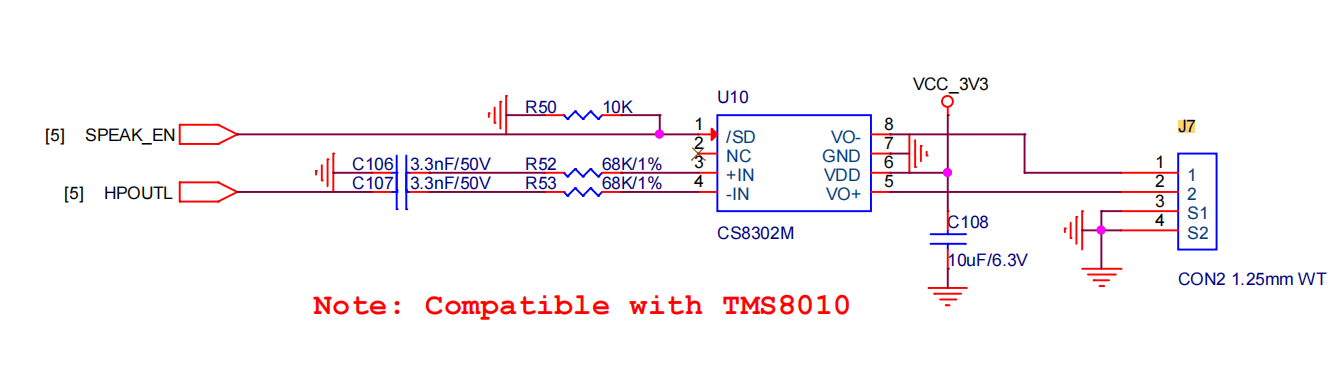

AUDIO

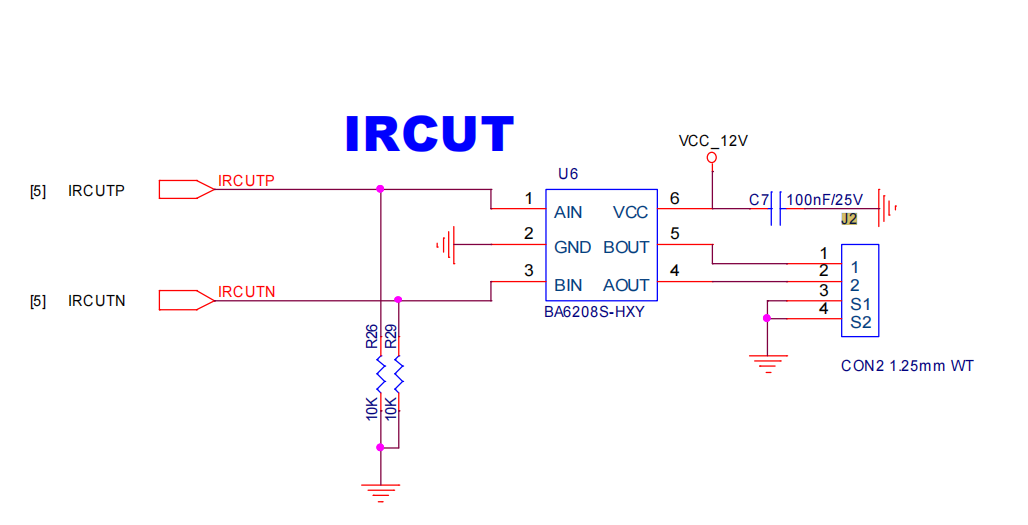

IRCUT
Development Material Download
Ingenic official T32 SDK
Link: https://pan.baidu.com/s/1MvjzgRJQpXkpw2b2DKCE4A Extraction code: 1122
FAQ
| Question | Answer |
|---|---|
| 1. Does this come with a camera? | Yes, it is a pure module and comes with a sensor, but without a lens |
| 2. Is the source code for license plate recognition provided? | The source code is not provided |
| 3. Can it run at low power, i.e. wake up to perform recognition when the radar detects a car? | No, it is not that fast. It needs to stay powered on, with a power consumption of about 1W |
| 4. How long does it take to boot? | About 5s; with fast boot optimization it can be about 1s |
| 7. Are there SDK development materials? | An HTTP interface document is provided |
| 8. Can the algorithm be customized? | Yes, but the algorithm is charged separately |
| 9. Is the hardware source code open? | No, it is not open source |
