4G-MOD_V11Module

Project: Board Introduction | page_id: 1182

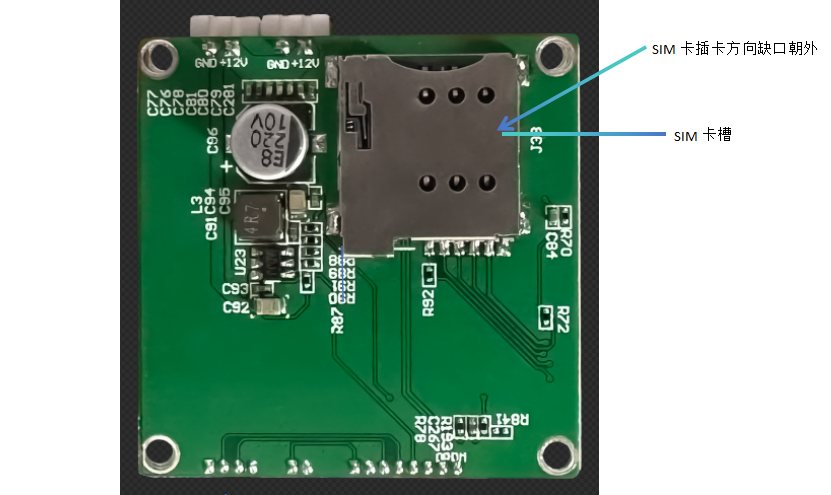

Board Size: 38*38mm

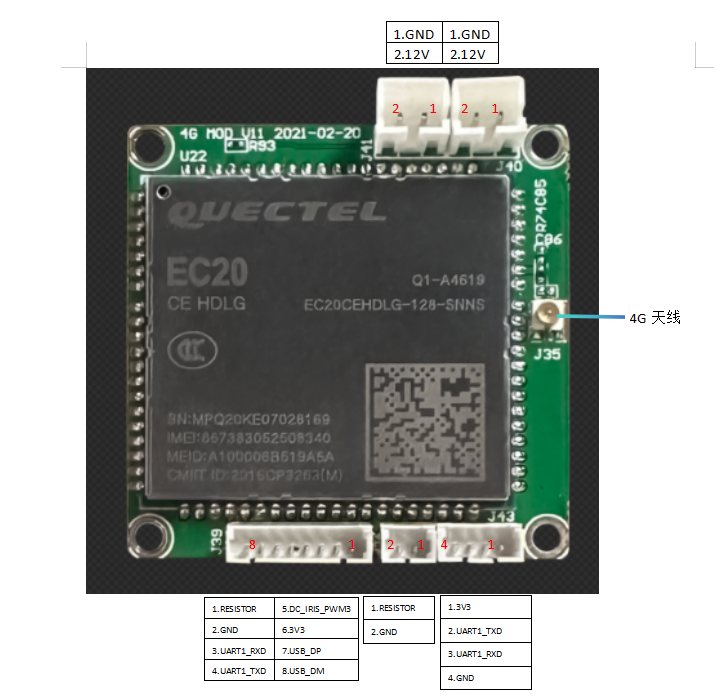

EC20 Module Introduction

—— Chip Wiki ——

Description

EC20-CN is the latest LTE Cat 4 wireless communication module launched by Quectel. It adopts LTE 3GPP Rel.11 technology, supports a maximum downlink rate of 150Mbps and a maximum uplink rate of 50Mbps, and can perform data communication under multiple network standards such as LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE and GPRS. At the same time, it is package-compatible with Quectel's UMTS/HSPA+ UC200T module and multi-network-standard LTE Standard EC20 R2.0/EC20 R2.1/EC21/EC25/EG25-G/EG21-G/EC200T modules, achieving seamless switching between 3G and 4G networks.

EC20-CN adopts laser engraving technology, which has the advantages of a more beautiful appearance, stronger metal texture, better heat dissipation, information that is not easily erased, and better adaptability to automation requirements.

EC20-CN has built-in rich network protocols, integrates multiple industry-standard interfaces, and supports various drivers and software functions (such as USB drivers for Windows 7/8/8.1/10, Linux and Android operating systems), greatly expanding the application range of EC20-CN in the M2M field, such as CPE, routers, data cards, tablet PCs, security and industrial-grade PDAs.

Features

• LTE Cat 4 wireless module specially designed for M2M and IoT applications
• Full coverage of various network standards
• Supports DFOTA
• Supports DTMF
• MIMO technology meets the requirements of wireless communication systems for data rate and connection reliability
• Integrated multi-constellation GNSS receiver
• Integrated USB 2.0 high-speed interface
