BT656 to CVBS Encoder Board
Project: Product Datasheet | page_id: 472
| bt656 to cvbs Encoder Board | |
|---|---|
| Video Input | 4:2:2 YCrCb(standard definition, enhanced definition and high definition)4:4:4RGB(standard definition) |
| Video Output | Composite(CVBS) and S-Video(Y-C) component YPrPb(standard definition, enhanced definition and high definition) component RGB(standard definition, enhanced definition and high definition) |
| Interface | Serial MPU interface, compatible with I²C |
| Power Supply | DC 12V |
| Temperature Range | -40℃C to +85°C. W-grade automotive application temperature range: -40°C to +105°C |
| Dimensions | 3.2*2.6cm |
| Weight | 3.7g |

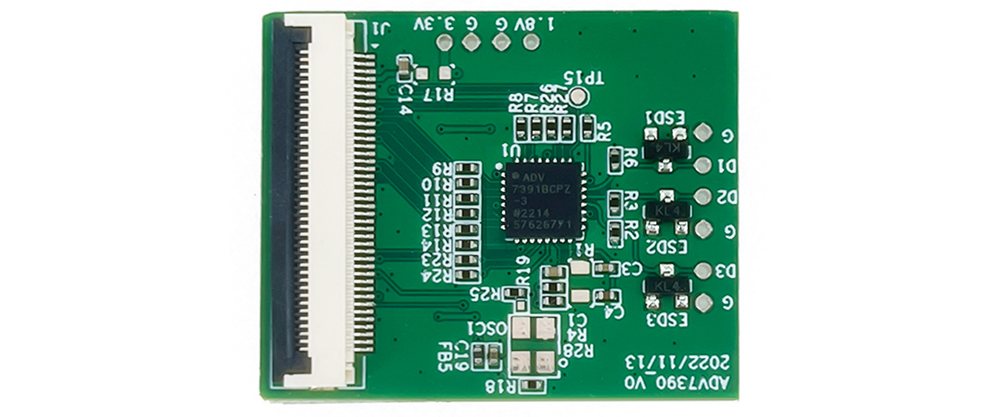

Product Images
Schematic Download
Product Materials Download (Chinese Version)
C443874_ADV7391BCPZ_2019-11-01.pdf
Device FAQ
| Question | Answer |
|---|---|
| 1、Is 720 × 576 resolution supported? | Yes, supported |
| 2、Can a display screen be connected? What are the requirements for the display screen? | A CVBS display screen can be connected |
