Dual HDMI Encoder Board
Project: Product Datasheet | page_id: 188
| hi3250DV400 Dual-channel HDMI Encoder Board | |
|---|---|
| Model | XSW-HDMIDP |
| Video Input | 2 x HDMI input interfaces, 12 x network stream inputs |
| Audio Input | HDMI embedded audio |
| Video Encoding Capability | 1920*1080@60fps |
| Network Interface | Gigabit Ethernet interface |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~32Mbit |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use. |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 62*92mm |
| Weight | 72g |

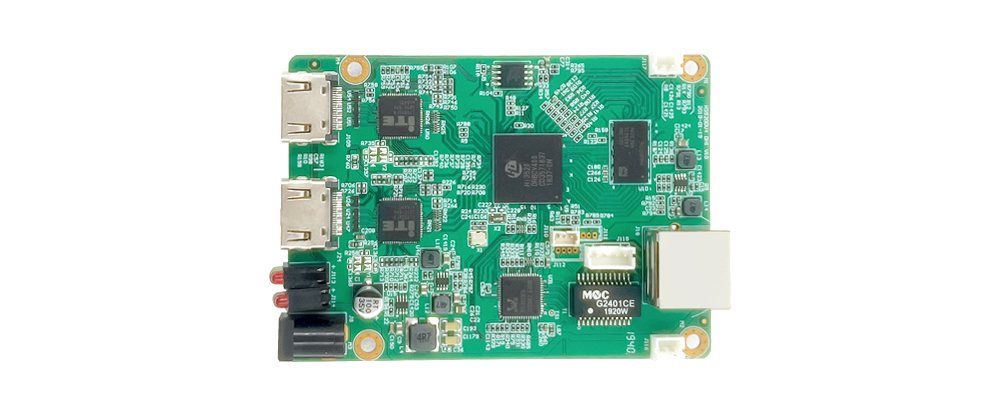

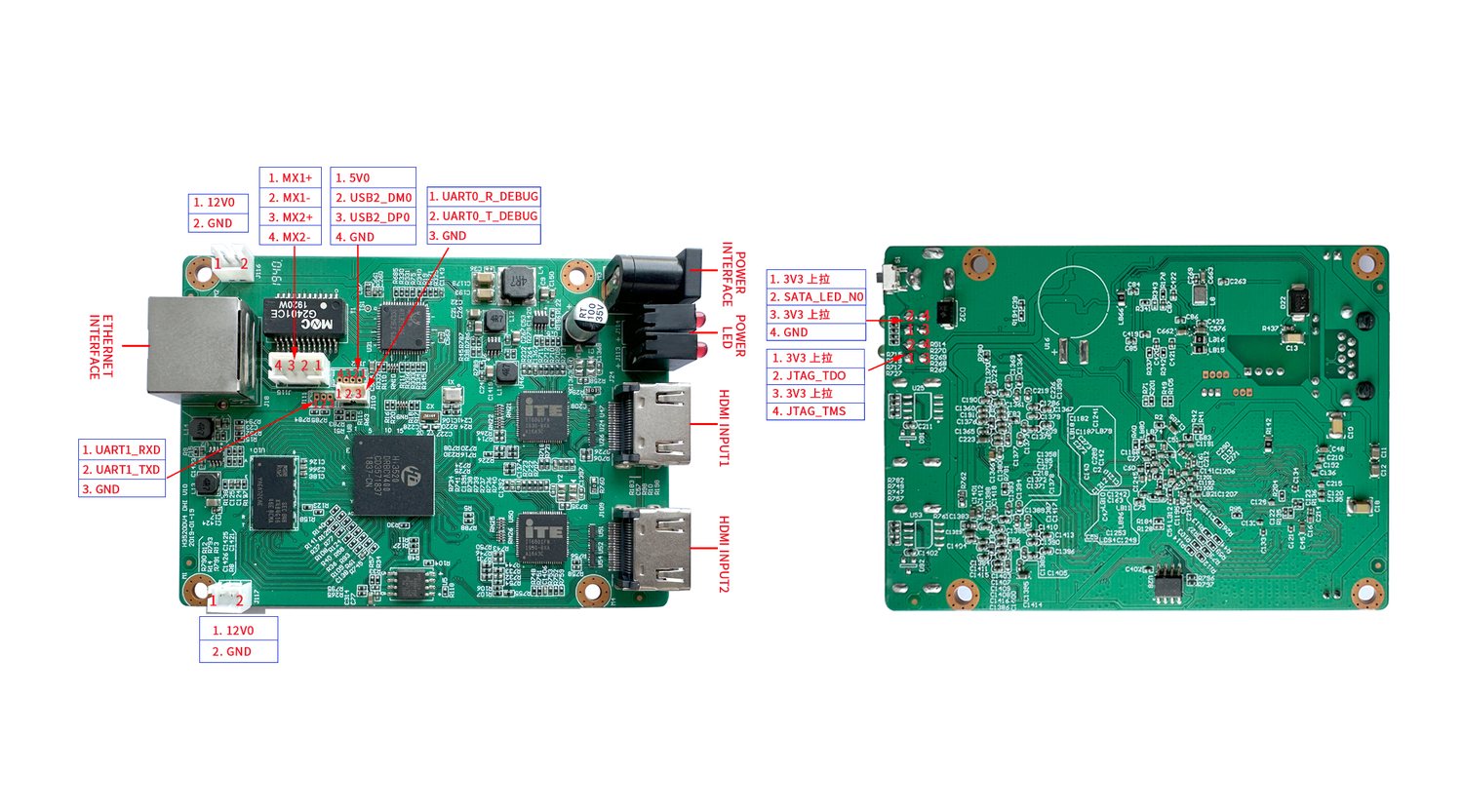

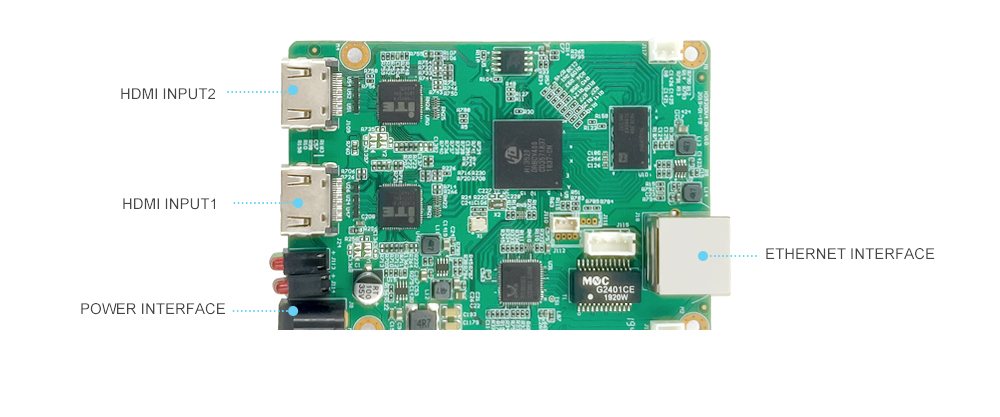

Product Images
Product Manual Link (Chinese)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1. Does this have a USB port? | USB is reserved. |
