16-Channel HDMI Encoder
Project: Product Datasheet | page_id: 511
| 16-Channel HDMI Encoder Board | |
|---|---|
| Model | XSW-HDMI16P480 |
| Video Input | 16-channel HDMI input interface |
| Audio Input | 16-channel HDMI embedded audio |
| Video Encoding Capability | 1920x1080@30fps X 16 /1920x1080@60fps X 8 |
| Network Interface | Gigabit Ethernet interface |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~32Mbit |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | AC 100-240V |
| Operating Temperature | 0～70℃ |
| Dimensions | 440X216X45mm(1U rack-mount chassis) |
| Weight | 2300g |

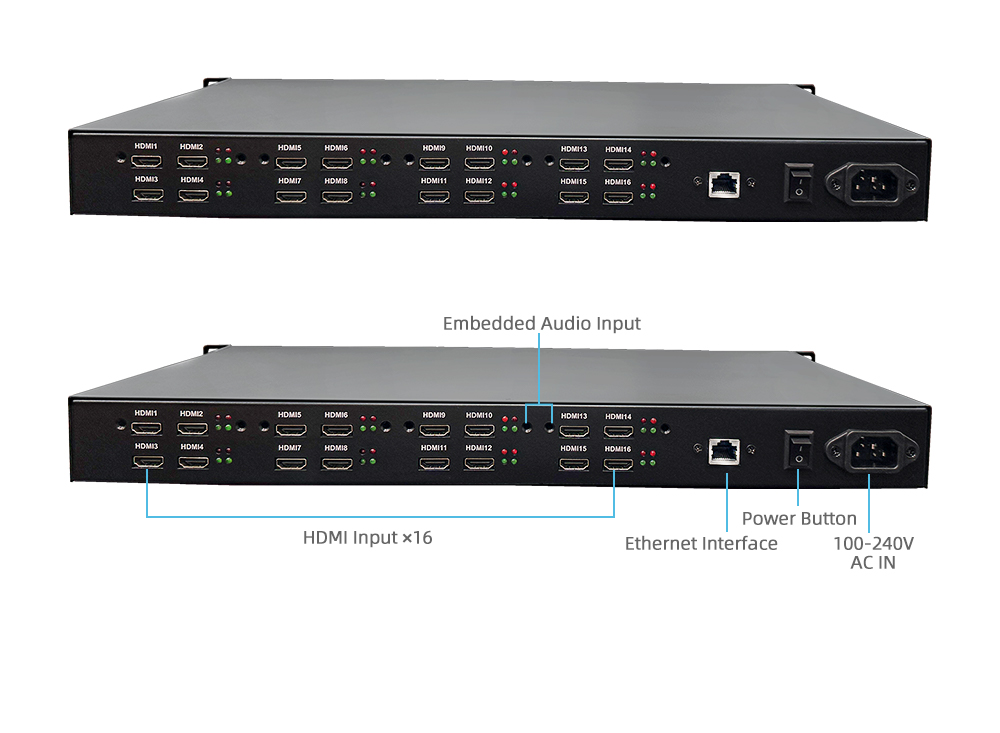

Product Images
Product Manual Link (Chinese Version)
