HDMI/SDI/AHD/CVBS 4-in-1 Encoder Board
Project: Product Datasheet | page_id: 531
| HDMI/SDI/AHD/CVBS 4-in-1 Encoder | |
|---|---|
| Model | XSWEDR-3INHSAC |
| Video Input | 1-channel HDMI input interface (max 1080p@60fps), 1-channel SDI interface (max 1080p@60fps), 2-channel analog video (AHD/CVBS, max 1080p@30) input |
| Audio Input | HDMI embedded audio, SDI embedded audio |
| Video Encoding Capability | 4 channels of 1080P@30fps |
| Network Interface | Gigabit Ethernet interface |
| Expansion Interface | SATA 3.0 (up to 16TB supported) |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~80Mbit |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 191mmx132mmx15mm |
| Weight | 135.1g |

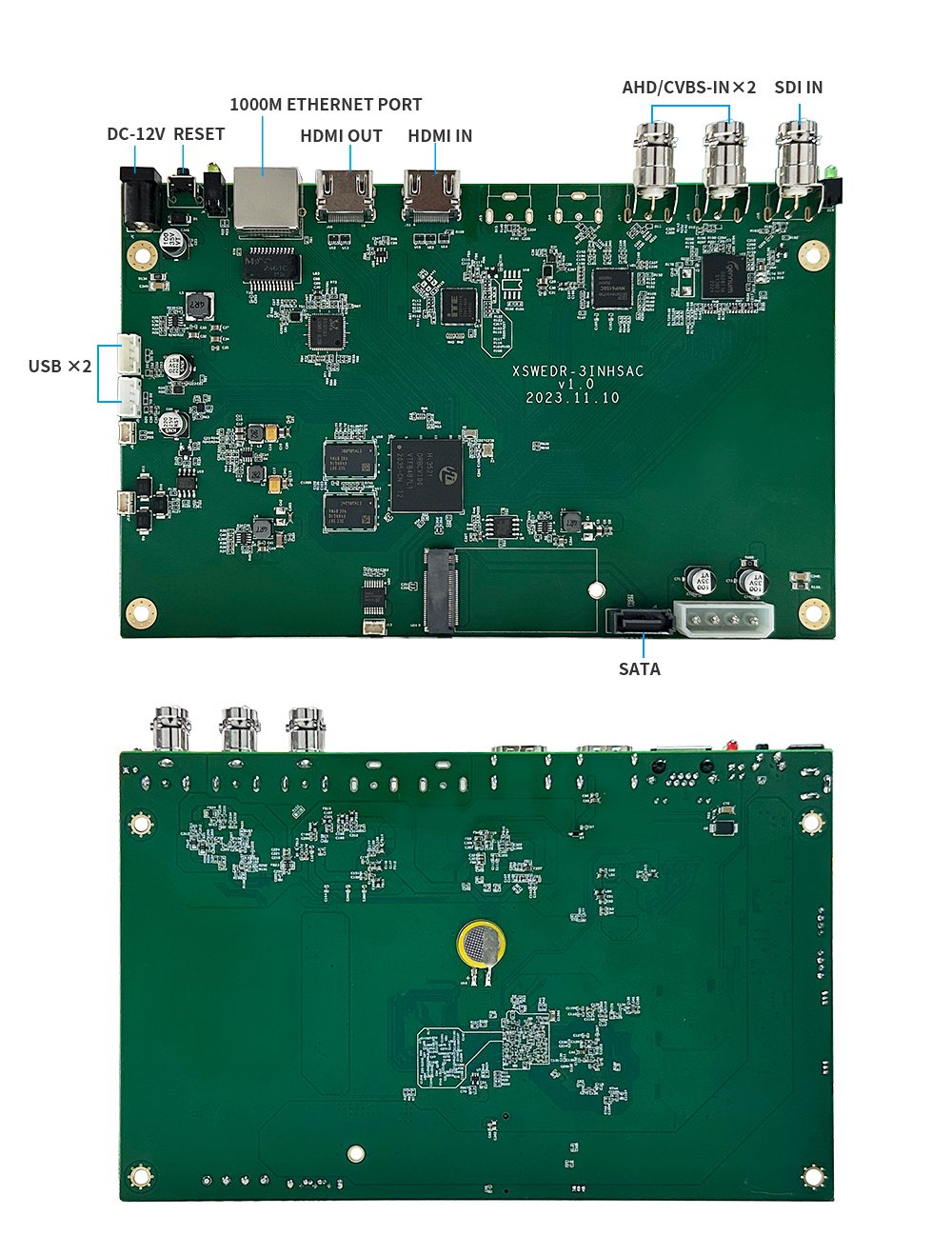

Product Images

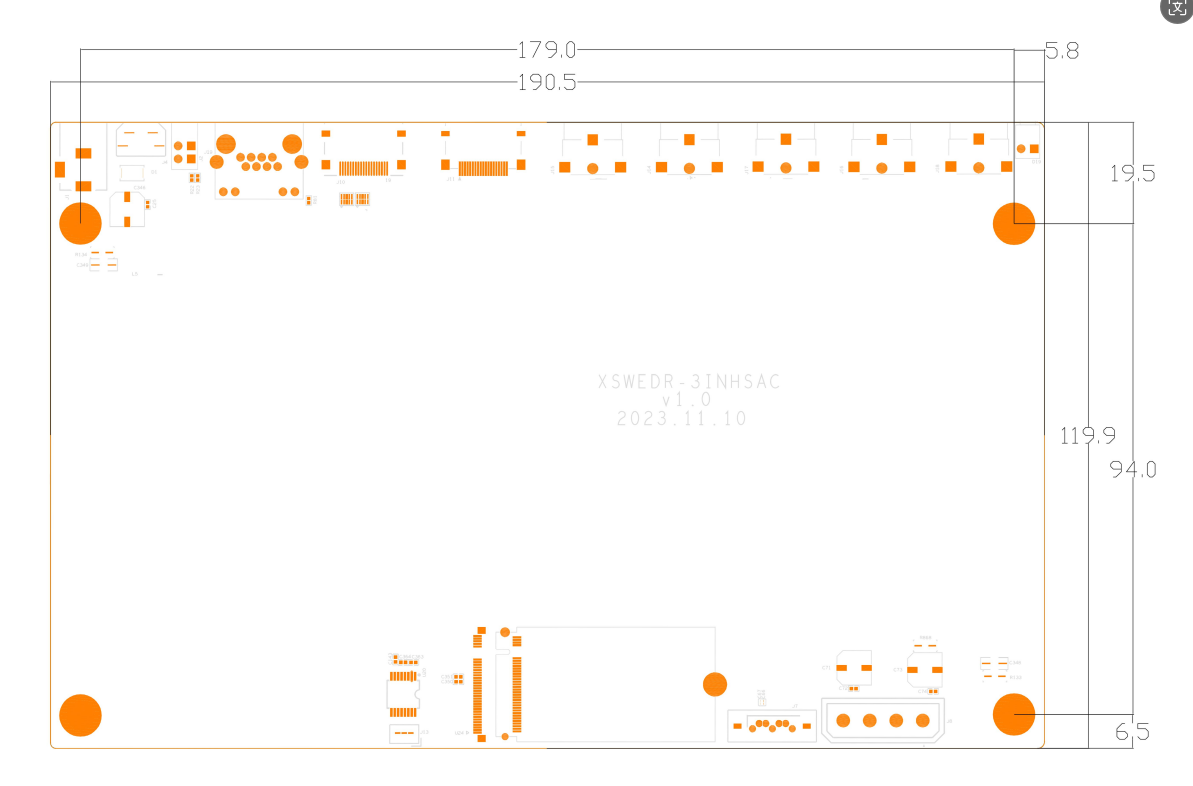

Product Hole Position Dimension Drawing
Product Manual Link (Chinese Version)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、Can SDI, CVBS and HDMI streams all be added to an NVR for recording? | Yes, they can |
| 2、When adding a solid-state drive, does the drive need to be formatted first? | No, it will be formatted automatically |
| 3、Does this board come with a heat sink from the factory? | It is not included by default. If you have special requirements, you can contact us to add a heat sink for you |
