Single 4G/WiFi HDMI Encoder Board with Loop-through
Project: Product Datasheet | page_id: 495
| 4G WIFI Single-Channel HDMI Encoder with Loop-Through | |
|---|---|
| Model | XSWEDR-SLHDMIFHD45-4G-WIFI |
| Chip Type | HI3516EV300 |
| Video Input | 1-channel HDMI input interface |
| Video Output | 1-channel HDMI output interface |
| Audio Input | 1-channel stereo analog audio input interface / HDMI embedded audio |
| Video Encoding Capability | 1920x1080p@45fps |
| Network Video Output Protocol | RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~10Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 166x93mm |
| Weight | 81.3g |

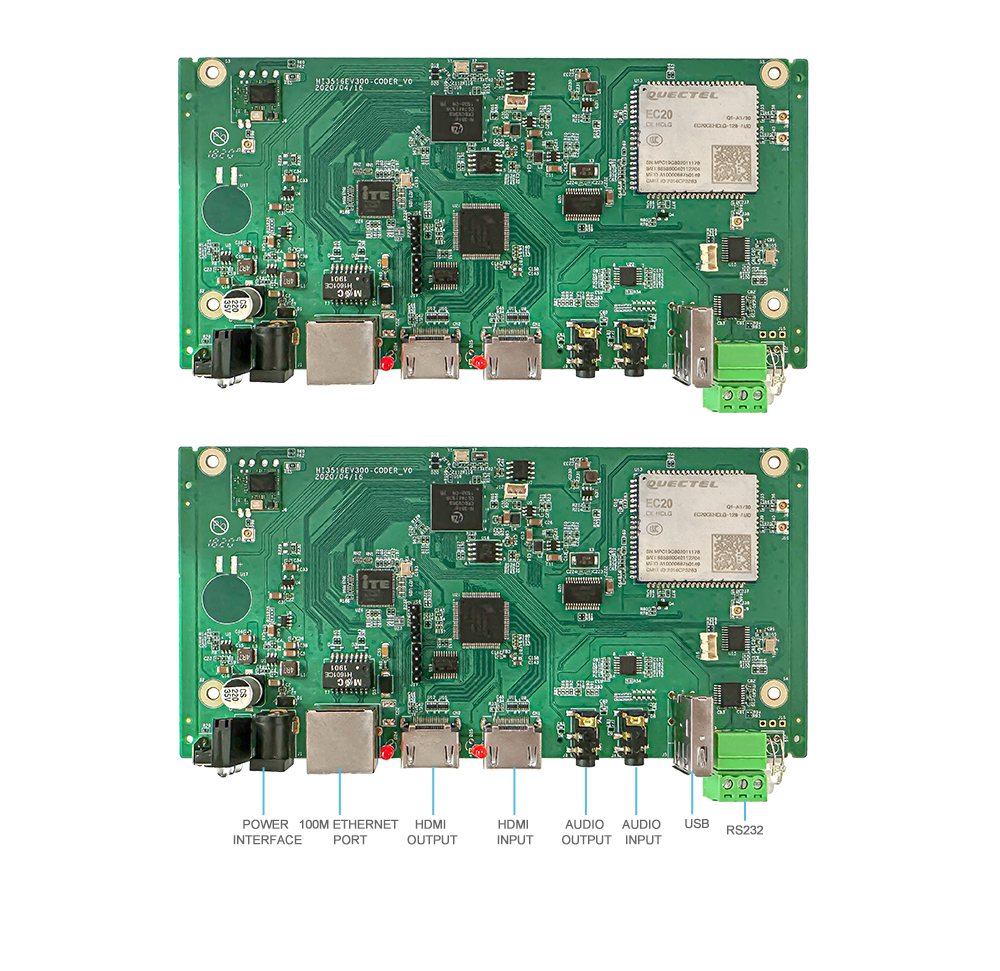

Product Images
Product Manual Link (Chinese Version)
