4K60 HDMI Encoder with Loop-through (E11)
Project: Product Specifications | page_id: 1072
| Single-Channel 4K60 Economy HDMI Encoder with Loop-Out (E11) | |
|---|---|
| Model | XSWEDR-SLHDMI-LC-E11 |
| Video Input | 1 HDMI input interface (maximum resolution 4k@60) |
| Video Output | 1 HDMI output interface (same as video input) |
| Audio Input | 1 stereo analog audio input interface / HDMI embedded audio |
| Audio Output | 1 stereo analog audio output interface (supports RTMP audio stream decoding) |
| Audio Decoding | Supports decoding AAC audio through the RTMP protocol |
| Image Overlay Function | Supports PNG image overlay, gif animation overlay, text and scrolling text overlay |
| Vertical Screen | Supports 90 degree, 180 degree, 270 degree video rotation |
| Video Encoding Capability | 1920x1080p@60fps |
| Network Interface | Fast Ethernet port |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/HTTP_TS/WS-RAW/webRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Audio Encoding Bitrate | 8Kbit/s~256Kbit/s |
| Video Encoding Bitrate | 35Kbps~6Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters; can be used after registration at platform.xstrive.com |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 150x100x35mm |
| Weight | 333.1g |

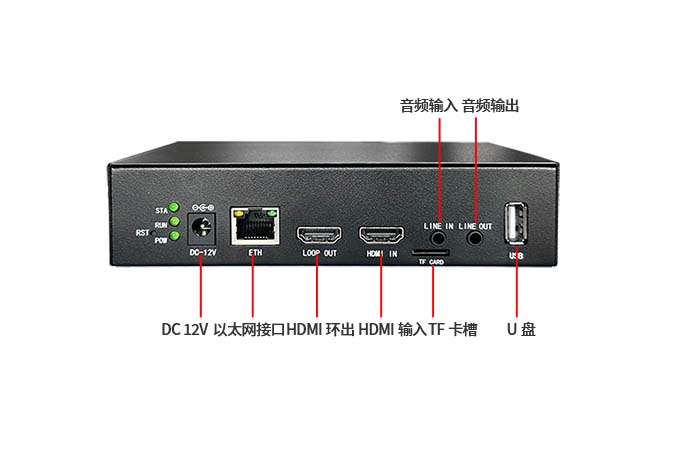

Product Images
Product Hole Position Dimension Drawing
Product Manual Link (Chinese Version)
Encoder WebRTC Stream Pushing Operation Demo
FAQ
| Question | Answer |
|---|---|
| 1、What chip does the encoder use? | GOKE GK7205V300 |
| 2、How many devices can play at the same time? If there are 20 advertising players, how can it be implemented? | At a bitrate of 2M it is about 6 devices; for 20 advertising players, you need to use a 20-channel streamer |
| 3、The pushed stream has an image but no sound. Do I need to set it separately? | In the advanced settings, set the audio to come from the video source |
| 4、Can it be used outdoors to connect a camera and transmit to a remote live room via WiFi network? | WiFi is not supported; you can choose an encoder that supports WiFi: https://item.taobao.com/item.htm?spm=a21dvs.23580594.0.0.1d293d0dluLM97&ft=t&id=723156582989 |
| 5、What advantages does this have compared with installing a camera on a computer? | It does not occupy computer resources |
| 6、Is Douyin Companion still needed? | If you have a Douyin push address, Douyin Companion is not needed |
| 7、Is there a user limit for intranet live streaming? | Yes, the CPU performance is limited, so it is recommended not to exceed 10 terminals |
| 8、Can the image be switched? | The image cannot be switched |
| 9、How much memory is there? | 128M |
| 10、What is the power of this product? | About 2W |
| 11、Is the network port a Gigabit port or a Fast Ethernet port? | This model has a Fast Ethernet port |
| 12、Does it support mobile terminal capture? | Mobile phones are supported, but a mobile phone Type-C to HDMI converter is required and the phone's Type-C interface must support video output |
| 13、How to operate VGA video stream pushing? | It cannot be supported directly; VGA needs to be converted to HDMI |
| 14、Does the output have B frames? | B frames are not supported |
| 15、Is the HDMI output rate control CBR? | The bitrate CBR/VBR can be adjusted |
| 16、What is the audio sampling frequency? | The audio sampling rate is supported up to 48000 |
| 17、Can the audio sampling rate be modified? | For HDMI embedded audio the sampling rate cannot be modified on the web page, but it can for the 3.5mm analog audio input |
| 18、The video sound uses the 3.5mm audio input and recording is done to the SD card. Will this sound be recorded synchronously? | Yes, the sound will be recorded synchronously |
| 19、Can the 3.5mm audio be input and encoded separately? | Yes, set it to audio-only mode on the web page |
| 20、Does this encoder not support WebRTC stream pushing? | WebRTC is supported |
