Single Economy HDMI Encoder (E10)
Project: Product Datasheet | page_id: 533
| Single-Channel HDMI Encoder | |
|---|---|
| Model | XSWEDR-SHDMI-LC |
| Video Input | 1-channel HDMI input interface, maximum resolution supported 1080p60 |
| Audio Input | 1-channel stereo analog audio input interface / HDMI embedded audio |
| Audio Decoding | Supports decoding AAC audio through the RTMP protocol |
| Image Overlay Function | Supports PNG image overlay, supports GIF animation overlay, supports text and scrolling text overlay |
| Video Encoding Capability | 1920x1080p@60fps |
| Network Interface | 100M Ethernet port |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/HTTP_TS/WS-RAW/webRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Audio Encoding Bitrate | 8Kbit/s~256Kbit/s |
| Video Encoding Bitrate | 35Kbps~6Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 134x83x35mm |
| Weight | 250g |

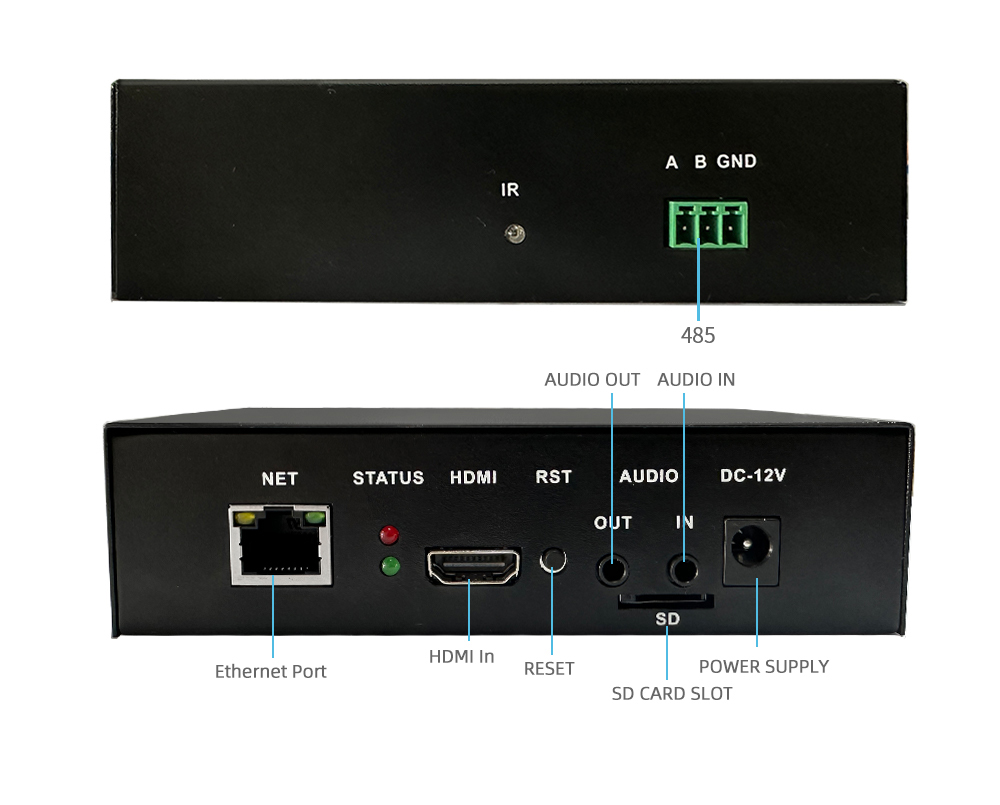

Product Images

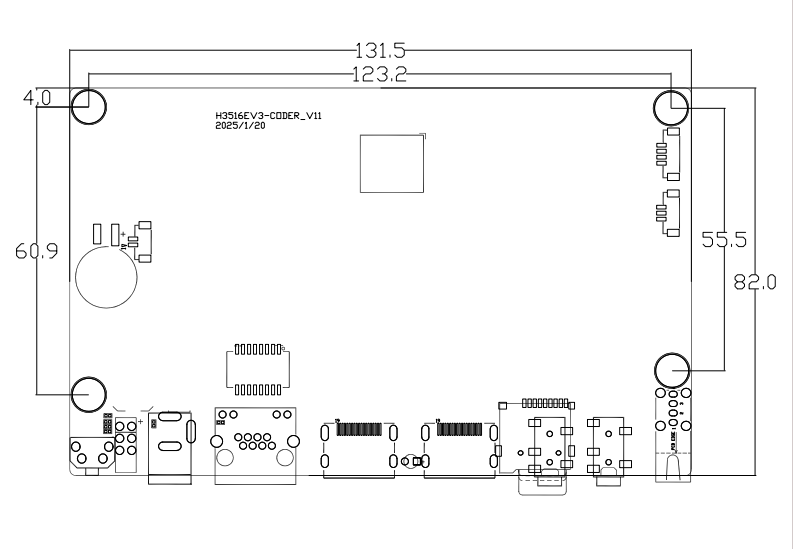

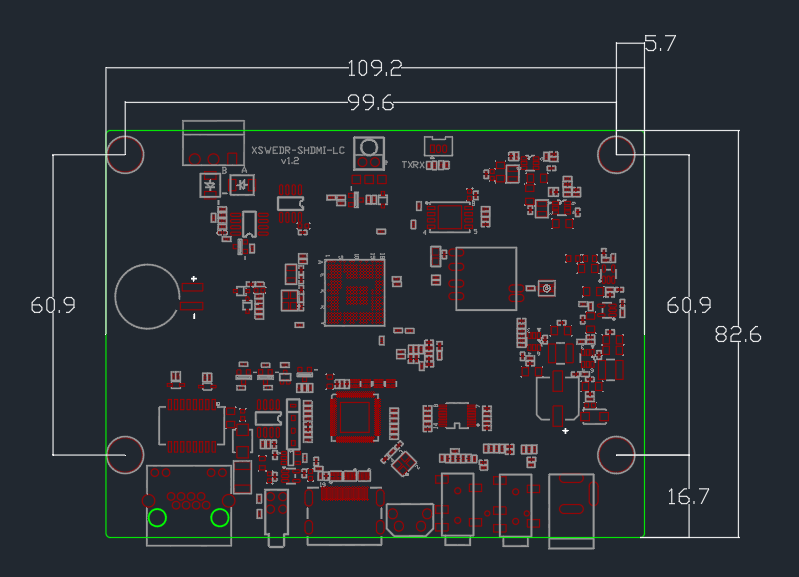

Product Hole Position Dimension Drawing
Product Manual Link (Chinese Version)
In-site Docs Center
Encoder WebRTC Streaming Operation Demo
Device FAQ
| Question | Answer |
|---|---|
| 1、What chip does the encoder use? | Goke GK7205V300 |
| 2、How many devices can play? If there are 20 advertising screens, how can it be implemented? | About 6 at a 2M bitrate. For 20 advertising screens, you need to use a 20-channel video encoder |
| 3、There is a picture but no sound when streaming. Does it need to be set separately? | In the advanced settings, set the audio to come from the video source |
| 4、Can it be connected directly to a camera outdoors and transmitted to a remote live room via WiFi? | WiFi is not supported. You can choose an encoder that supports WiFi: https://item.taobao.com/item.htm?spm=a21dvs.23580594.0.0.1d293d0dluLM97&ft=t&id=723156582989 |
| 5、What advantages does this have over a camera installed on a computer? | It does not occupy computer resources |
| 6、Is Douyin Companion still needed? | If you have a Douyin push address, Douyin Companion is not needed |
| 7、Is there a user limit for intranet live streaming? | Yes, CPU performance is limited, so it is recommended not to exceed 10 terminals |
| 8、Can the picture be switched? | The picture cannot be switched |
| 9、How much memory? | 128M |
| 10、What is the power of this product? | About 2W |
| 11、Is the network port Gigabit or 100M? | This model is a 100M network port |
| 12、Is mobile terminal capture supported? | Mobile phones are supported, but a mobile phone Type-C to HDMI converter is required and the phone's Type-C interface must support video output |
| 13、How to stream VGA video? | It cannot be supported directly; VGA needs to be converted to HDMI |
| 14、Does the output have B frames? | B frames are not supported |
| 15、Is the HDMI output rate control CBR? | The bitrate can be set to CBR or VBR |
| 16、What is the audio sampling frequency? | The maximum supported audio sampling rate is 48000 |
| 17、Can the audio sampling rate be modified? | For HDMI embedded audio, the sampling rate cannot be modified on the web page. For 3.5mm analog audio input, it can |
| 18、If the video sound uses 3.5mm audio input and recording is done to an SD card, will this sound be recorded synchronously? | Yes, the sound will be recorded synchronously |
| 19、Can 3.5mm audio be input and encoded separately? | Yes, set it to audio-only mode on the web page |
| 20、Does this encoder not support WebRTC streaming? | WebRTC is supported |
