Single 4K60 HDMI Encoder with Loop-through (E31)
Project: Product Specification | page_id: 961
| Single-Channel 4K60 HDMI Encoder + Single-Channel 4K60 HDMI Decoder (E31) | |
|---|---|
| Model | XSWEDR-RV-GDHDMI |
| Video Input | 1-channel 4K@60 HDMI input interface |
| Video Output | 1-channel 4K@60 HDMI output interface |
| Audio Input | 1 stereo analog audio input interface / HDMI embedded audio input |
| Audio Input | HDMI embedded audio output |
| Video Encoding Capability | 3840x2160@60fps & 1920x1080p@60fps & 1920x1080p@60fps |
| Video Decoding Capability | 3840x2160@60fps |
| Network Support | 10/100/1000M adaptive Ethernet |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 32kbps~32Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters; can be used after registering at platform.xstrive.com |
| Product Features | 90% of components are domestically produced |
| Power Supply | DC 12V |
| Operating Temperature | 0~75 degrees |
| Dimensions | 270x160x43mm |
| Weight | 950g |

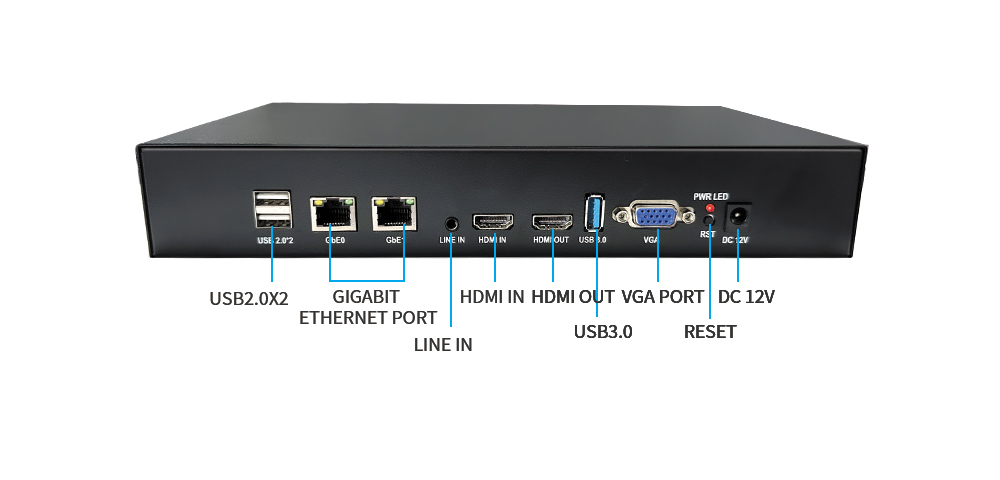

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
FAQ
| Question | Answer |
|---|---|
| 1. Can the input 4K video stream be directly converted to a 1080P network video signal? | Yes, adjusting the video resolution and bitrate is supported |
| 2. Does the OSD support images? | Images in PNG format are supported |
| 3. Can the video stream of this encoder be started, paused and stopped? | Yes, there is an RTMP streaming switch that can be turned on and off |
| 4. What is the 4K adaptive bit depth? | 8bit |
| 5. What are the two USB ports used for? | They can be used to connect a USB flash drive |
