Single All-Domestic HDMI Encoder Board with Loop-through
Project: Product Datasheet | page_id: 380
| Single-Channel Domestic HDMI Encoder with Loop-Through | |
|---|---|
| Model | XSWEDR-S-GC-HDMI |
| Video Input | 1-channel HDMI input interface, 8-channel network stream input |
| Video Output | 1-channel HDMI output interface（1080P@60fps） |
| Network Video Output Protocol | RTSP/RTMP/UDP-TS/HLS/HTTP-FLV/ONVIF/SRT/WEBRTC |
| Output Video Encoding Format | H.264/H.265 |
| Video Encoding Bitrate | 35Kbps~50Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | DC 12V~24V 2.54mm pin header |
| Operating Temperature | 0～70℃ |
| Dimensions | 87x57mm |
| Weight | 30g |

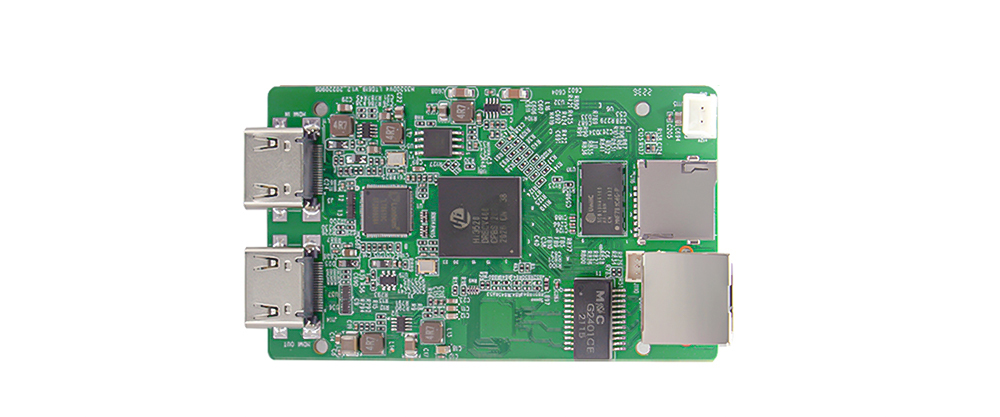

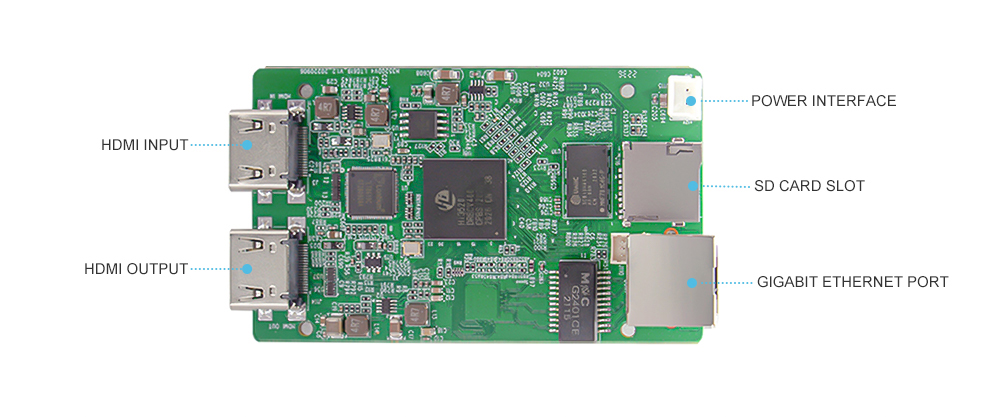

Product Images
Product Manual Link (Chinese Version)
