All-Domestic Industrial Single 4K HDMI Encoder Board
Project: Product Datasheet | page_id: 707
| Single-Channel Industrial-Grade 4K HDMI Encoder with Loop-Through | |
|---|---|
| Model | XSWEDR-RV-SLHDMI |
| Video Input | 1-channel 4k@30 HDMI input interface |
| Video Output | 1-channel 4k@30 HDMI loop-through interface |
| Audio Input | 1-channel stereo analog audio input interface / HDMI embedded audio |
| Video Encoding Capability | 3840x2160@30fps/1920x1080p@60fps |
| Network Support | 10/100/1000M Ethernet adaptive, 4G) |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~30Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Product Features | All components are domestically produced |
| Power Supply | DC 12V |
| Operating Temperature | -40～75℃ |
| Dimensions | 110x65mm |
| Weight | 60g |

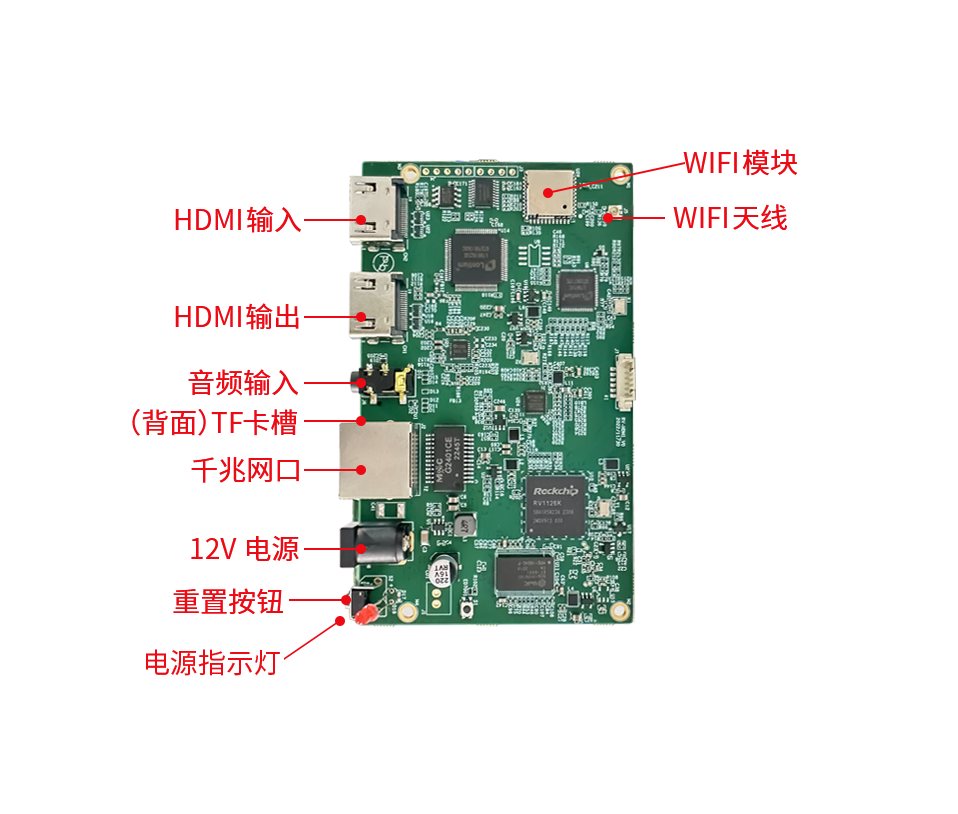

Product Images

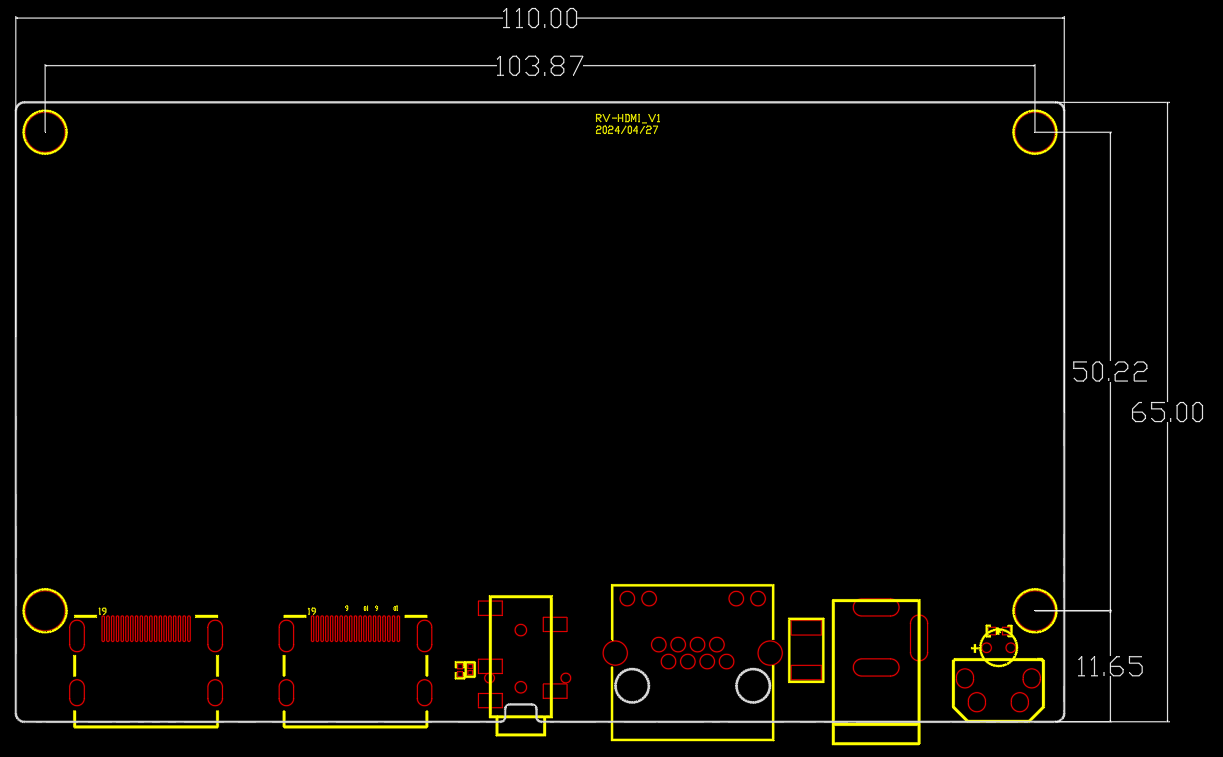

Product Hole Position Dimension Drawing
Product Manual Link (Chinese Version)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、Can the input 4K video stream be directly converted to a 1080P network video signal? | Yes, adjusting the video resolution and bitrate is supported |
| 2、Does OSD support images? | PNG format images are supported |
| 3、Can the video stream of this encoder be started, paused and stopped? | Yes, there is an RTMP streaming switch that can be used to enable and disable it |
| 4、What is the adaptive bit depth of 4K? | 8bit |
| 5、What is the height of the board? | 17MM (at the highest point) |
