Single SDI Encoder Board
Project: Product Datasheet | page_id: 384
| Single-Channel SDI Encoding Module | |
|---|---|
| Model | XSWEDR-SSDI |
| Video Input | 1-channel SDI input interface(3G-SDI/HD-SDI) |
| Network Video Output Protocol | RTSP/RTMP/UDP-TS/HLS/HTTP-FLV/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Video Encoding Capability | 1920x1080@60FPS |
| Video Encoding Bitrate | 35Kbps~50Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Dimensions | 76mmx50mm |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Weight | 22.6g |

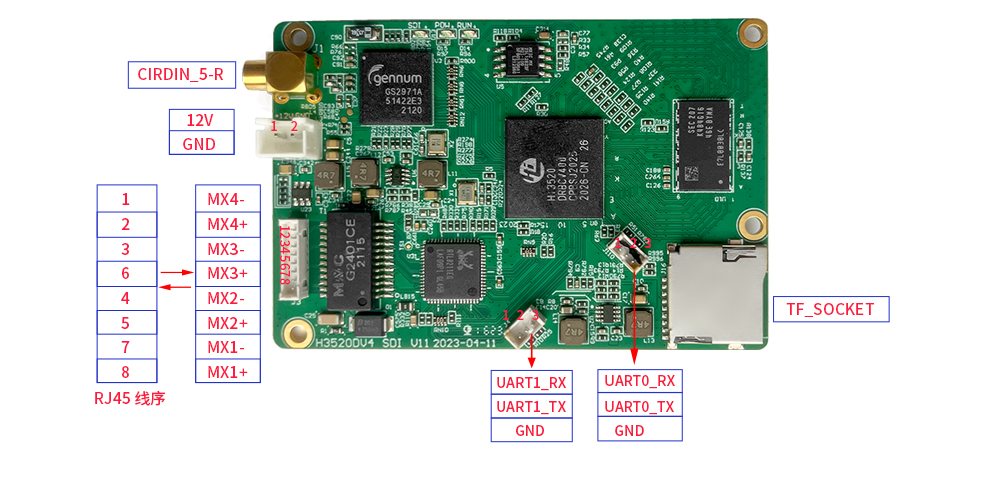

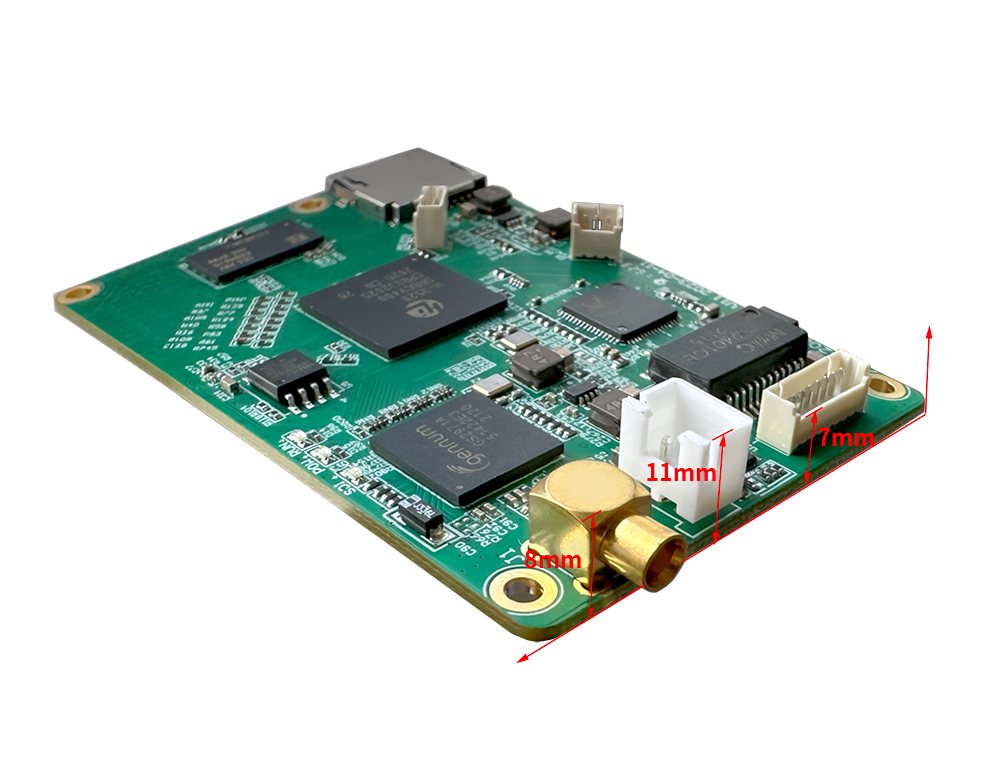

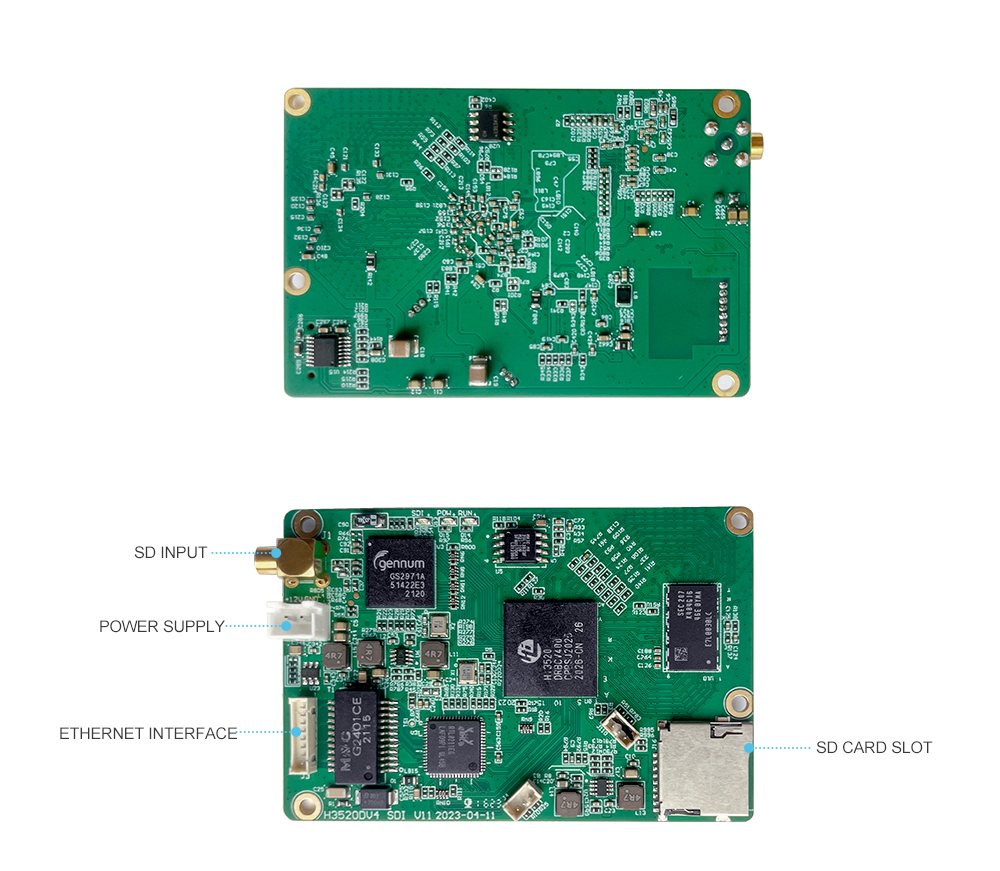

Product Images

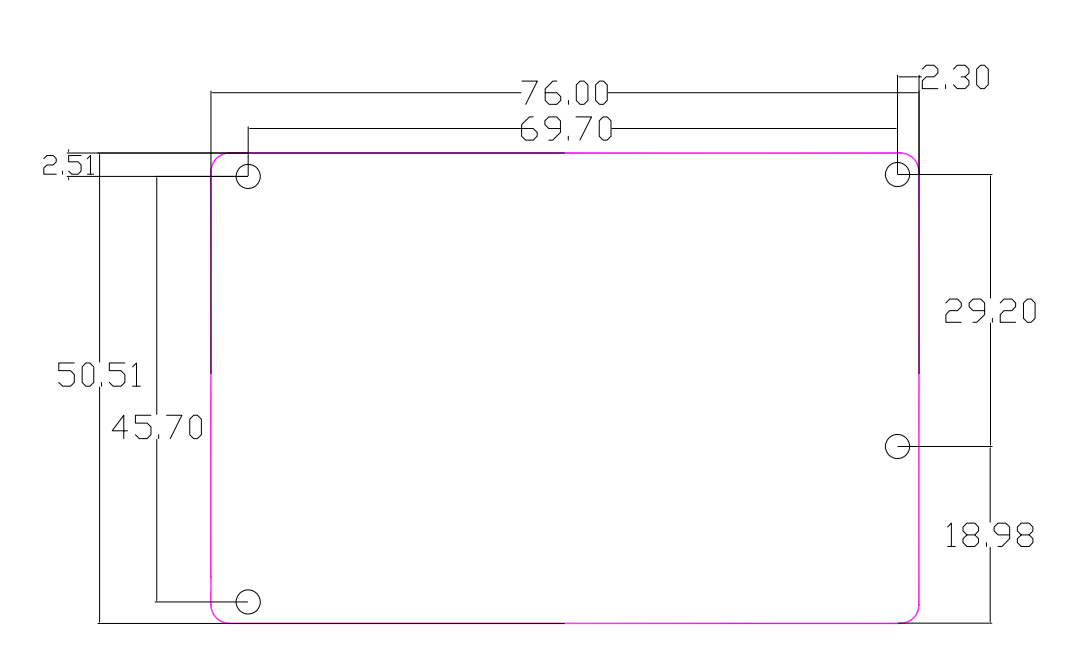

Product Hole Position Dimension Drawing
Product Manual Link (Chinese Version)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、Is image display software included? Does the software support image storage? | Yes, the software has a recording function |
| 2、What is the image conversion latency? | Within 150ms |
| 3、What is the model of the connector for the video input? | MXM interface. Available at: https://detail.tmall.com/item.htm?ali_refid=a3_430582_1006:1227630018:N:qthg2Lg/b0ZWcc6xBNryVQ==:61e717f886fac9e6e93f73b6cc63f15f&ali_trackid=1_61e717f886fac9e6e93f73b6cc63f15f&id=605579979286&sku_properties=1627207:5968861895&spm=a230r.1.14.1 RF coaxial jumper cable, with an adapter cable it can connect to a standard BNC SDI |
| 3、What is the height of the board? |  |
| 4、What is the model of the SDI port? | MCX. A cable for converting to a standard SDI connector is included |
| 5、Can it support -20°? | Custom testing is required. Please contact customer service if needed |
| 6、Can it be used in a 70° environment? Is a heat sink required? | It can be used in a 70° environment and no heat sink is required |
