HDMI to Dual SDI Converter Board
Project: Product Specifications | page_id: 995
| HDMI to Dual-Channel SDI Output Converter Board | |
|---|---|
| Model | XSWEDR-HDMI2DSDI |
| Video Input | HDMI, up to 1080p@60 |
| Audio Input | HDMI embedded audio |
| Video Output | SDI output (1080P@60/720p@60), the resolution is the same as the input |
| Power Supply | DC 12V |
| Operating Temperature | 0-70℃ |
| Dimensions | 9.5*6cm |
| Weight | 41.5g |

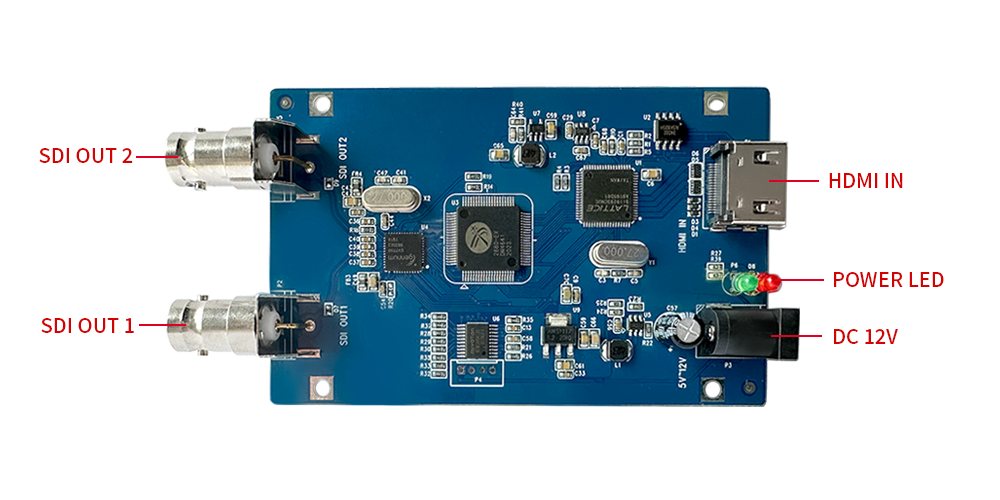

Product Images
Product Manual Link (Chinese Version)
