Single SDI-In HDMI-Out Encoder Board
Project: Product Datasheet | page_id: 850
| Single-Channel SDI Input HDMI Output Encoder Board | |
|---|---|
| Model | XSWEDR-SSDI2HDMI |
| Video Input | 1-channel SDI input interface |
| Audio Input | SDI embedded audio |
| Video Output | 1-channel HDMI output interface |
| Video Encoding Capability | 1920x1080p@60fps |
| USB Interface | USB2.0X2 |
| Network Video Output Protocol | RTSP/RTMP/UDP-TS/HLS/HTTP-FLV/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Video Encoding Bitrate | 35Kbps~50Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Dimensions | 100mmx60mm |
| Power Supply | DC 12V |
| Operating Temperature | -30～70℃ |
| Weight | 49g |

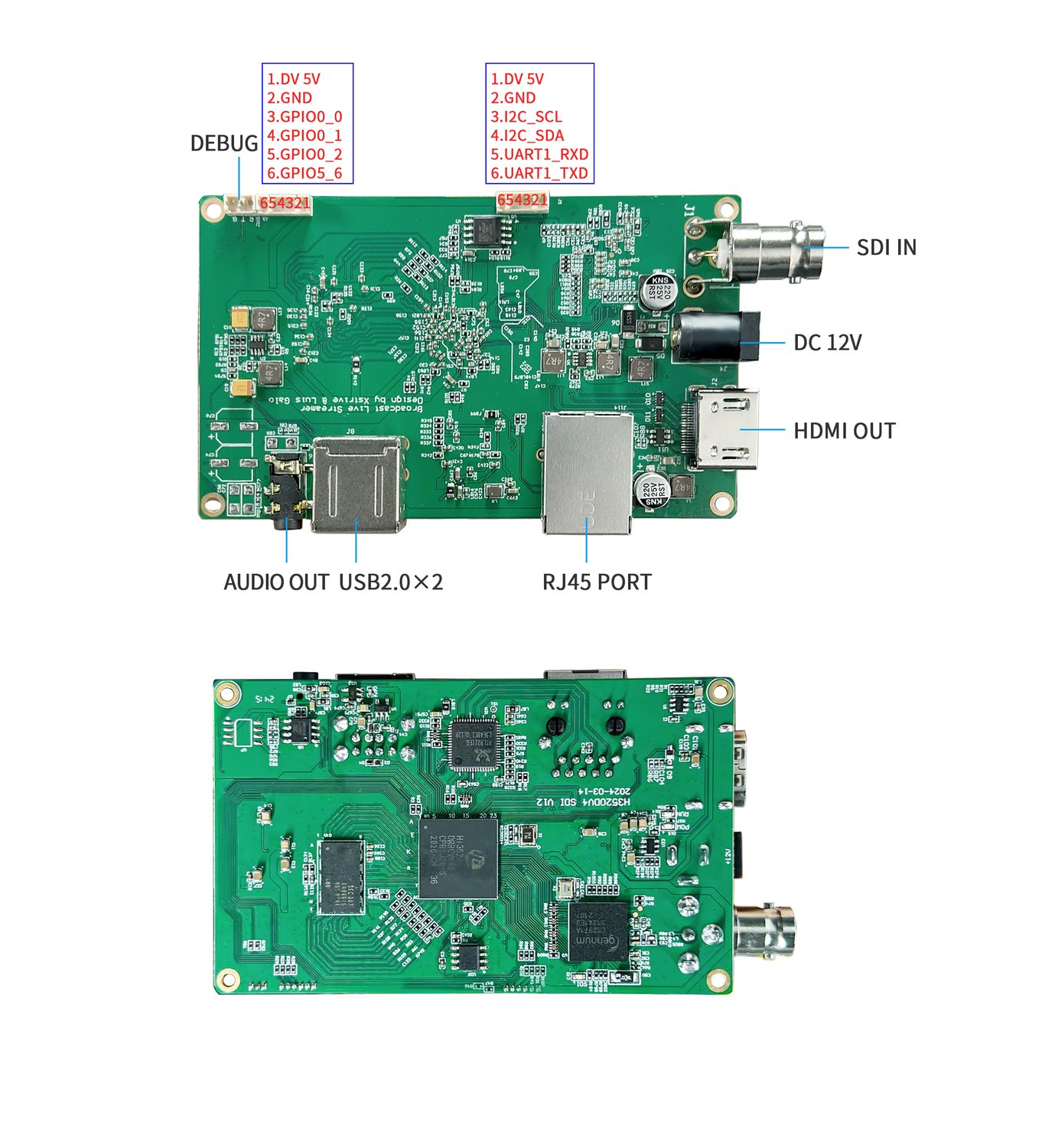

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、Are network channels supported? | Yes, you can pull from network cameras for streaming, but network streams cannot be encoded. SDI signals can be encoded |
| 2、After connecting an SDI camera the resolution does not fill the screen and the image is distorted | http://192.168.0.92/modValues?key1=encode.0.vi_param.0.viCapWidth&type1=number&value1=1920&key2=encode.0.vi_param.0.viCapHeight&type2=number&value2=1080 |
