XST-20DV4DHE Core Board
Project: Product Specification | page_id: 1367
| Development Board Module | |
|---|---|
| Model | XST-20DV4DHE Core Board |
| Video Input | 1-channel HDMI input |
| Network Video Output Protocol | RTSP |
| Output Video Encoding Format | H.264/H.265 |
| Video Encoding Capability | 1920x1080@60FPS |
| Video Encoding Bitrate | 35Kbps~50Mbps |
| Reliability | MTBF |
| Dimensions | 84.7mm×69.7mm |
| Power Supply | DC 12V |
| Operating Temperature | 0 to 70℃ |
| Weight | 27.4g |

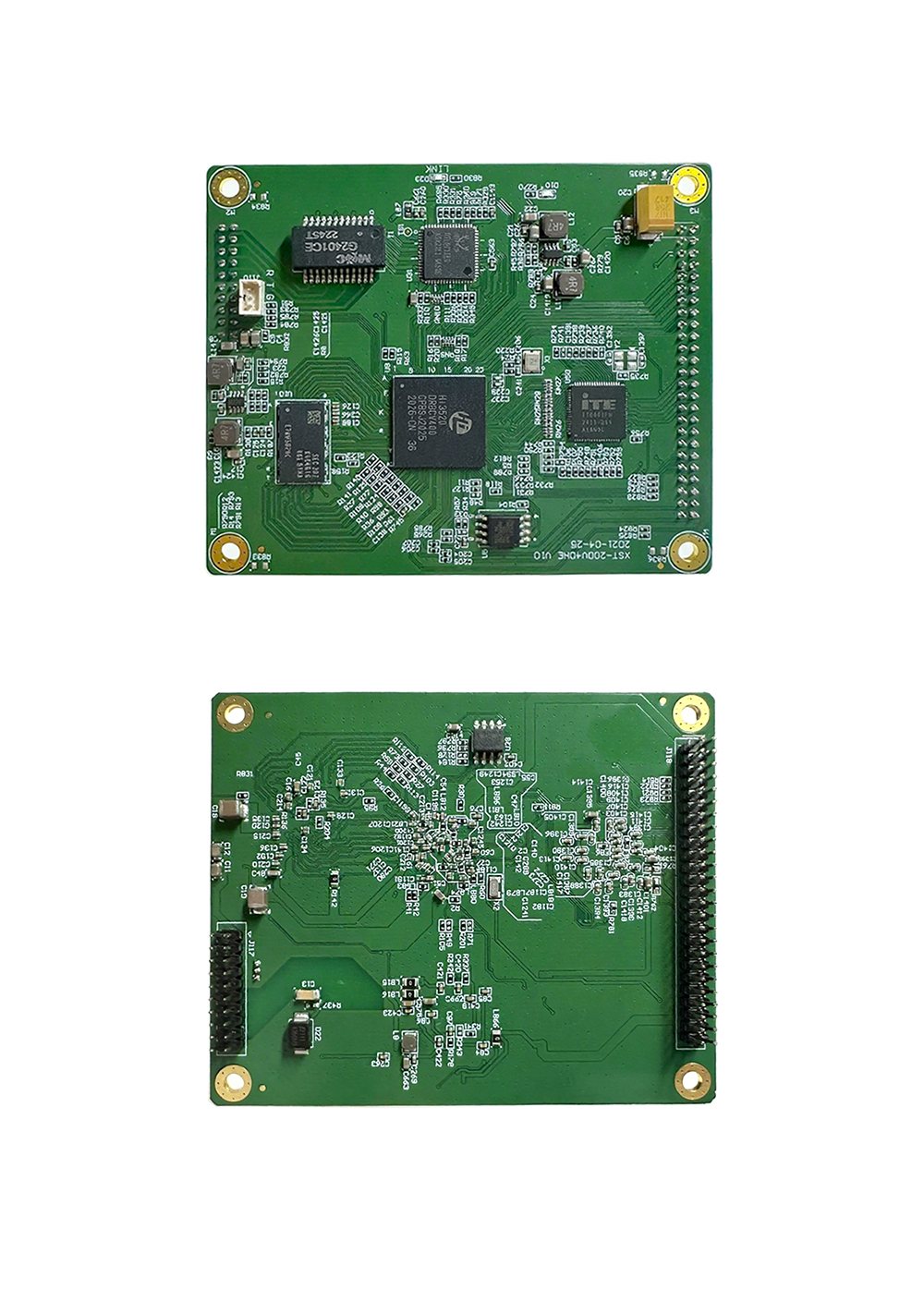

Product Images

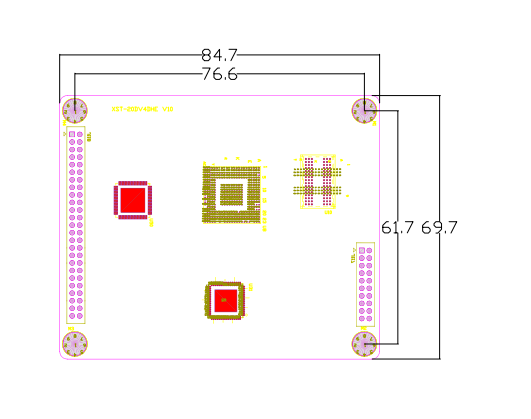

Product Mounting Hole Dimensions
