Dual 4K HDMI Encoder with Loop-through
Project: Product Datasheet | page_id: 207
| Dual-channel 4K HDMI Encoder with Loop-through E22 | |
|---|---|
| Model | XSWEDR-D4KHDMI |
| Video Input | 2 x HDMI input interfaces, 6 x network stream inputs |
| Audio Input | HDMI embedded audio |
| Video Encoding Capability | 1 channel 4K@30fps + 1 channel 1080p@30fps, 2 channels 4K@15fps or 2 channels 1080P@60fps |
| Network Interface | Gigabit Ethernet interface |
| Expansion Interface | SATA 3.0 (up to 16TB) |
| Network Video Output Protocol | SRT/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~80Mbit |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use. |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 270x216x45mm |
| Weight | 1055g |

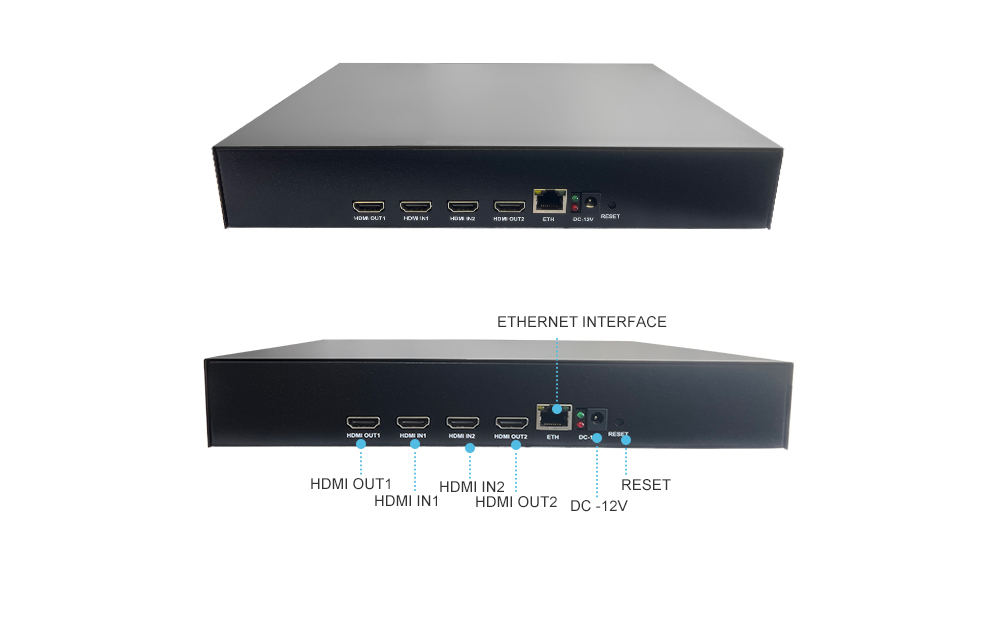

Product Images
Product Manual Link (Chinese)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1. Can both network streams and HDMI streams be added to an NVR for recording? | Yes, both are supported. |
| 2. Does an SSD need to be formatted before installation? | No, it is formatted automatically. |
| 3. Is 2K 120Hz supported? | Only 1 channel of 2K 120Hz is supported. |
| 4. How many devices can play on the LAN at the same time? | About 35 at a 2M bitrate. |
| 5. Is decoding supported? How many HDMI outputs does decoding support? | Decoding is supported, but encoding and decoding cannot run at the same time. Decoding supports one HDMI output. |
| 6. Can the audio sampling rate be changed on the web page? | For HDMI audio input, the sampling rate cannot be changed on the web page. |
| 7. Does the device support recording? What is the recording resolution? | Recording is supported, but the device itself has no storage capacity; a hard disk must be installed to record. Hard disks are available in our store and can be purchased together; we install and test them before shipping. This model supports 4K recording. |
| 8. What is the maximum hard disk size supported, and how long is each recording segment? | A hard disk of up to 16T is supported, and each recording segment is 30 seconds. The recording duration can be customized as required; a customization fee applies. |
