4-Channel SDI Encoder Board
Project: Product Datasheet | page_id: 445
| 4-Channel SDI Encoder Board | |
|---|---|
| Model | XSWEDR-QSDI |
| Video Input | 4-channel SDI input interface（3G-SDI/HD-SDI） |
| Audio Input | Not supported |
| Ethernet Interface | 10/100/1000 adaptive |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Video Encoding Bitrate | 35Kbps~80Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 125mm*100mm |
| Weight | 100g |

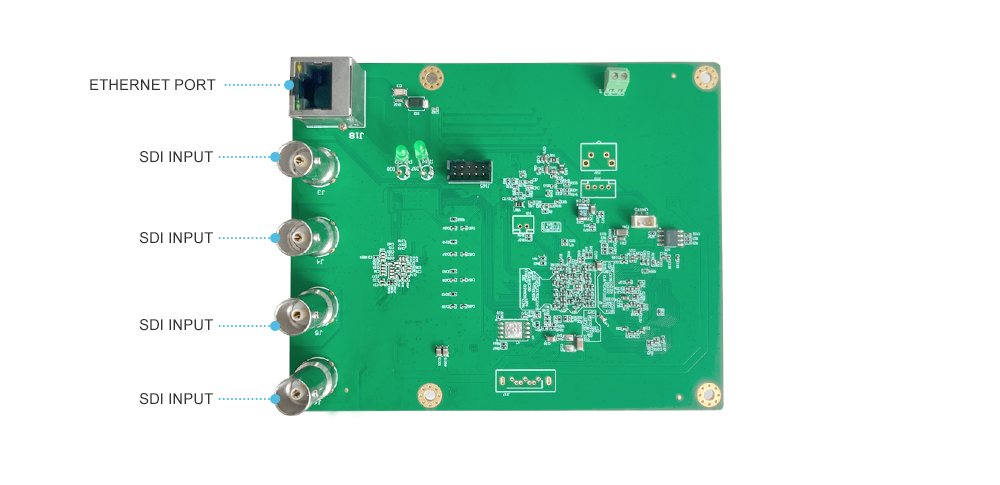

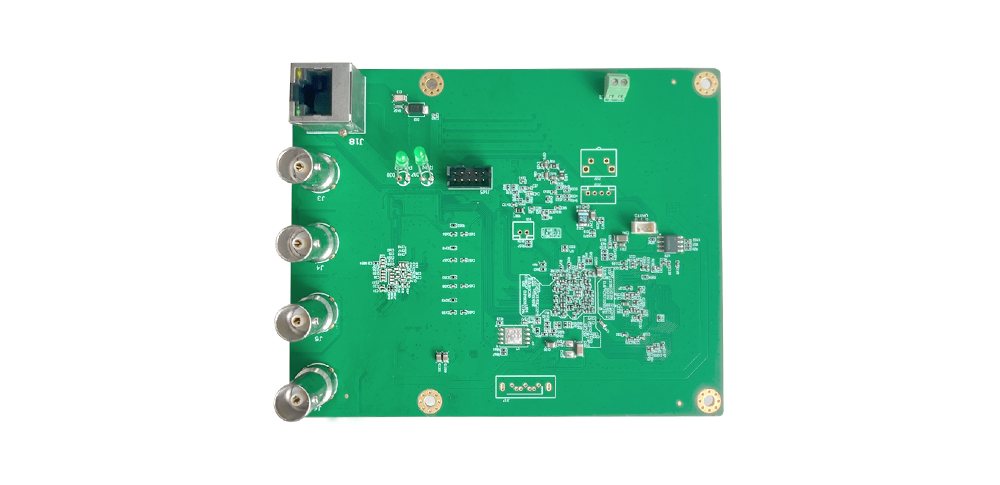

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、Does the 4-channel SDI encoder support RTSP input? | Yes, supported |
| 2、How low can the latency be? | Within 200ms |
