2MP IP Camera
Project: Product Datasheet | page_id: 141
| 2MP Camera | |||
|---|---|---|---|
| Camera | Main chip | HiSilicon hi3516ev200 | |
| Sensor type | IMX307 1/2.8'' CMOS Solid-state Image Sensor | ||
| Lens | 2.8mm~6mm: F1.6 horizontal field of view 79°~51° | ||
| Minimum illumination | Color: 0.001 Lux@(F1.2,AGC ON); B/W: 0.0003Lux @(F1.2,AGC ON), 0 Lux with IR | ||
| Lens mount type | M20 | ||
| Shutter | 1 s to 1/100.000 s | ||
| Day/night switching | ICR infrared cut filter | ||
| Video processing | 3A（AE,AF,and AWB）function | ||
| Compression Standard | Video compression standard | H.264 /H.264 /MJPEG | |
| H.265 encoding type | Main Profile | ||
| H.264 encoding type | BaseLine Profile /Main Profil /High Profile | ||
| Video compression bitrate | 32Kbps~8Mbps | ||
| Image | Maximum image size | 1920x1980 | |
| Main stream resolution and frame rate | 1920x1080@30hz,1280x720@60hz | ||
| Sub stream resolution and frame rate | 704x480@60hz 640x480@60hz | ||
| Highlight compensation | Supported | ||
| Electronic image stabilization | Supported | ||
| Defog | Supported | ||
| Day/night switching mode | Day, night, auto | ||
| OSD | PNG image overlay supported | ||
| AI Functions (customization required, AI not supported on stock models) | Motion detection | Using the 4x4 pixel motion detection function of the HiSilicon chip, combined with a smart analysis object-throwing algorithm. Based on 4x4 pixels, a background modeling algorithm is used to determine whether a pixel has changed. | |
| High-altitude object throwing detection | By judging the moving direction of an object, high-altitude object throwing behavior is recognized and emergency video saving is performed. | ||
| Alarm function | Supports linkage with the platform to send alarm information. | ||
| Network Functions | Interface Protocol | ONVIF | |
| Security protocol | Password protection | ||
| Network protocols | TCP/IP,HTTP,FTP,DHCP,DNS,RTP,RTSP,RTMP | ||
| Remote Management | Remote web management supported | ||
| Storage | Supports up to standard Micro SD/Micro SDHC(128G) local storage | ||
| Interface | Communication interface | 1 x 10M/100M adaptive RJ45 Ethernet port | |
| Audio interface | 1 pair of audio input and output (1 channel line in/out) | ||
| 4G Module (optional) | Supported wireless bands | LTE-TDD : B34/B38/B39/B40/B41 | |
| LTE-FDD : B1/B3/B5/B8 | |||
| TD-SCDMA: B34/B39 | |||
| WCDMA: B1/B8 | |||
| CDMA: BC0 | |||
| GSM: 900/1800MHZ | |||
| General | Power Supply | DC12V | |
| Operating Temperature | -20℃~80℃ | ||
| Operating humidity | Less than 95% (non-condensing) | ||
| Protection grade | IP66 | ||
| Dimensions（mm） | Bullet: 83x76x159 Dome: 117x100 | ||
| Weight | Bullet: 370g Dome: 230g Small housing: 53g |
| 5MP Camera | ||
|---|---|---|
| Camera | Main chip | HiSilicon Hi3516ev300 |
| Sensor type | IMX335 1/2.8’’ CMOS Image Sensor with Square Pixel for Color Cameras | |
| Lens | 2.8mm~6mm: F1.6 horizontal field of view 79°~51° | |
| Minimum illumination | Color: 0.001 Lux @(F1.2,AGC ON); B/W: 0.0003Lux @(F1.2AGC ON), 0 Lux with IR | |
| Lens mount type | M20 | |
| Shutter | 1 s to 1/100.000 s | |
| Day/night switching | ICR infrared cut filter | |
| Video processing | 3A（AE,AF，and AWB）function | |
| Compression Standard | Video compression standard | H.265/H.264/MJPEG |
| H.265 encoding type | Main Proflie | |
| H.264 encoding type | BaseLine Profile/Main Profile/High Profile | |
| Video compression bitrate | 32Kbps~8Mbps | |
| Image | Maximum video resolution | 2592x1944 |
| Main stream resolution and frame rate | 2591x1944@15fps,2688x1520@25fps,2304x1296@30fps,2048x1536@30fps | |
| Sub stream resolution and frame rate | 704x480@60hz 640x480@60hz | |
| Highlight compensation | Supported | |
| Electronic image stabilization | Supported | |
| Defog | Supported | |
| Day/night switching mode | Day, night, auto | |
| OSD | PNG image overlay supported | |
| AI Functions | Motion detection | Using the 4x4 pixel motion detection function of the HiSilicon chip, combined with a smart analysis object-throwing algorithm. Based on 4x4 pixels, a background modeling algorithm is used to determine whether a pixel has changed. |
| High-altitude object throwing detection | By judging the moving direction of an object, high-altitude object throwing behavior is recognized and emergency video saving is performed. | |
| Alarm function | Supports linkage with the platform to send alarm information. | |
| Network Functions | Interface Protocol | ONVIF |
| Security protocol | Password protection | |
| Network protocols | TCP/IP,HTTP,FTP,DHCP,DNS,RTP,RTSP,RTMP | |
| Remote Management | Remote management supported | |
| Storage | Supports up to standard Micro SD/Micro SDHC(128g) local storage | |
| Interface | Communication interface | 1 x 10M/100M adaptive RJ45 Ethernet port |
| Audio interface | 1 pair of audio input and output (1 channel line in/out) | |
| 4G Module | Supported wireless bands | LTE-TDD ：B34/B38/B39/B40/B41 |
| LTE-TDD :B1/B3/B5/B8 | ||
| TD-SCDMA :B34/B39 | ||
| CDMA: BC0 | ||
| GSM: 900/1800MHz | ||
| General | Power Supply | DC12V |
| Operating Temperature | -20℃~80℃ | |
| Operating humidity | Less than 95% (non-condensing) | |
| Protection grade | IP66 | |
| Dimensions（mm） | 38x38 |

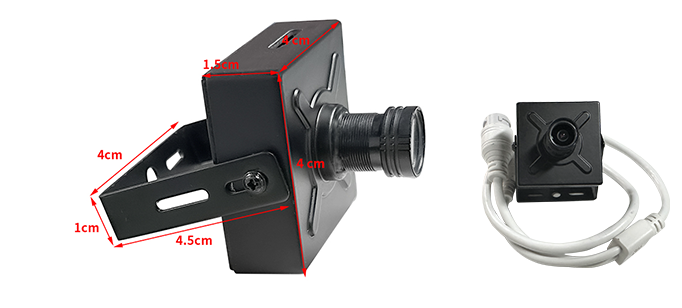

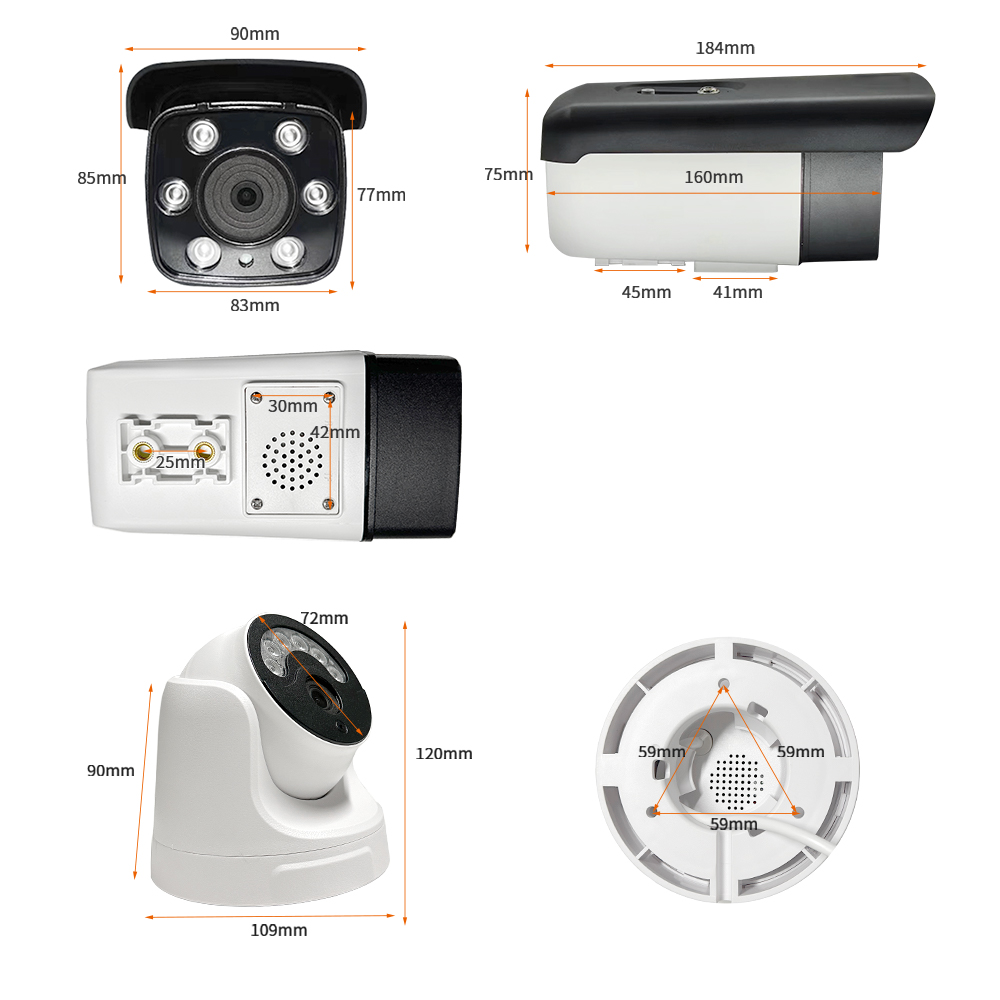

Product Images
Product Manual Link (Chinese)
In-site Docs Center
Camera First Use Guide (Chinese)
Camera FAQ and Troubleshooting
In-site Docs Center
How to Insert the 4G Card in the Camera
How to Insert the Memory Card in a Bullet Camera
How to Install the Memory Card in a Dome Camera
Camera FAQ
| Question | Answer |
|---|---|
| 1. Does the camera support secondary development? Is there development documentation? | Yes, secondary development via HTTP APIs is supported. Camera API documentation: In-site Docs Center) Note: 1080P cameras support only the legacy HTTP API In-site Docs Center and 1080P cameras cannot be upgraded. |
| 2. How do I stream from the camera to my own server? | The server must generate an RTMP streaming address first. |
| 3. Is it compatible with Hikvision or Dahua NVRs? | Yes. |
| 4. Is motion detection alarm supported? We need to call an SDK remotely on the server to get motion detection alarm data. | Currently not supported; only remote video retrieval is supported. |
| 5. What is the resolution of 2MP? Can it be adjusted? | The main stream is 1920x1080. The resolution can be adjusted downwards. |
| 6. What is the power consumption of the camera? How long can a 30000mAh battery keep it running? | Power consumption is about 12V 100mA, which lasts about 30 hours. |
| 7. Can it take pictures and upload them to a cloud server on a schedule, for example one picture every minute automatically? | Customization required. |
| 8. Is the camera system Android or Linux? | Linux. |
| 9. Does the camera have a Bluetooth interface? | 2MP cannot be equipped with a Bluetooth module. |
| 10. Do you provide voice call software? | 2MP does not support calls; no software is needed for calls. Buy a 4MP camera that supports intercom and just open the web page. |
| 11. Can recording be started and stopped remotely? | Yes, you need to use our cloud platform for remote management, which incurs traffic fees. |
| 12. Is there photo capture control? | There is no photo capture control, but there is a snapshot function. |
| 13. The camera image is upside down. Where do I adjust it in the backend? | Image rotation in the settings; use whichever image orientation is correct. |
| 14. Is 24-hour recording supported? What is the maximum number of days? Is the recording cleared automatically when full? | 24-hour recording is supported. How many days can be recorded depends on the size of the memory card purchased. When full it is cleared; recording is looped. |
| 15. Do the 4G and WiFi versions support wired network? | Yes (note: 2MP is available in the wired version only, with no 4G or WiFi version. If you need 4G or WiFi, buy a camera with another resolution). |
| 16. Does 4G also support WiFi? | No, you can only choose one of 4G or WiFi (the SIM card supports 4G only, not 5G; WiFi supports 2.4G only, not 5G). Note: 2MP has no 4G or WiFi version, only the wired version. |
| 17. What are the requirements for my own server if I stream directly to it? | It must support the RTMP protocol. |
| 18. Do 4G cameras support APN cards? | APN cards are not supported; ordinary unrestricted cards are supported. Note: 2MP cameras have no 4G version. |
| 19. Can it stream to a locally deployed streaming server? | Yes. |
| 20. Is the power connector DC5.5-2.1? | Yes. |
| 21. Are the extra interfaces on the board available? Is IO available? | TTL is available, IO is available. |
| 22. Is there complete sample code for secondary development? How do I get the JS code? | Android sample code can be provided; for JS API call sample code, open the web page https://[device IP:9001/ in Chrome and right-click to view the source. |
| 23. Points to note about 1080P cameras | 1080P cameras do not support the new HTTP API, only the old API. 1080P cameras use the old UI and cannot be upgraded. |
| 24. Do you have your own cloud service platform? | Yes. XSTRIVE device management platform registration address: http://platform.xstrive.com/ ; device management platform user guide: In-site Docs Center |
