Single SDI Encoder with Loop-through
Project: Product Datasheet | page_id: 447
| Single-Channel SDI Encoder | |
|---|---|
| Model | XSWEDR-RV-SLSDI |
| Video Input | 1-channel SDI input interface(3G-SDI/HD-SDI) |
| Video Output | 1-channel SDI output interface |
| Audio Input | 1-channel stereo analog audio input interface / SDI embedded audio |
| Wired Network | 10/100/1000Mbit adaptive |
| Wireless Network | wifi 2.4G 5G |
| Video Input | 1-channel SDI input interface(3G-SDI/HD-SDI) |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Video Encoding Capability | 1920x1080@60FPS |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~40Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use |
| Power Supply | DC 12V |
| Operating Temperature | -0～70℃（-20-70℃ available to order） |
| Dimensions | 125x90x28mm |
| Weight | 297.3g |

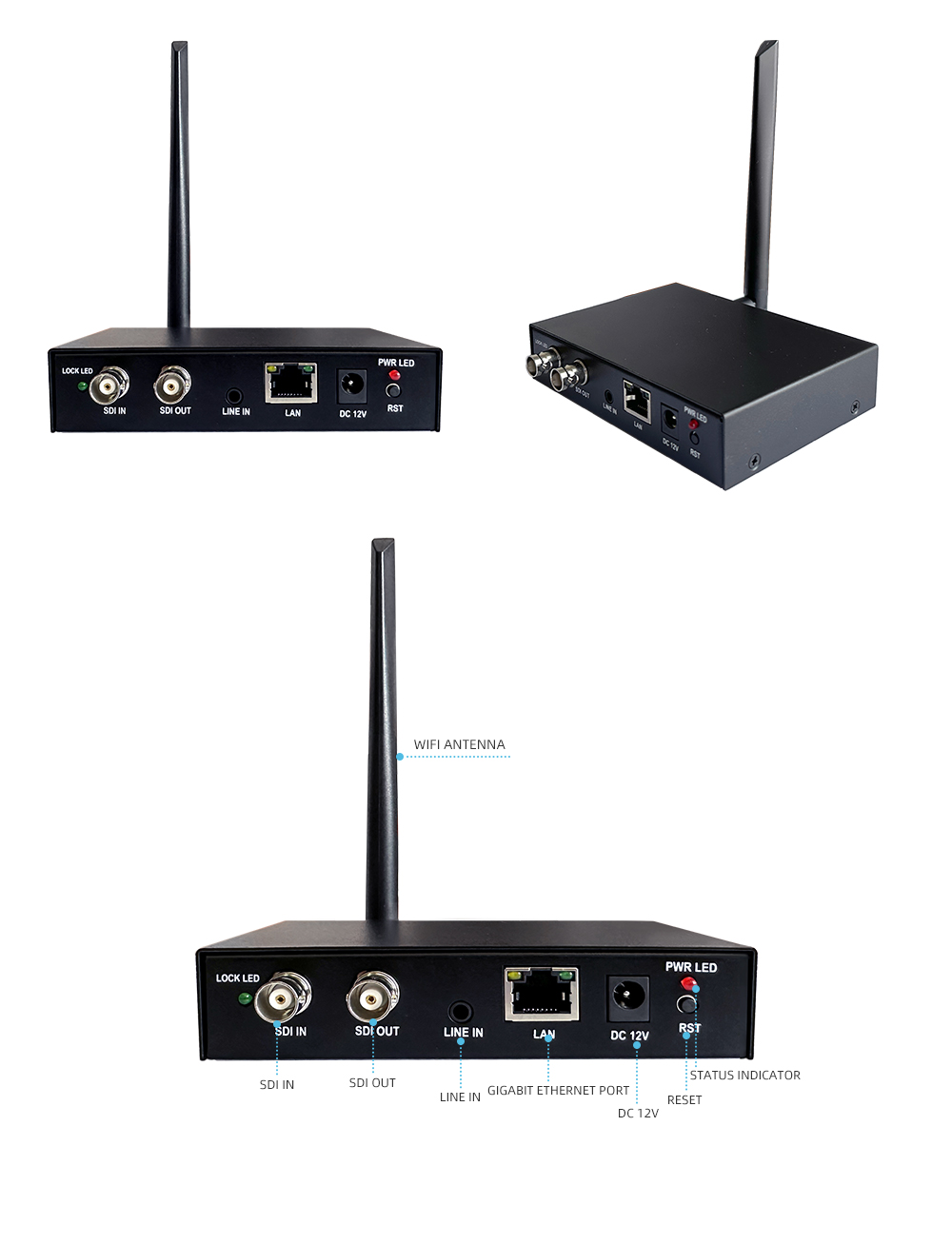

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1、What is the model of the SDI port? | BNC interface |
| 2、SDI embedded audio has 4 audio tracks. How many audio tracks are supported? | Currently the device supports only 1 audio track. More than 1 requires customization |
