4-Channel CVBS Analog Encoder
Project: Product Datasheet | page_id: 226
| 4-channel Analog Encoder | |
|---|---|
| Model | XSWEDR-4CVBSEP |
| Video Input | 4 x CVBS/AHD (up to 1080p) input |
| Video Output | 1 x CVBS, 1 x VGA, 1 x HDMI |
| Audio Input | 4 x RCA mono audio input |
| Network Interface | 100M Ethernet interface |
| Network Video Output Protocol | /RTSP/RTMP/UDP-TS/HLS/ONVIF/gb28181/HTTP-TS/HTTP-FLV/WS-RAW/WS-FLV |
| Output Video Encoding Format | H.264 |
| Max Output Resolution | 4 channels 960x576 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~2048Kbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters. Register at platform.xstrive.com to use. |
| Power Supply | DC 12V |
| Operating Temperature | 0～70℃ |
| Dimensions | 258x225x43mm |
| Weight | 700g |

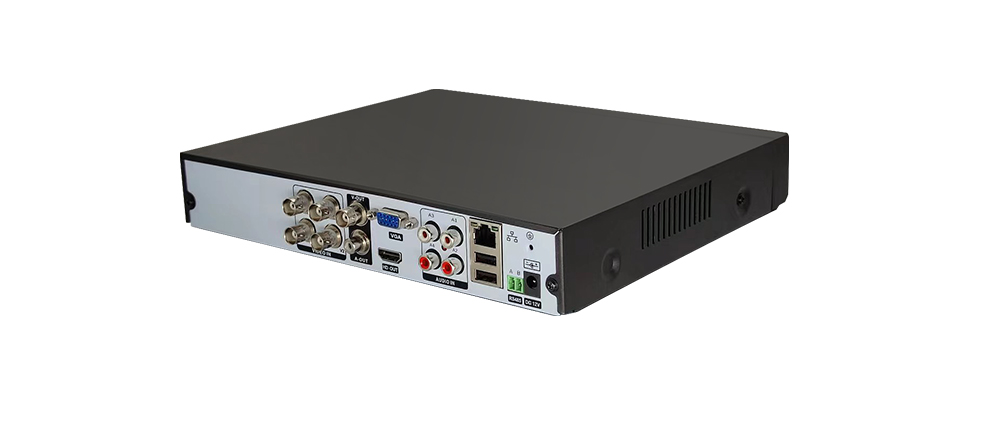

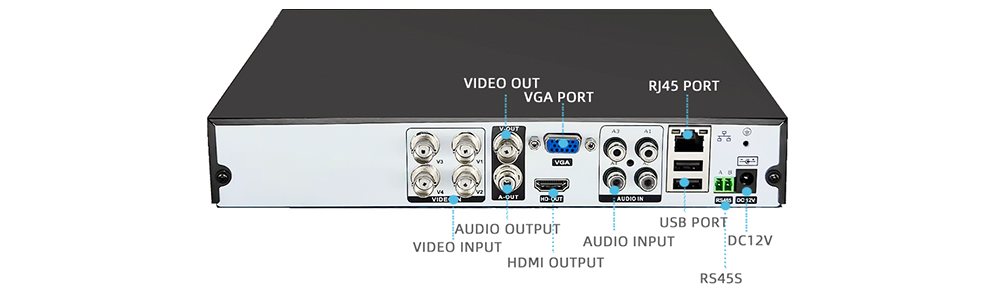

Product Images
Product Manual Link
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1. Is the MPEG2 encoding format supported? | Not supported. |
| 2. What is the audio encoding bitrate range of this model? | 32kbit/s. |
