RK3568 Triple-displayDevelopment Board（(Network version)）
Project: Board Introduction | page_id: 970
| Model | XSWENC70E4ECS00H1E0G2NNXX |
|---|---|
| CPU | RK3568 |
| CPU Cores | Quad-core A55 |
| GPU | "ARM Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0" |
| NPU Computing Power | "1 TOPS computing power, supports INT4/INT8/FP16 mixed precision, compatible with mainstream frameworks such as TensorFlow / PyTorch / ONNX" |
| DDR | 8G |
| eMMC | 16G |
| Supported System | Linux |
| Video Encoding | K@60fps H.265/H.264/VP9 |
| Video Input | None |
| Video Output | "2 HDMI, max resolution 4K@60fps / 1 VGA, max 1920x1080@60fps" |
| Interfaces | 4x USB, CAN, RS485 |
| Storage | 2x SATA |
| Network | RJ45 10/100/1000M x2 |
| WIFI | None |
| Operating Temperature | 0 to 70°C |
| Service Life | Continuous operation lifespan of more than 5 years |

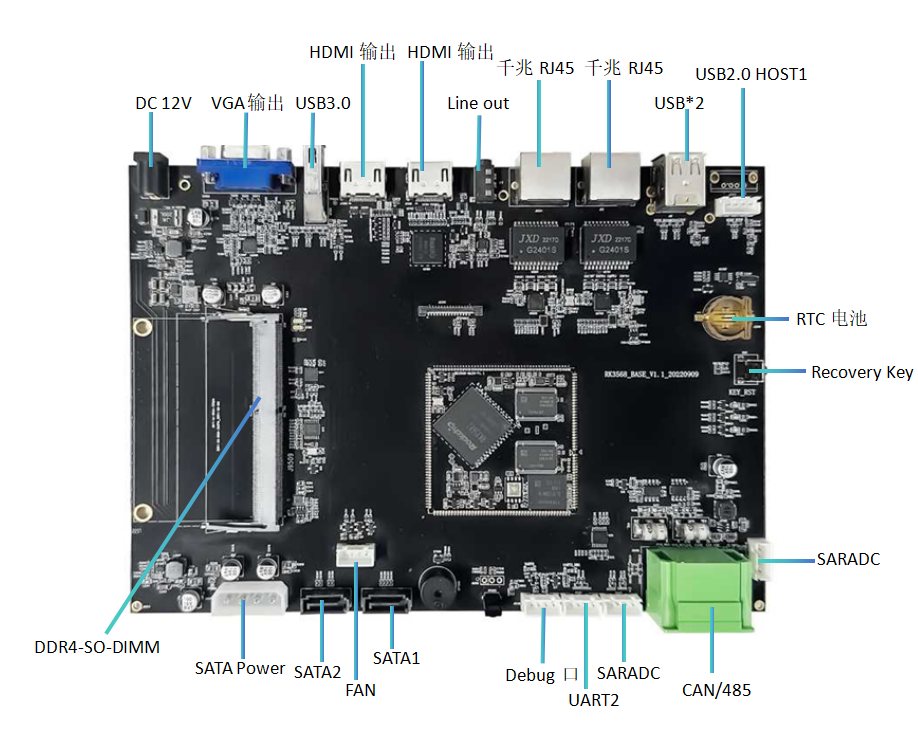

Board Interface Diagram
Performance
- Adopts the Rockchip RK3568 processor, a high-end general-purpose SOC built on a 22nm process, integrating a quad-core 64-bit Cortex-A55 processor with a main frequency up to 2.0GHz, 2GB memory, 16GB EMMC, and RK809 dynamic frequency scaling.
- Dual-core architecture GPU: integrates a dual-core architecture GPU, ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2, OpenGL 2.0 and Vulkan 1.1, with embedded high-performance 2D acceleration hardware.
- Built-in independent NPU: a built-in independent NPU with computing power up to 0.8Tops, which can be used for lightweight artificial intelligence applications.
- Powerful video codec capability: the high-performance VPU supports 4K 60fps video decoding and simultaneous decoding of multiple video sources, supporting three-screen different display. Supports H.265, H.264, VP9 and VP8 video decoding, and 1080p 100fps H.265/H.264/VP9 video encoding.
- Core board: the core board uses a stamp-hole (castellated) interface and can be adapted to a variety of custom base boards, enabling rapid customization of base board form factors for different requirements — samples can be produced in as little as two weeks. The core board can be paired with different DDR and eMMC, so you can freely choose the configuration you need.
- Rich interfaces: dual Gigabit Ethernet ports, SATA3.0, PCIe3.0, an eDP-to-VGA interface, dual HDMI, 4G and other interfaces are all available.

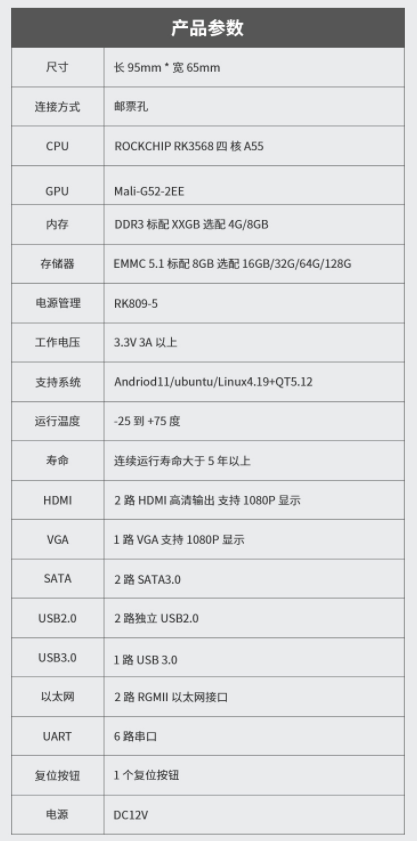

Product Parameters
Interface Circuits

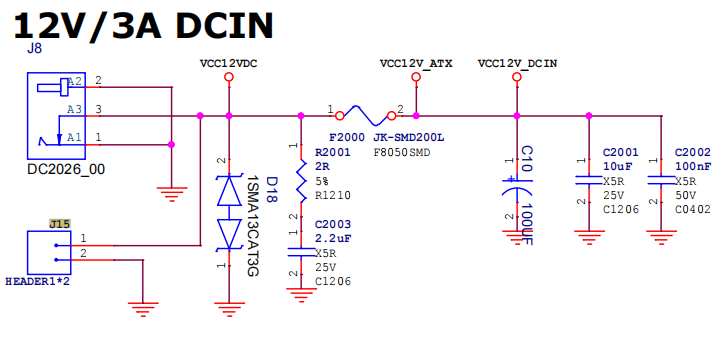

12V power supply

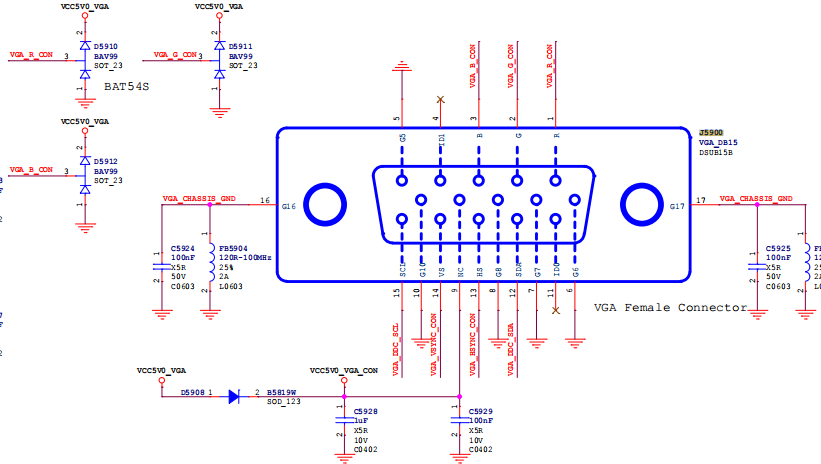

VGA interface

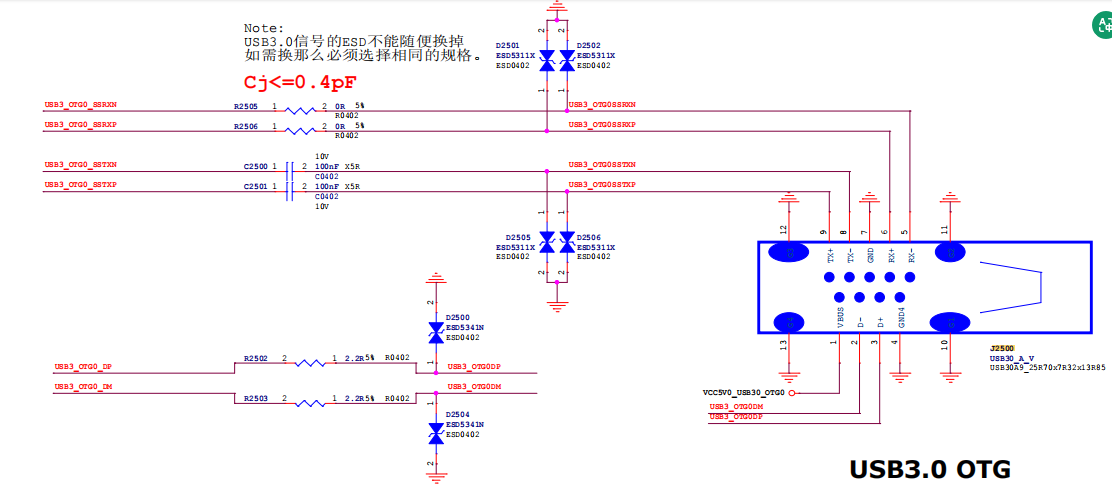

USB3.0 flashing interface

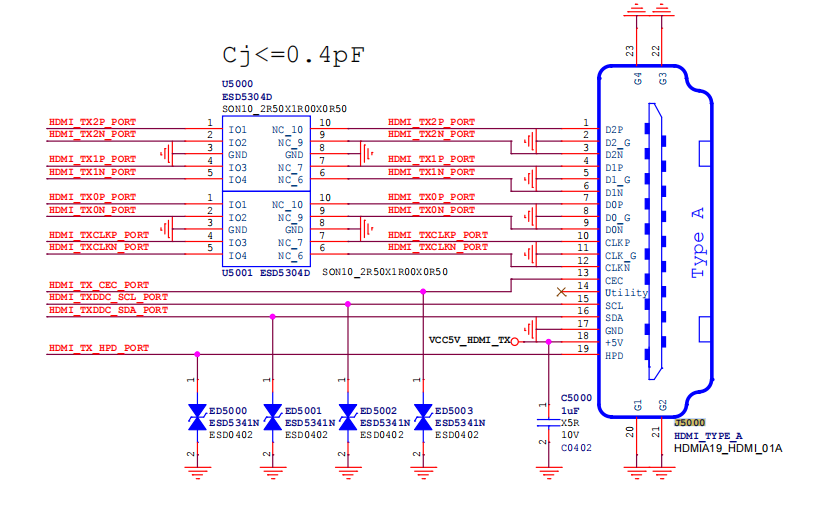

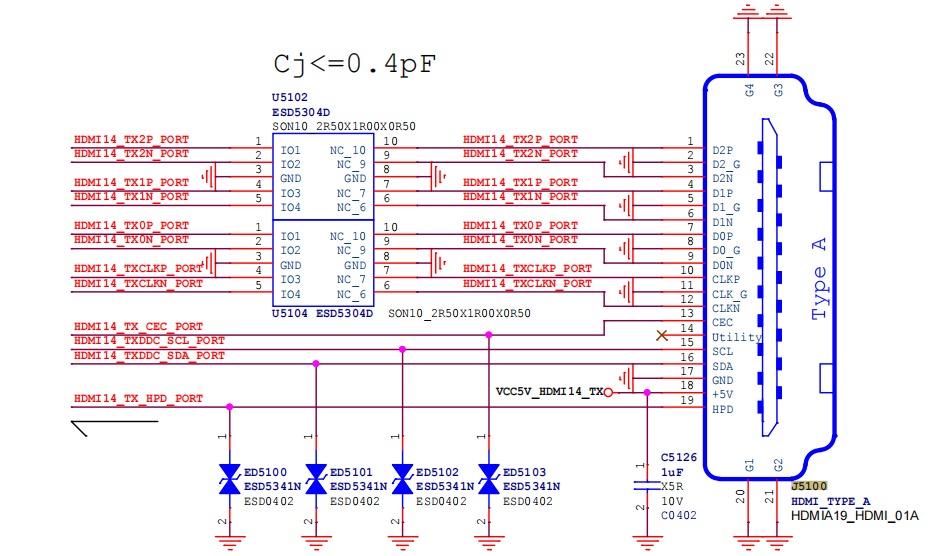

HDMI loop-out interface 1 / loop-out interface 2
Line out interface

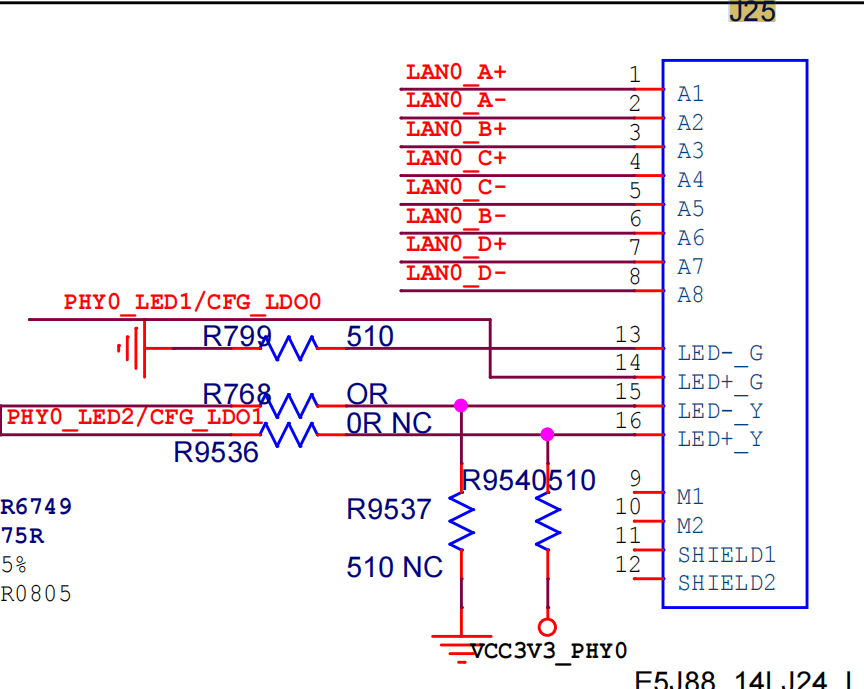

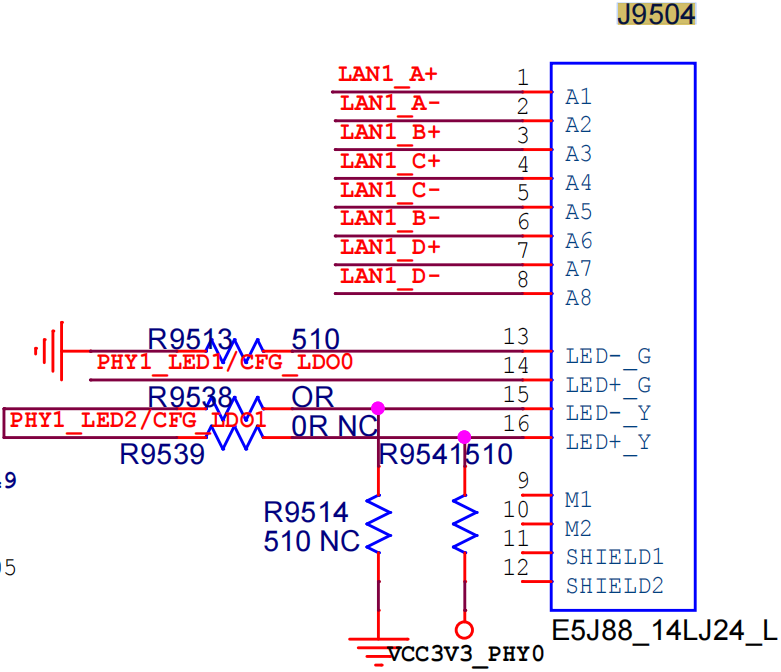

Gigabit RJ45 interface 1
Gigabit RJ45 interface 2

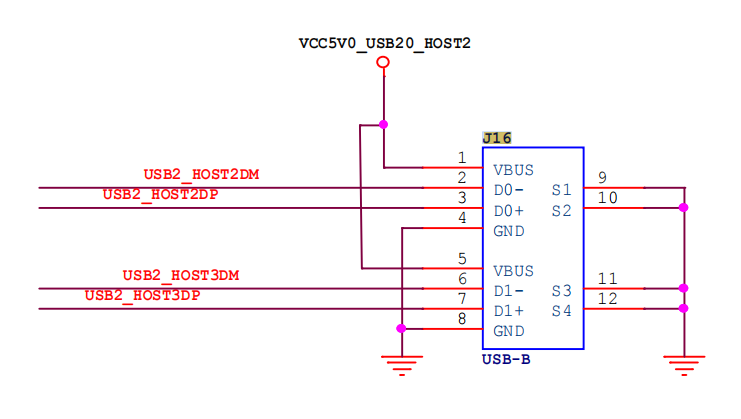

USB*2 interface

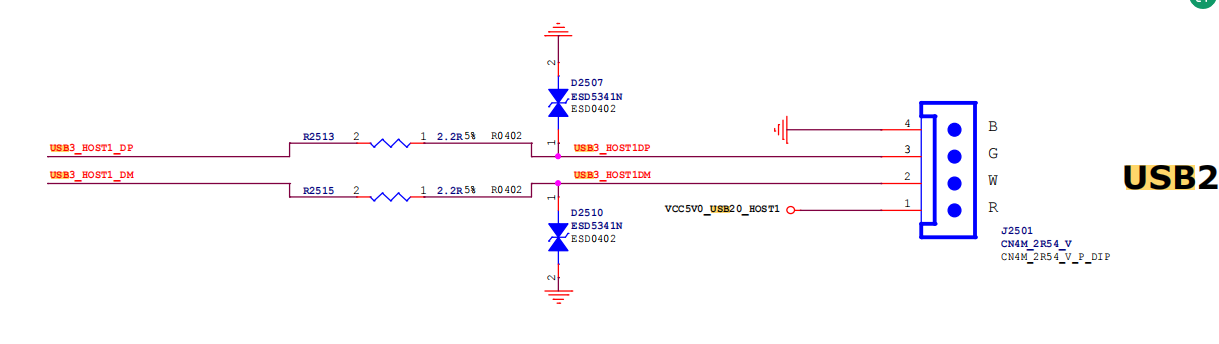

USB 2.0

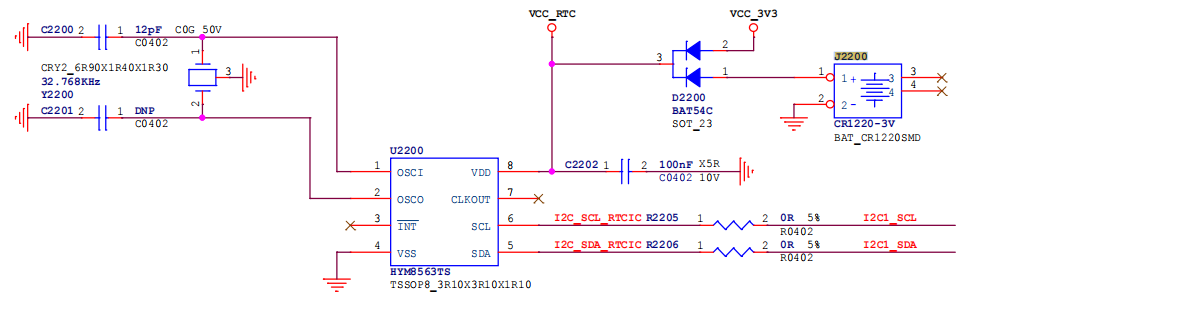

RTC interface

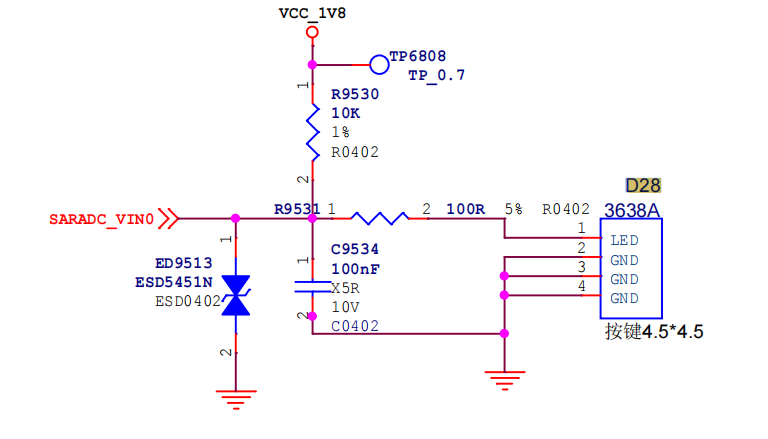

Flashing reset interface

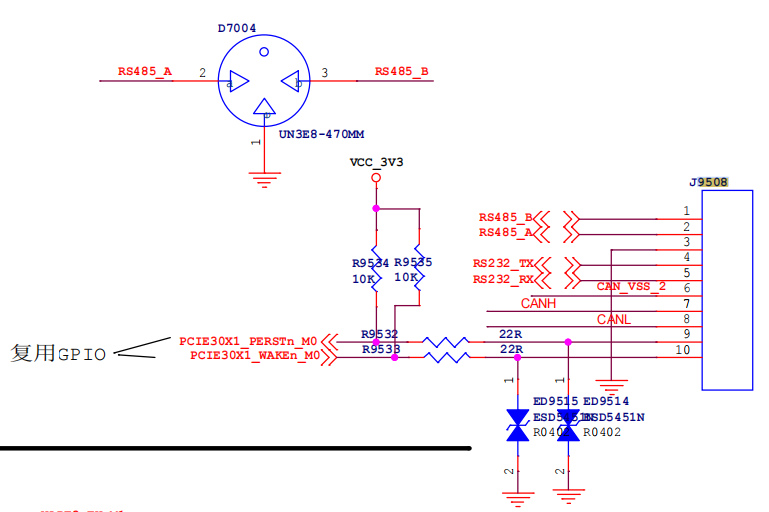

CAN/485 interface

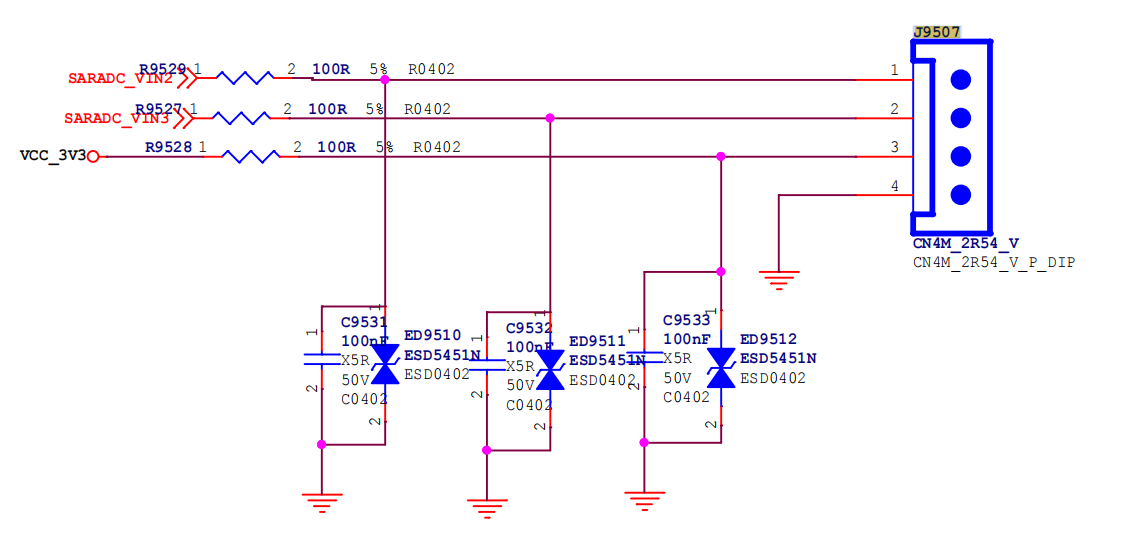

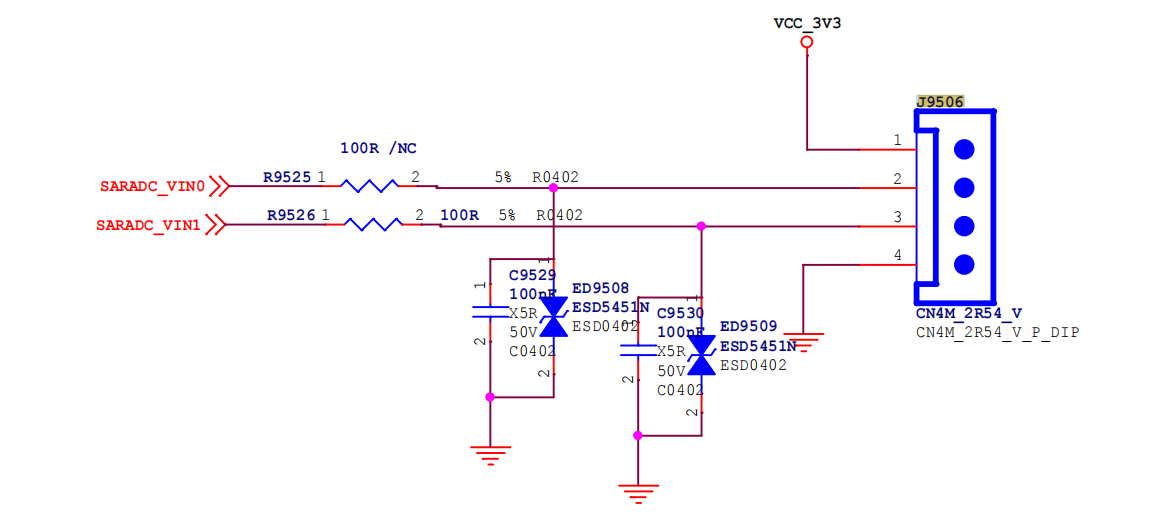

SARADC

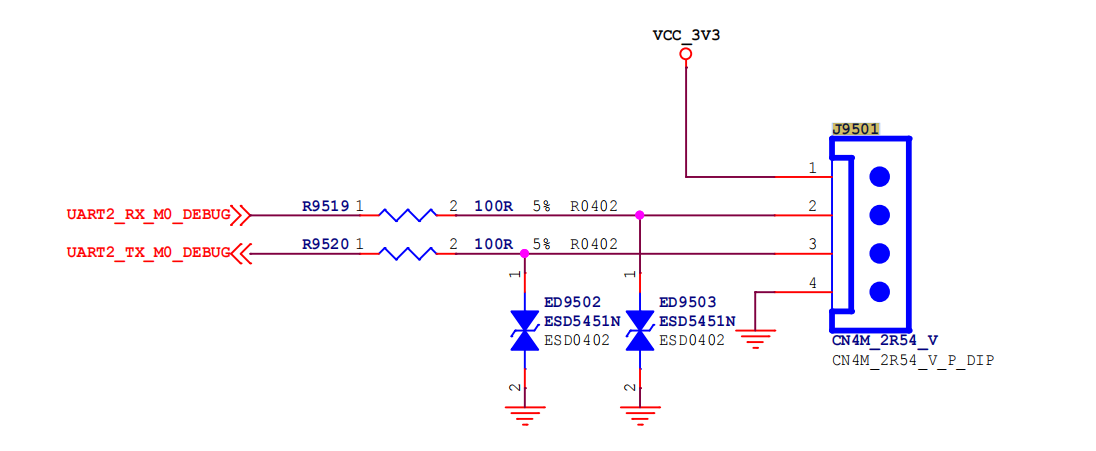

UART2

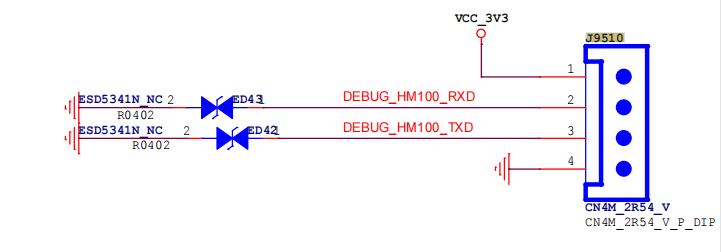

DEBUG

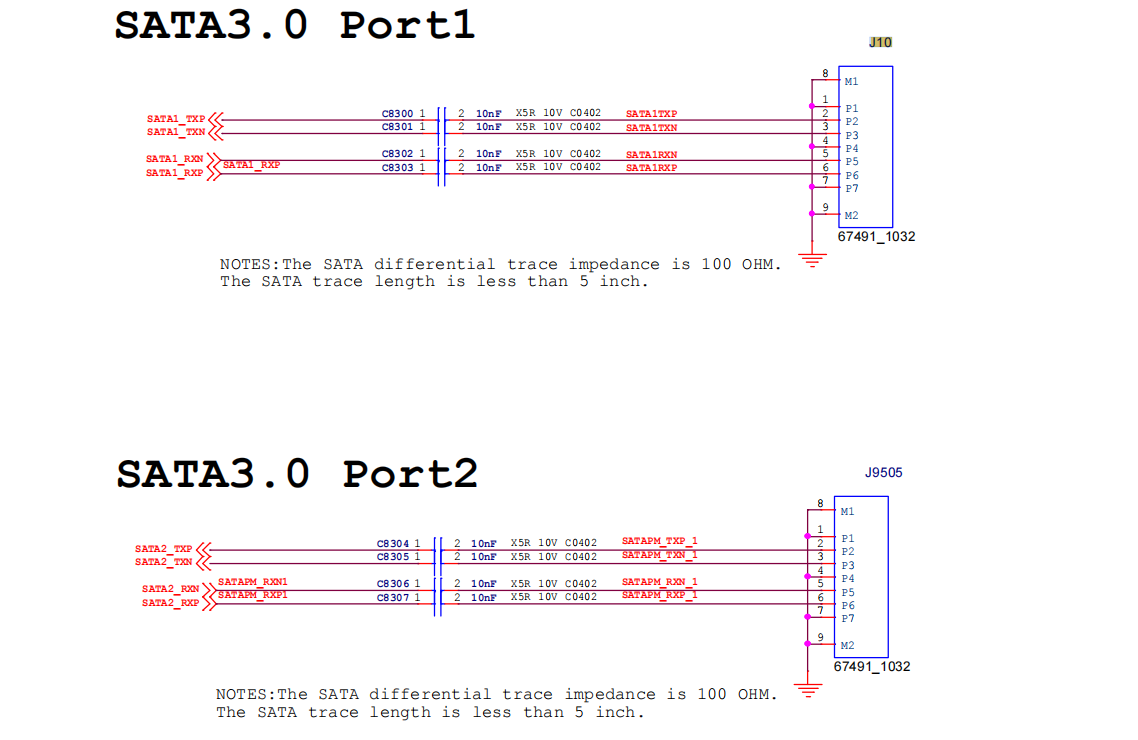

SATA Port

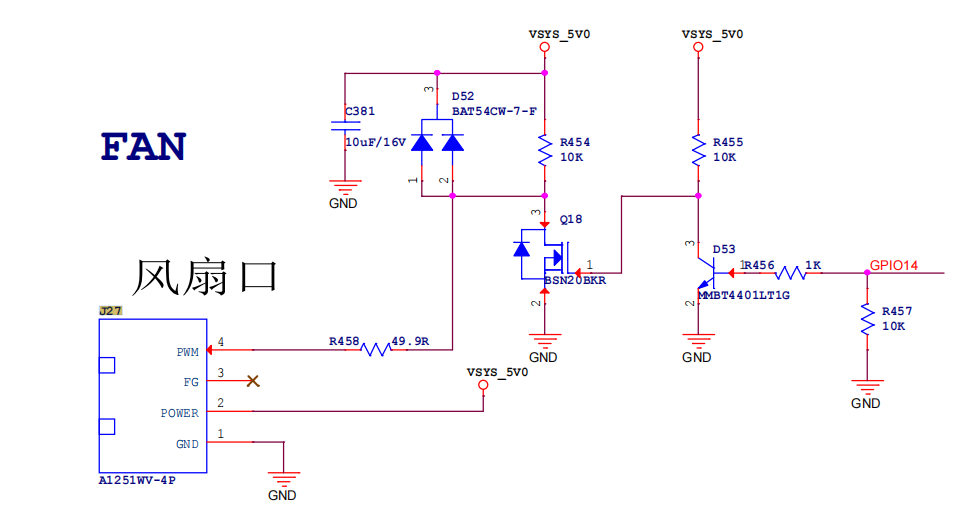

FAN

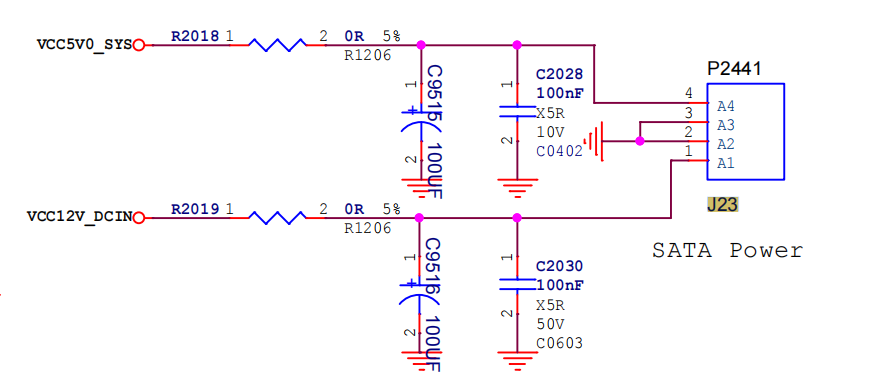

SATA Power

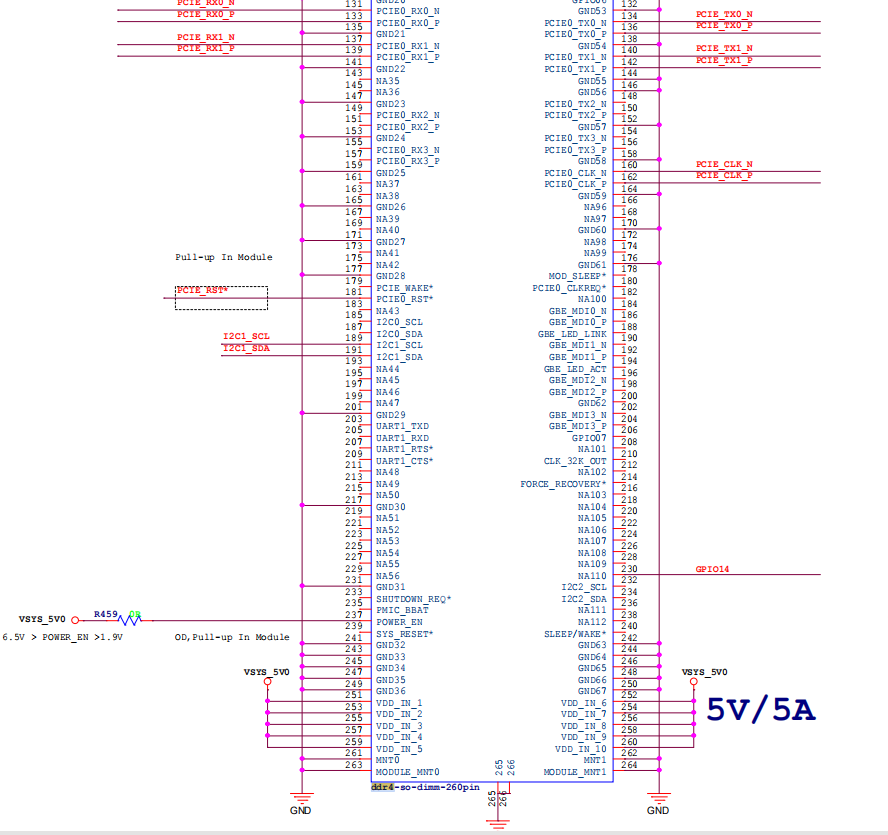

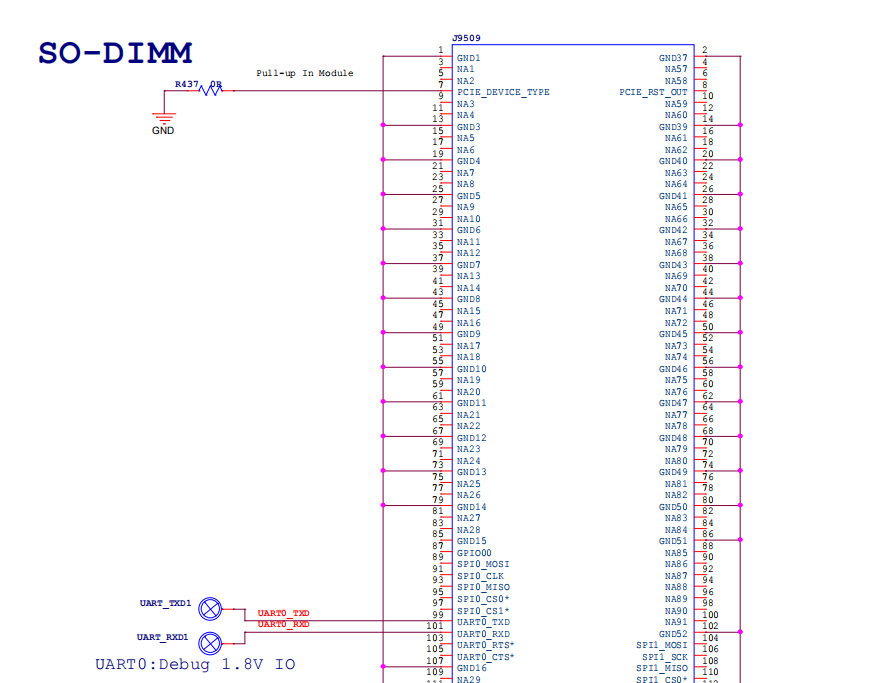

DDR4-SO-DIMM
FAQ
| Question | Answer |
|---|---|
| 1. Is it Android or Linux? | Both Linux and Android are supported |
| 2. Is there an RKMPP development package? | Yes |
| 3. Does it support HarmonyOS? | Yes |
