RK3588 5HDBBoard

Dev Boards & Modules · Rockchip

Project: Board Introduction | page_id: 1638

Weisen RK3588 5HDB Board
Model	XSWENC70E4ECS00I4E1G0NNXX
CPU	RK3588
CPU Cores	4 cores A76 + 4 cores A55
GPU	"ARM Mali-G610 MP4 / supports Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.2"
NPU Computing Power	"6 TOPS computing power, supports INT4/INT8/FP16 mixed precision / compatible with mainstream frameworks such as TensorFlow / PyTorch / ONNX"
DDR	8G
eMMC	16G
Supported Systems	Linux/debian
Video Encoding	Supports H.265/H.264 encoding, up to 8K@30fps
Video Input	5-channel HDMI, max input resolution 1x8K@30fps+4x4K30fps
Video Output	2-channel HDMI, max resolution 8K@60fps
Interfaces	8xRS232
Storage	2xSATA
Network	RJ45 10/100/1000M x1
WIFI	None
Operating Temperature	0 to 70°C
Service Life	Continuous operation life of more than 5 years

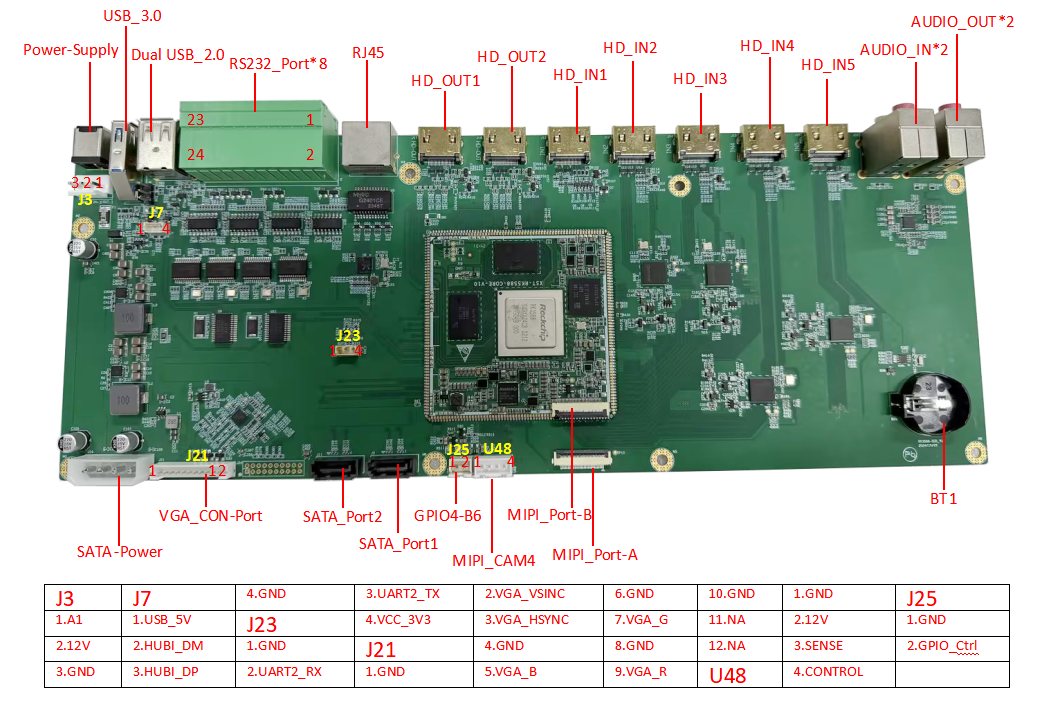

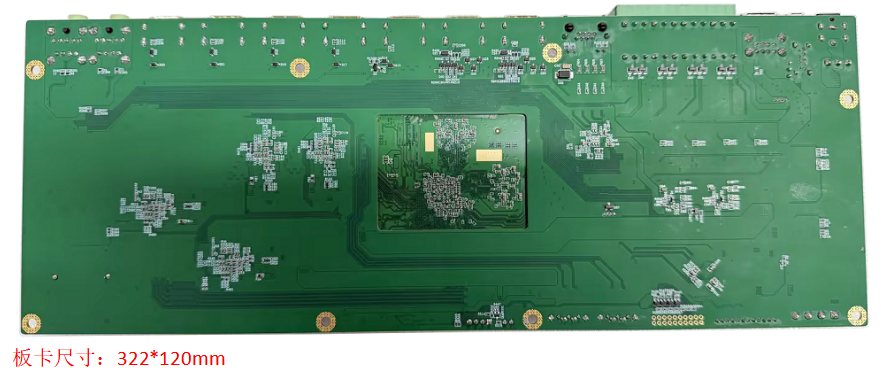

Product Images

Chip Specifications

Rockchip RK3588
Description

• 8nm advanced process, 8-core 64-bit architecture, high performance, low power consumption
• ARM Mali-G610 MC4 GPU, dedicated 2D graphics acceleration module
• 6TOPS AI NPU, empowering various AI scenarios
• 8K video codec, 8K display output
• Built-in multiple display interfaces, supports multi-screen different display
• Powerful image processing capability, 48MP ISP, supports multi-camera input
• A rich set of high-speed interfaces (PCIe, USB Type-C, SATA, Gigabit Ethernet) for easy expansion
• Android and Linux OS

Features

CPU
• Octa-core 64-bit big.LITTLE architecture, 4 Cortex-A76 + 4 Cortex-A55
GPU
• ARM Mali-G610 MC4
• OpenGL ES 1.1/2.0/3.1/3.2
• Vulkan 1.1, 1.2
• OpenCL 1.1, 1.2, 2.0
• Embedded high-performance 2D image acceleration module
NPU
• 6TOPS AI computing power, triple-core architecture, supports int4/int8/int16/FP16/BF16/TF32
Multimedia
• Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS
• Supports H.264/H.265 video encoding, up to 8K30FPS
Display
• Supports eDP/DP/HDMI2.1/MIPI and other display interfaces
• Supports multi-screen different display, up to 8K60FPS
Video Input
• 32MP ISP, supports HDR and 3DNR
• Supports multi-camera input (44lanes or 42lanes+2*4Lanes) MIPI CSI-2 and DVP interfaces
• Supports HDMI2.0 input, up to 4K60FPS
High-Speed Interfaces
• Supports PCIe3.0/PCIe2.0/SATA3.0/RGMII/TYPE-C/USB3.1/USB2.0

Interface Circuits

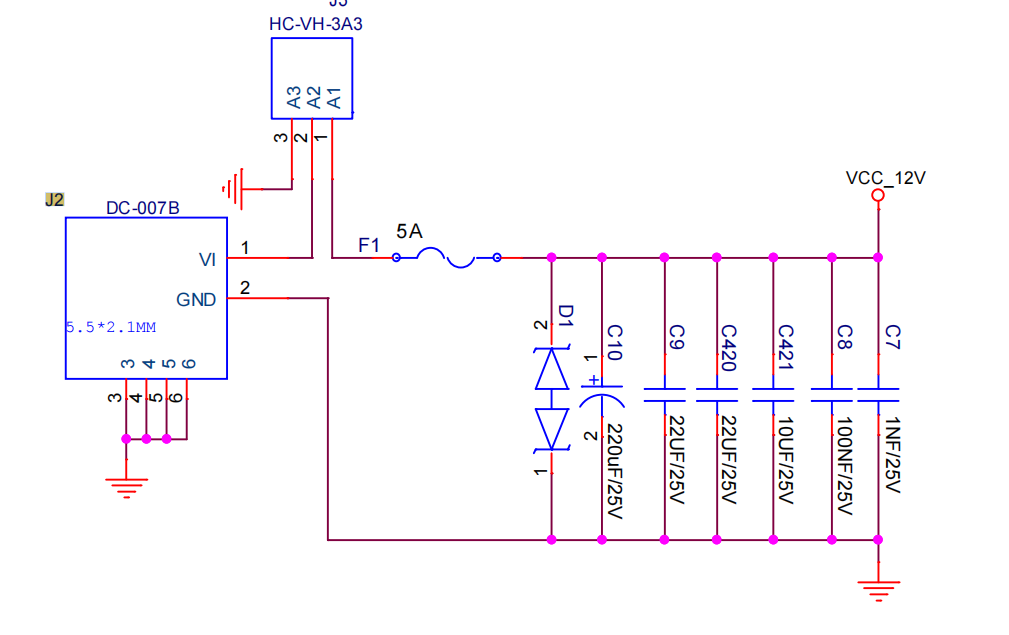

Power-Supply

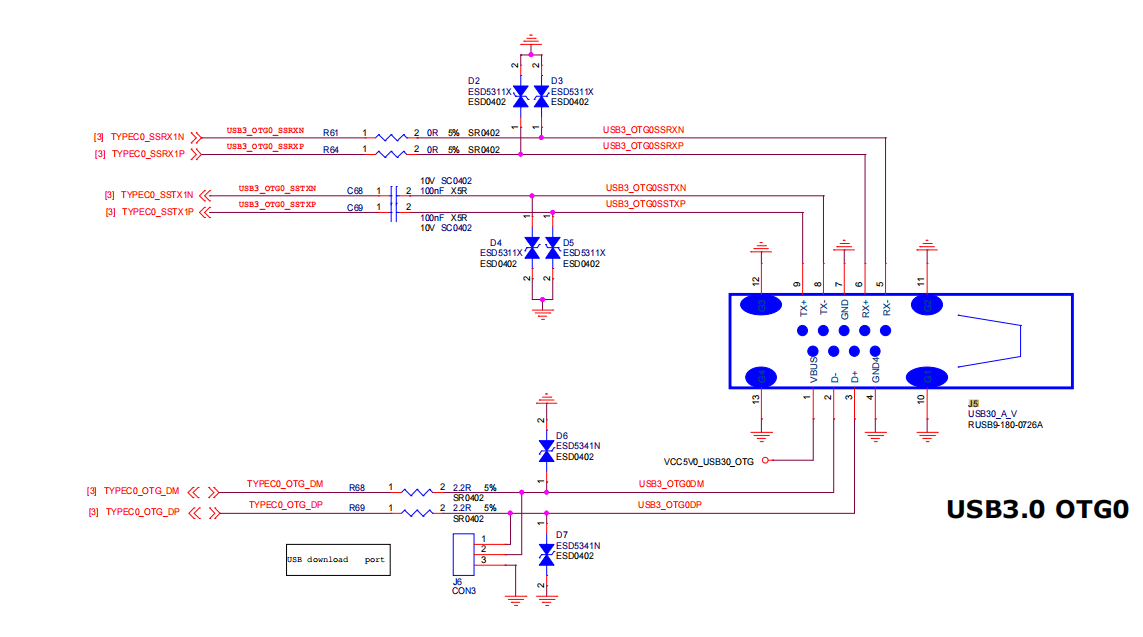

USB-3.0

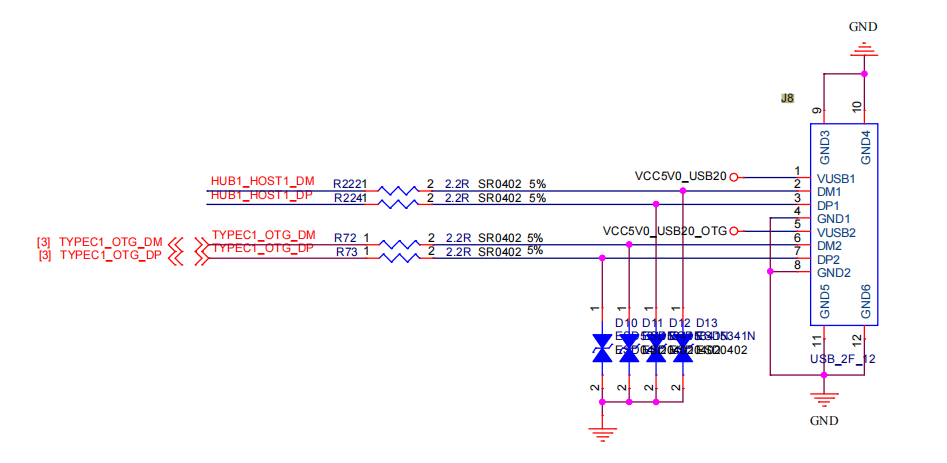

Dual USB_2.0

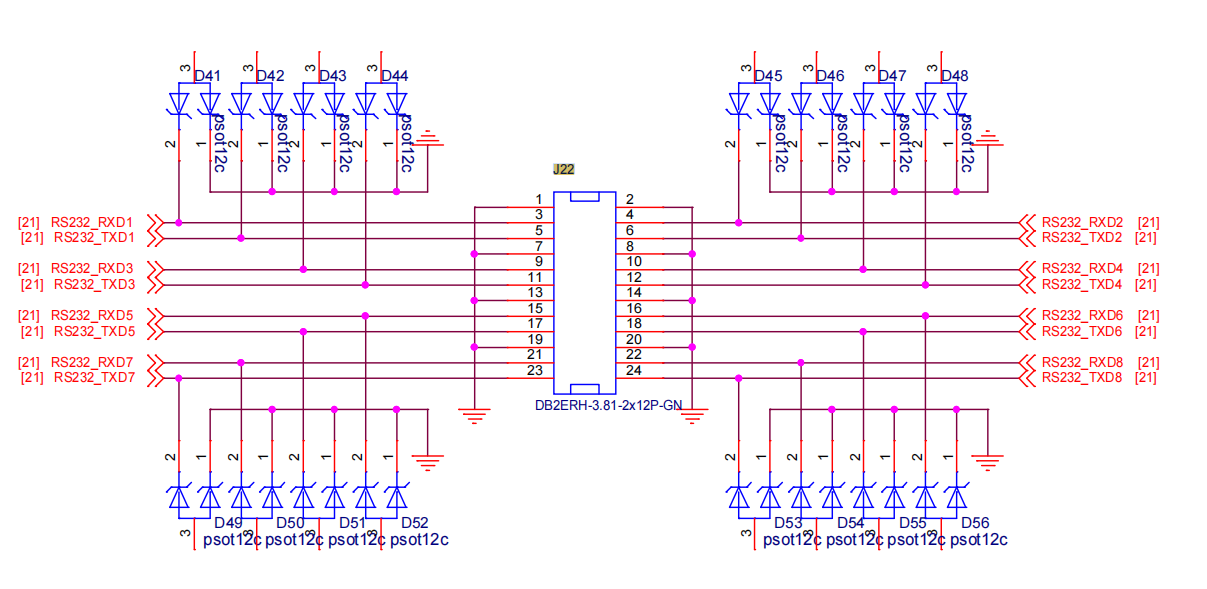

RS232_Port

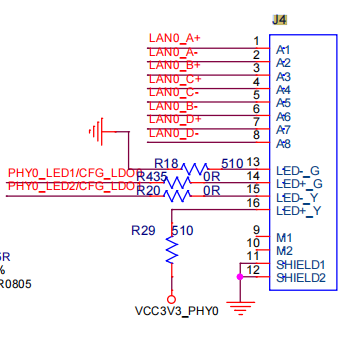

RJ45

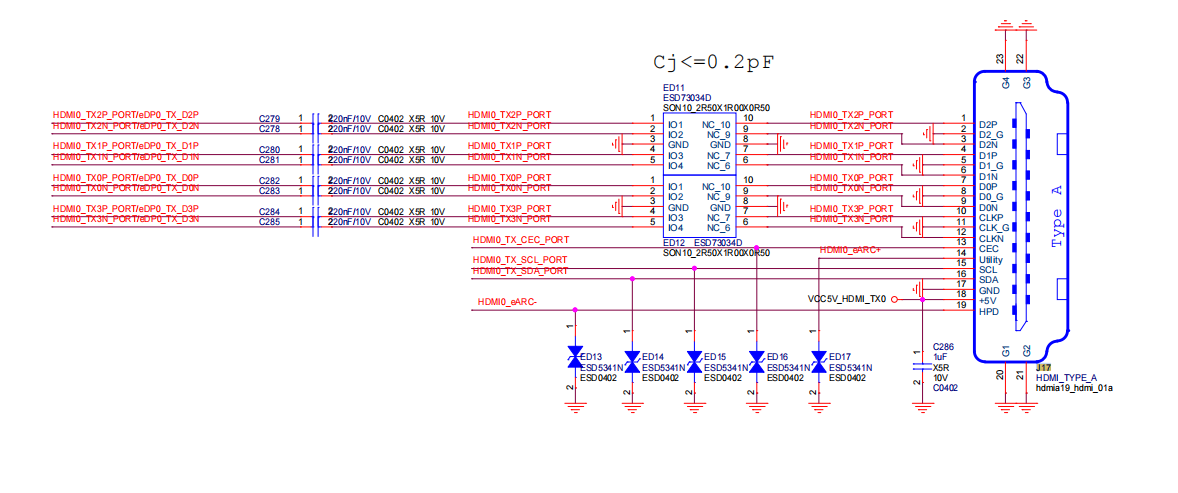

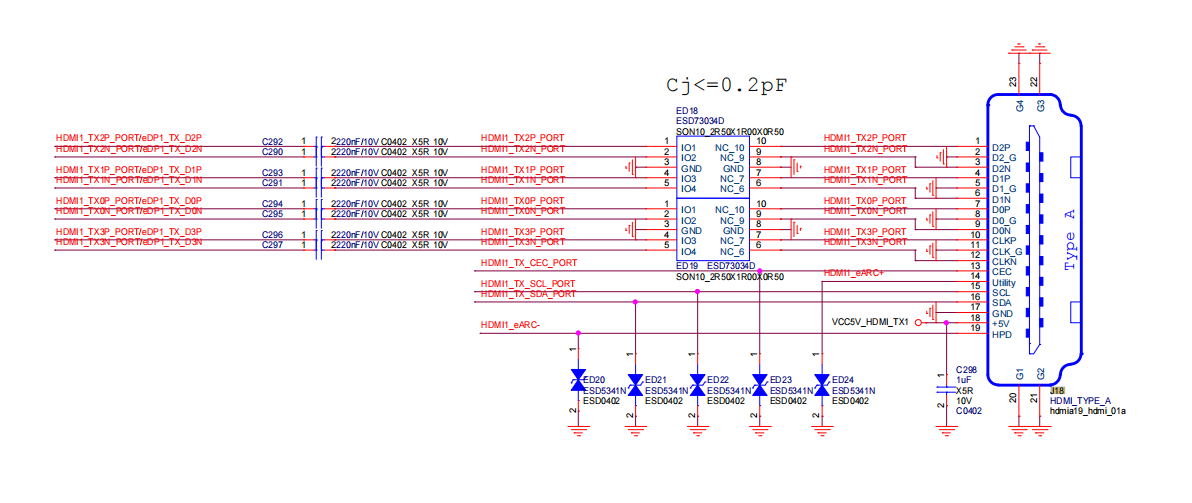

HD_OUT1

HD_OUT2

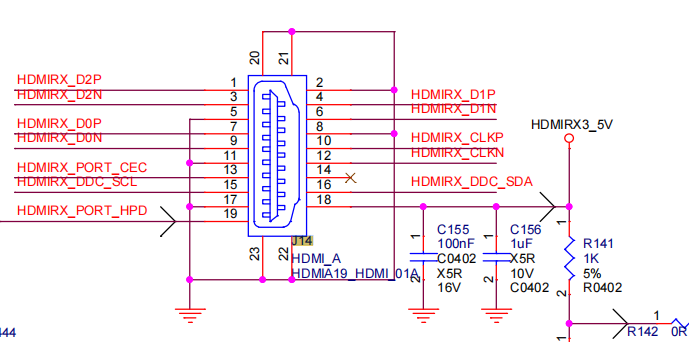

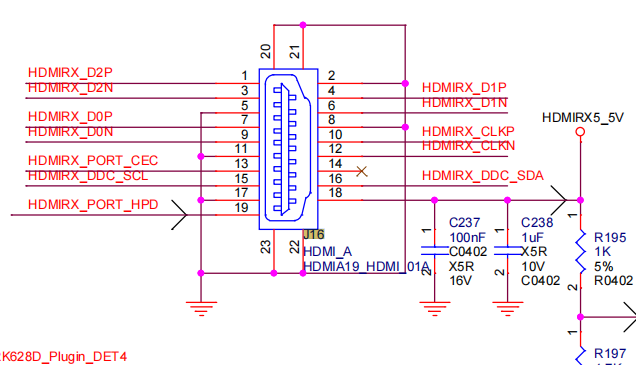

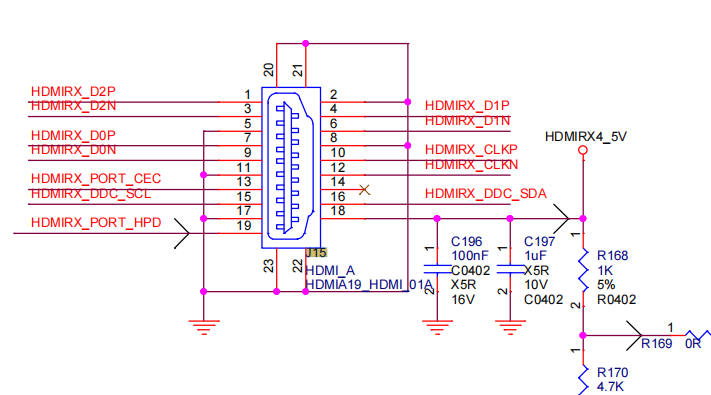

HD_IN1

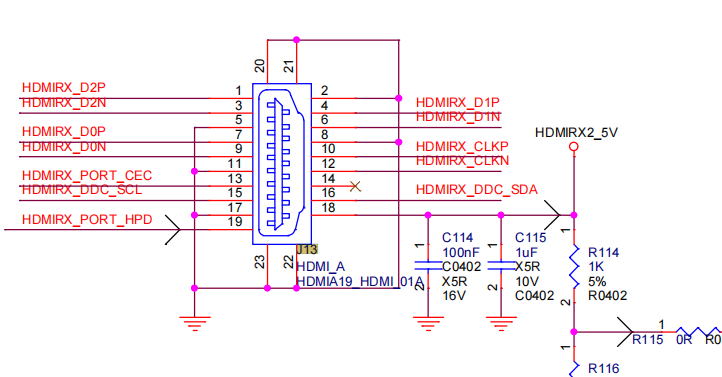

HD_IN2

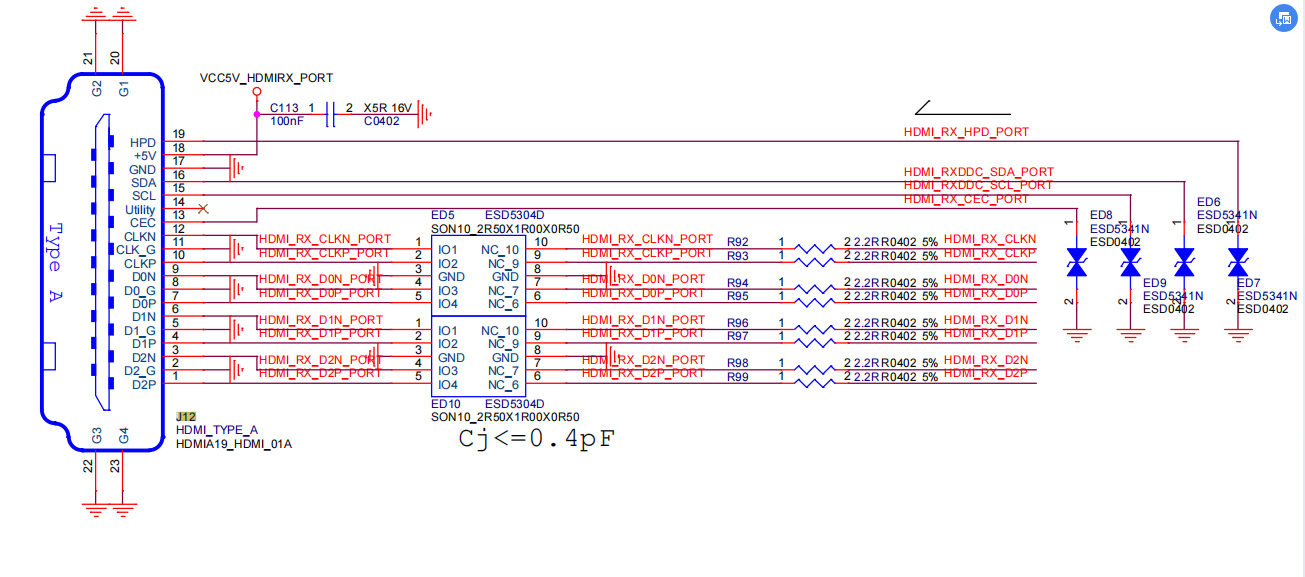

HD_IN3

HD_IN4

HD-IN5

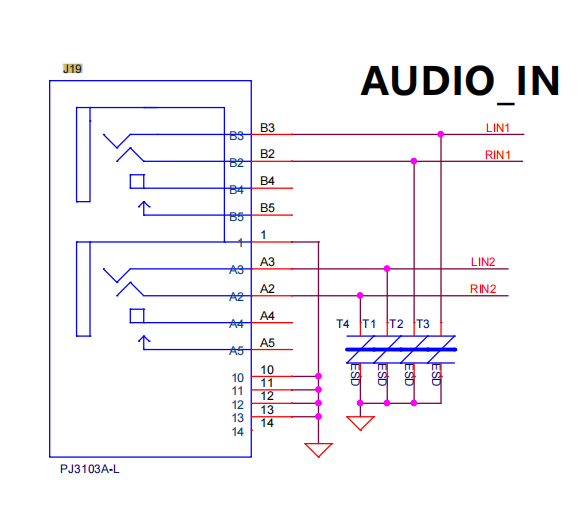

AUDIO_IN

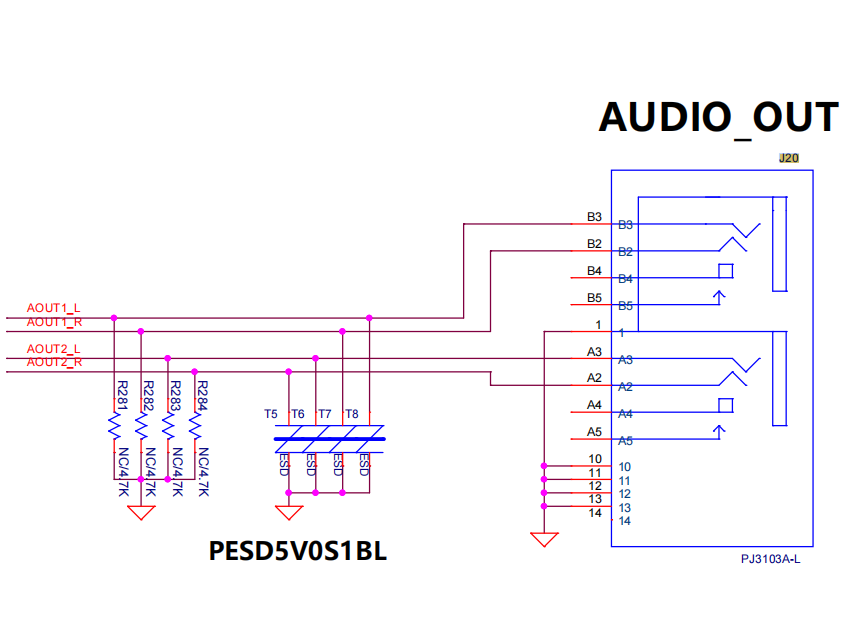

AUDIO_OUT

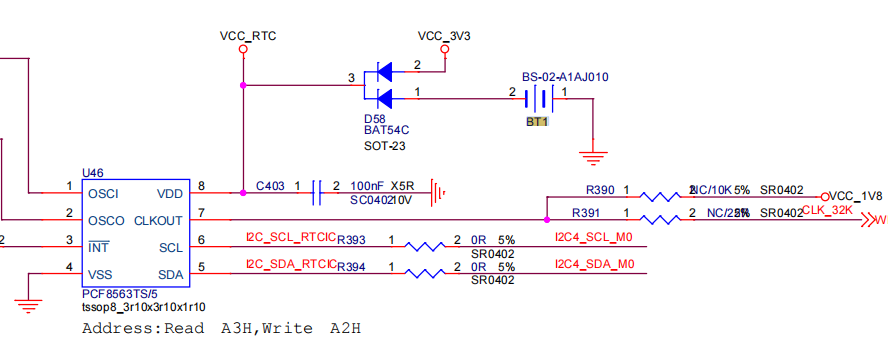

BT1

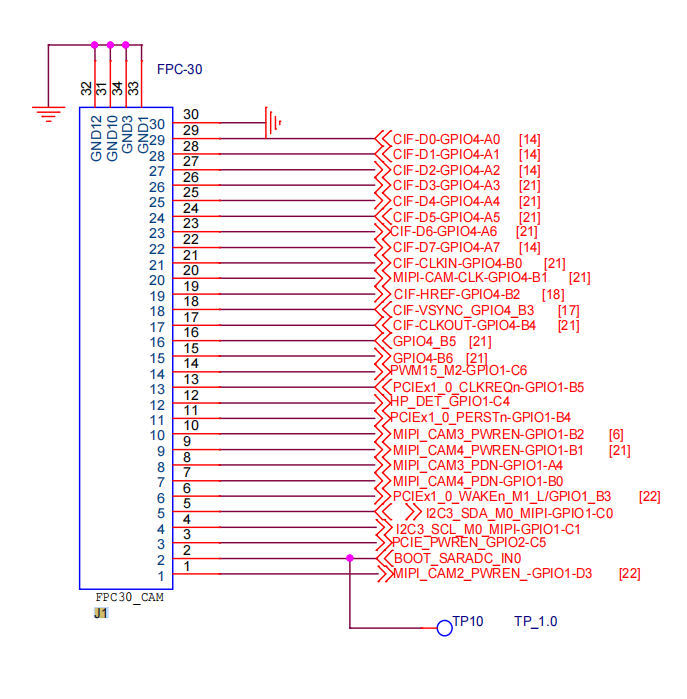

MIPI_Port-A

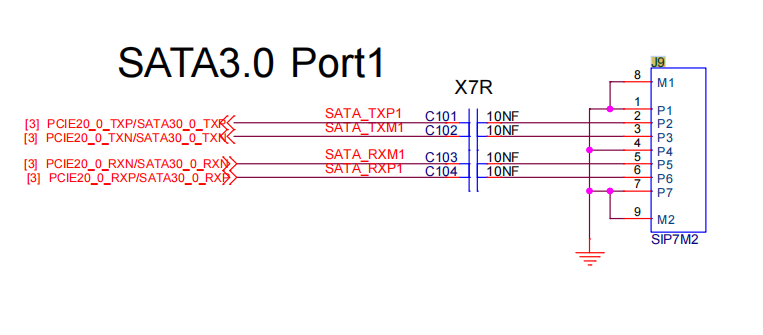

SATA_Port1

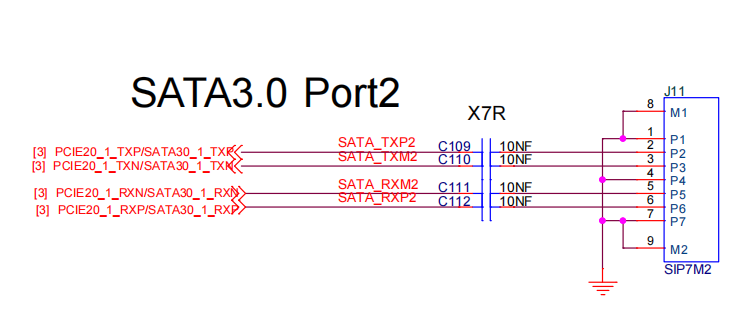

SATA_Port2

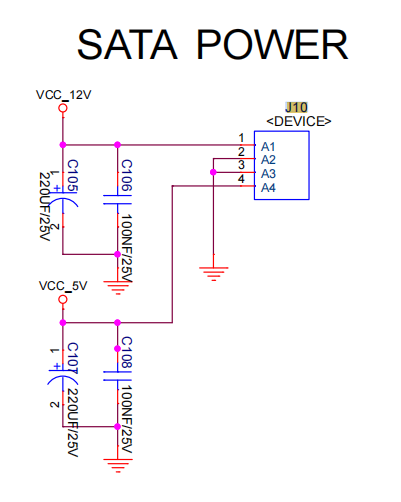

SATA -Power
