RK3588 8ChannelAHDBoard
Project: Board Introduction | page_id: 1060
| RK3588 8-Channel AHD Board | ||
|---|---|---|
| Model | XSWEDR-8INHSAC | |
| CPU | RK3588 | Quad-core Cortex-A76 + quad-core Cortex-A55 |
| Clock Speed | 2.4GHz | |
| DDR | 8GB LPDDR4X | |
| eMMC | 16GB eMMC | |
| Video Encoding | Supports H.265/H.264 encoding/decoding | Up to 8 channels of 1080P@30fps |
| Interfaces | UART | Debug serial port |
| GPIO | 4 inputs, 4 outputs | |
| CAN | 2 CAN | |
| RS232 | 1 RS232 | |
| GNSS | GPS | |
| Display | HDMI | Two HDMI outputs |
| Network | Wired Network | Dual Fast Ethernet ports |
| WiFi | WiFi6 | |
| 5G | Supported (requires an additional 5G module) | |
| Storage | SD Card | Supported |
| SATA Hard Disk | Supported (up to 16TB) | |
| Multimedia | AHD Video Input | 8 channels of AHD signal input, maximum input resolution 1080P |
| Audio Input and Output | 1 audio input + 1 audio output | |
| Other Parameters | Remote Upgrade | Supported |
| Power Supply | DC 12V | |
| Operating Temperature | 0～70℃ | |
| Dimensions | 21.8*17.2cm | |
| Weight | 313.5g |

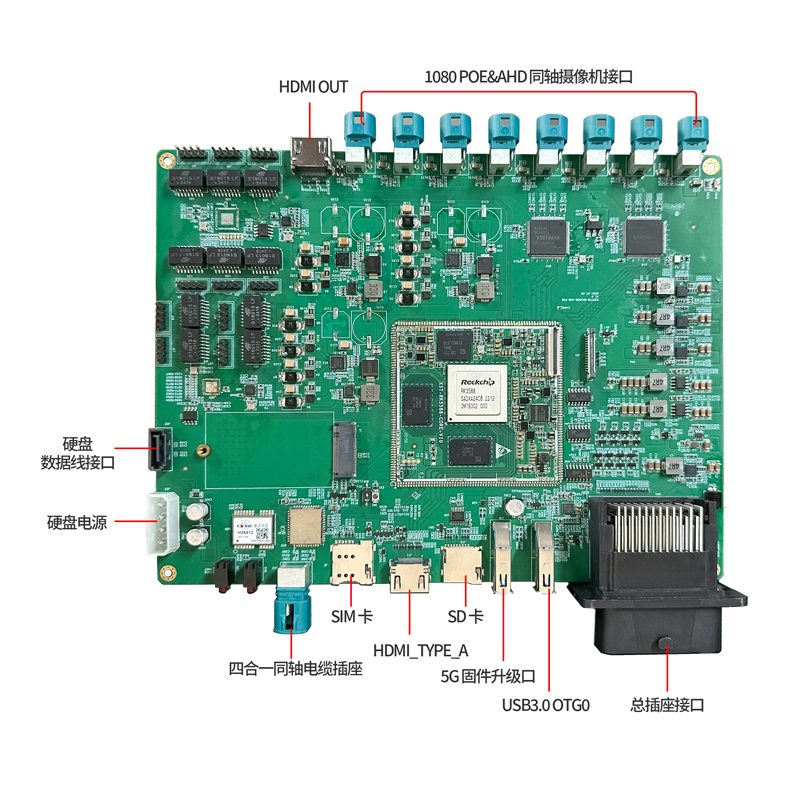

1. Product Images
2. Main Features
• Advanced process + high-performance CPU
8nm advanced process, octa-core 64bit, 4Cortex-A76+4Cortex-A55, clock speed 2.4GHz
• High-performance GPU + VPU + NPU
Mali-G610 GPU; VPU supports 8K encoding and 8K decoding; NPU computing power up to 6TOPS
• Dual-channel high-performance ISP
ISP supports 48M@15fps processing capability; MIPI-CSI supports up to 16 camera inputs at the same time
• Rich peripheral interfaces
Rich high-speed expansion interfaces, which can effectively improve the scalability of industry customization
• System and independent hardware watchdog
Supports Linux5.10 / Android12; onboard independent hardware watchdog, monitoring system exceptions throughout
• Provides rich software and hardware development materials
Provides standard hardware development materials and a standard software SDK package, shortening the user's product development cycle
3. Material Download
Development virtual machine download link: (Vmware workstation 16.2)
link：https://pan.baidu.com/s/15RaQvBdMTvHkfskUu29YSw code：xstr
rk3588 sdk download link ( android & debian )
link：https://pan.baidu.com/s/11TM8AYBKYOF84e7g8yYQkg code：xstr
rk npu related material download
link：https://pan.baidu.com/s/1Qo8Pp8SXkUzNsLMy96V45g code：xstr
Complete baseboard material download
XSWTVR-RK3588-AHD1_0.zip
