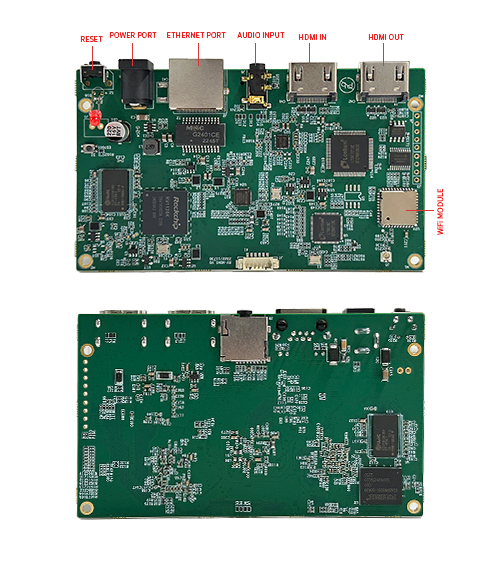

RV1126 4K industrial-grade HDMI capture board
Project: Board Introduction | page_id: 910
| Single-Channel Industrial-Grade 4K HDMI Encoding Board with Loop-Out | |
|---|---|
| Model | XSWEDR-1CERV11268619/EX |
| Video Input | 1-channel 1920x1080@60 HDMI input interface |
| Video Output | 1-channel 1920x1080@60 HDMI loop-out interface |
| Audio Input | 1 stereo analog audio input interface / HDMI embedded audio |
| Video Encoding Capability | 1920x1080@60fps / 1920x1080p@60fps |
| Network Support | 10/100/1000M adaptive Ethernet, 2.4G WiFi / 5G WiFi |
| Network Video Output Protocol | SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Video Encoding Bitrate | 35Kbps~30Mbps |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters; can be used after registering at platform.xstrive.com |
| Product Features | All components are domestically produced (except WIFI) |
| Power Supply | DC 12V |
| Operating Temperature | -40~75 degrees |
| Dimensions | 125x90x29mm |
| Weight | 286.5g |
