RK3568IndustrialInterfaceBoard
Project: Board Introduction | page_id: 1658

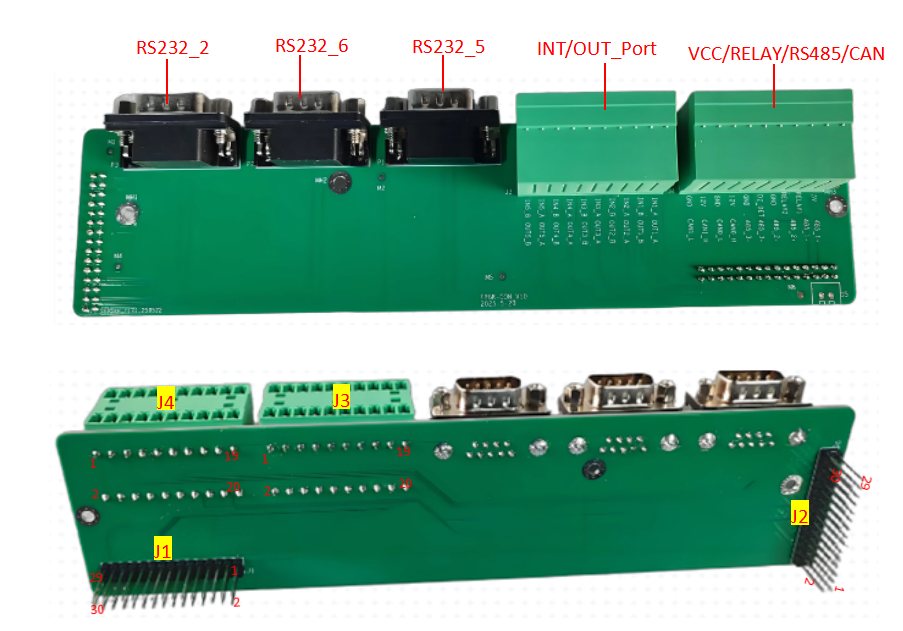

I. Product Images
Board Size: 202*50mm

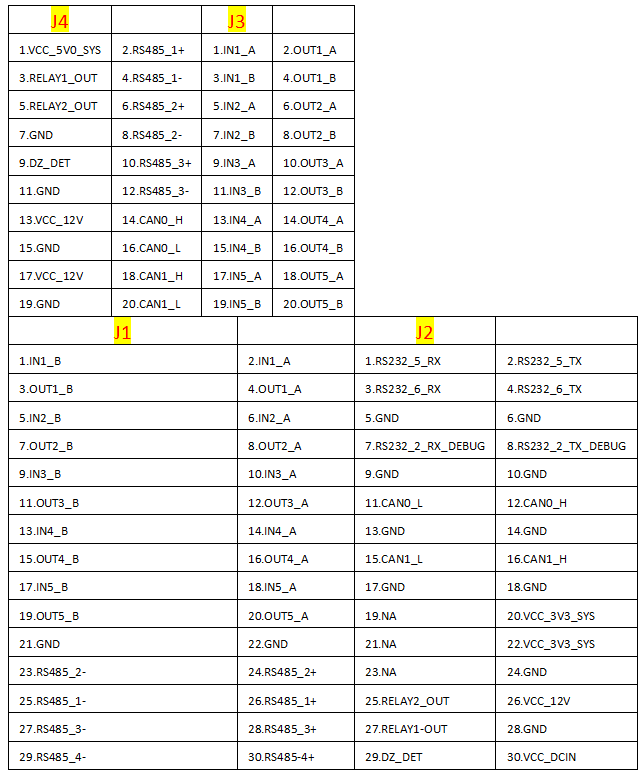

II. Interface Circuits

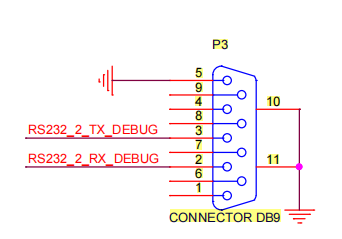

RS232_2
RS232_6
RS232_5

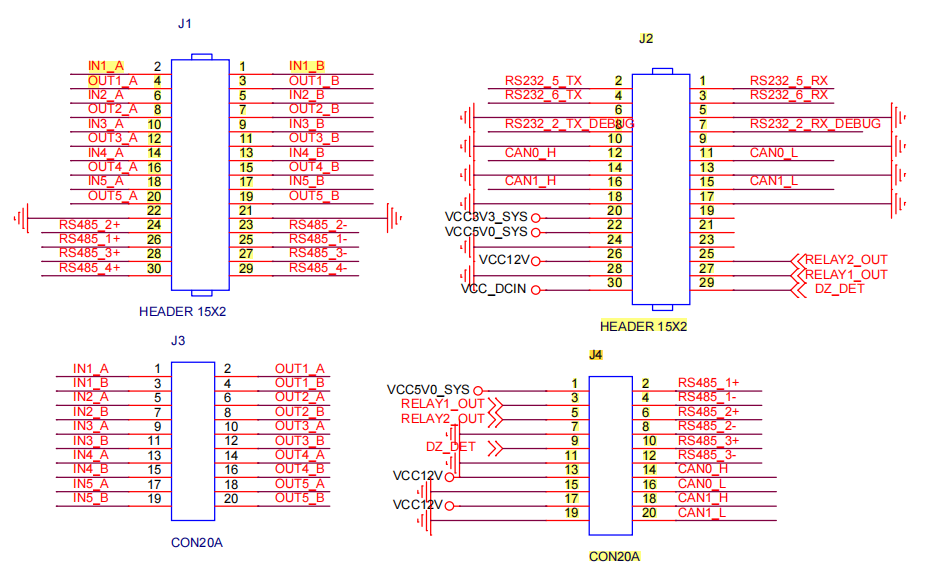

INT/OUT/VCC/RELAY/RS485/CAN—PORT
III. FAQ
| Question | Answer | |
|---|---|---|
| 1、 | ||
| 2、 | ||
| 3、 |
