RK3568(S40-S60)ChannelStreamingBoard
Project: Board Introduction | page_id: 1170
| Model | XSWENC70E4ECS00H1E0G2NNXX |
|---|---|
| CPU | RK3568 |
| CPU Core Count | 4-core A55 |
| GPU | "ARM Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0" |
| NPU Computing Power | "1 TOPS computing power, supports INT4/INT8/FP16 mixed precision, compatible with TensorFlow / PyTorch / ONNX and other mainstream frameworks" |
| DDR | 8G |
| eMMC | 16G |
| Supported System | Linux |
| Video Encoding | K@60fps H.265/H.264/VP9 |
| Video Input | None |
| Video Output | "1 x HDMI, max resolution 4K@60fps / 1 x VGA, max 1920x1080@60fps" |
| Interfaces | 4xUSB |
| Storage | 2xSata |
| Network | RJ45 10/100/1000M x2 |
| WIFI | None |
| Operating Temperature | 0 to 70°C |
| Service Life | Continuous operation life of more than 5 years |

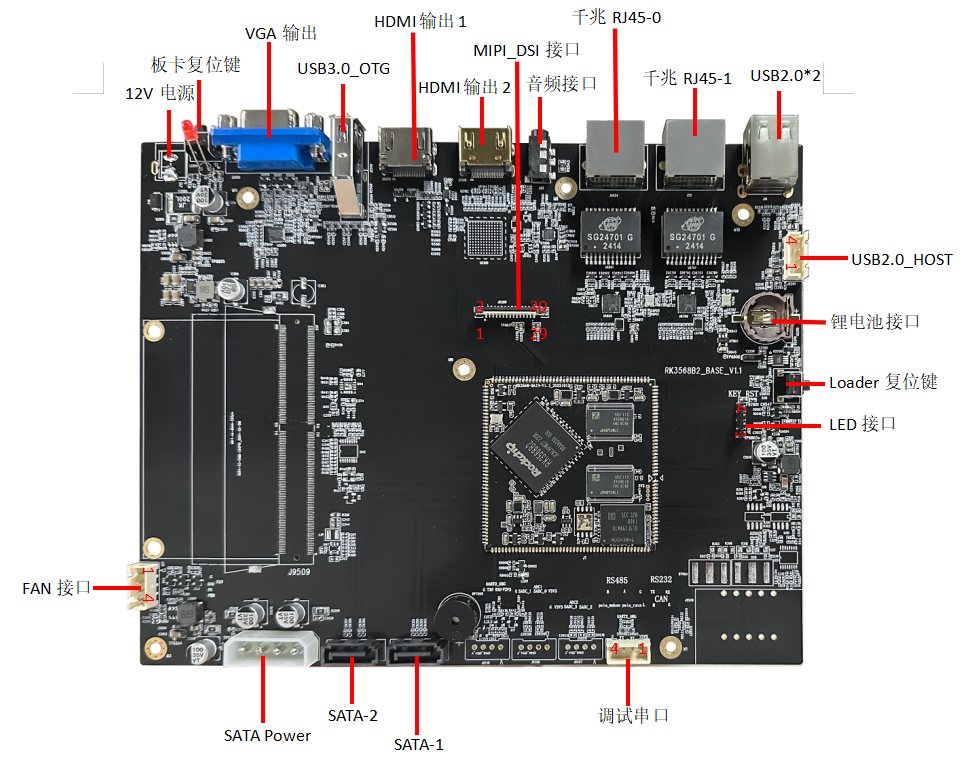

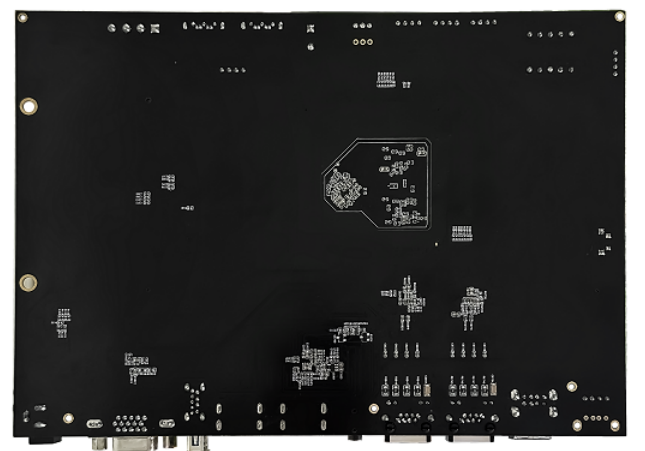

Product Images
Board Size: 195*154mm
Chip Specifications
Description of RK3568 Core Board Encoding Capability
Board Resources
Memory 2GB LPDDR4
Storage (EMMC) 32GB
Ultra-small size 50mm*50mm, using stamp holes.
Interface Circuits

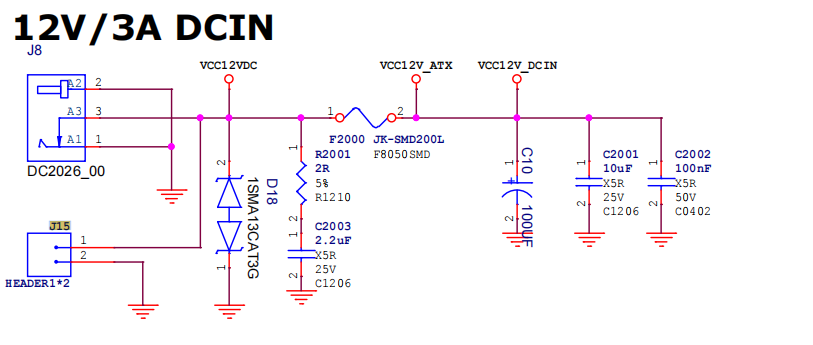

12V Power

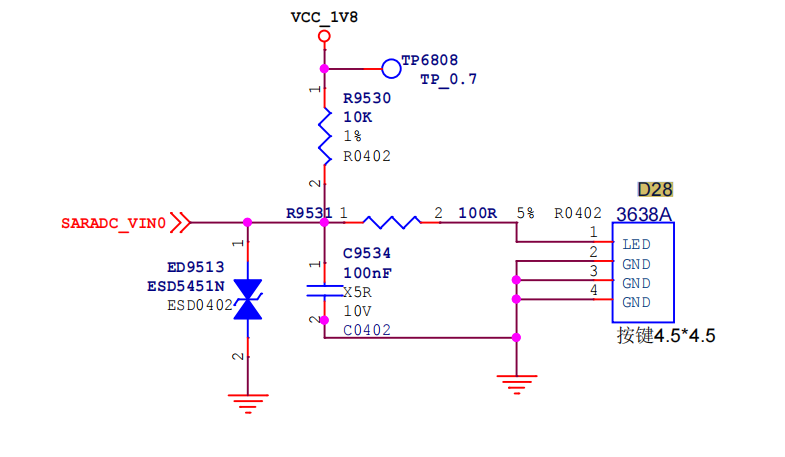

Board Reset

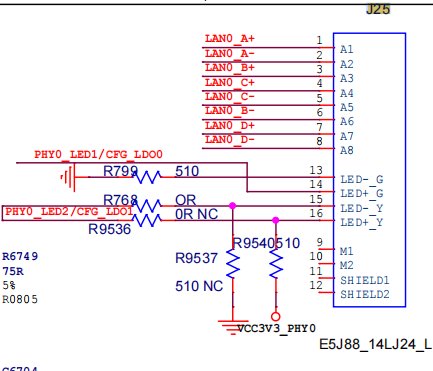

Gigabit RJ45-0

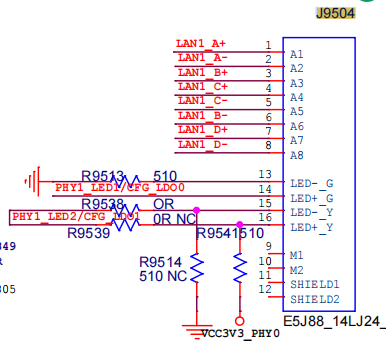

Gigabit RJ45-1

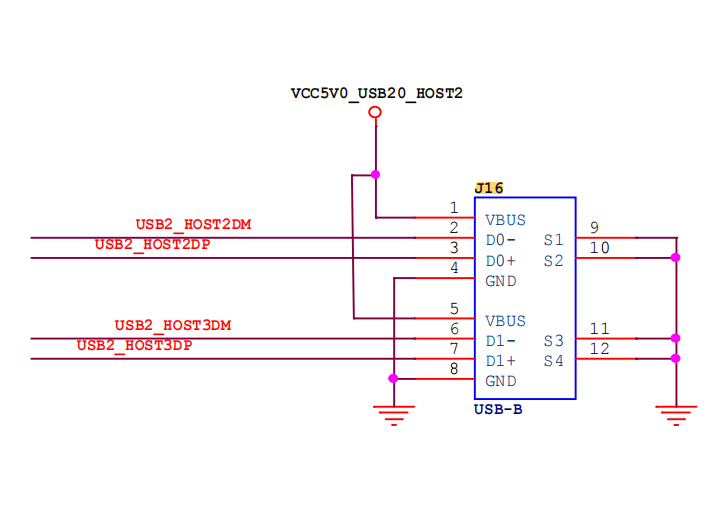

USB2.0_HOST*2

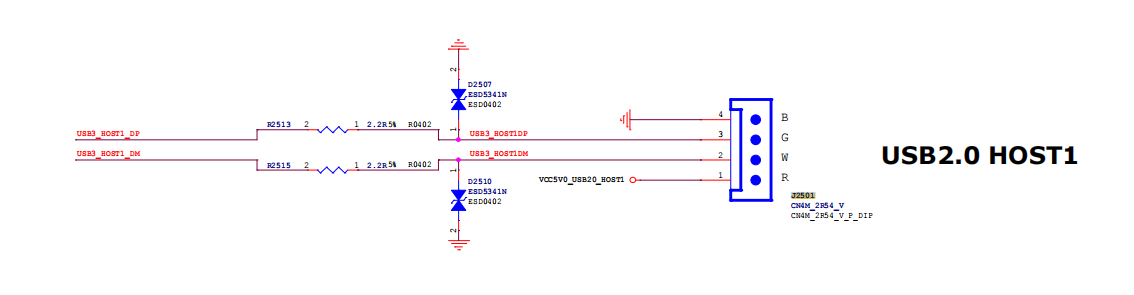

USB2.0_HOST1

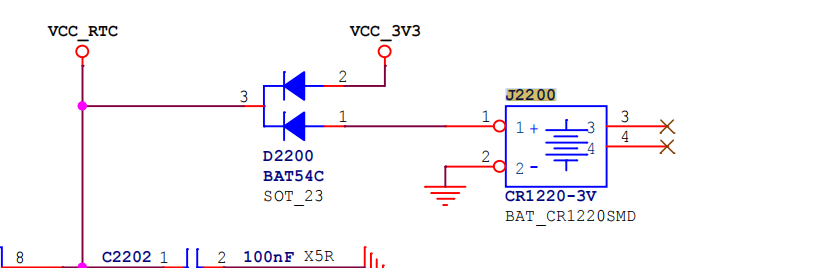

Lithium Battery

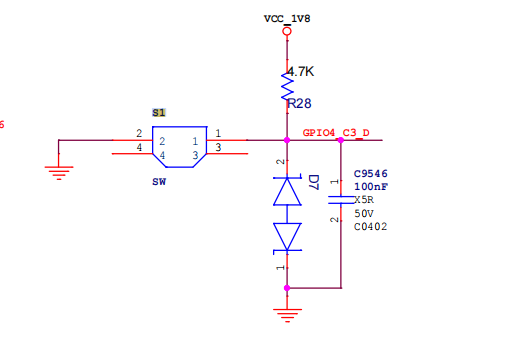

Loader Reset Button

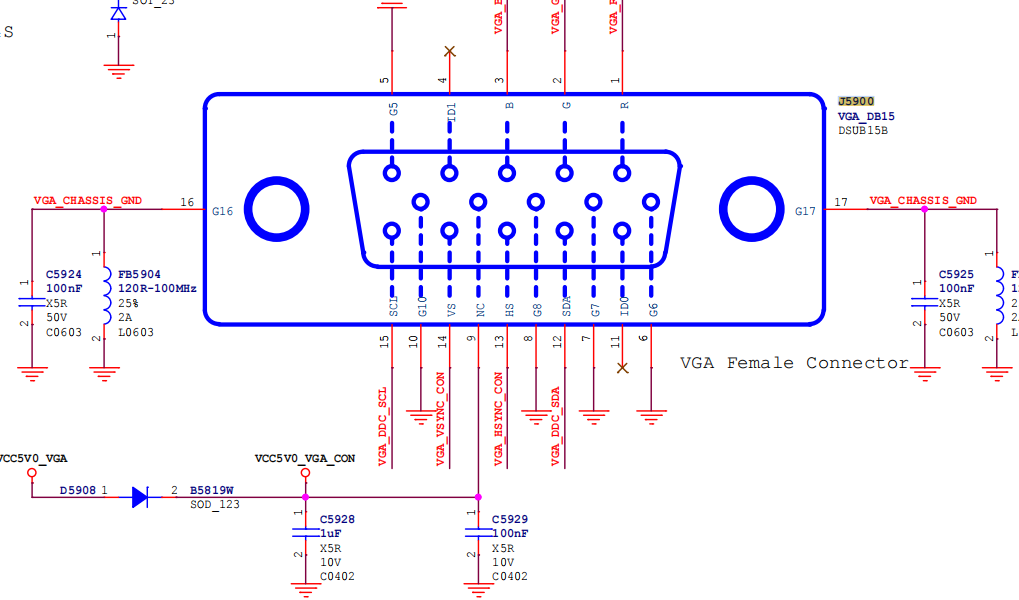

VGA Output
USB3.0 Flashing Interface

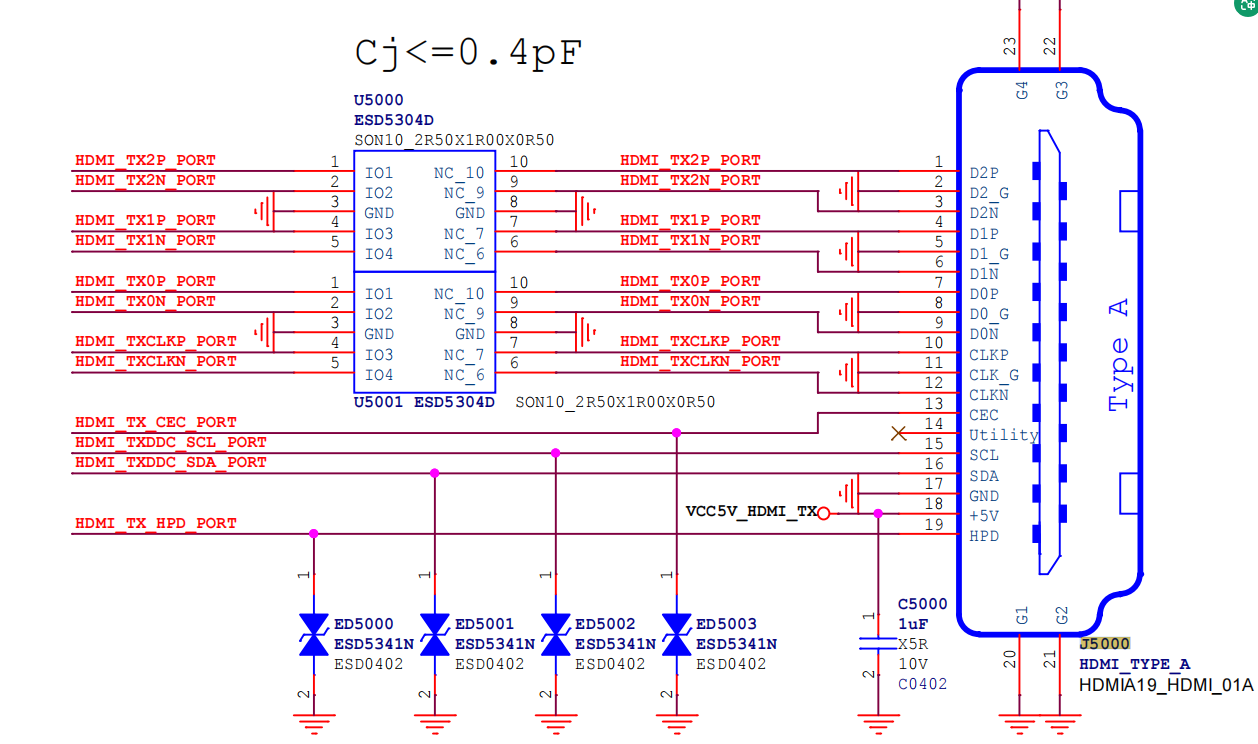

HDMI Output

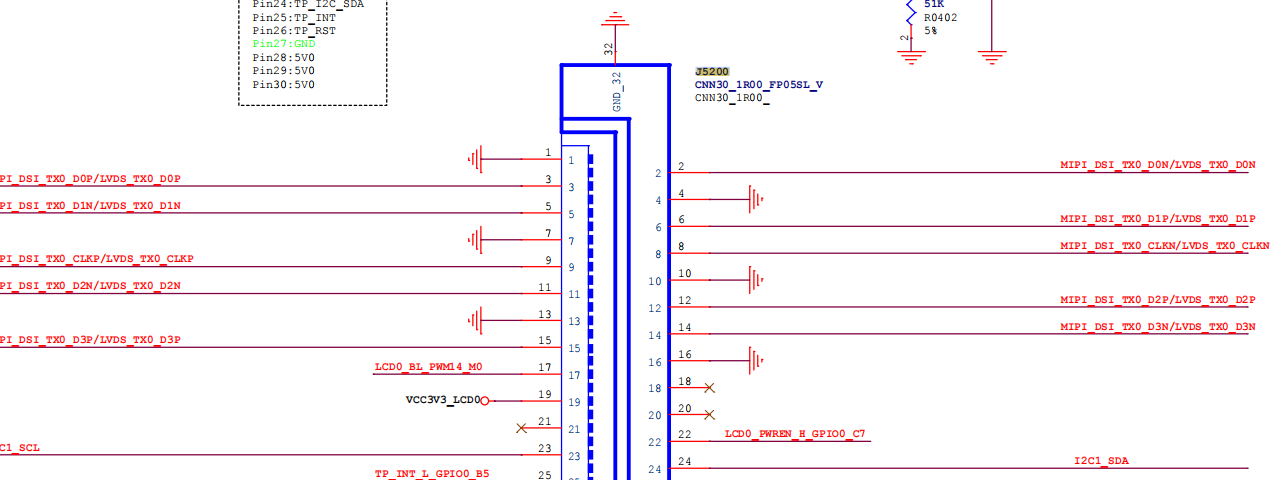

MIPI_DSI Interface

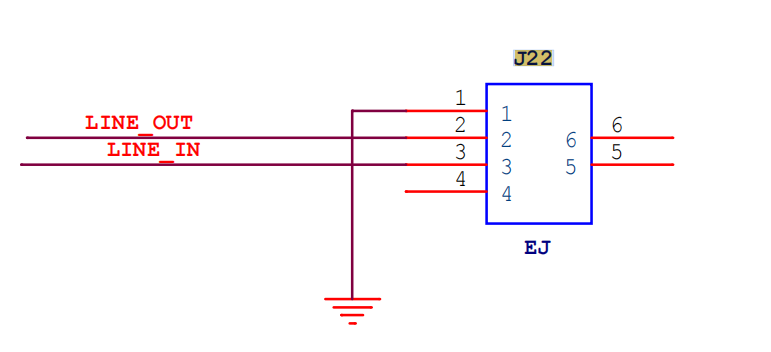

Audio Interface

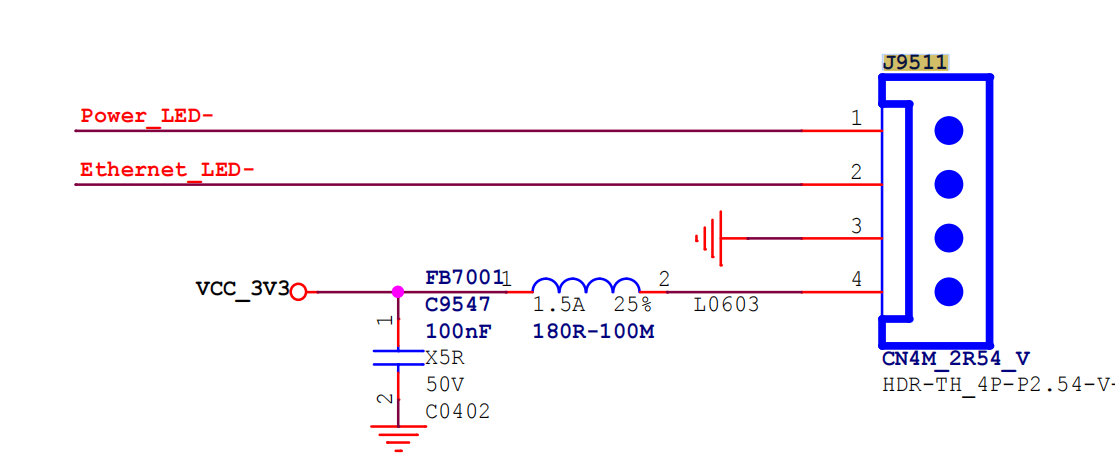

LED Interface

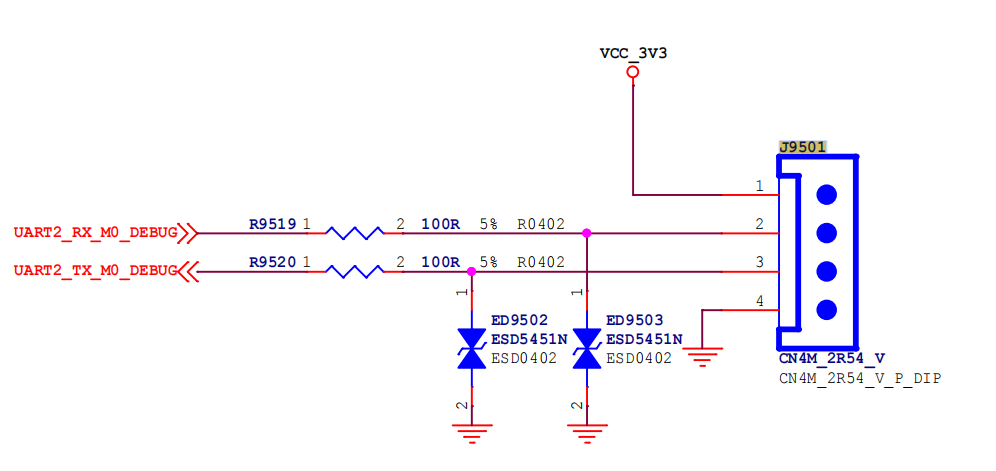

Debug Serial Port

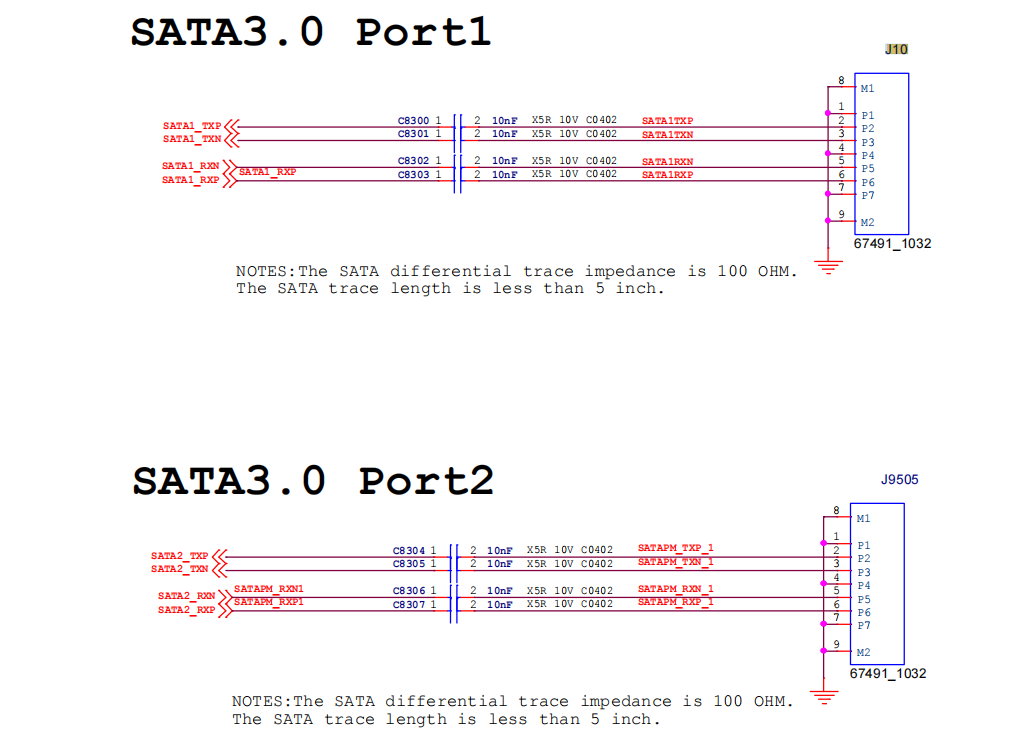

SATA Port

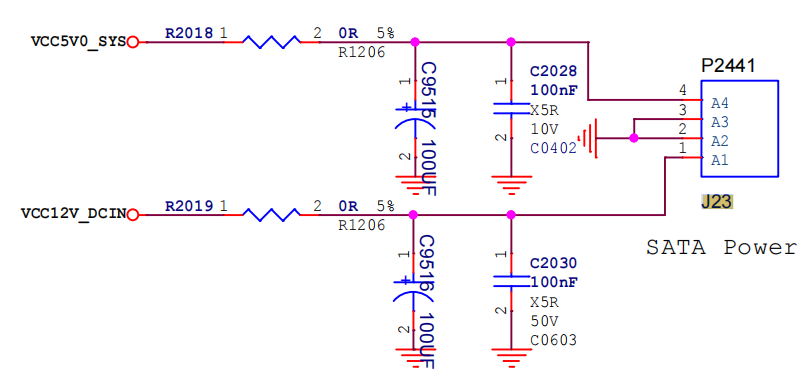

SATA Power

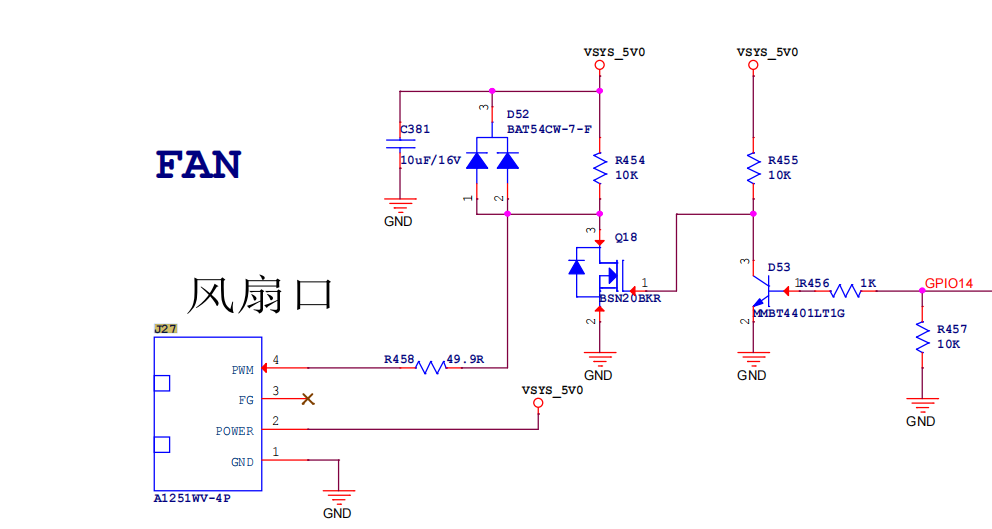

FAN
FAQ
| Question | Answer |
|---|---|
| 1. Is it Android or Linux? | Linux |
| 2. Is there an RKMPP development package? | Yes |
| 3. Is HarmonyOS supported? | Yes |
| 4. The GPU-CPU integrated GPU module should be able to process 1204x768 images at 60 frames per second. Can the GPU meet this requirement? | Yes |
| 5. Is the LVDS display interface not available on your board? | No, this one has 2 HDMI and 1 VGA |
| 6. Does the USB host interface support the driver for CY7C68013? | You need to debug it yourself, which requires a certain foundation |
| 7. Is the storage of this board EMMC or SPI? | The storage is EMMC, not SPI, but there is a reserved position for SPI NOR |
