Rockchip RK3588 3-Channel MIPI Dev Board

Project: Board Introduction | page_id: 1677

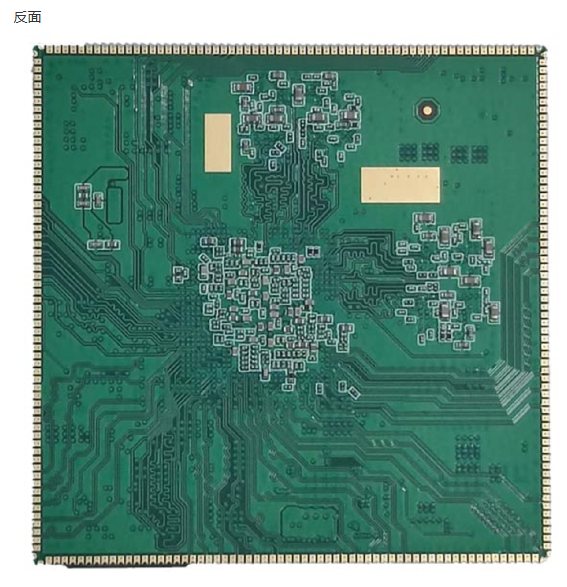

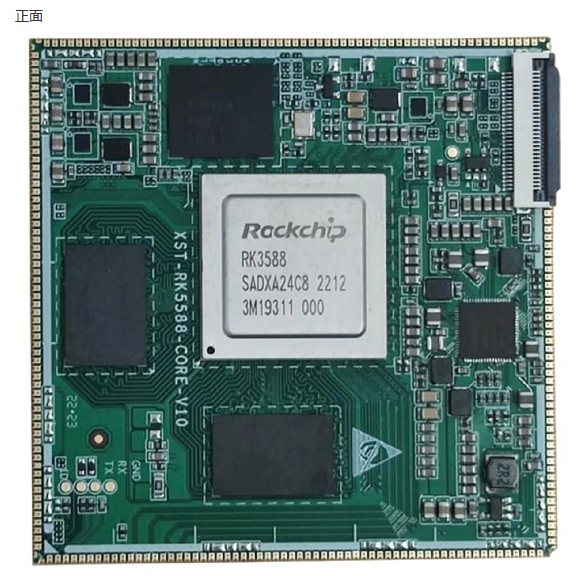

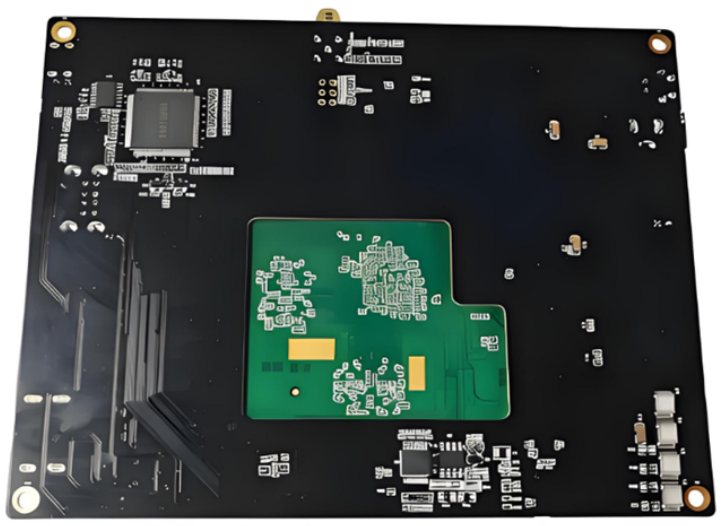

Product Images

Board Size: 150*115mm

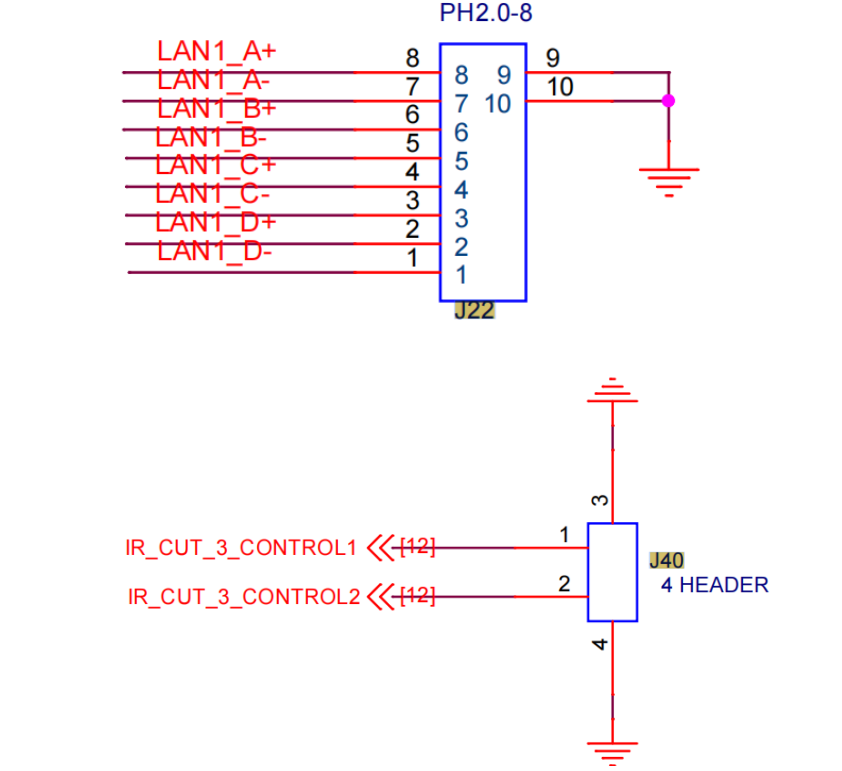

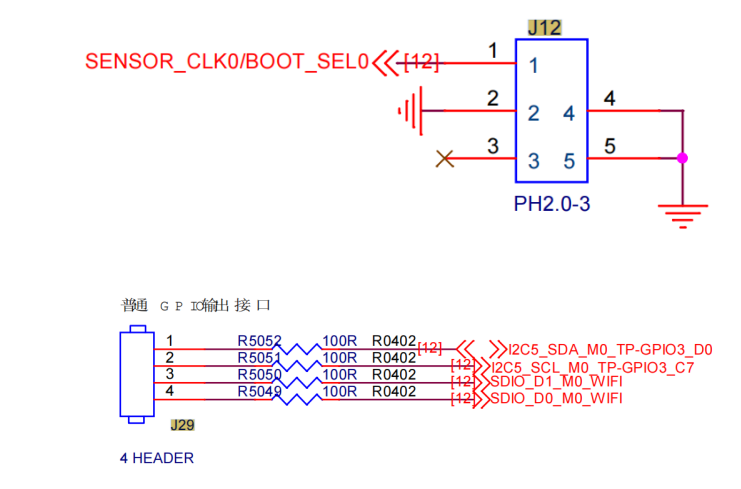

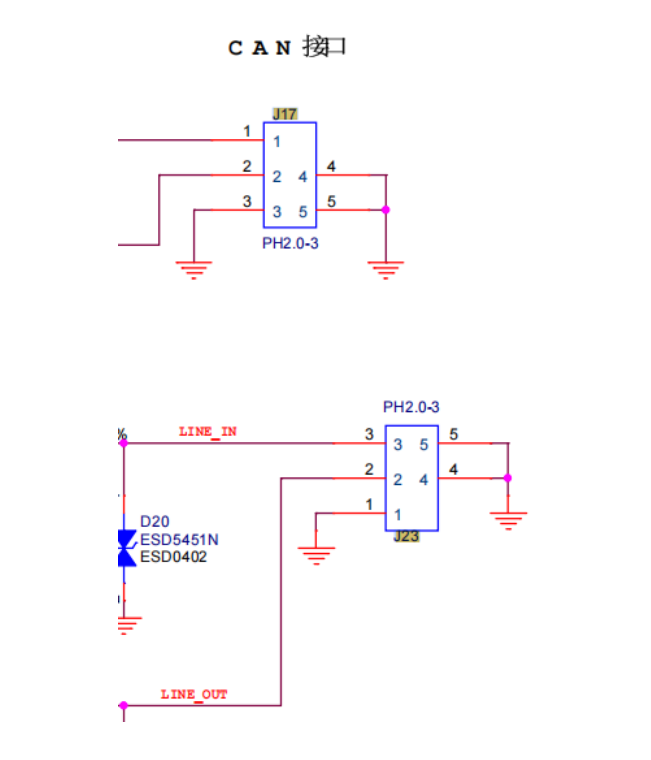

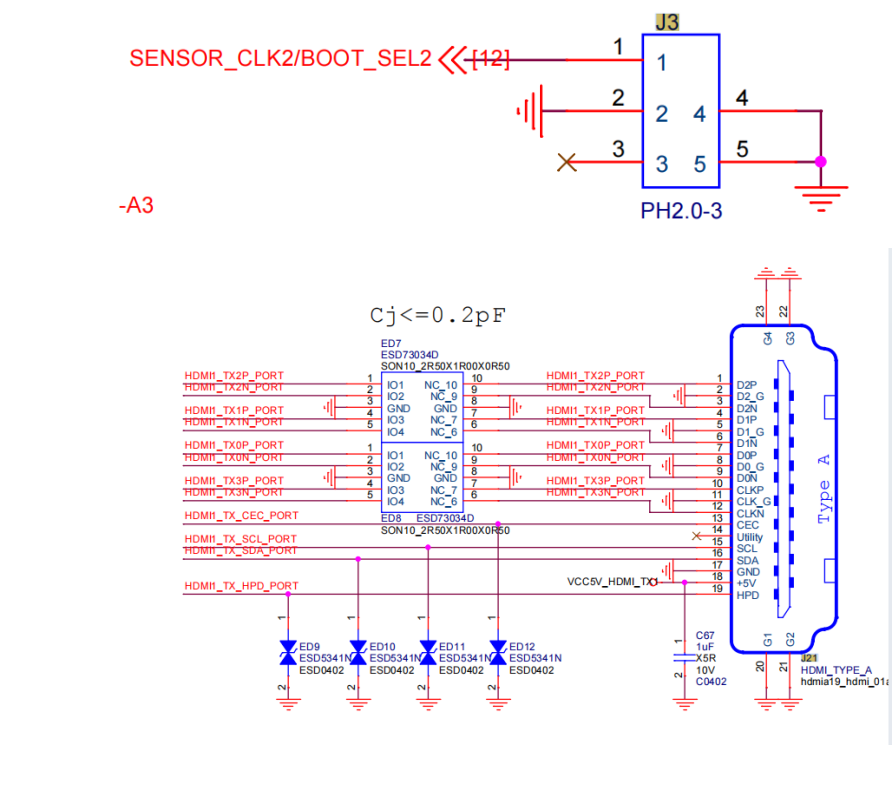

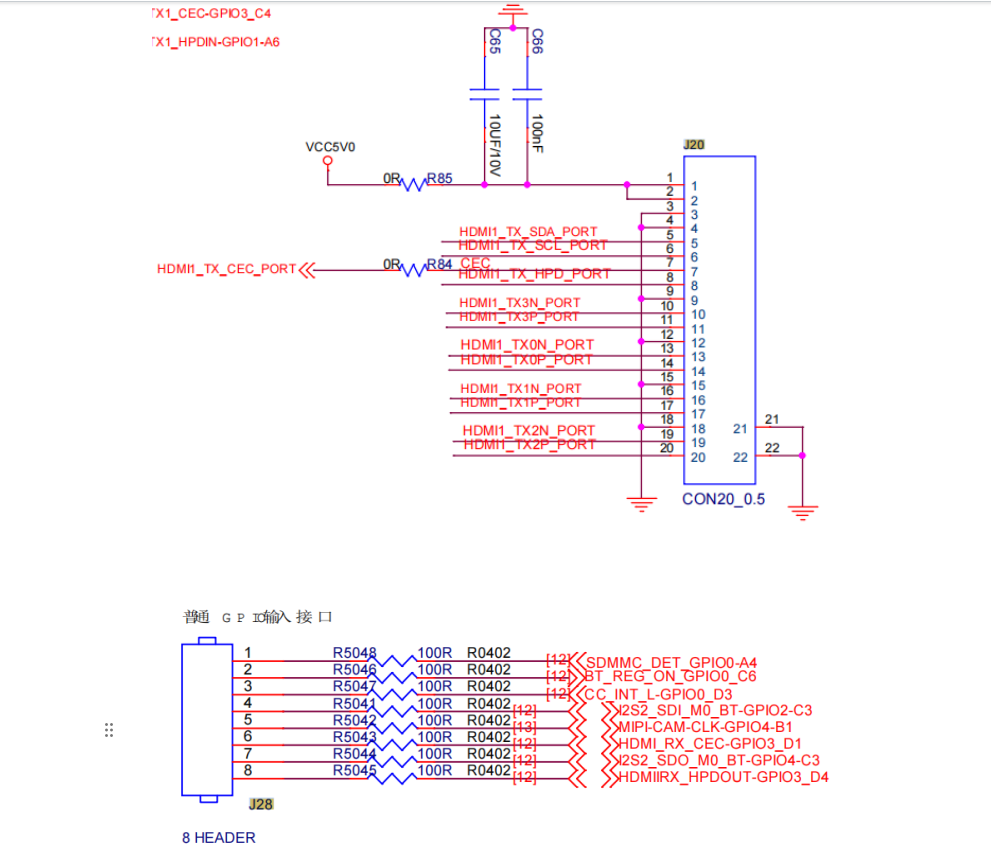

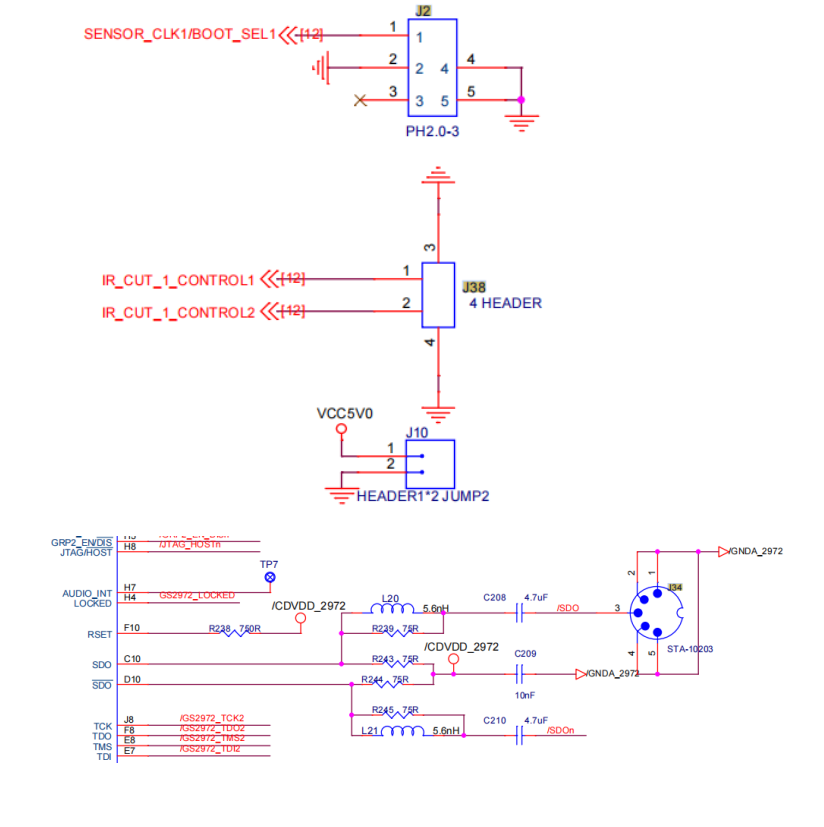

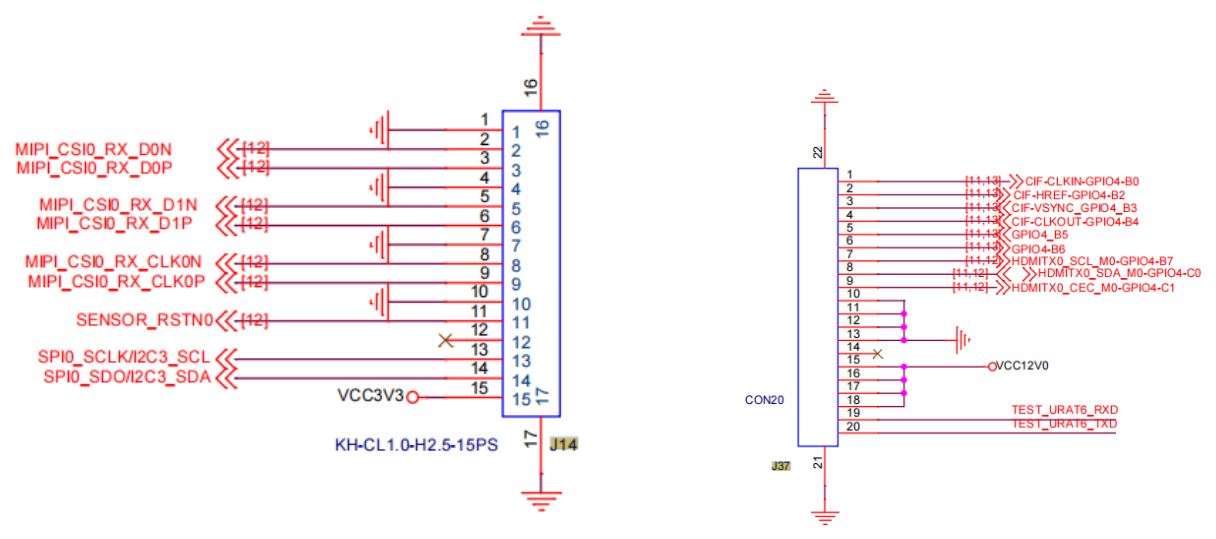

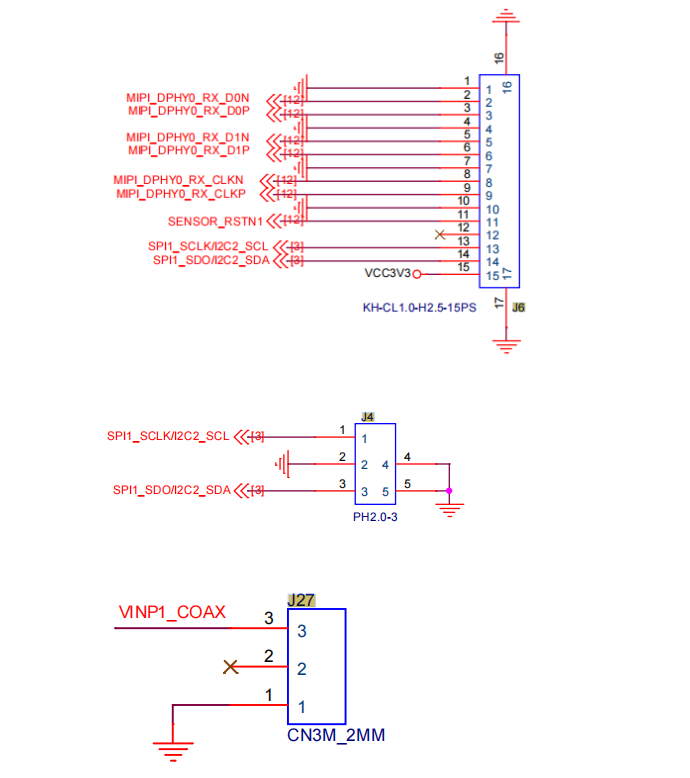

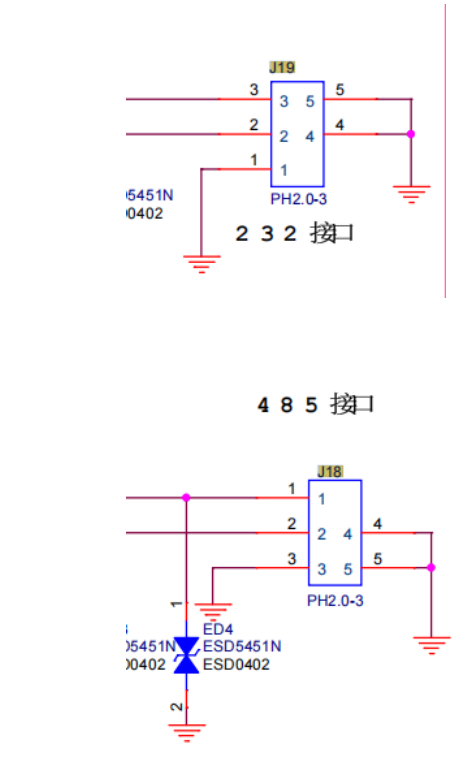

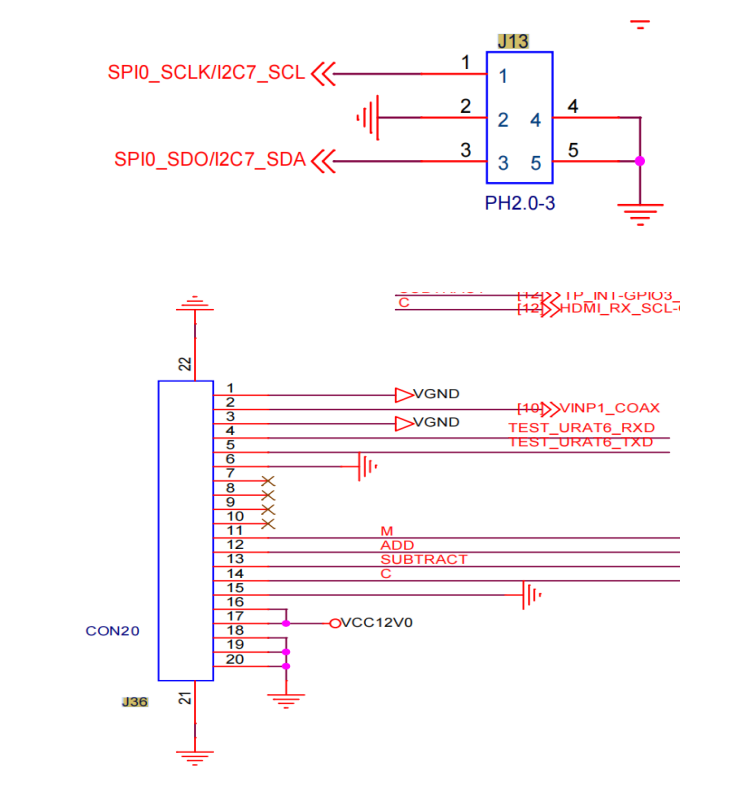

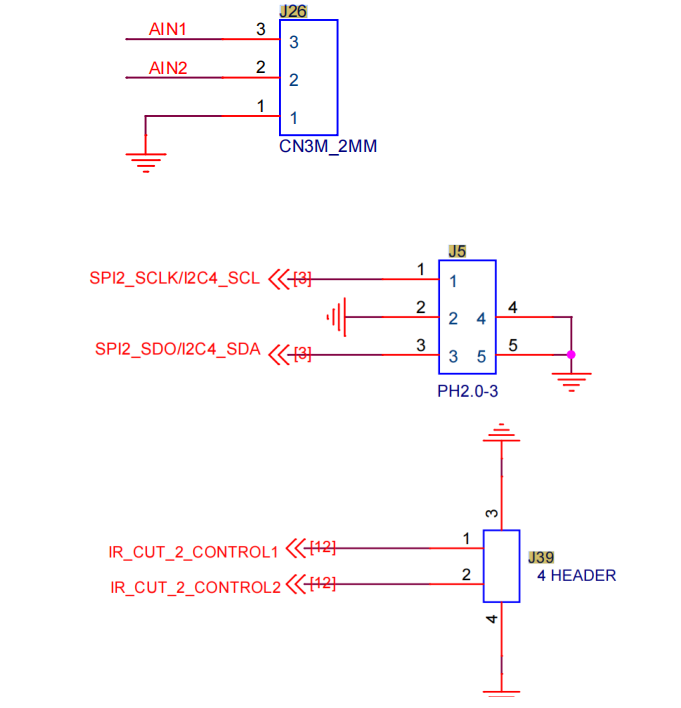

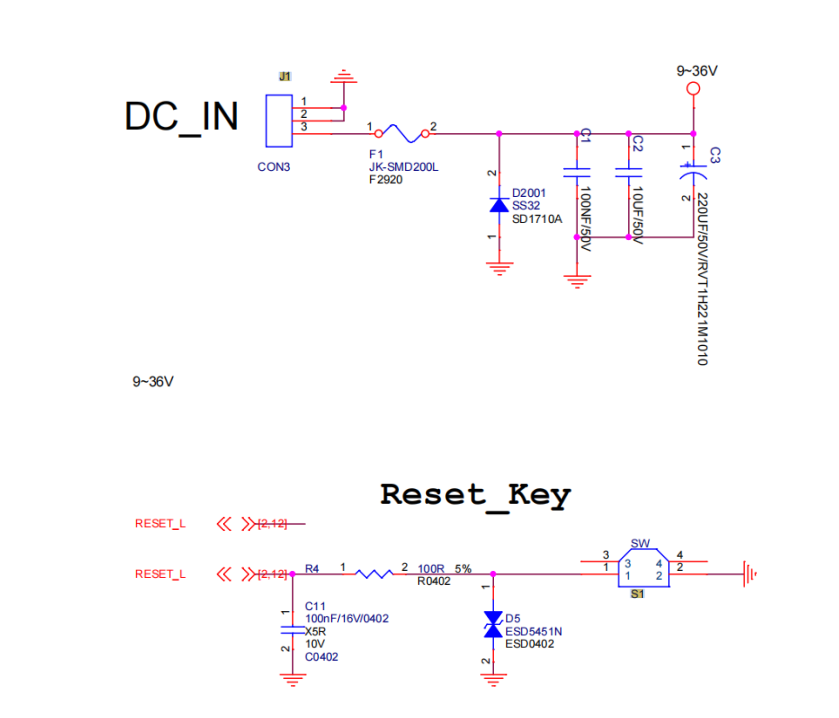

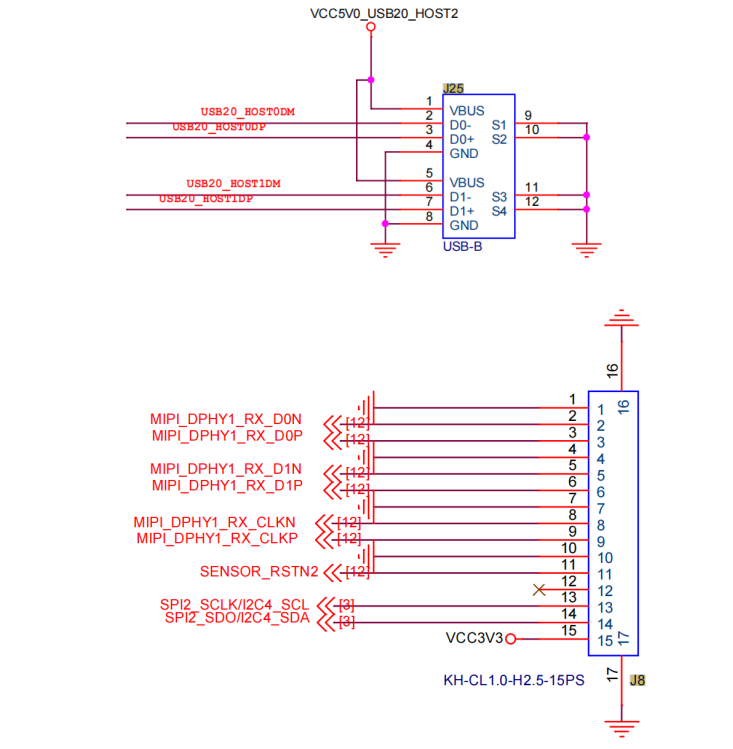

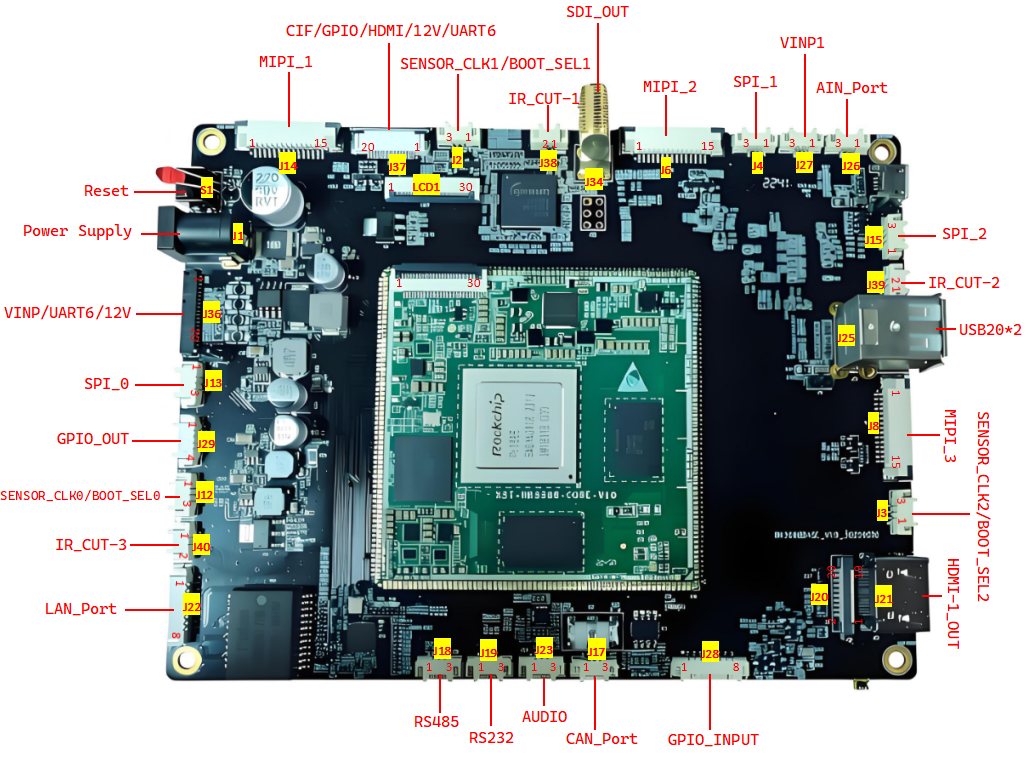

Interface Description

Core Board Parameters

1.1 Application Scope of the RK3588 Core Board
The RK3588 is an embedded core board. Only a single 3.3V power supply is needed to run the minimum system. The hardware base board and operating system can be customized. It is widely applicable to tablet PCs, learning machines and face recognition related products. Main products include gate channels, face payment, industrial robots, medical testing equipment, license plate recognition, advertising machines, digital signage, intelligent self-service terminals, intelligent retail terminals and other related products.
1.2 Product Overview
The RK3588 main chip integrates a Quad-core Cortex-A76 high-performance 4-core processor and a Quad-core Cortex-A55 quad-core low-power processor. It can run Android/Linux+QT/Ubuntu systems, with a main frequency of 2GHz. It adopts the Mali-G610 MP4 GPU, supports H.264 8K30fps and H.265/VP9/AVS2 8K60fps video decoding, and H.264/H.265/VP9 8K30fps video decoding. It has a built-in 6T computing power NPU, supports multiple common display interfaces on the market, supports multi-screen different display, has rich core board interfaces, exposes all functional pins, and supports a variety of peripheral expansions, making it your best choice for human-machine interaction and industrial control projects.
1.3 Product Features
◆ Stamp-hole soldered core board, with onboard dual MIPI DSI, LVDS, RGB, EDP and HDMI display interfaces, supporting same-display and different-display output.
◆ Supports Android/Linux+QT system customization, provides system call interface API reference code, and perfectly supports customers' upper-layer application APP development and SDK.

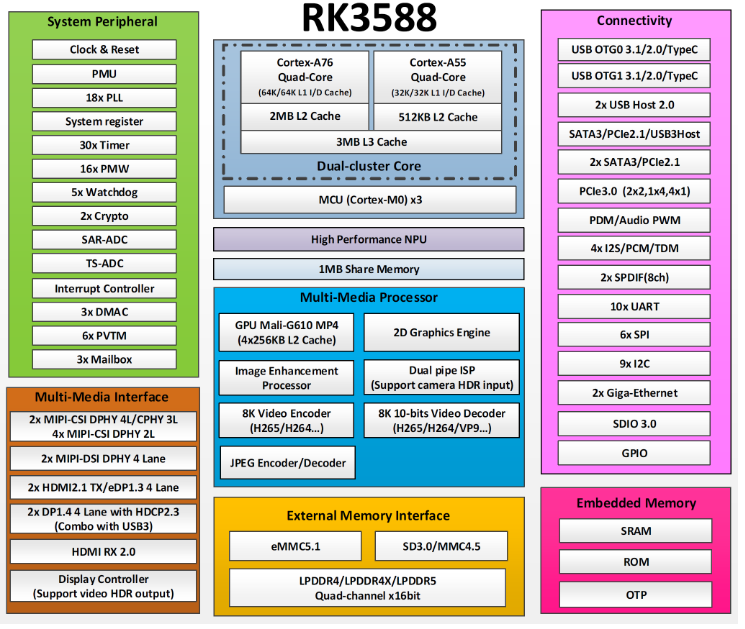

1.4 Main Chip Block Diagram
