RK3588(S80-S100)ChannelStreamingBoard

Dev Boards & Modules · Rockchip

Project: Board Introduction | page_id: 1171

Model	XSWENC70E4ECS00I4E0G2WOXX
CPU	RK3588
CPU Core Count	4-core A76 + 4-core A55
GPU	"ARM Mali-G610 MP4 / supports Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.2"
NPU Computing Power	"6 TOPS computing power, supports INT4/INT8/FP16 mixed precision / compatible with TensorFlow / PyTorch / ONNX and other mainstream frameworks"
DDR	8G
eMMC	16G
Supported System	Linux/debian
Video Encoding	Supports H.265/H.264 encoding, max 8k@30fps
Video Input	1 x HDMI, max input resolution 8K@30fps
Video Output	"1 x HDMI, max resolution 8K@60fps / 1 x VGA, max 1920x1080@60fps"
Interfaces	4xUSB, 1xRS485, 2xRS232
Storage	3xSata
Network	RJ45 10/100/1000M x2
WIFI	wifi 5
Operating Temperature	0 to 70°C
Service Life	Continuous operation life of more than 5 years

Product Images

Board Size: 195*154mm

Core Board Parameters

1.1 RK3588 Core Board Application Scope

RK3588 is an embedded core board. A single 3.3V power supply is enough to run the minimum system, and both the hardware baseboard and the operating system can be customized. It is widely used in tablet PCs, learning machines and face recognition related products. The main products include gate channels, face-scan payment, industrial robots, medical testing equipment, license plate recognition, advertising machines, digital signage, smart self-service terminals, smart retail terminals and other related products.

1.2 Product Overview

The RK3588 main chip integrates a Quad-core Cortex-A76 high-performance processor and a Quad-core Cortex-A55 low-power processor. It can run Android/Linux+QT/Ubuntu systems with a main frequency of 2GHz. It adopts the Mali-G610 MP4 GPU, supports H.264 8K30fps and H.265/VP9/AVS2 8K60fps video decoding, and H.264/H.265/VP9 8K30fps video decoding. With a built-in 6T computing power NPU, it supports multiple mainstream display interfaces and multi-screen different display. The core board has rich interfaces, all functional pins are led out, and it supports multiple peripheral expansions, making it your best choice for human-machine interaction and industrial control projects.

1.3 Product Features

◆ Stamp hole soldering core board, onboard dual MIPI DSI, LVDS, RGB, EDP and HDMI display interfaces, supports same display and different display output.

◆ Supports Android/Linux+QT system customization, provides API reference code for system call interfaces, and fully supports customer upper-layer application APP development and SDK.

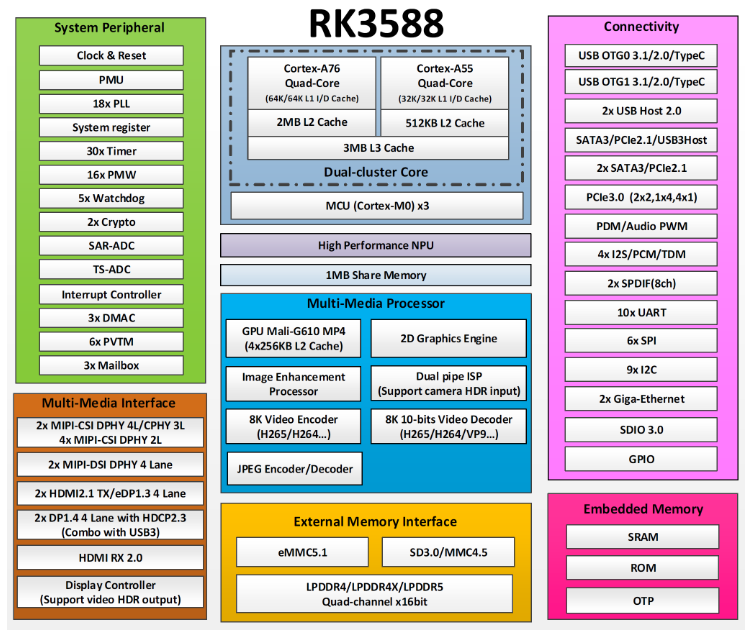

1.4 Main Chip Block Diagram

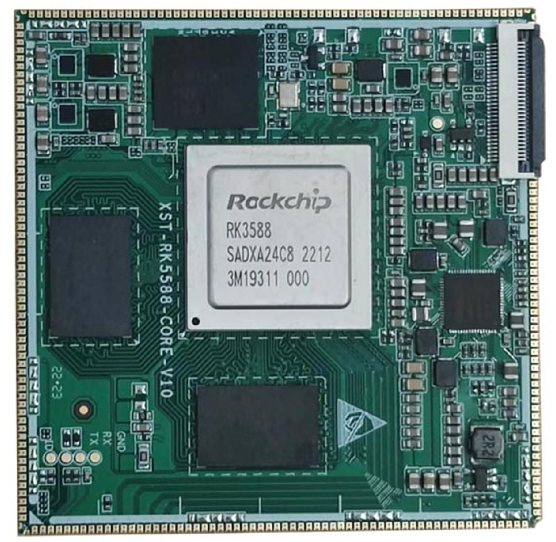

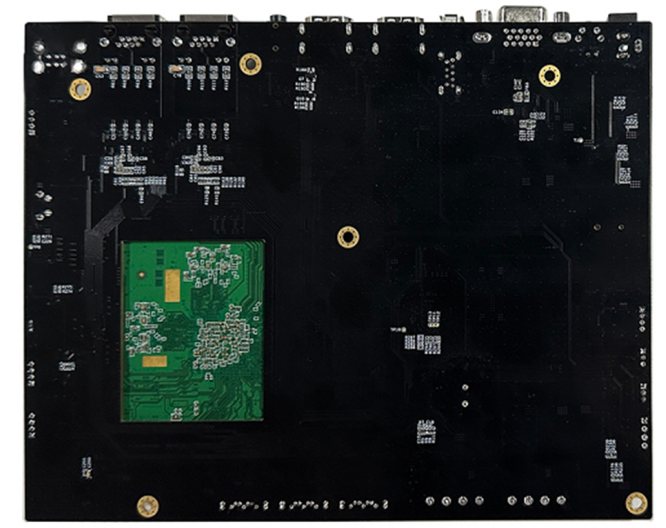

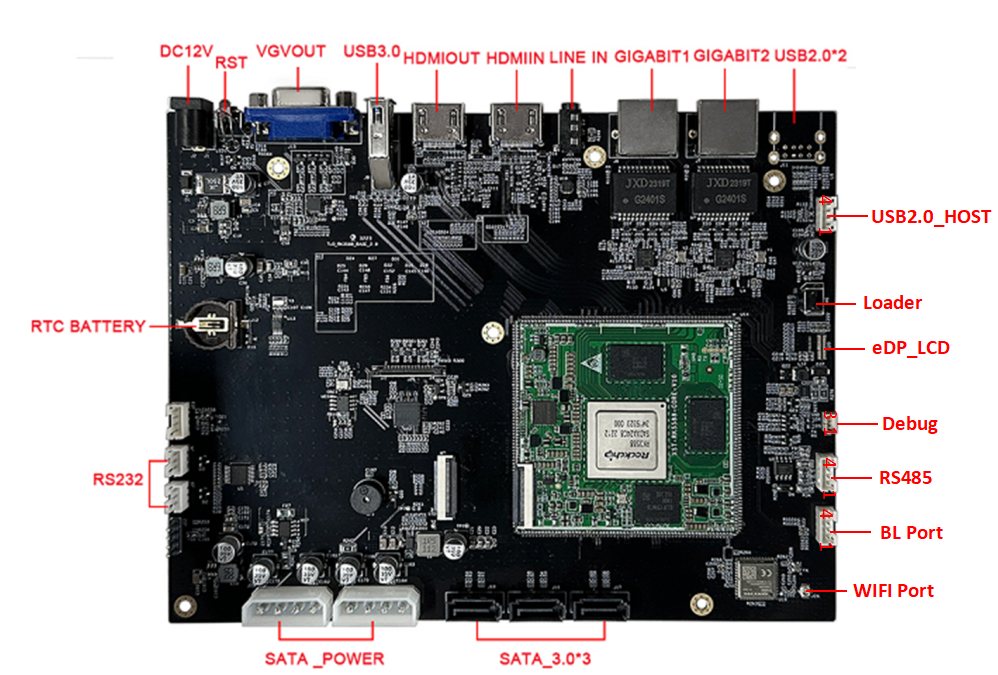

1.5 RK3588 Core Board Appearance and Interface Diagram

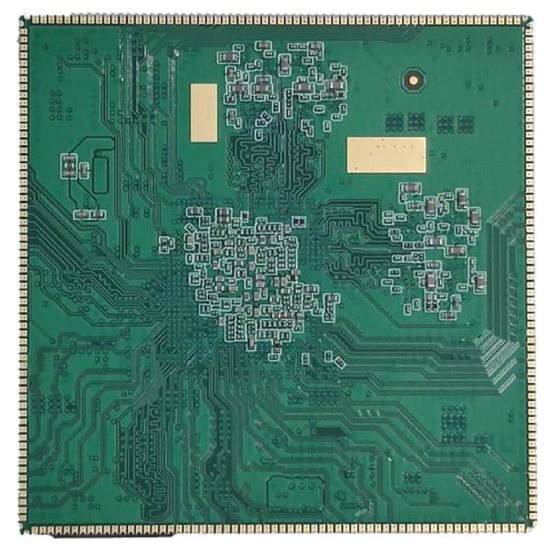

Front

Back

Interface Circuits

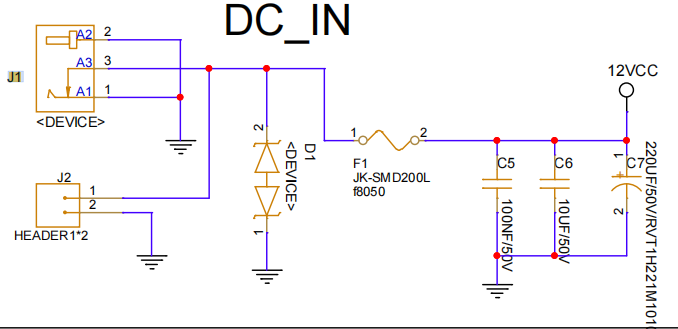

12V Power

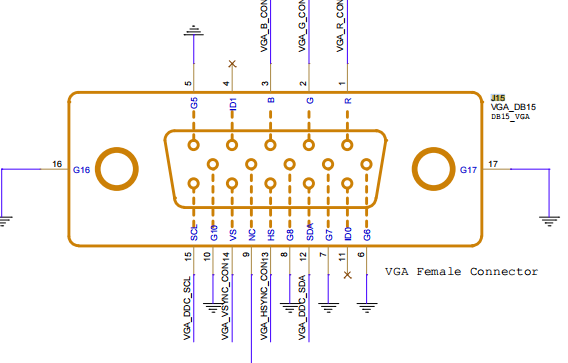

VGA Output

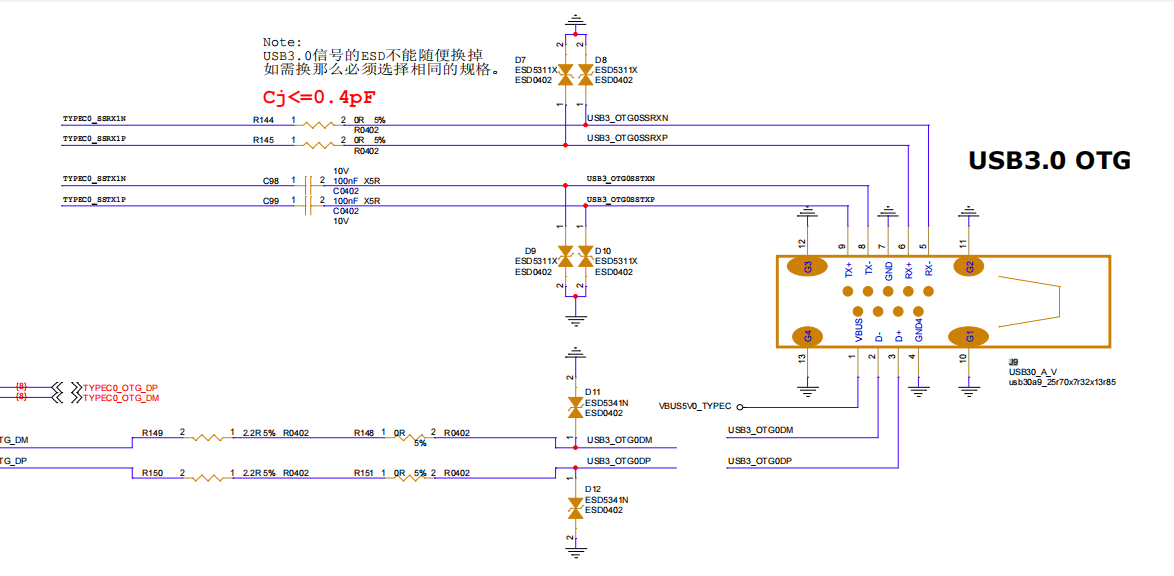

USB3.0 Flashing Interface

HDMI Loop-out

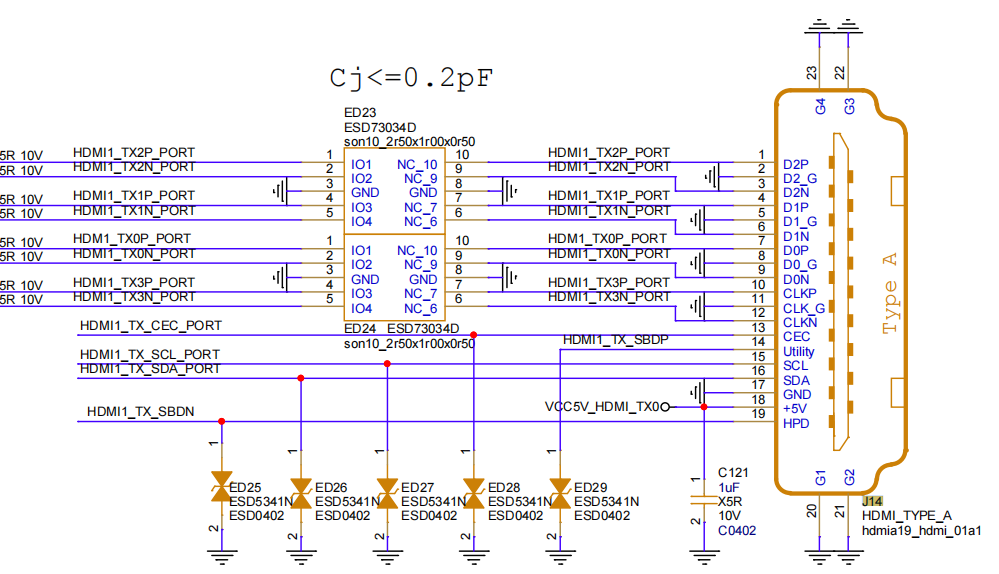

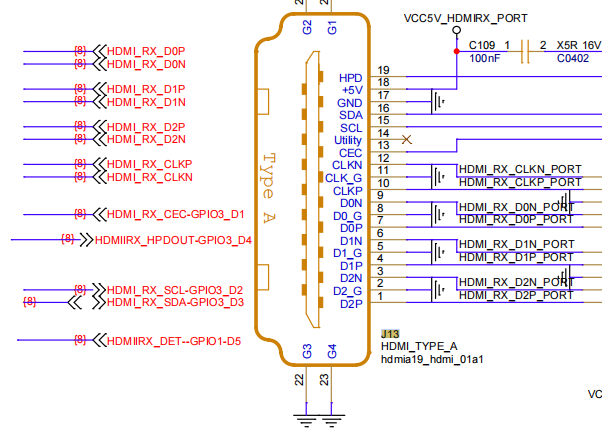

HDMI Loop-in

Audio Interface

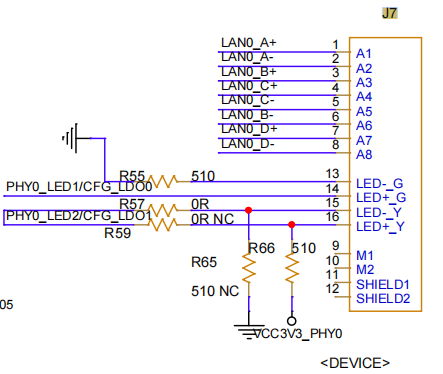

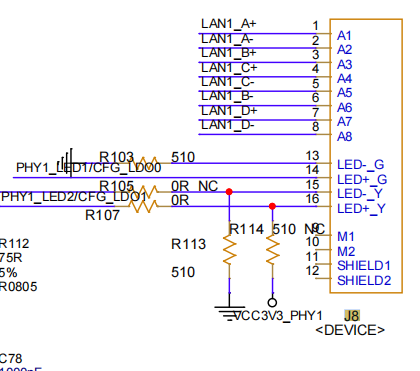

Gigabit RJ45-0

Gigabit RJ45-1

USB2.0*2

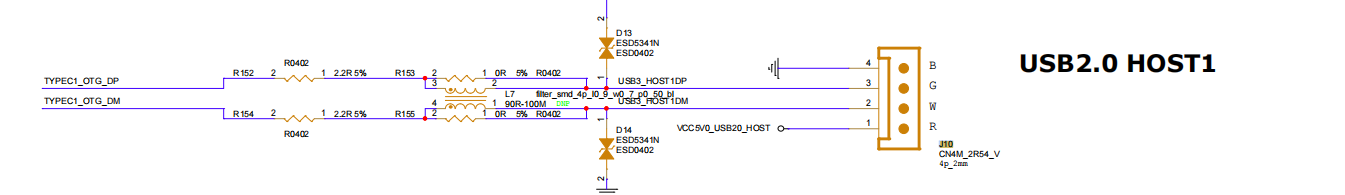

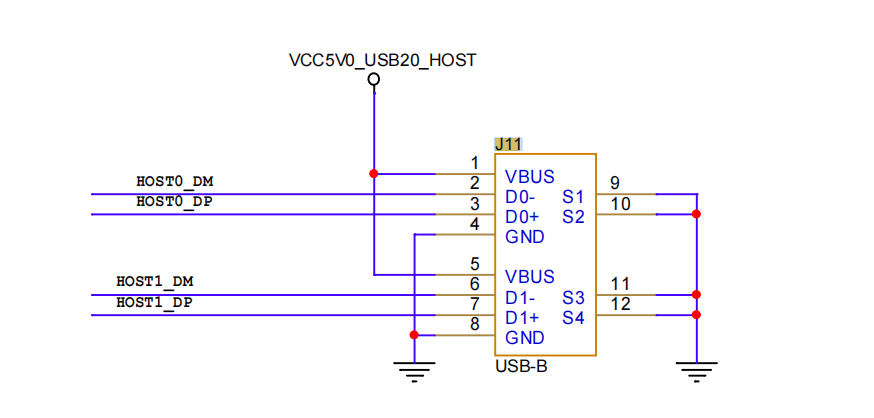

USB2.0_HOST

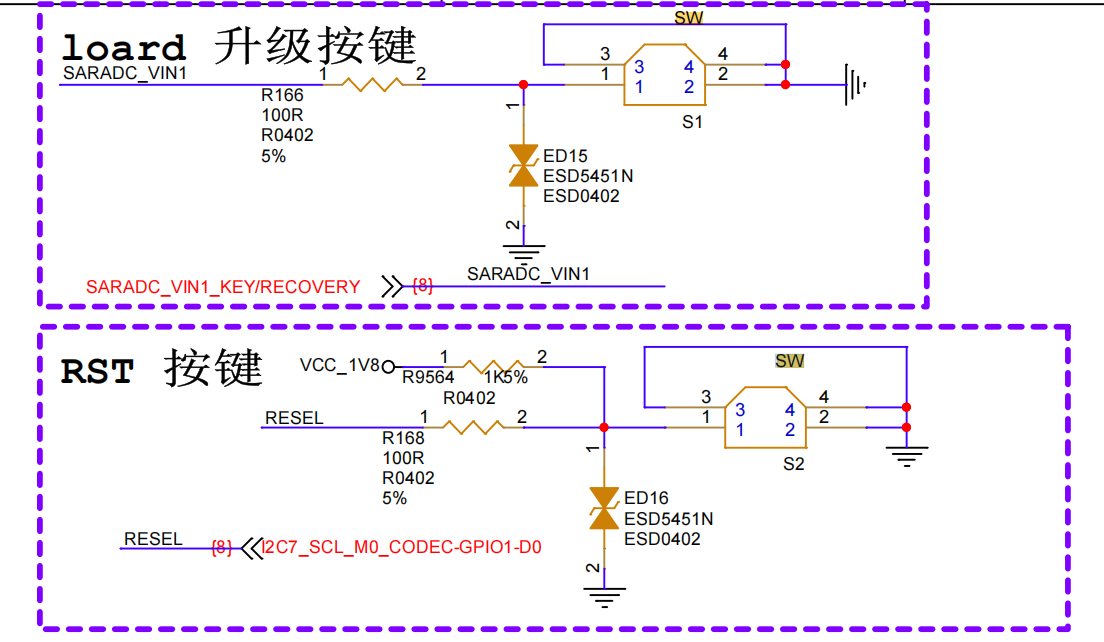

Reset Button

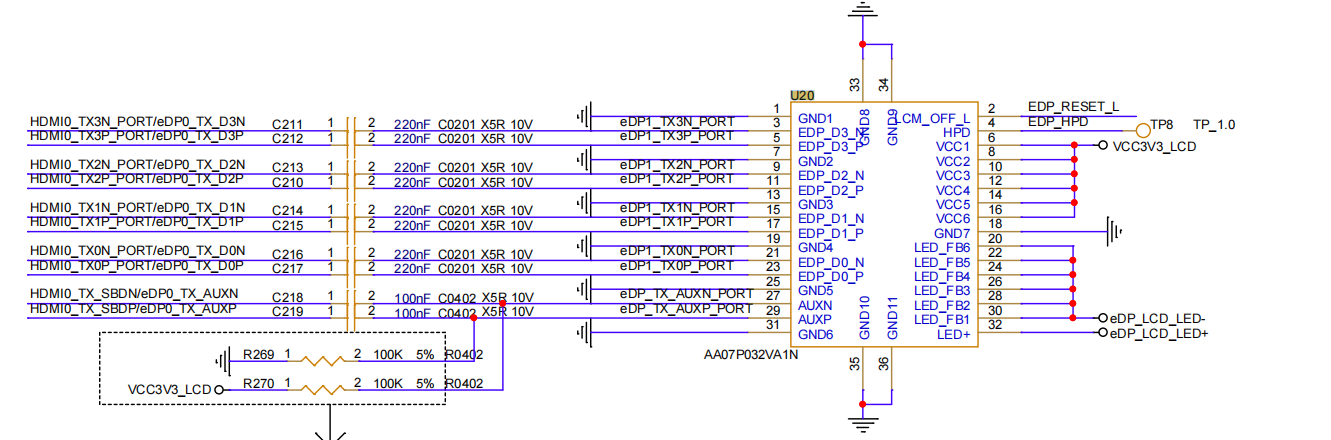

eDP_LCD Interface

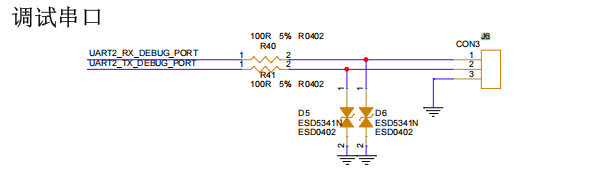

Debug Serial Port

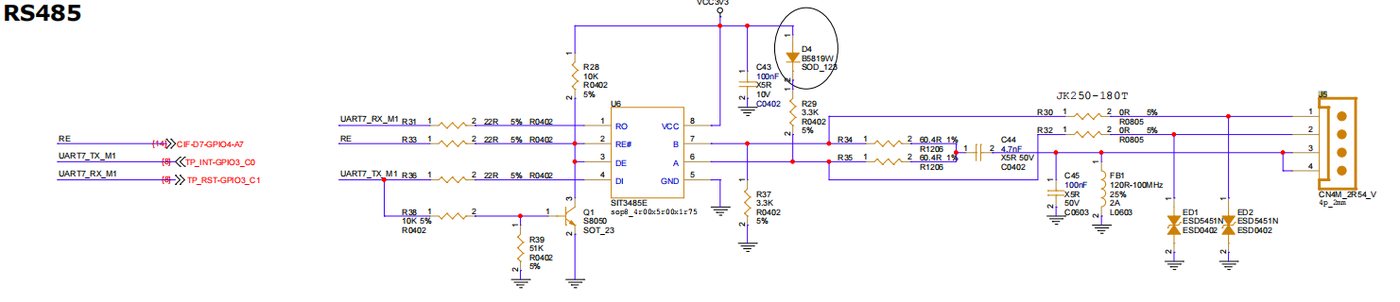

RS485

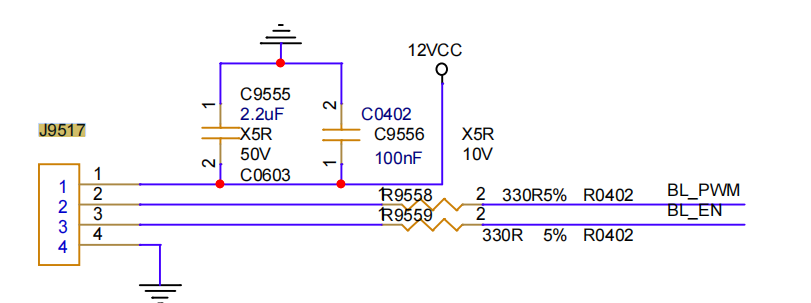

BL Interface

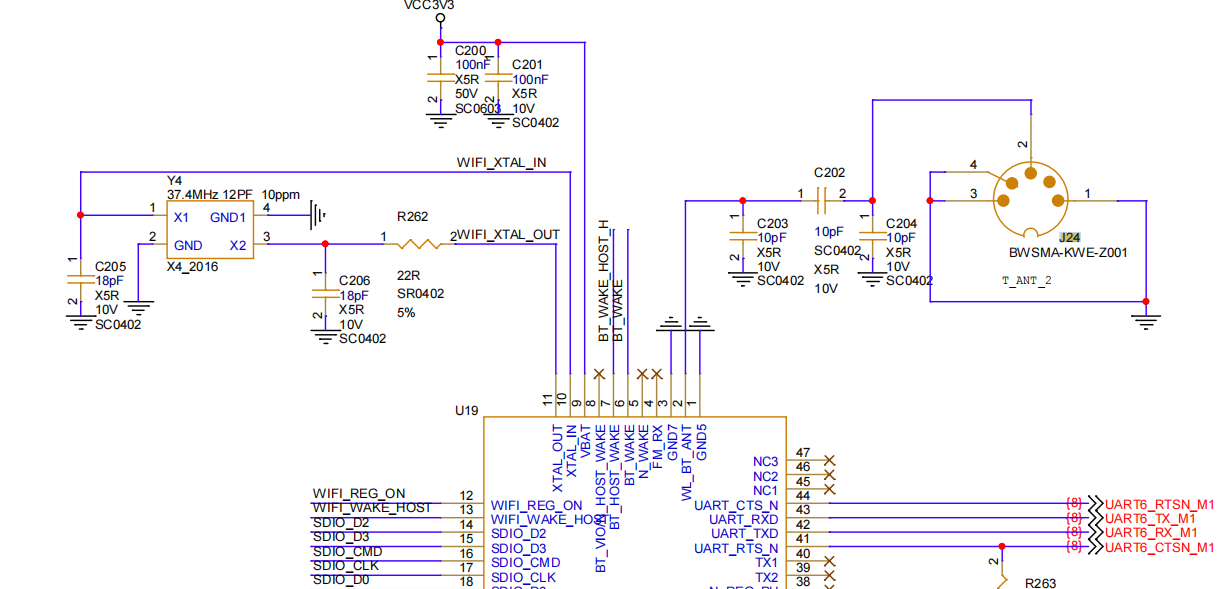

WiFi Antenna

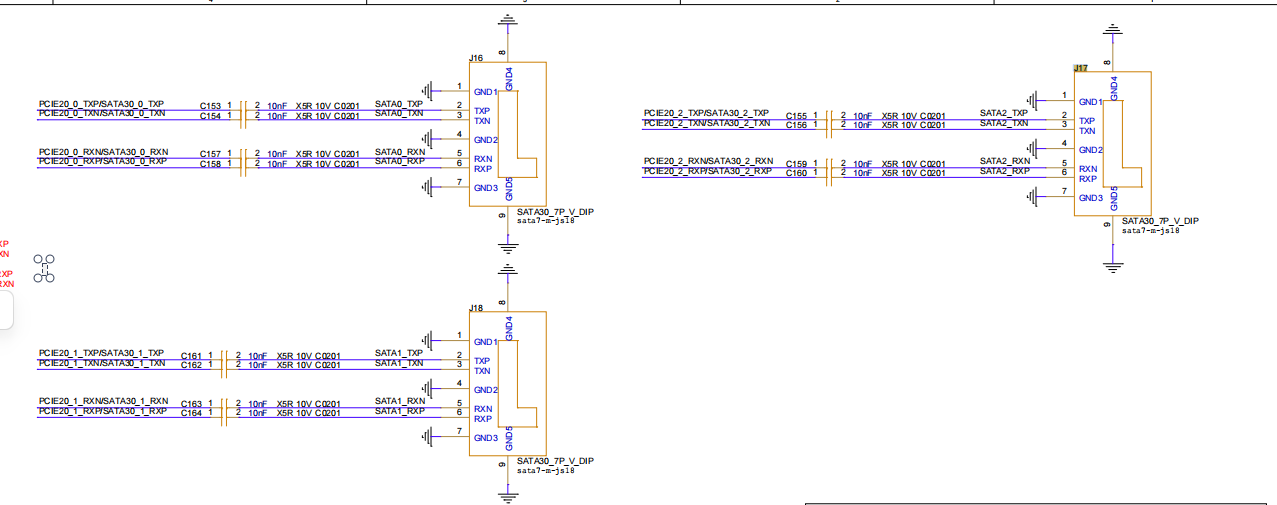

SATA Interface

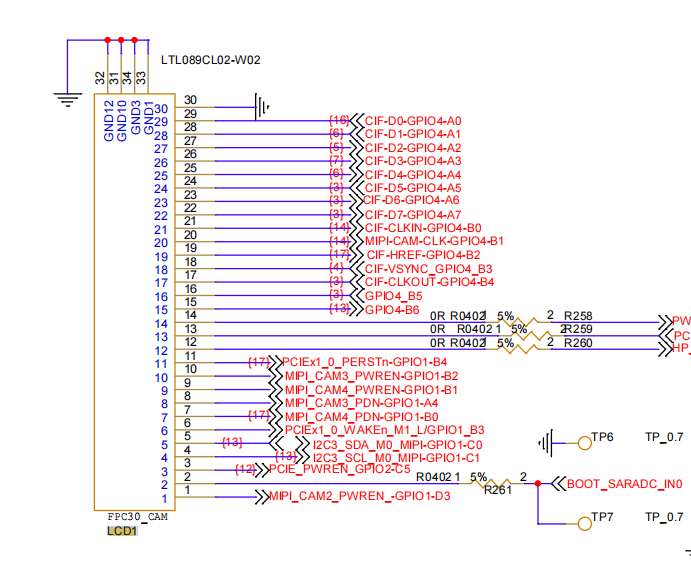

LCD1 Interface

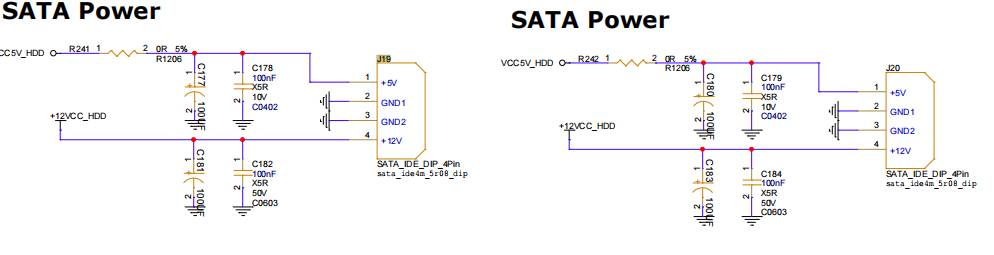

SATA Power

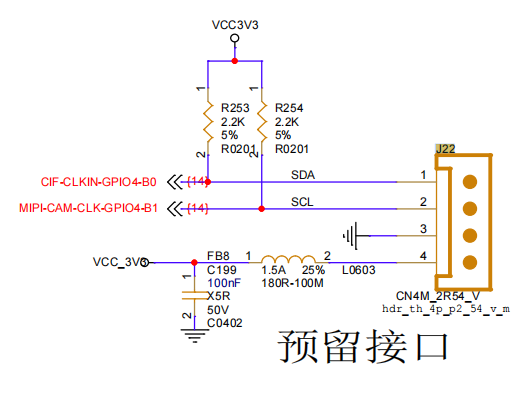

MIPI-CAM Reserved Interface

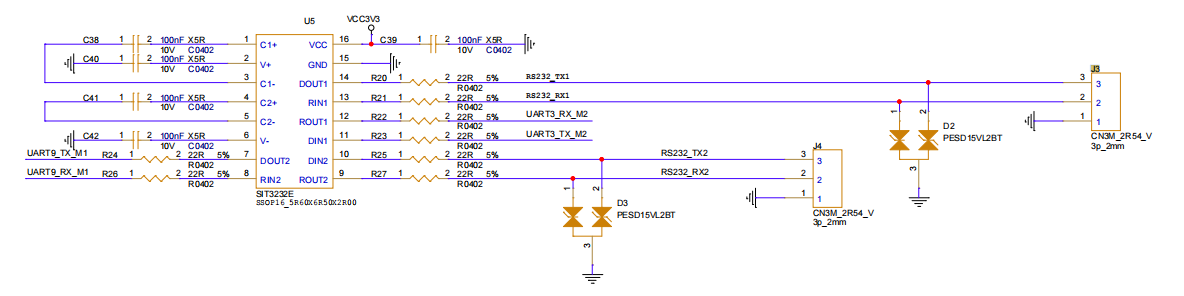

RS232 Adapter Interface

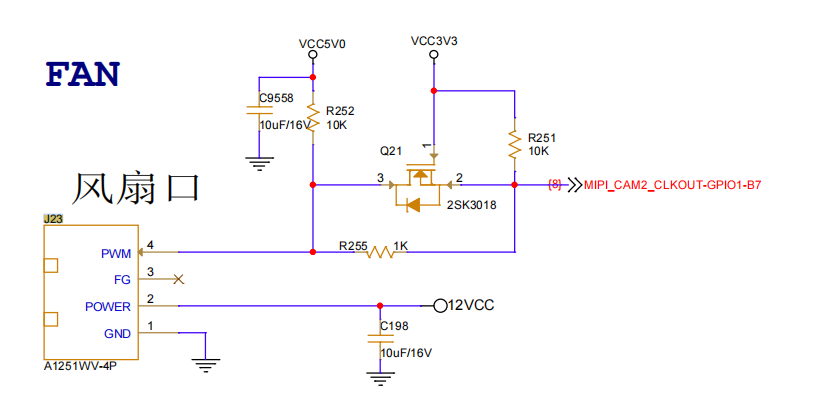

FAN Interface

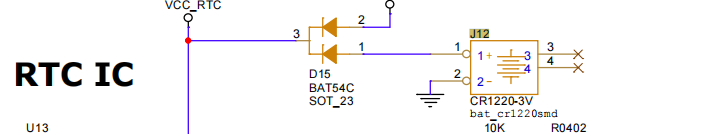

Lithium Battery Interface
