RV1126B-Camera Module
Project: Board Introduction | page_id: 1772
| Name | rv1126b ipc |
|---|---|
| Board No. | RV1126B-DSP_V10 |
| CPU | rv1126b |
| CPU core count | Quad-core 64-bit ARM Cortex-A53 |
| GPU | N/A |
| NPU Computing Power | 3 TOPS |
| DDR | 512MB |
| eMMC | 32GB |
| Supported systems | buildroot,debian,ubuntu,yocto |
| Video encoding | 4K (3840×2160) @ 30 fps |
| Video Input | 1 channel 1200M@30fps or 2 channels 500W |
| Video Output | Network stream |
| Interfaces | 1 USB, 2 serial communication ports, MIC, SPK |
| Storage | TF card |
| Network | Ethernet |
| WIFI | RTL8189fs |
| Operating Temperature | 75℃ |
| Service Life | Continuous operation service life greater than 5 years |
Product Images

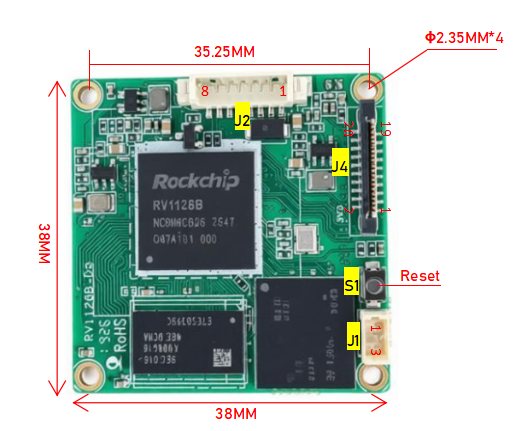

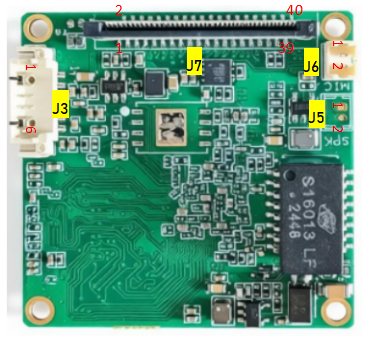

RV1126B IPC

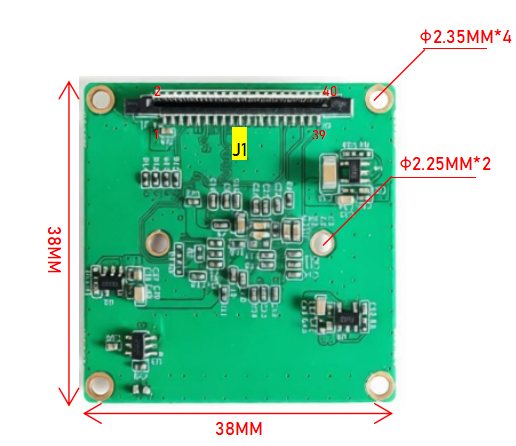

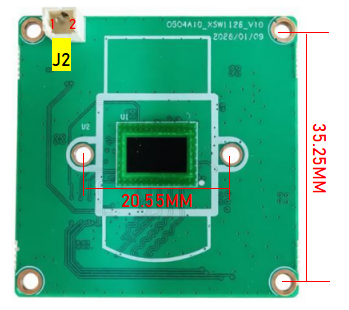

OS04A10_XSW1126 Sensor
Chip Specifications
RV1126B
Description
• 4K high-performance low-power AI image processor
• Quad-core ARM Cortex-A53
• Configured with 3 TOPS NPU, supports large models within 2B
• Supports 12M@30fps ISP, 8M@30fps AI-ISP
• Supports AI Remosaic, PDAF
• Multi-lens AI dynamic stitching (26M dual-lens stitching / 42M panoramic stitching)
• Supports 5 cameras input simultaneously
• Supports 4K@45fps H.264/H.265 encoding and 4K30 decoding
Features
CPU
• Quad-core A53 + MCU
GPU
• 2D graphics engine
NPU
•3 TOPS
Storage interface
• 32bit DDR3/3L/DDR4/ LP3/LP4/LP4X, eMMC 4.51
Video encoding and decoding
• Up to 4K@45fps H.264/H.265 encoding, supports H.264/H.265
Video input interface
• Supports 2-channel 4-lane or 4-channel 2-lane MIPI-CSI interface and mainstream thermal imaging detector interface
• Supports BT.656/BT.1120 DVP interface
Video output interface
• Supports 4-lane MIPI DSI interface, up to 1080P@60fps
Audio interface and processing
• Integrated Audio codec, 232-bit ADC and 16-bit DAC
ISP
• 12M@30fps
Peripheral interfaces
• USB3.0 DRD/ USB 2.0 host/ 2xSDIO3.0/ 2xCAN/ DSMC/ RGMII
Package
• FCCSP 1414mm
