RK3568IndustrialMain Board
Project: Board Introduction | page_id: 1662
| Name | RK3568 Industrial Control Mainboard |
|---|---|
| Board No. | RK3568-FYGK-BOARD V1O |
| CPU | RK3568J |
| CPU Cores | 4 |
| GPU | "ARM Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0" |
| NPU Computing Power | "1 TOPS computing power, supports INT4/INT8/FP16 mixed precision, compatible with mainstream frameworks such as TensorFlow / PyTorch / ONNX" |
| DDR | 4GB |
| eMMC | 32GB |
| Supported Systems | Android, Buildroot, Debian, Ubuntu, Yocto, OHOS, openEuler |
| Video Encoding | 4-channel 1080p@30fps |
| Video Input | N\A |
| Video Output | 2*HDMI 1920x1080 60Hz |
| Interfaces | Expansion board*1 (CAN, 232, 485), large 4-pin power supply, 3.5mm audio output/input interface, USB2.0, DC12V, SIM |
| Storage | SATA*1, PCIe SSD |
| Network | 4*RJ45 |
| WIFI | RTL8188 |
| Operating Temperature | 0 to 60°C |
| Service Life | Continuous operation life of more than 5 years |

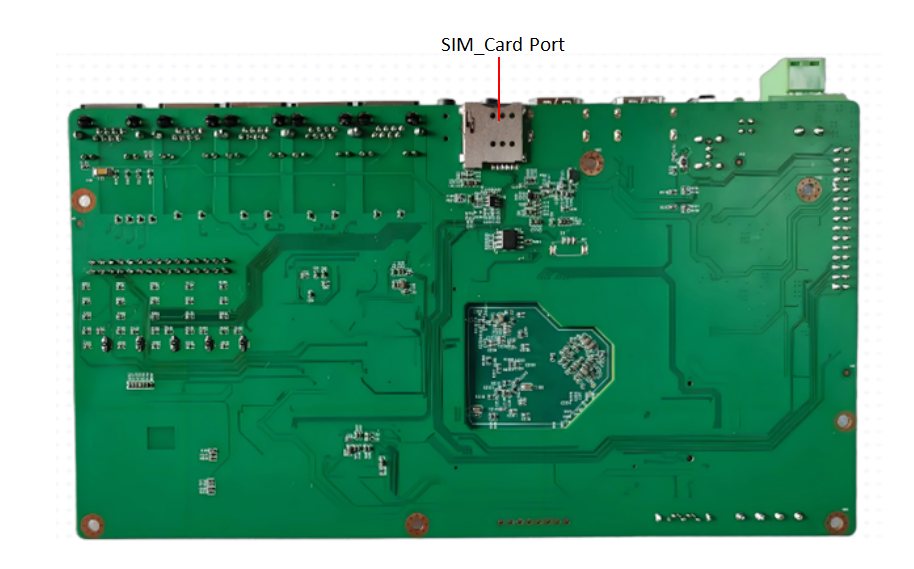

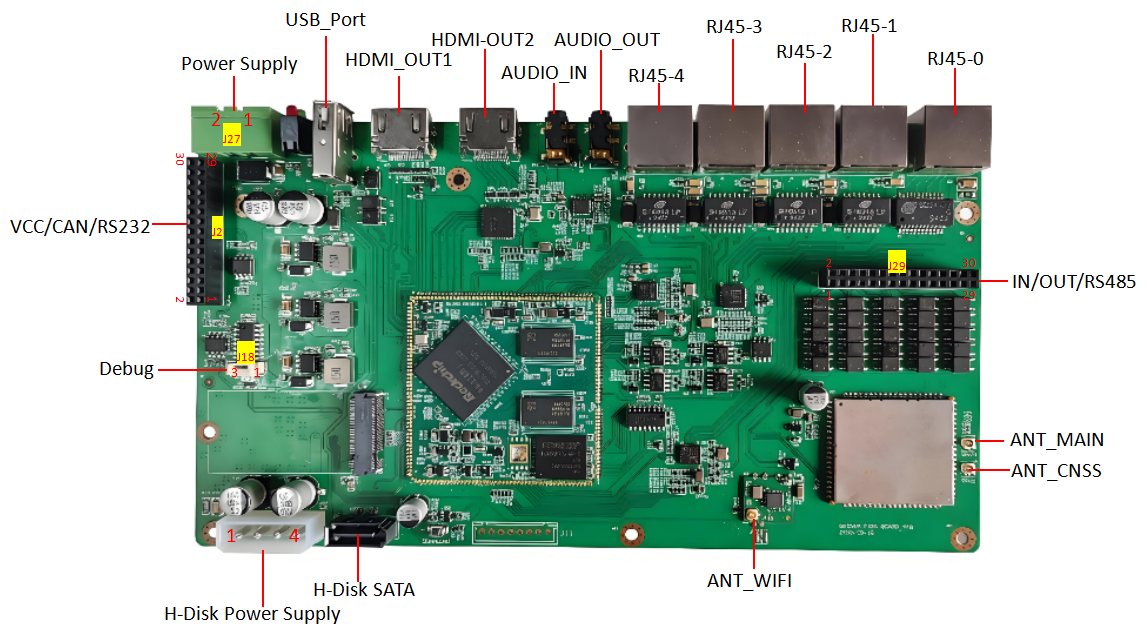

I. Product Images
Board Size: 202*115mm
II. Chip Specifications
Main Control Model: RK3568J
Description
• Quad-core Cortex-A55 processor
• Mali-G52 graphics processor
• 512MAC neural processing unit
• Supports LPDDR4/LPDDR4X/DDR4/DDR3/DDR3L/LPDDR3 memory, with ECC check
• 4K60fps H.265/H.264/VP9 video decoding
• 1080P60fps H.264/H.265 video encoding
• 8M image signal processor with HDR support
• Dual display interfaces: LVDS/MIPI-DSI/RGB/eDP/RGB/HDMI2.0/T-CON
• Audio interfaces: 1x8-channel I2S/TDM, 1x8-channel PDM, 2x2-channel I2S
• Expansion interfaces: USB3.0 x2 / SATA3.0 x3 / PCIe2.1 / QSGMII
• PCIe3.0 interface: 1 group of x2 lanes / 2 groups of x1 lanes
Features
CPU
• Quad-core 64-bit Cortex-A55
GPU
• ARM G52 2EE
• Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
• Embedded high-performance 2D acceleration hardware
NPU
• 512MAC, self-developed NPU
Multimedia
• Supports 4K 60fps H.265/H.264/VP9 video decoding
• Supports 1080P 60fps H.265/H.264 video encoding
• Supports 8M ISP, supports HDR
Display
• Supports multi-screen different display
• Supports eDP/HDMI2.0/MIPI/LVDS/24bit RGB/T-CON
Interfaces
• Supports USB2.0/USB3.0/PCIe3.0/PCIe2.1/SATA3.0/QSGMII
III. Interface Circuits
Power Supply

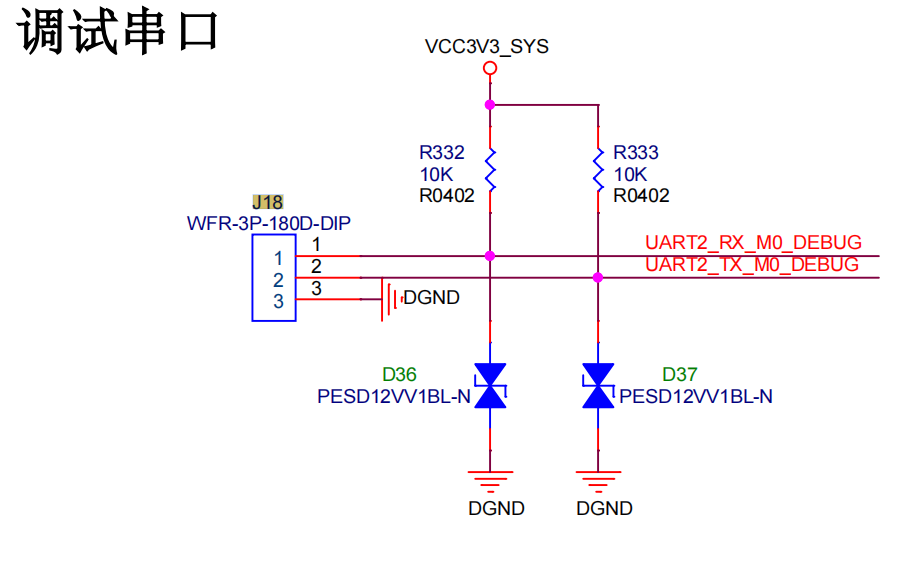

Debug

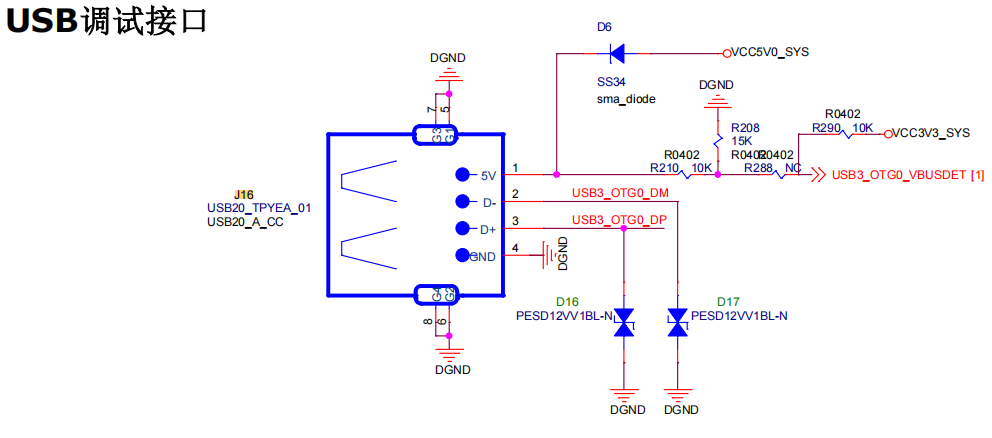

USB_Port

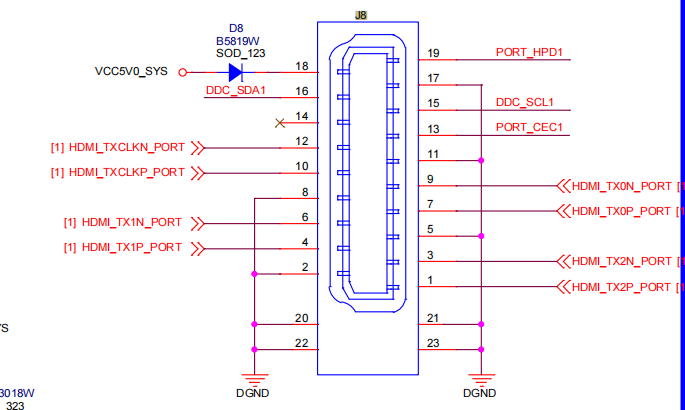

HDMI_OUT1

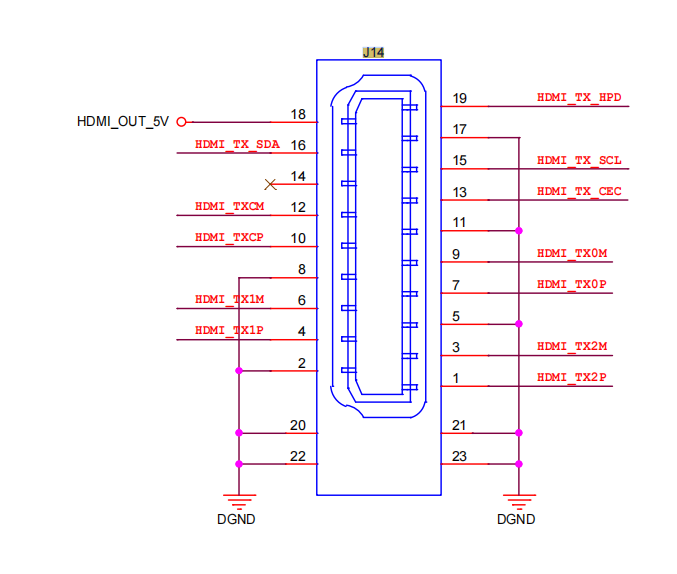

HDMI_OUT2

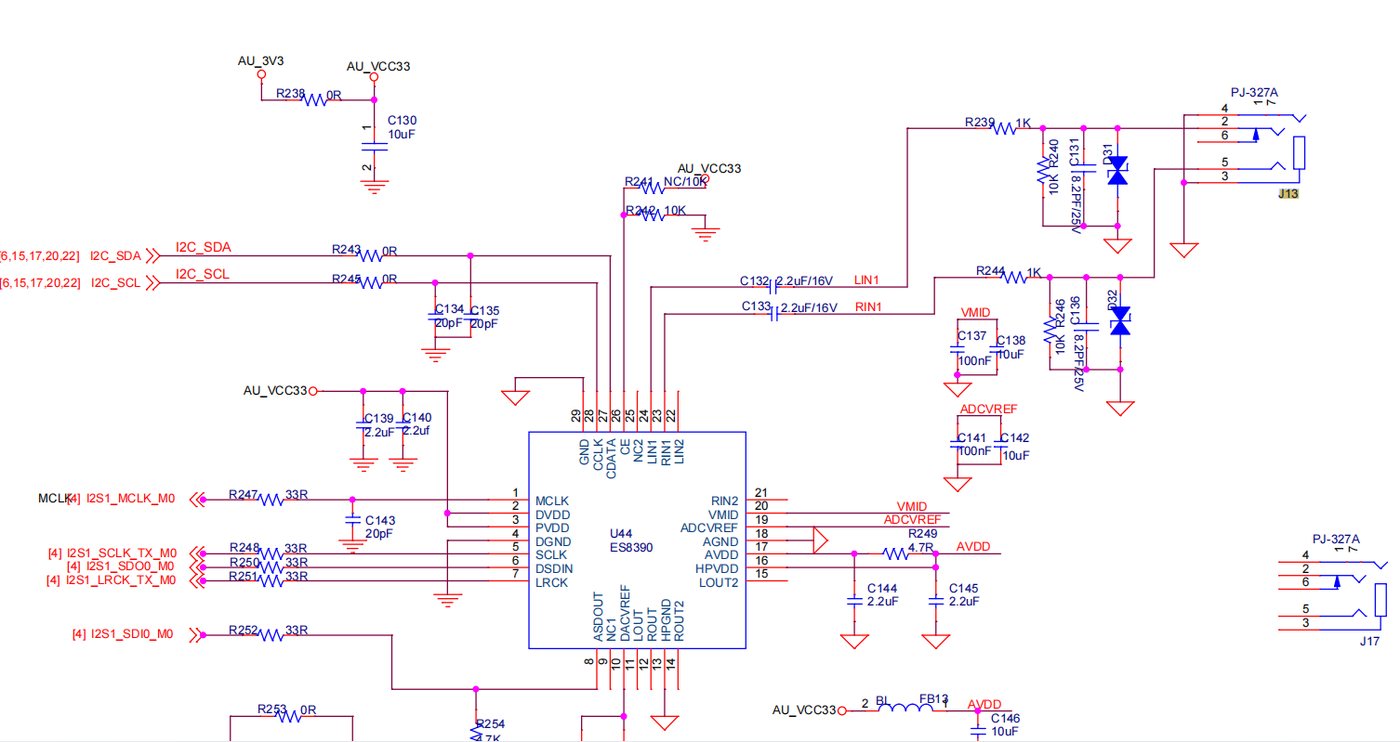

AUDIO_IN/AUDIO_OUT

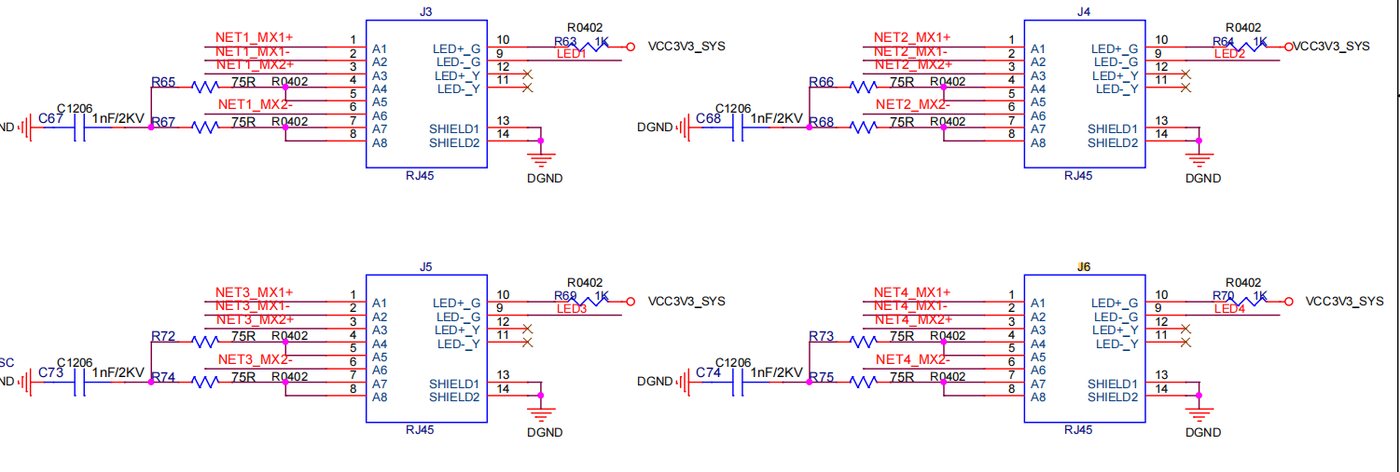

RJ45-4/RJ45-3/RJ45-2/RJ45-1

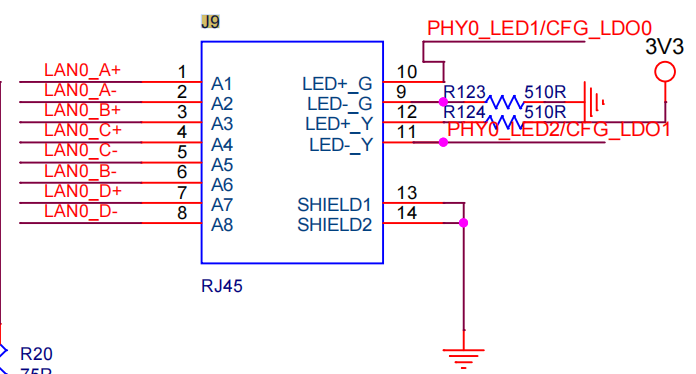

RJ45-0

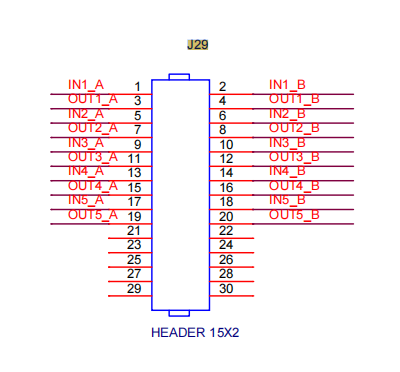

IN/OUT/RS485

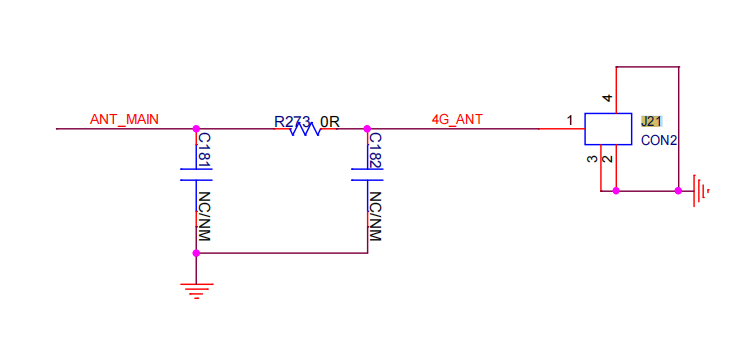

ANT_MAIN
ANT_CNSS

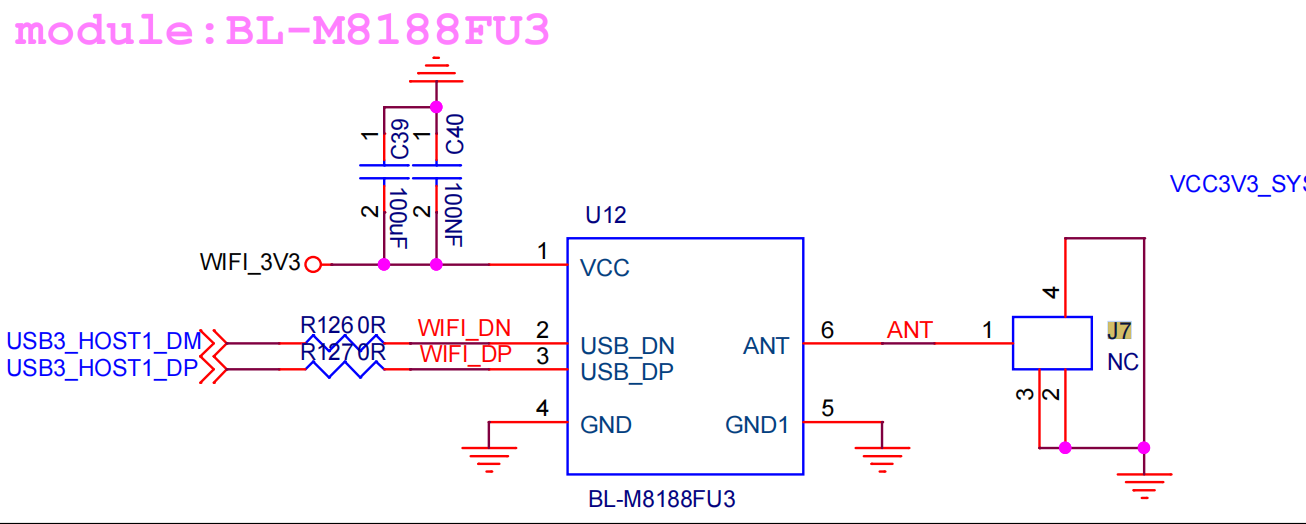

ANT_WIFI

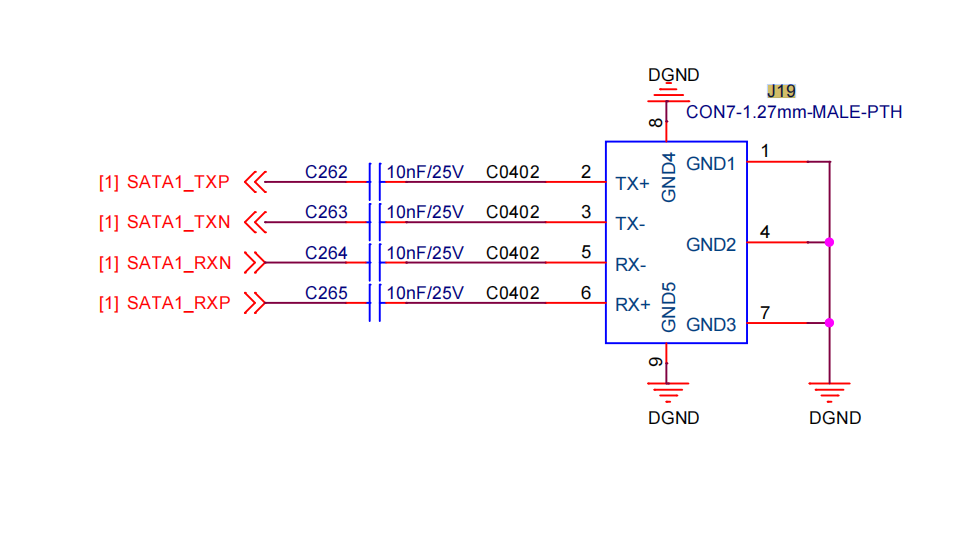

H-Disk SATA

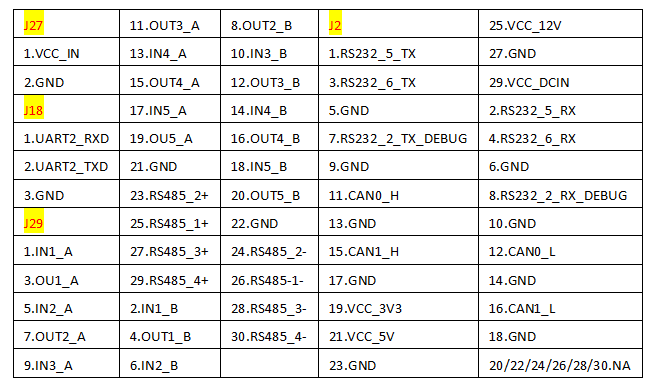

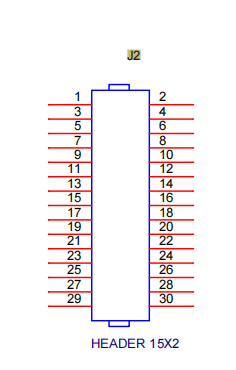

VCC/CAN/RS232

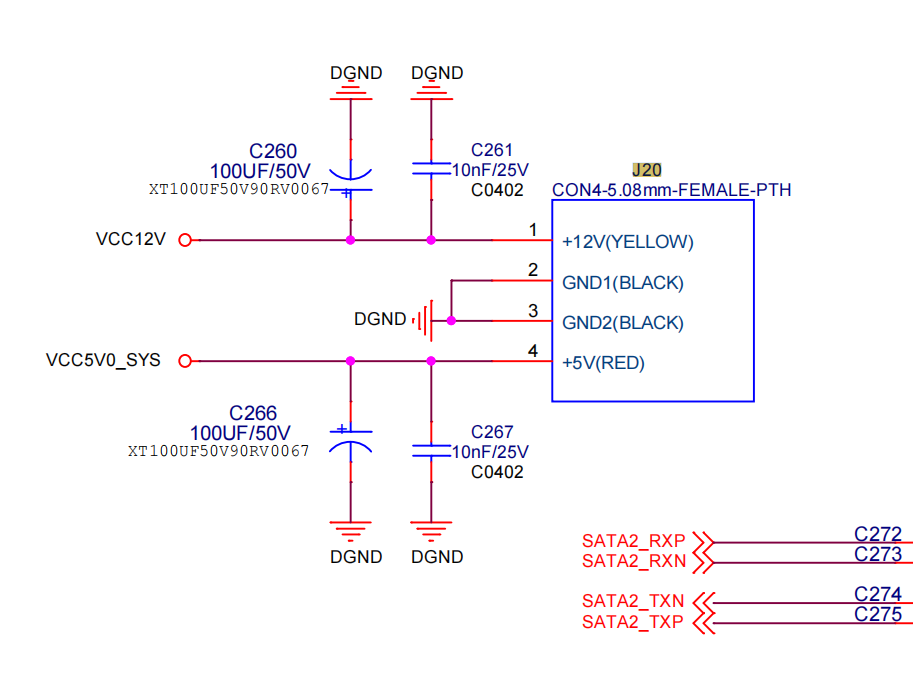

H-Disk Power Supply
