RK3568 4ChannelAHDCamera4Gvariantwith Wi-Fi
Project: Board Introduction | page_id: 1310
| RK3568 4-Channel AHD Board 4G Version with WiFi | |
|---|---|
| Model | XSWCAM-4AHDRK3568/T |
| CPU | RK3568 4-core A55 |
| Memory | Built-in 2GB |
| EMMC | Built-in 16GB |
| AI Performance | INT4/INT8/INT16 0.8TOPS computing power, supports TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet |
| Video Encoding | See Appendix 1 |
| Video Decoding | Supports H.265/H.264 encoding, max 4k@60fps |
| IO Port Resources | Some display functions are not led out |
| Supported System | Linux5.10 /Android12 |
| Interfaces | CANx2, USB2.0X2, 485/422 X2, RS232X2, print serial port |
| Storage | Supports eMMC 5.1 |
| Network | Wireless network 2G/4G/5G |
| WIFI | Supported |
| Operating Temperature | 0 to 70℃; XSWTVR-8CT3568JMIPI/TX_I version -40~75℃ |
| Service Life | Continuous operation life of more than 5 years |
Product Introduction
Board Size: 203*100mm
Chip Specifications

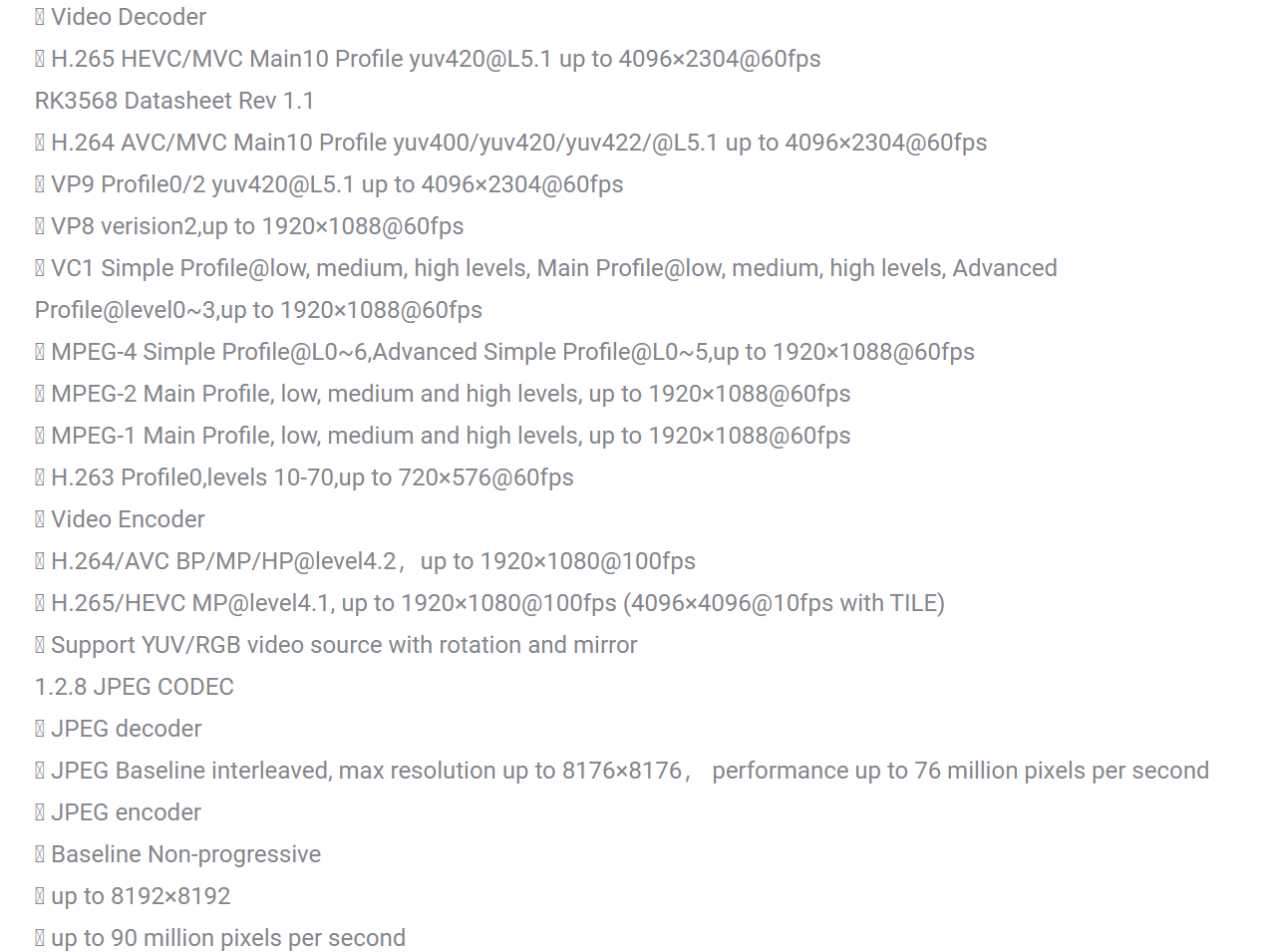

Description of RK3568 Core Board Encoding Capability

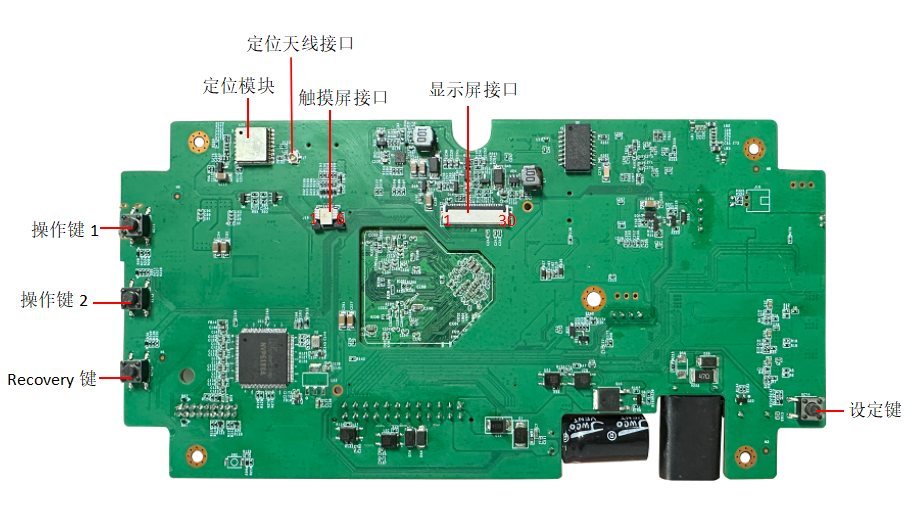

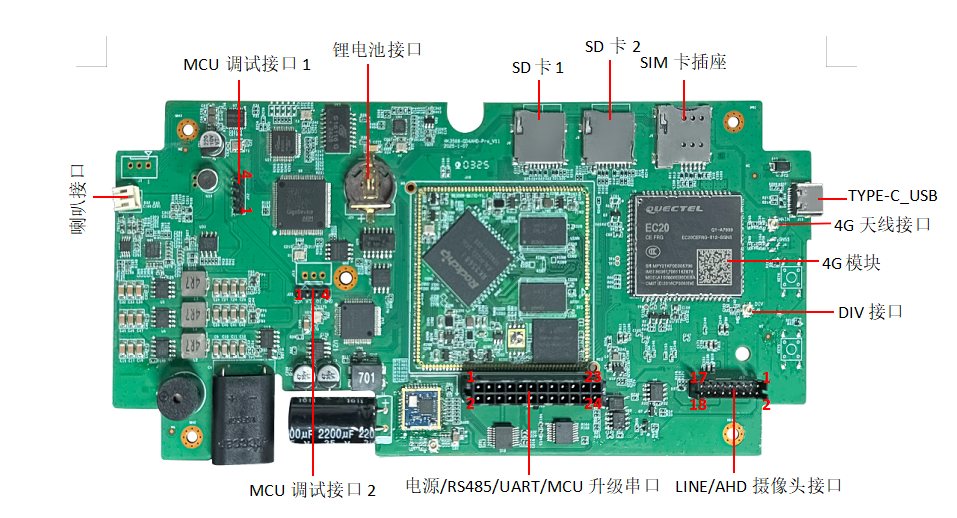

Board Resources
Memory 2GB LPDDR4
Storage (EMMC) 32GB
Ultra-small size 50mm*50mm, using stamp holes.
Interface Circuits

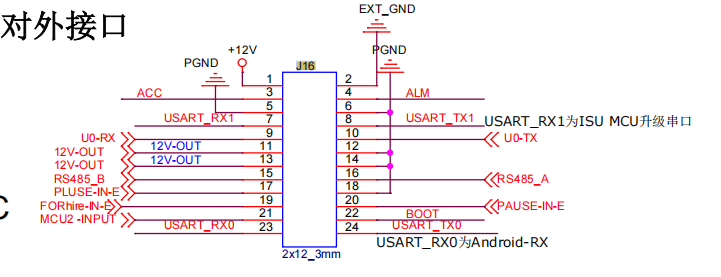

Power / RS485 / UART / MCU Upgrade Serial Port

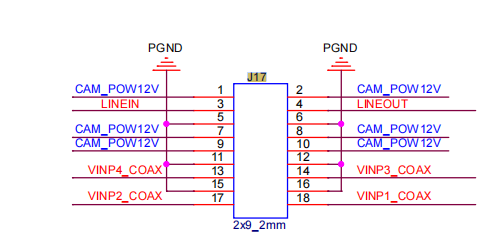

LINE / AHD Camera Interface

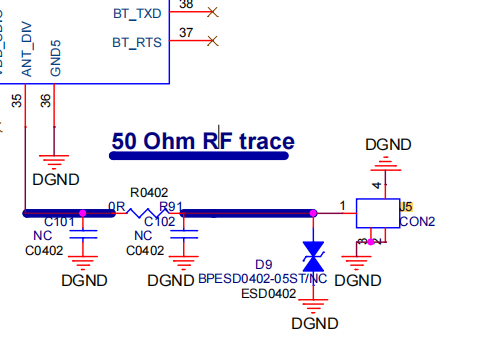

DIV Interface

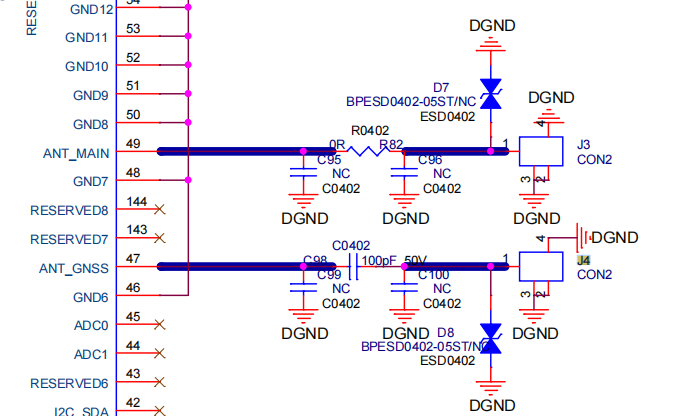

4G Antenna + ANT_GNSS Interface

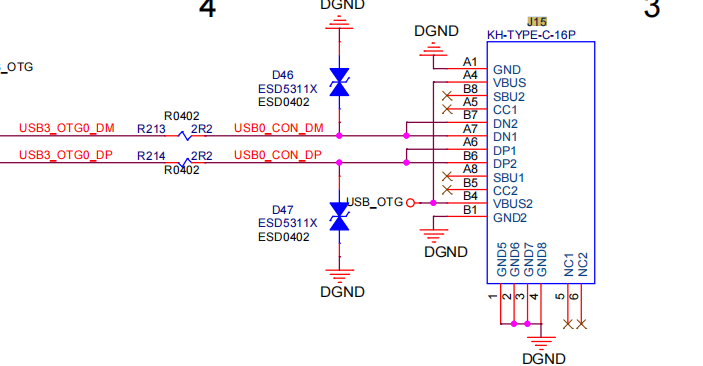

TYPE-C_USB

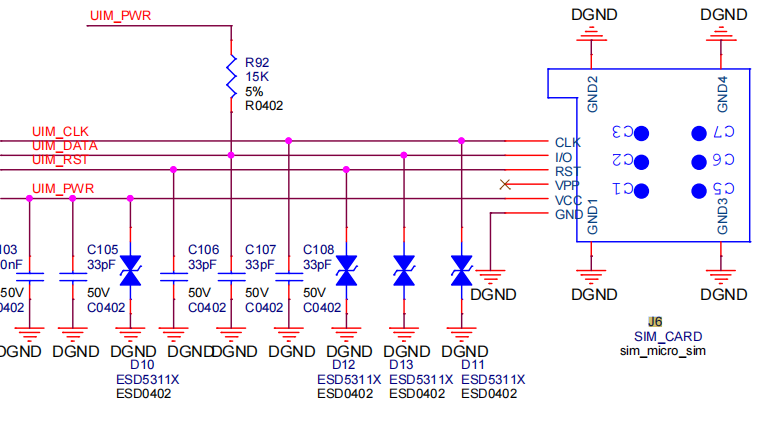

SIM Card

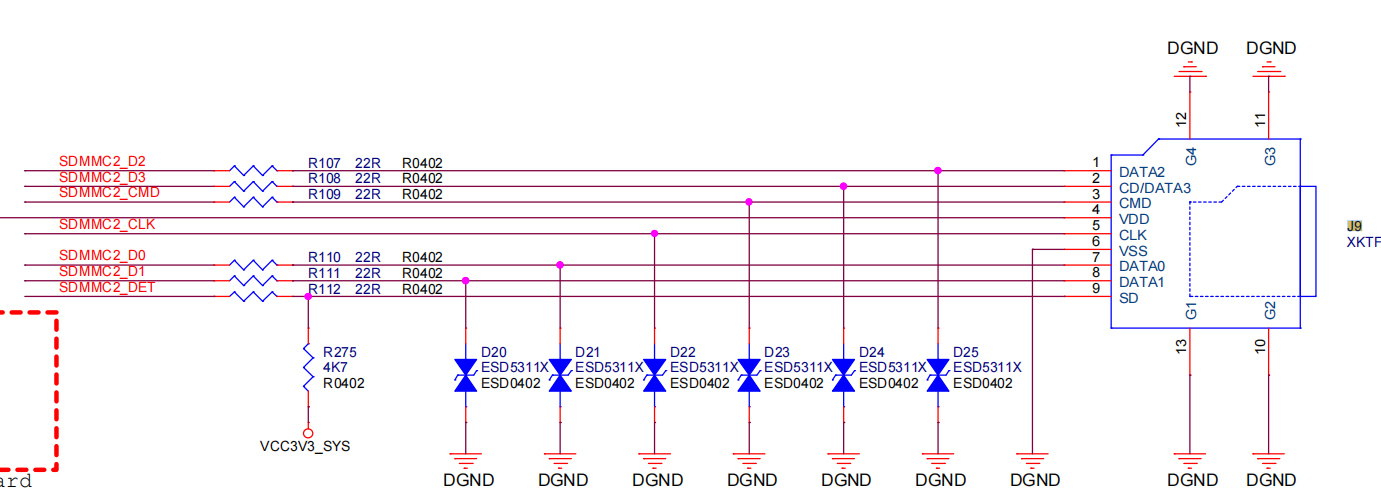

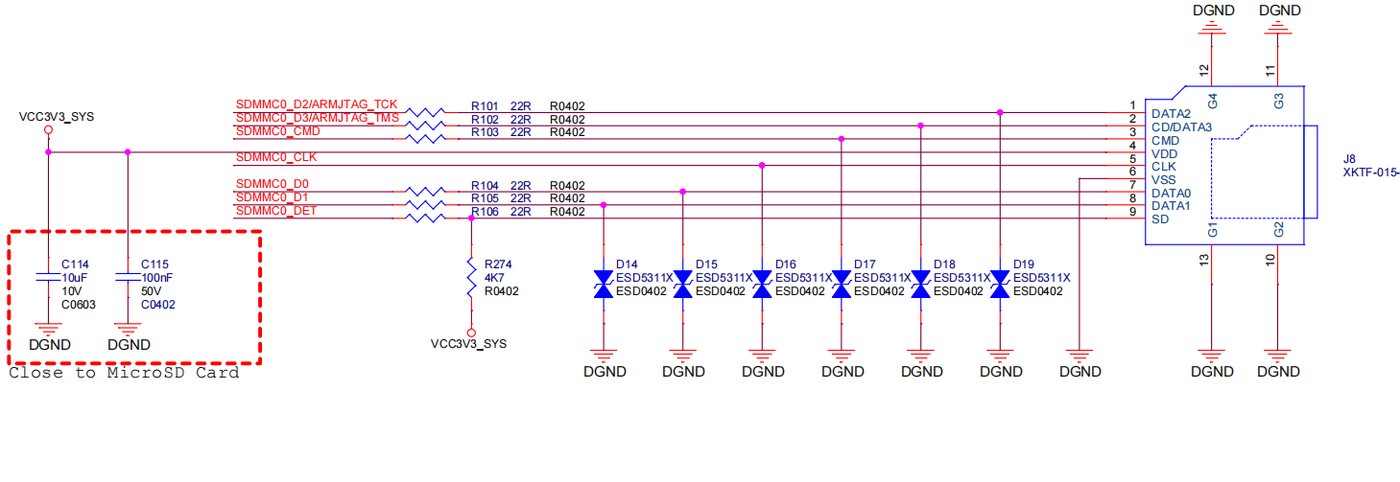

SD Card 1
SD Card 2
MCU Debug Interface 2
MCU Debug Interface 1

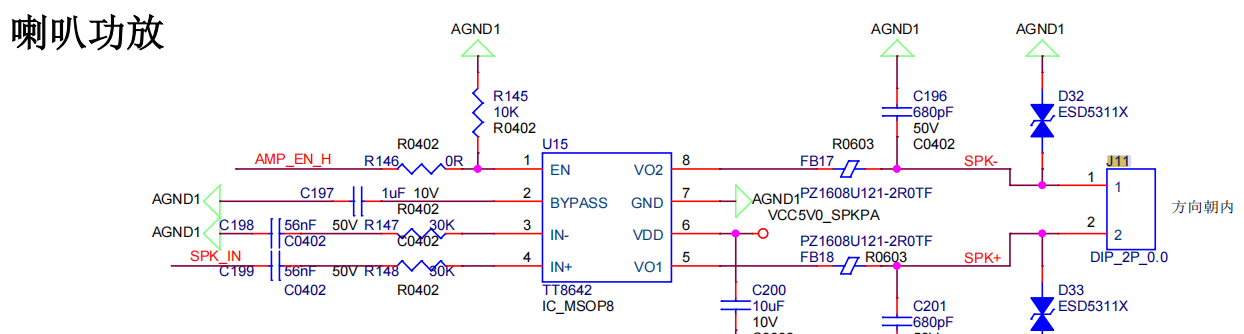

Speaker Interface

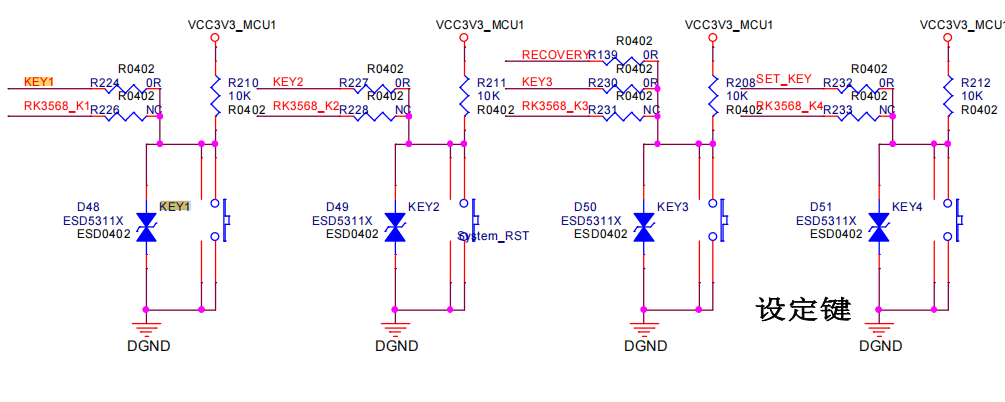

Operation Key + RECOVERY Key + Setting Key Interface

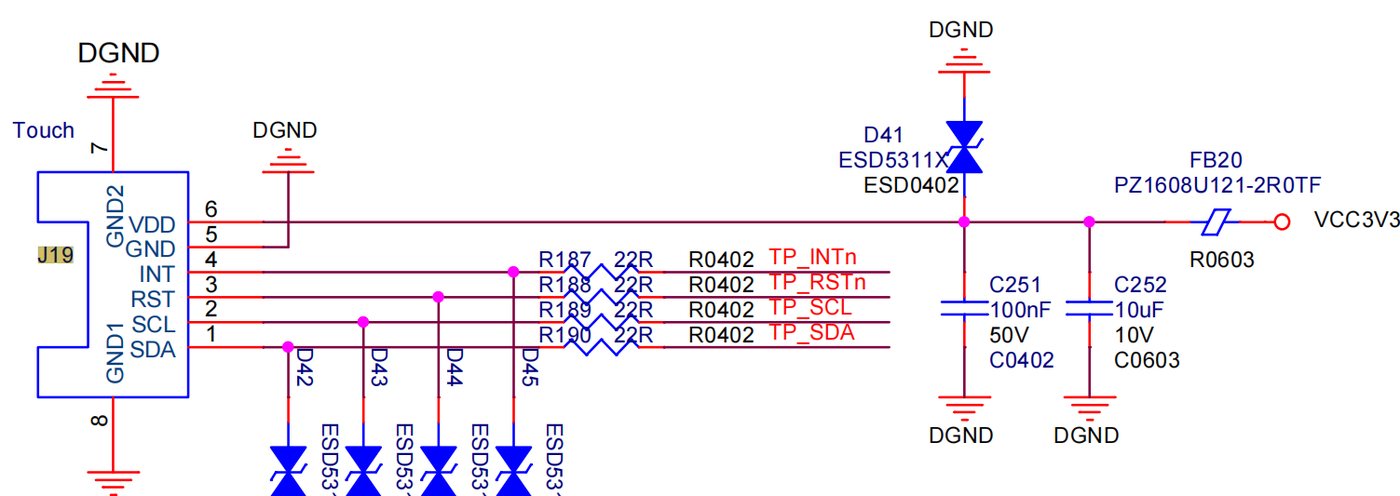

Touch Screen Interface

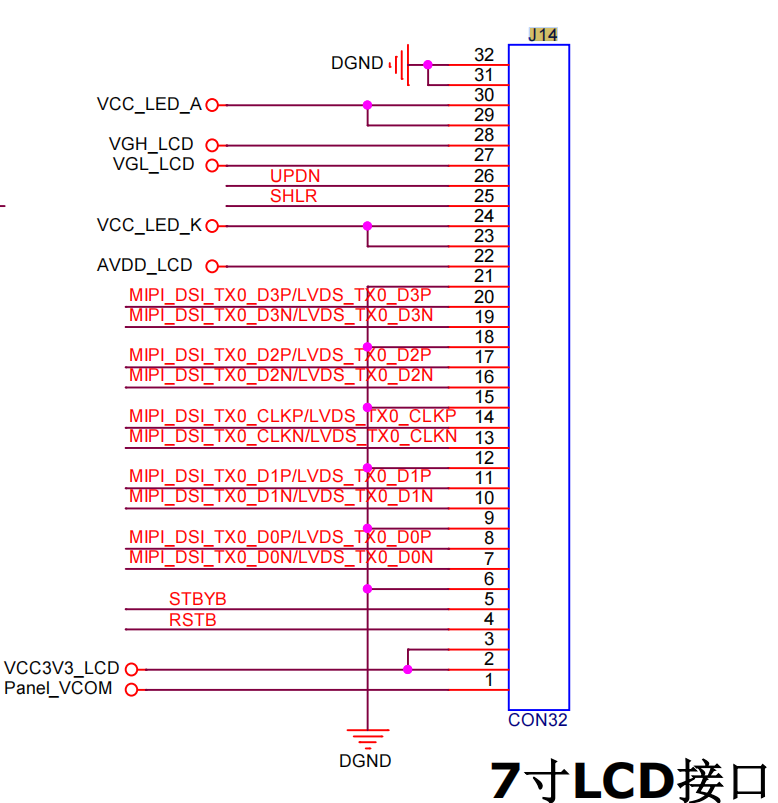

Display Screen Interface
FAQ
