RK3588 4ChannelAHDBoard

Dev Boards & Modules · Rockchip

Project: Board Introduction | page_id: 908

RK3588 4-Channel AHD Board
Model	XSWTVR-4AHDRK3588/T
CPU	RK3588
CPU Cores	Quad-core Cortex-A76 + quad-core Cortex-A55 (frequency: 2.4GHz)
GPU	Mali-G610
NPU Computing Power	Up to 6TOPS
DDR	8GB LPDDR4X
eMMC	16GB eMMC
Supported Systems	Linux5.10 / Android12
Video Encoding	Supports H.265/H.264 encoding/decoding, max resolution 7680x3840@60fps
Video Input	AHD/CVBS video, max 4K@15 x 4 channels
Video Output	VGA, LVDS screen x3, supports touch screen
Interfaces	CAN x2, USB3.0 x2, USB2.0 x2, 485/422 x2, RS232 x2, print serial port x1, TTL serial port x1
Storage	Supports eMMC 5.1
Network	1 RJ45 10/100/1000M
WIFI	Supported
Operating Temperature	0 to 70℃
Service Life	Continuous operation lifespan of more than 5 years
Dimensions	14.5cm x 10cm
Weight	120.3g

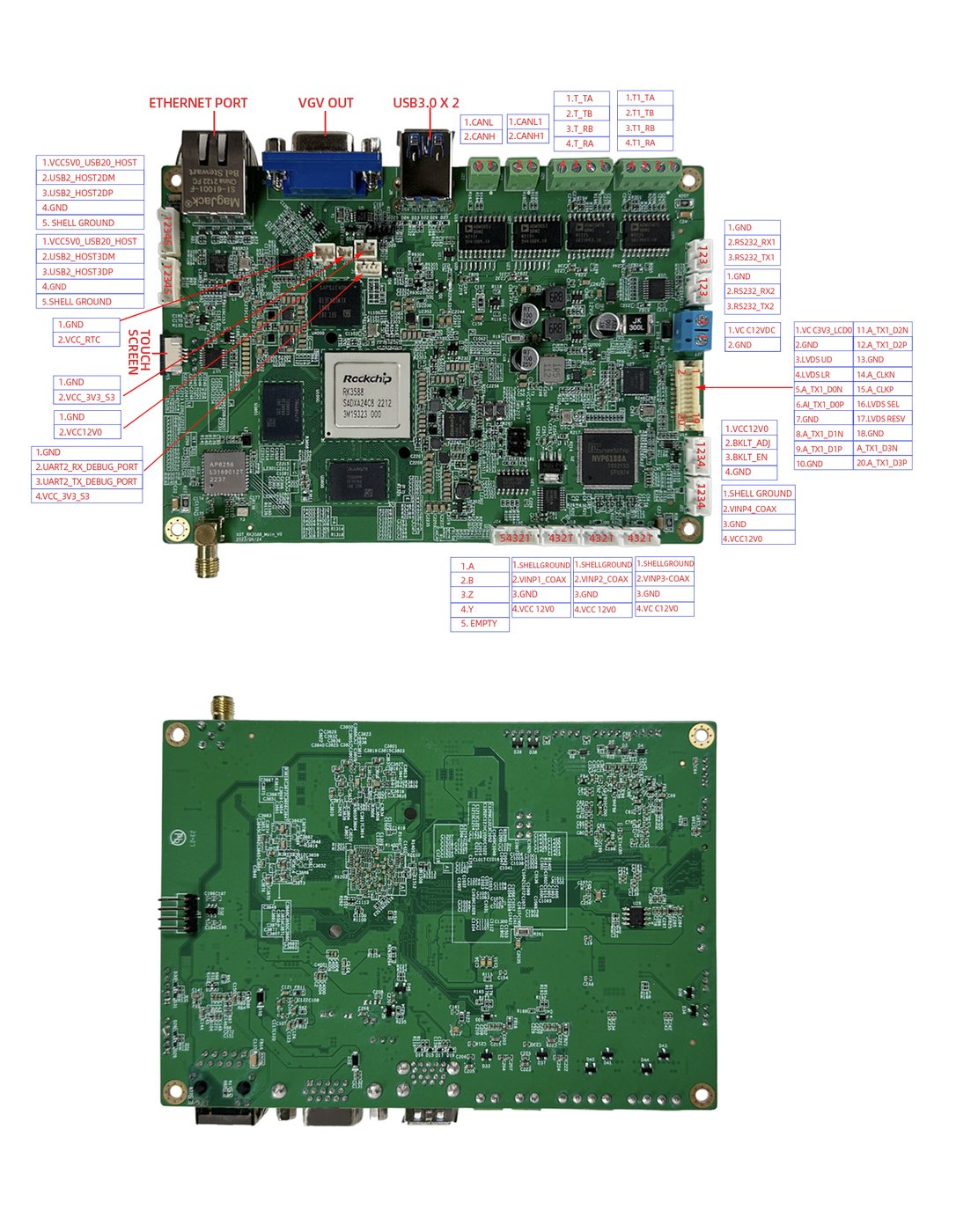

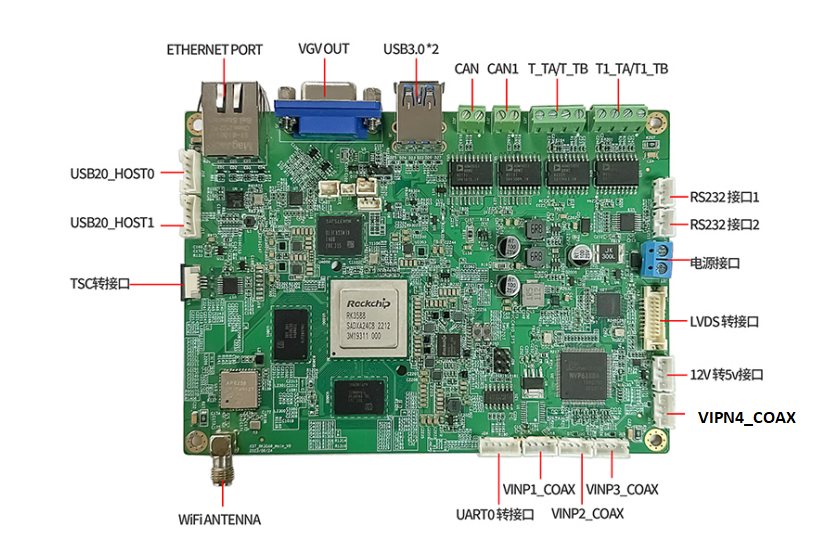

1. Product Images

Board size: 141*102mm

2. CPU Specifications

Description

• 8nm advanced process, 8-core 64-bit architecture, high performance, low power consumption
• ARM Mali-G610 MC4 GPU, dedicated 2D graphics acceleration module
• 6TOPs AI NPU, empowering various AI scenarios
• 8K video encoding/decoding, 8K display output
• Multiple built-in display interfaces, supports multi-screen different display
• Powerful image processing capability, 48MP ISP, supports multi-camera input
• Rich high-speed interfaces (PCIe, TYPE-C, SATA, Gigabit Ethernet), easy to expand
• Android and Linux OS

Features

CPU
• Octa-core 64-bit big.LITTLE architecture, 4Cortex-A76 + 4Cortex-A55
GPU
• ARM Mali-G610 MC4
• OpenGL ES 1.1/2.0/3.1/3.2
• Vulkan 1.1，1.2
• OpenCL 1.1,1.2,2.0
• Embedded high-performance 2D image acceleration module
NPU
• 6TOPS AI computing power, triple-core architecture, supports int4/int8/int16/FP16/BF16/TF32
Multimedia
• Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS
• Supports H.264/H.265 video encoding, up to 8K30FPS
Display
• Supports eDP/DP/HDMI2.1/MIPI and other display interfaces
• Supports multi-screen different display, up to 8K60FPS
Video Input
• 32MP ISP, supports HDR and 3DNR
• Supports multi-camera input (44lanes or 42lanes+2*4Lanes) MIPI CSI-2 and DVP interfaces
• Supports HDMI2.0 input, up to 4K60FPS
High-Speed Interfaces
• Supports PCIe3.0/PCIe2.0/SATA3.0/RGMII/TYPE-C/USB3.1/USB2.0

3. Product Features

• Advanced process + high-performance CPU
8nm advanced process, octa-core 64bit, 4x Cortex-A76 + 4x Cortex-A55, main frequency 2.4GHz
• High-performance GPU + VPU + NPU
Mali-G610 GPU; VPU supports 8K encoding and 8K decoding; NPU computing power up to 6TOPS
• Dual-channel high-performance ISP
ISP supports 48M@15fps processing capability; MIPI-CSI supports up to 16 cameras input simultaneously
• Rich peripheral interfaces
Rich high-speed expansion interfaces, effectively improving the scalability of industry customization
• System and independent hardware watchdog
Supports Linux5.10 / Android12; onboard independent hardware watchdog monitors system anomalies throughout
• Provides rich software and hardware development materials
Provides standard hardware development materials and standard software SDK packages, shortening the user's product development cycle

4. Interface Circuit Diagrams

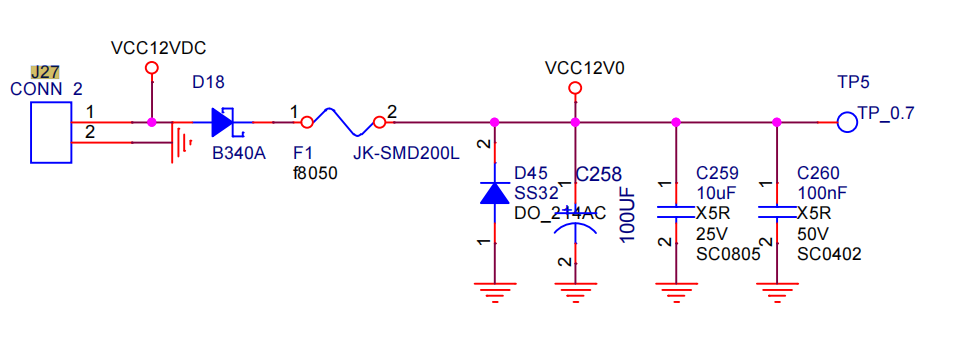

12V power supply

12V to 5V

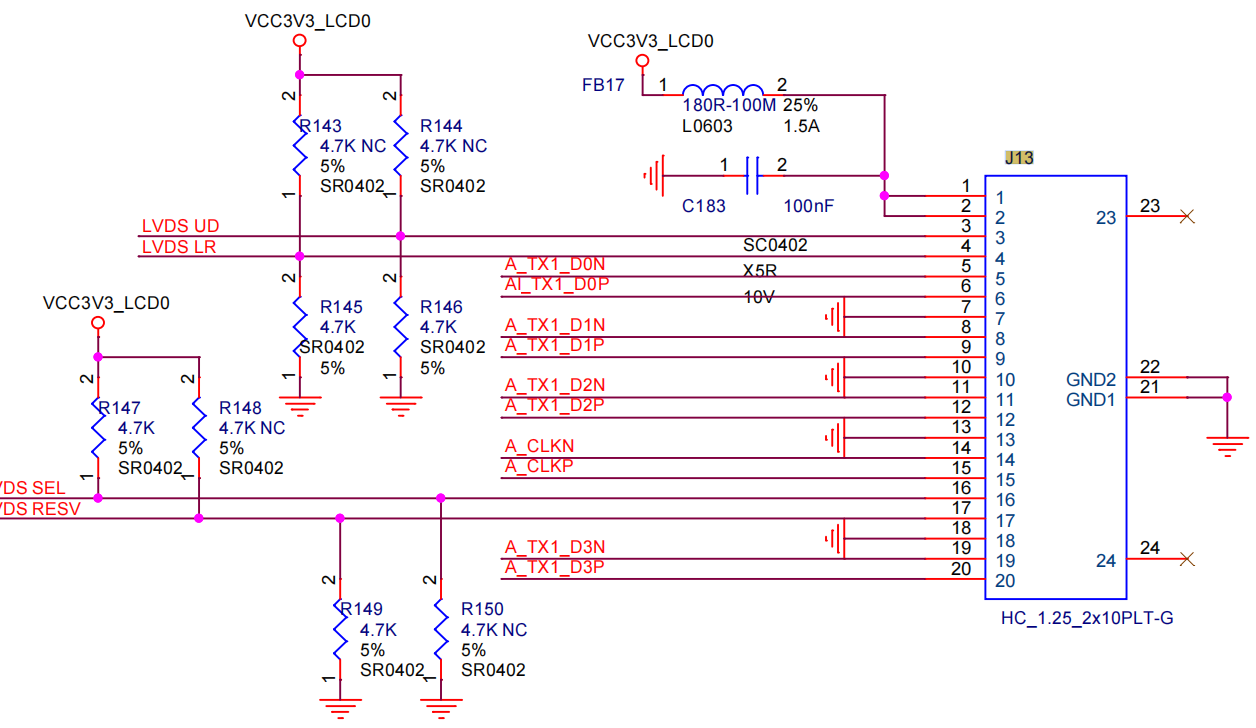

LVDS conversion interface

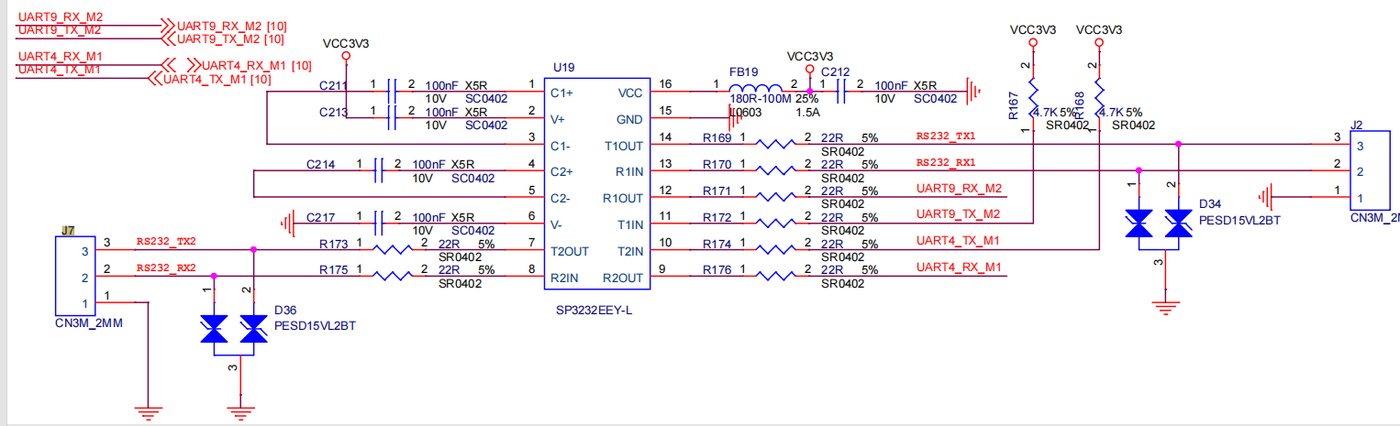

UART to 232

T1_TA/T1_TB

T_TA/T_TB

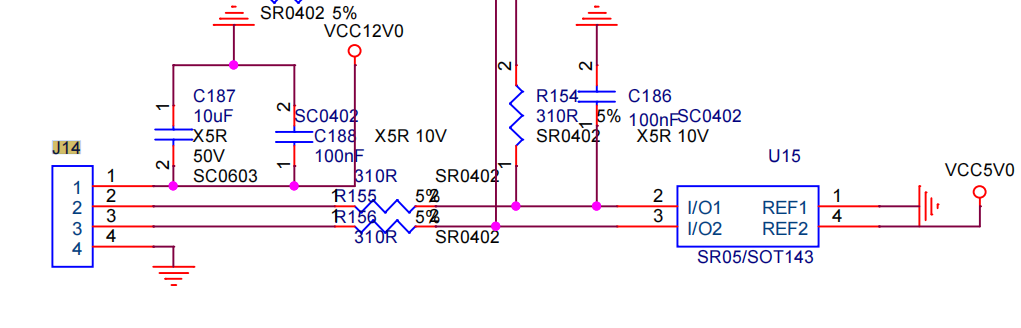

CAN1

CAN

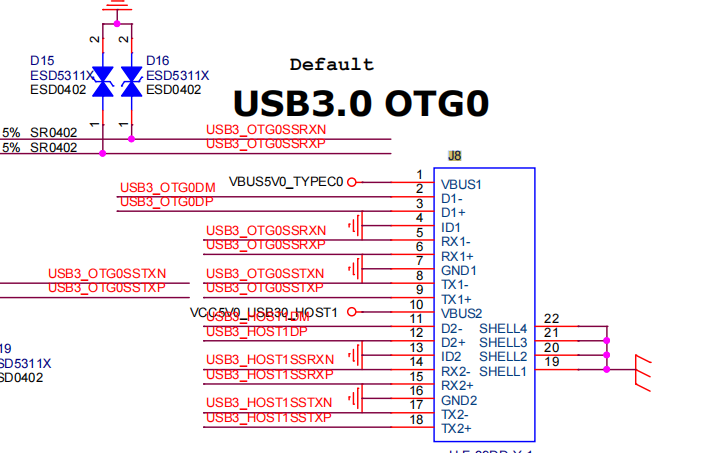

USB3.0*2

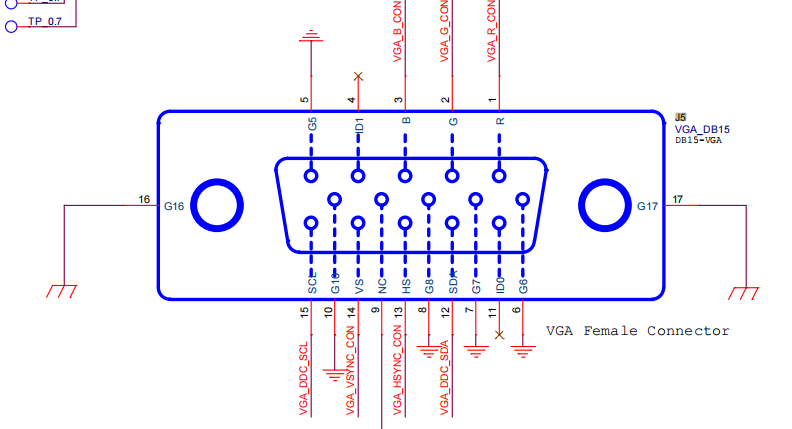

VGA OUT

RJ45
附件

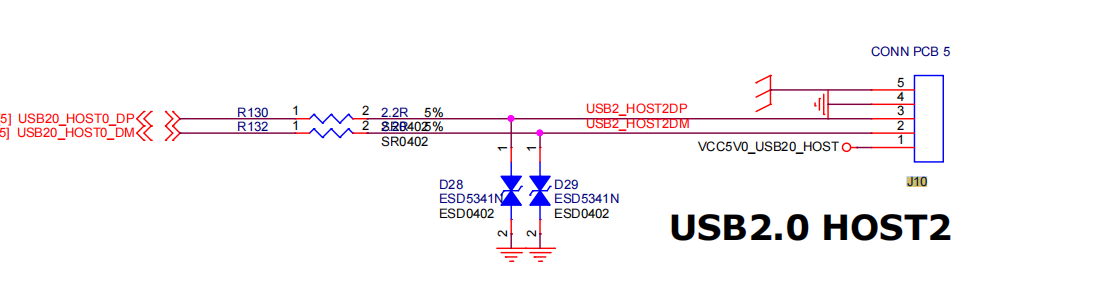

USB2.0_HOST0

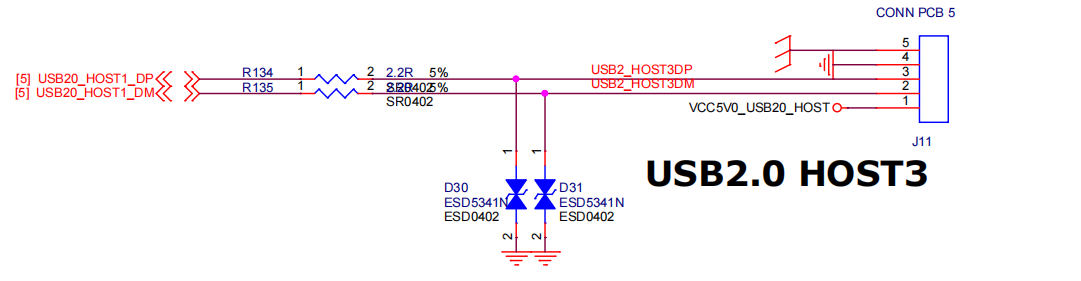

USB2.0_HOST1

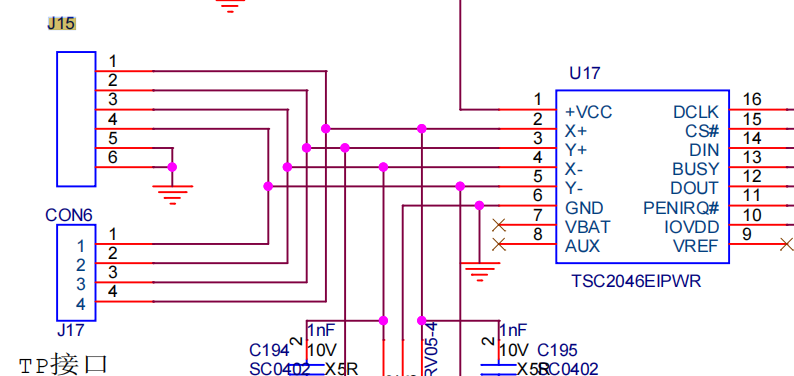

TSC conversion interface

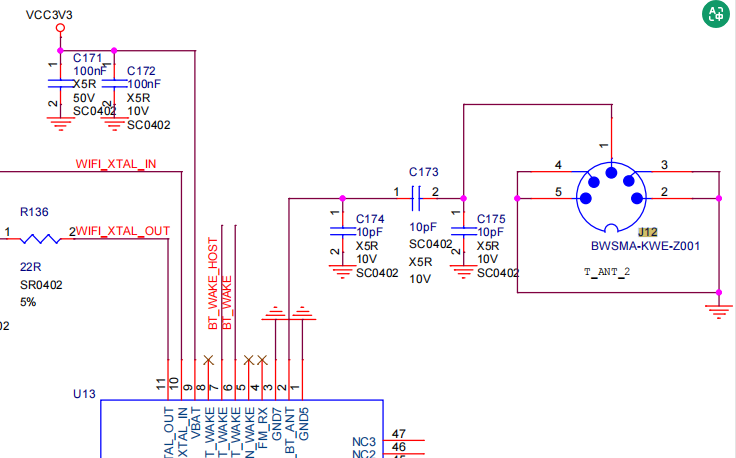

WiFi antenna interface

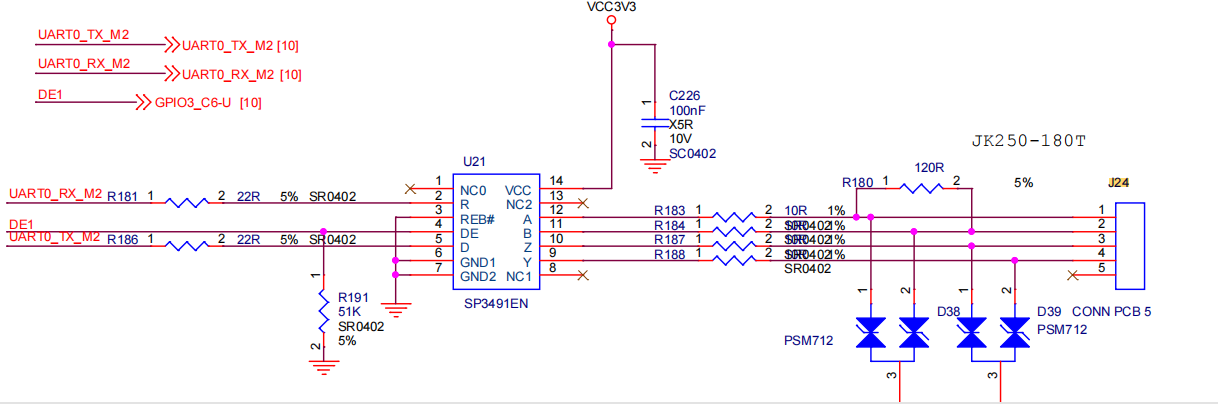

UART to 422 interface

VINP1 interface

VINP2 interface

VINP3 interface

VINP4 interface
