RV1109Decoder Board
Project: Board Introduction | page_id: 1164
| RV1109 Decoder Board | |
|---|---|
| Board Function Type | XSTRIVE-DECODER |
| CPU | RV1109 |
| Video Encoding | "Supports H.265/H.264 encoding/decoding |
| Max resolution 2592x1944@30fps" | |
| Video Input | UVC video input (1920x1080@30fps) |
| Video Output | HDMI Out (1920x1080@60fps) |
| Storage | SD card |
| USB | USB2.0 |
| Network | RJ45 10/100M |
| Operating Temperature | 0 to 70°C |
| Service Life | Continuous operation life of more than 2 years |
| DDR | 4G*2 |
| SPI NOR | - |
| EMMC | emmc 8G |
| Number of Network Ports | 1 |

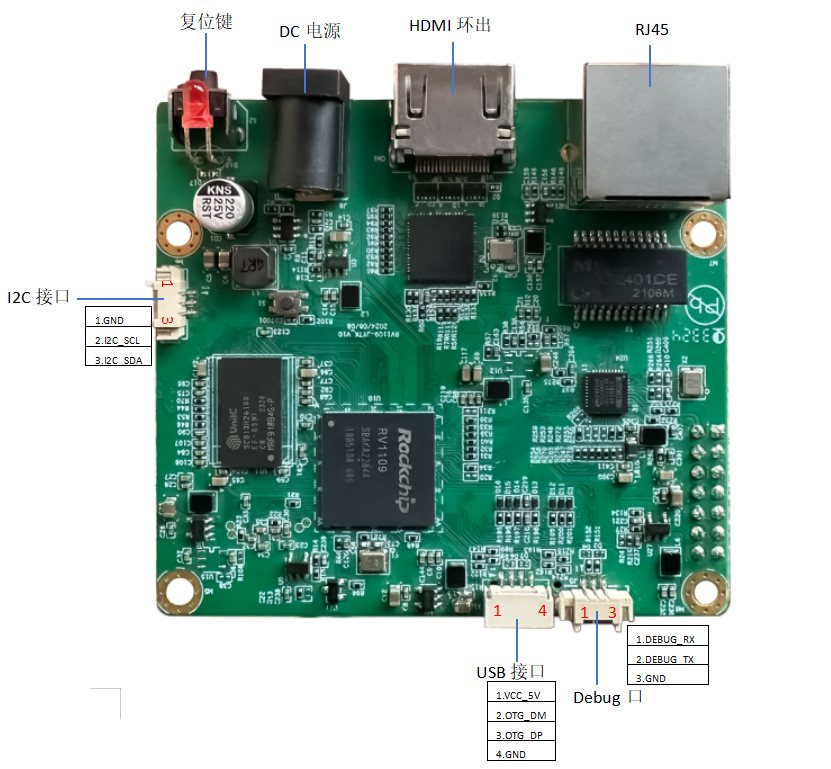

Product Images
Board Size: 73*65mm
Chip Specifications
Description
• Dual-core ARM Cortex-A7 and RISC-V MCU
• 150ms fast boot
• 1.2Tops NPU
• 5M ISP with 3-frame HDR
• Supports 3 cameras input at the same time
• 5MP H.264/H.265 video encoding and decoding
Features
CPU
• Dual-core ARM Cortex-A7
• RISC-V MCU
NPU
• 1.2Tops, support INT8/ INT16
Memory
• 32bit DDR3/DDR3L/LPDDR3/DDR4/LPDDR4
• Supports eMMC 4.51, SPI Flash, Nand Flash
• Supports fast boot
Display
• MIPI-DSI/RGB interface
• 1080P @ 60 FPS
Graphics Acceleration Engine
• Supports rotation, x/y mirror
• Supports alpha layer blending
• Supports zoom in and zoom out
Multimedia
• 5MP ISP 2.0 with 3-frame HDR (Line-based/Frame-based/DCG)
• Supports 2 groups of MIPI CSI / LVDS / sub LVDS and one 16-bit parallel input at the same time
• H.264/H.265 encoding capability: -2688 x 1520@30 fps+1280 x 720@30 fps -3072 x 1728@30 fps+1280 x 720@30 fps -2688 x 1944@30 fps+1280 x 720@30fps
• 5M H.264/H.265 decoding
Peripheral Interfaces
• Gigabit Ethernet interface with TSO (TCP Segmentation Offload) network acceleration
• USB 2.0 OTG and USB 2.0 host
• Two SDIO 3.0 interfaces for Wi-Fi and SD card
• 8-channel I2S with TDM/PDM, 2-channel I2S
Interface Circuits

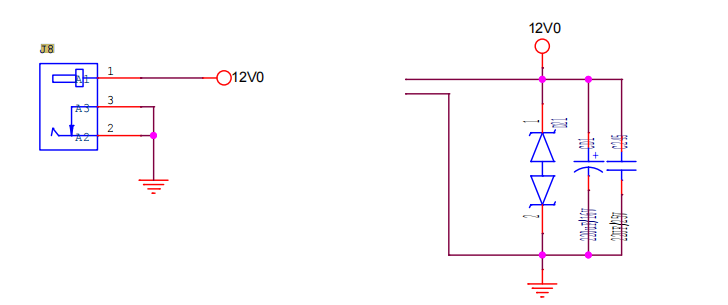

DC Power

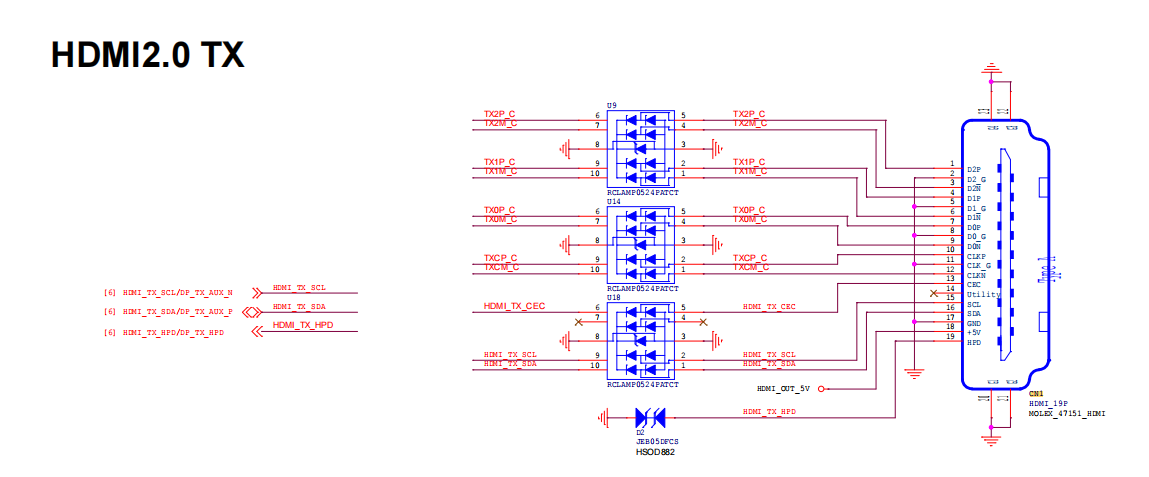

HDMI Loop-out

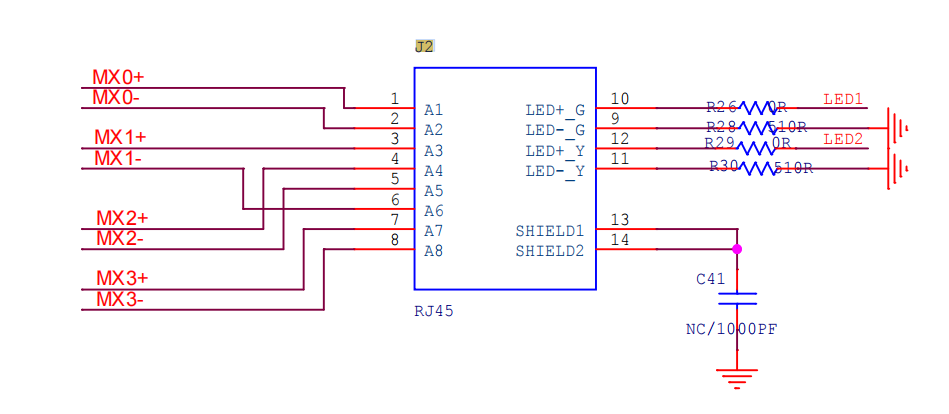

Network Port

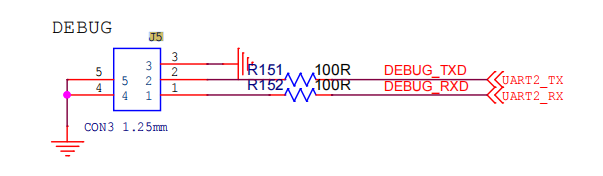

Debug Port

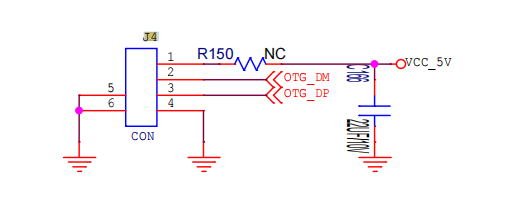

USB Interface

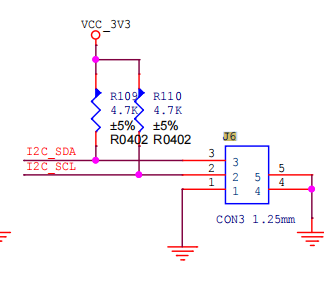

I2C Interface

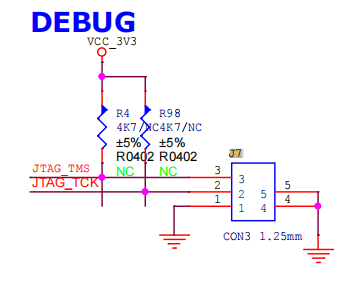

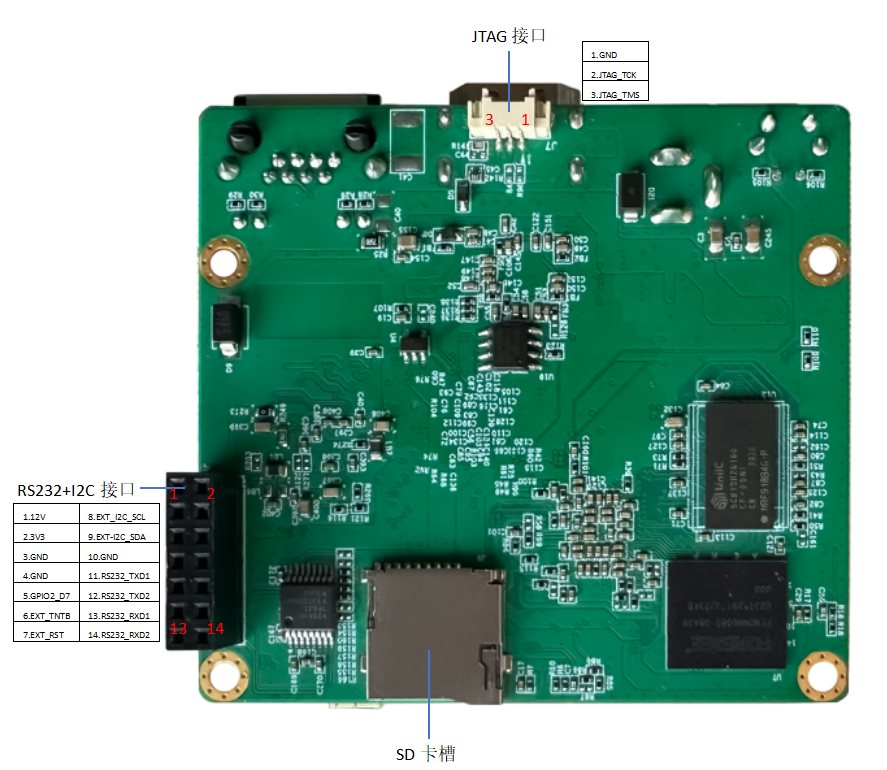

JTAG Serial Port

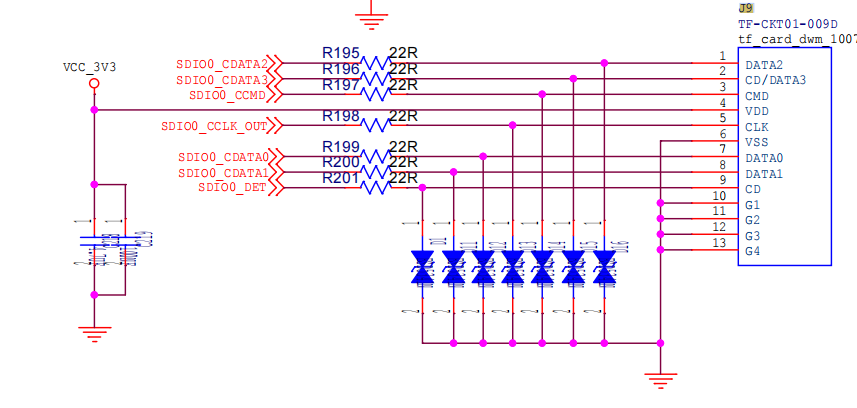

SD Card

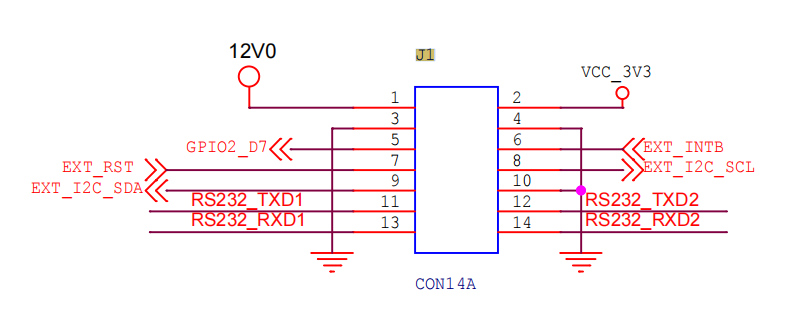

RS232+EXT_I2C Interface
