RK3588 CameraBoard
Project: Board Introduction | page_id: 1337
| RK3588 Camera Board | |
|---|---|
| Board Function Type | XSTRIVE-CAMERA |
| CPU | RK3588 |
| Video Encoding | "Supports H.265/H.264 encoding/decoding |
| Max resolution 7680 x 4320@30fps" | |
| Video Input | 3840x2160@30fp |
| Audio Input | Sampling rate: 8K/12K/16K/24K/32K/44.1K/48K |
| Video Output | HDMI Out (7680 x 4320@30fps) |
| Storage | emmc |
| Communication | eth mipi-dsi usb uart |
| USB | USB3.0 |
| Network | RJ45 10/100/1000M |
| Operating Temperature | 0 to 75°C |
| Service Life | Continuous operation life of more than 2 years |
| DDR | 8GB |
| SPI NOR | nc |
| EMMC | emmc 16G |
| Board Type | core+base |
| Number of Sensors | 1 |
| Computing Power | 8T flops |
| Number of Network Ports | 1 |
| WIFI | nc |
| Mobilnet | nc |
| sensor/AD model | |

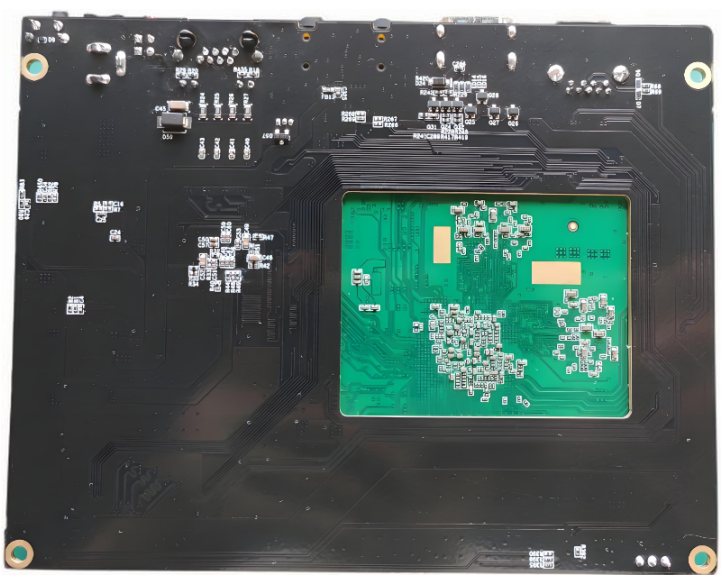

Product Introduction
Board Size: 140*110mm
Chip Specifications
Description
• 8nm advanced process, 8-core 64-bit architecture, high performance, low power consumption
• ARM Mali-G610 MC4 GPU, dedicated 2D graphics acceleration module
• 6TOPs AI NPU, enabling various AI scenarios
• 8K video encoding and decoding, 8K display output
• Built-in multiple display interfaces, supports multi-screen different display
• Powerful image processing capability, 48MP ISP, supports multi-camera input
• Rich high-speed interfaces (PCIe, TYPE-C, SATA, Gigabit Ethernet), easy to expand
• Android and Linux OS
Features
CPU
• Octa-core 64-bit big.LITTLE architecture, 4Cortex-A76 + 4Cortex-A55
GPU
• ARM Mali-G610 MC4
• OpenGL ES 1.1/2.0/3.1/3.2
• Vulkan 1.1, 1.2
• OpenCL 1.1, 1.2, 2.0
• Embedded high-performance 2D image acceleration module
NPU
• 6TOPS AI computing power, three-core architecture, supports int4/int8/int16/FP16/BF16/TF32
Multimedia
• Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS
• Supports H.264/H.265 video encoding, up to 8K30FPS
Display
• Supports eDP/DP/HDMI2.1/MIPI multiple display interfaces
• Supports multi-screen different display, up to 8K60FPS
Video Input
• 32MP ISP, supports HDR and 3DNR
• Supports multi-camera input (44lanes or 42lanes+2*4Lanes) MIPI CSI-2 and DVP interfaces
• Supports HDMI2.0 input, up to 4K60FPS
High-Speed Interfaces
• Supports PCIe3.0/PCIe2.0/SATA3.0/RGMII/TYPE-C/USB3.1/USB2.0
III. Product Features
• Advanced process + high-performance CPU
8nm advanced process, octa-core 64bit, 4xCortex-A76+4xCortex-A55, main frequency 2.4GHz
• High-performance GPU+VPU+NPU
Mali-G610 GPU; the VPU supports 8K encoding and 8K decoding; the NPU delivers up to 6TOPS computing power
• Dual-channel high-performance ISP
The ISP supports 48M@15fps processing capability; MIPI-CSI supports simultaneous input of up to 16 cameras
• Rich peripheral interfaces
Rich high-speed expansion interfaces, which can effectively improve the scalability of industry customization
• System and independent hardware watchdog
Supports Linux5.10 /Android12; with an onboard independent hardware watchdog that monitors system abnormalities throughout the process
• Provides rich software and hardware development materials
Provides standard hardware development materials and standard software SDK packages, shortening the user's product development cycle

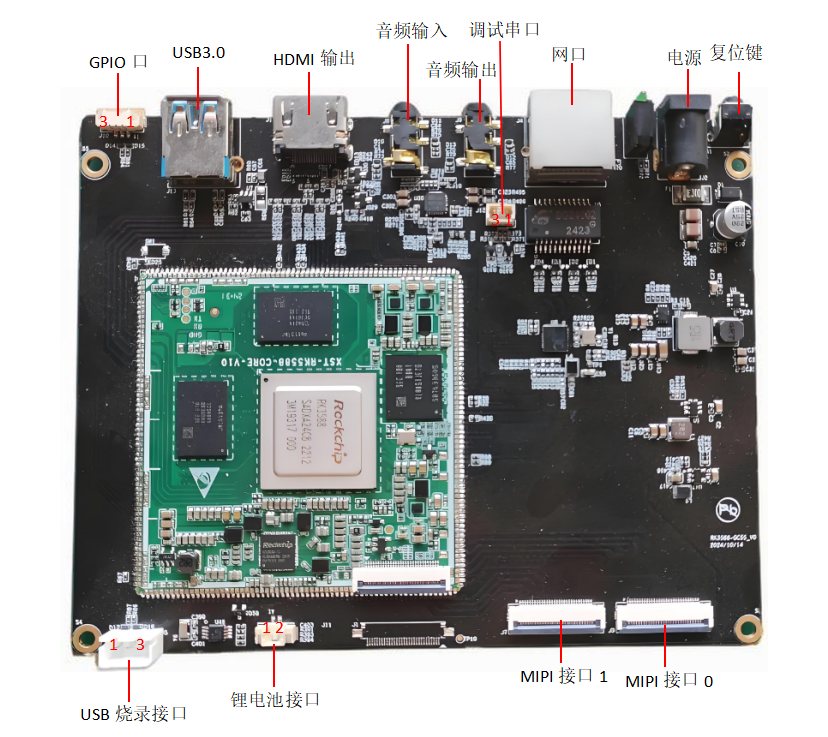

Interface Circuits

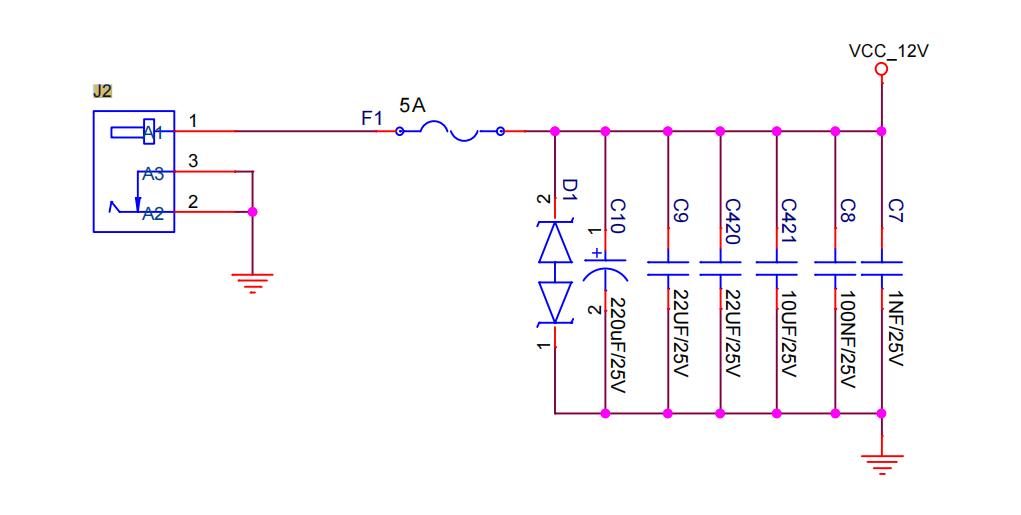

Power

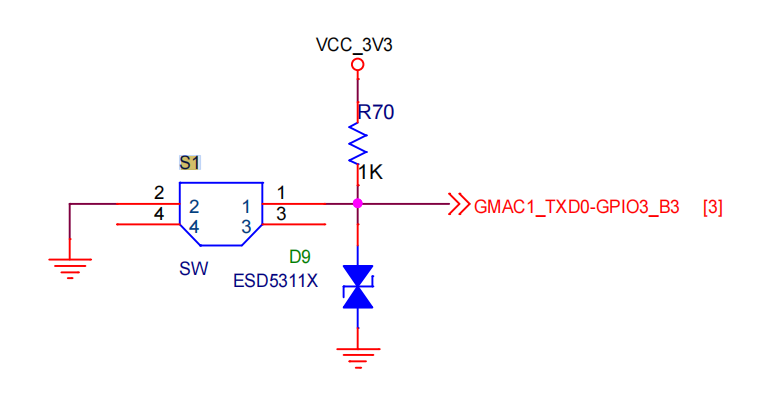

Reset Button

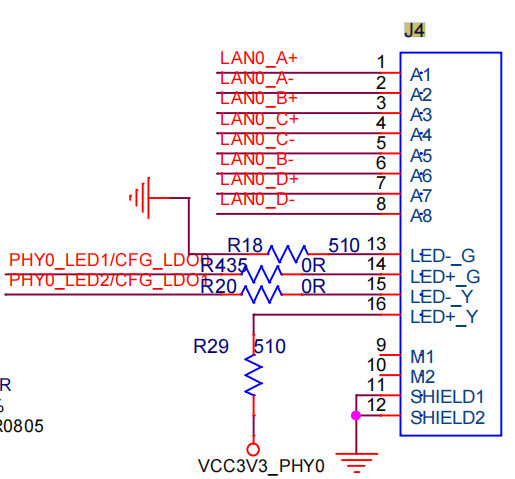

Network Port

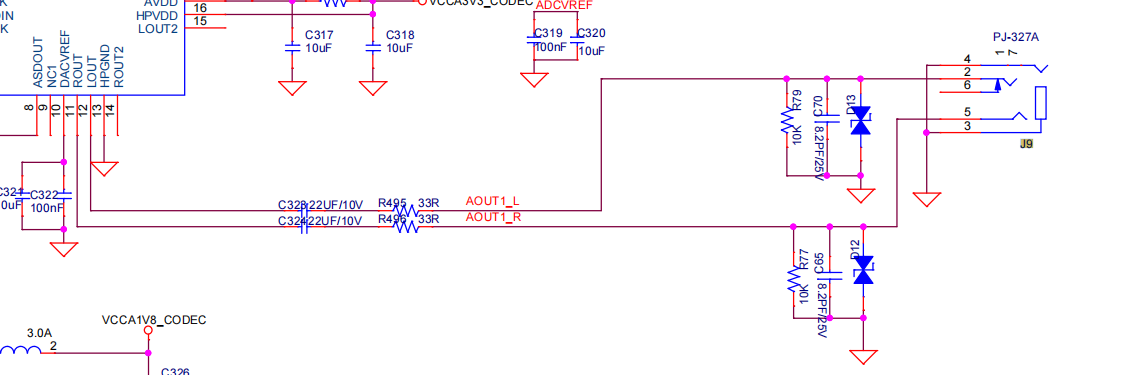

Audio Output

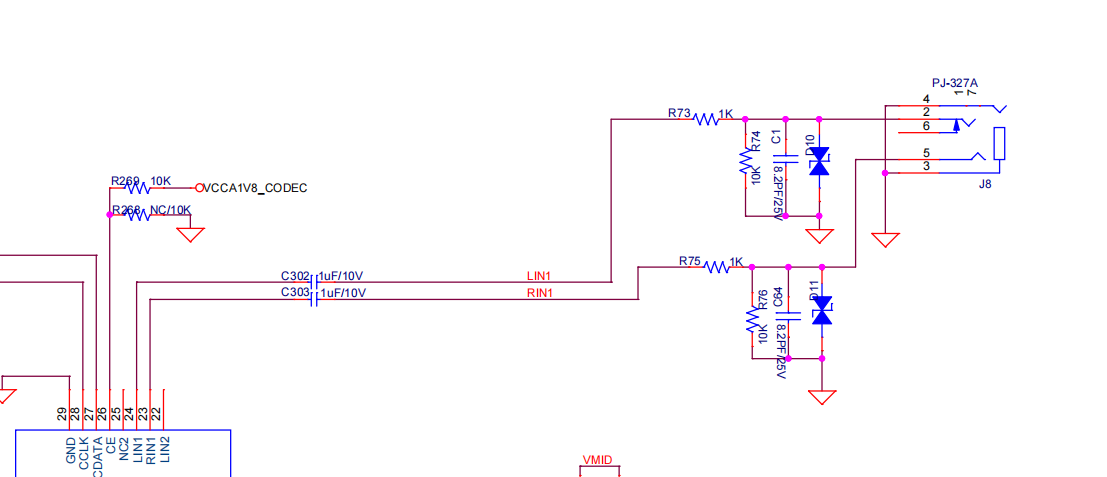

Audio Input

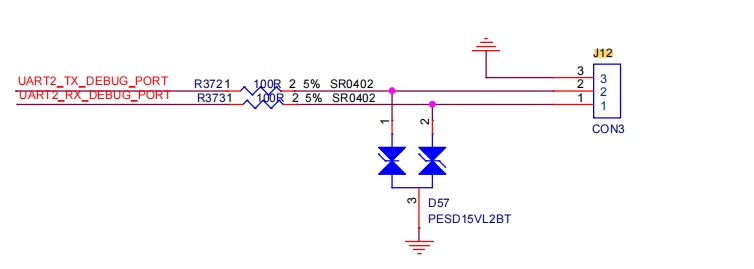

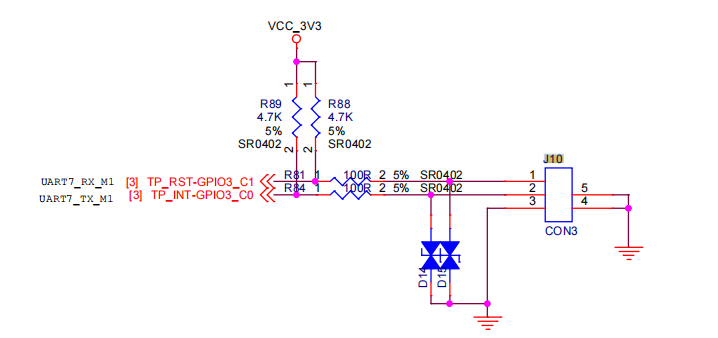

Debug Serial Port

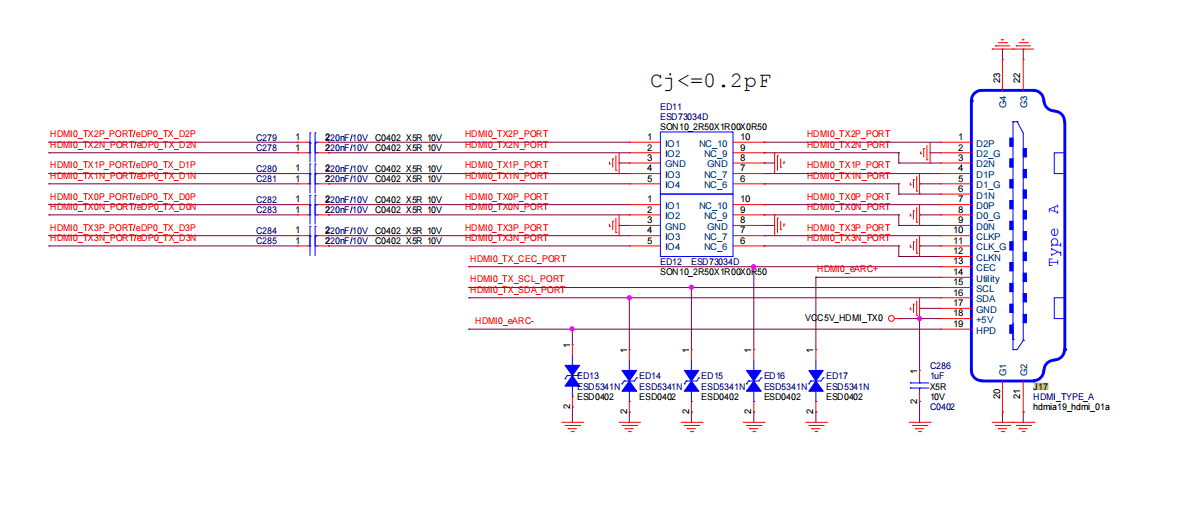

HDMI Output

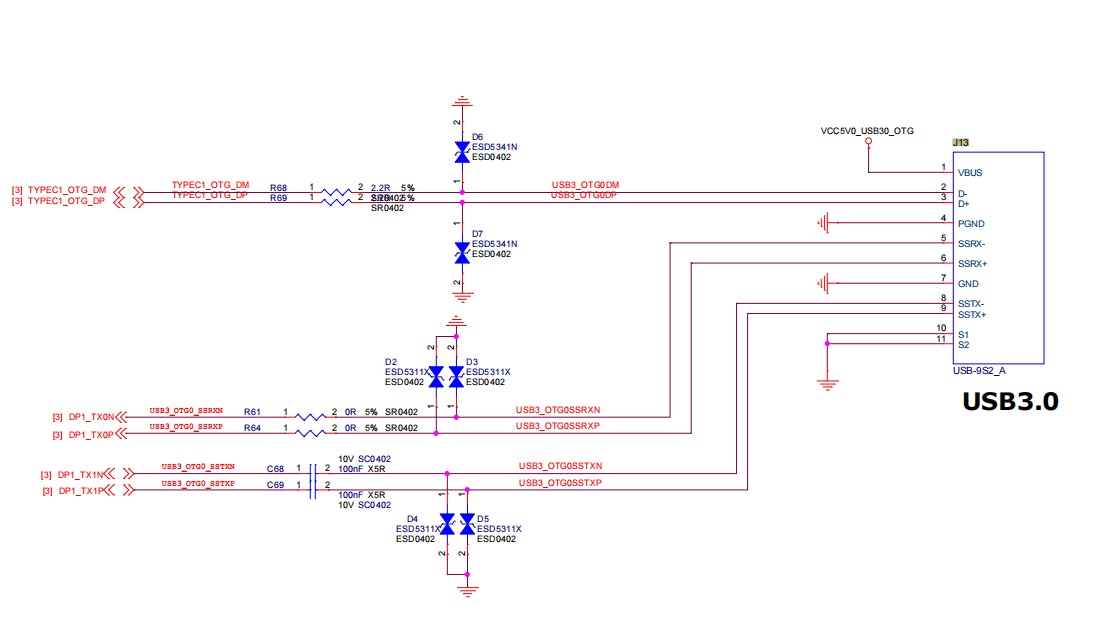

USB3.0
GPIO Port

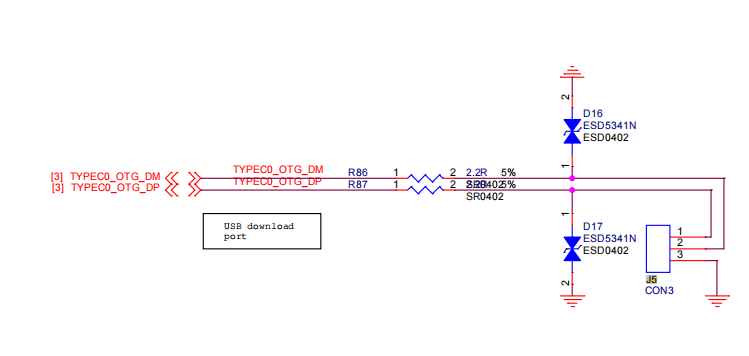

USB Programming Interface

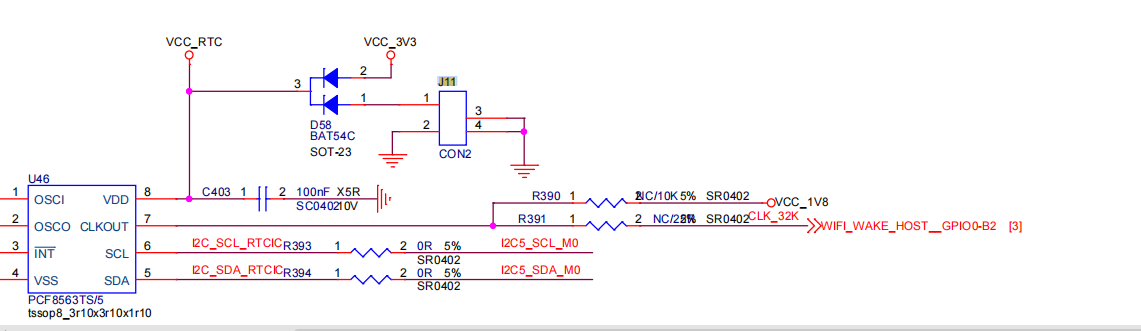

Lithium Battery Interface

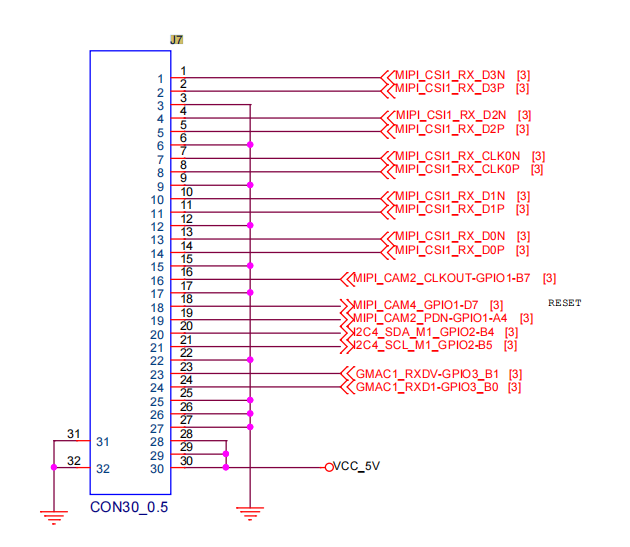

MIPI Interface 1

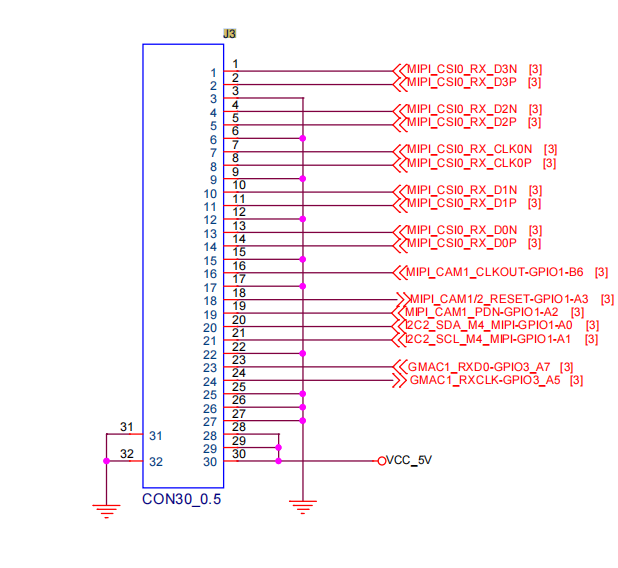

MIPI Interface 0
FAQ
| Question | Answer |
|---|---|
| 1. Is it Android or Linux? | Linux |
| 2. Is there an RKMPP development package? | Yes |
| 3. Is HarmonyOS supported? | Yes |
| 4. The GPU-CPU integrated GPU module should be able to process 1204x768 images at 60 frames per second. Can the GPU meet this requirement? | Yes |
| 5. Is the LVDS display interface not available on your board? | No, this one has 2 HDMI and 1 VGA |
| 6. Does the USB host interface support the driver for CY7C68013? | You need to debug it yourself, which requires a certain foundation |
| 7. Is the storage of this board EMMC or SPI? | The storage is EMMC, not SPI, but there is a reserved position for SPI NOR |
