RK3588Stamp-holeCore Board
Project: Board Introduction | page_id: 913
| RK3588 Core Board | |
|---|---|
| Model | XSWTVR-32CT3588/TX |
| CPU | RK3588 quad-core A77 + quad-core A55 |
| Memory | Built-in 8GB |
| EMMC | Built-in 16GB |
| AI Performance | INT4/INT8/INT16/FP16, 6TOPS computing power; supports TensorFlow/MXNet/PyTorch/Caffe |
| Video Encoding | See Appendix 1 |
| Video Decoding | Supports H.265/H.264, max 8K@30fps |
| Video Input | 1 HDMI, max input resolution 8K@30fps |
| Video Output | 1 HDMI, max resolution 8K@60fps, 1 VGA, max 1920x1080@60fps |
| IO Resources | All IOs are brought out, with no restrictions |
| Network | RJ45 10/100/1000M x2 |
| Operating Temperature | 0 to 70℃ |
| Service Life | Continuous operation lifespan of more than 5 years |
| Core Board Size | 65X65mm |
Chapter 1 Product Overview
1.1 Scope of Application of the RK3588 Core Board
RK3588 is an embedded core board. A single 3.3V power supply is enough to run the minimum system. The hardware base board and operating system can be customized. It is widely used in tablet PCs, learning machines and face recognition applications. Its main products include gate channels, face-payment terminals, industrial robots, medical testing equipment, license plate recognition, advertising machines, digital signage, intelligent self-service terminals, smart retail terminals and other related products.
1.2 Product Overview
The RK3588 main chip integrates a high-performance Quad-core Cortex-A76 processor and a low-power Quad-core Cortex-A55 processor. It can run Android/Linux+QT/Ubuntu systems with a main frequency of 2GHz, and uses a Mali-G610 MP4 GPU. It supports H.264 8K30fps and H.265/VP9/AVS2 8K60fps video decoding, as well as H.264/H.265/VP9 8K30fps video decoding. It has a built-in NPU with 6T computing power, supports multiple widely used display interfaces and multi-screen different display. The core board has rich interfaces with all function pins brought out and supports a variety of peripheral expansions, making it your best choice for human-machine interaction and industrial control projects.
1.3 Product Features
◆ Stamp-hole (castellated) solderable core board with onboard dual MIPI DSI, LVDS, RGB, EDP and HDMI display interfaces, supporting same-display and different-display output.
◆ Supports Android/Linux+QT system customization, provides system call interface API reference code, and fully supports customer upper-layer APP development and SDK.

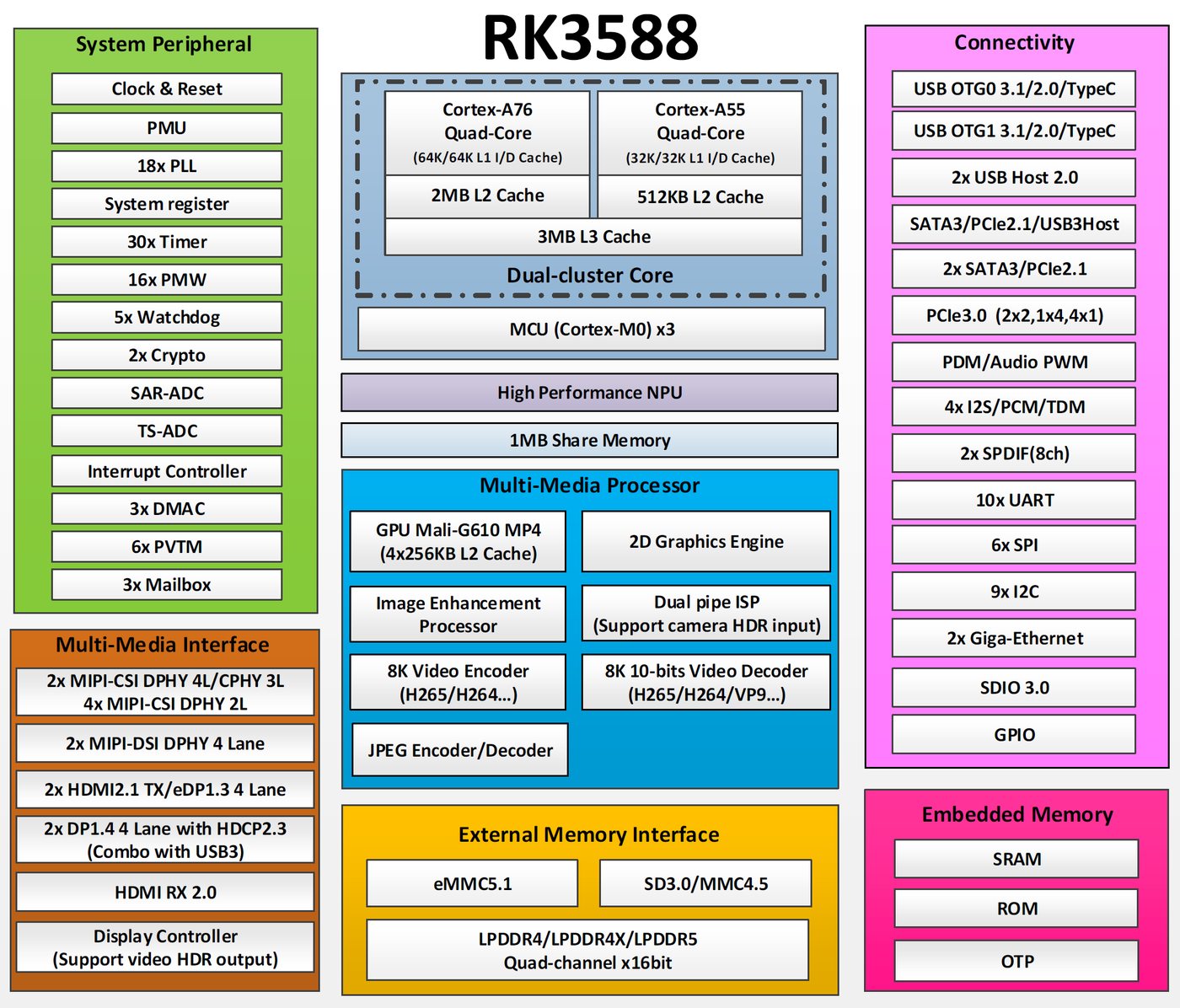

1.4 Main Chip Block Diagram
1.5 Core Board Block Diagram

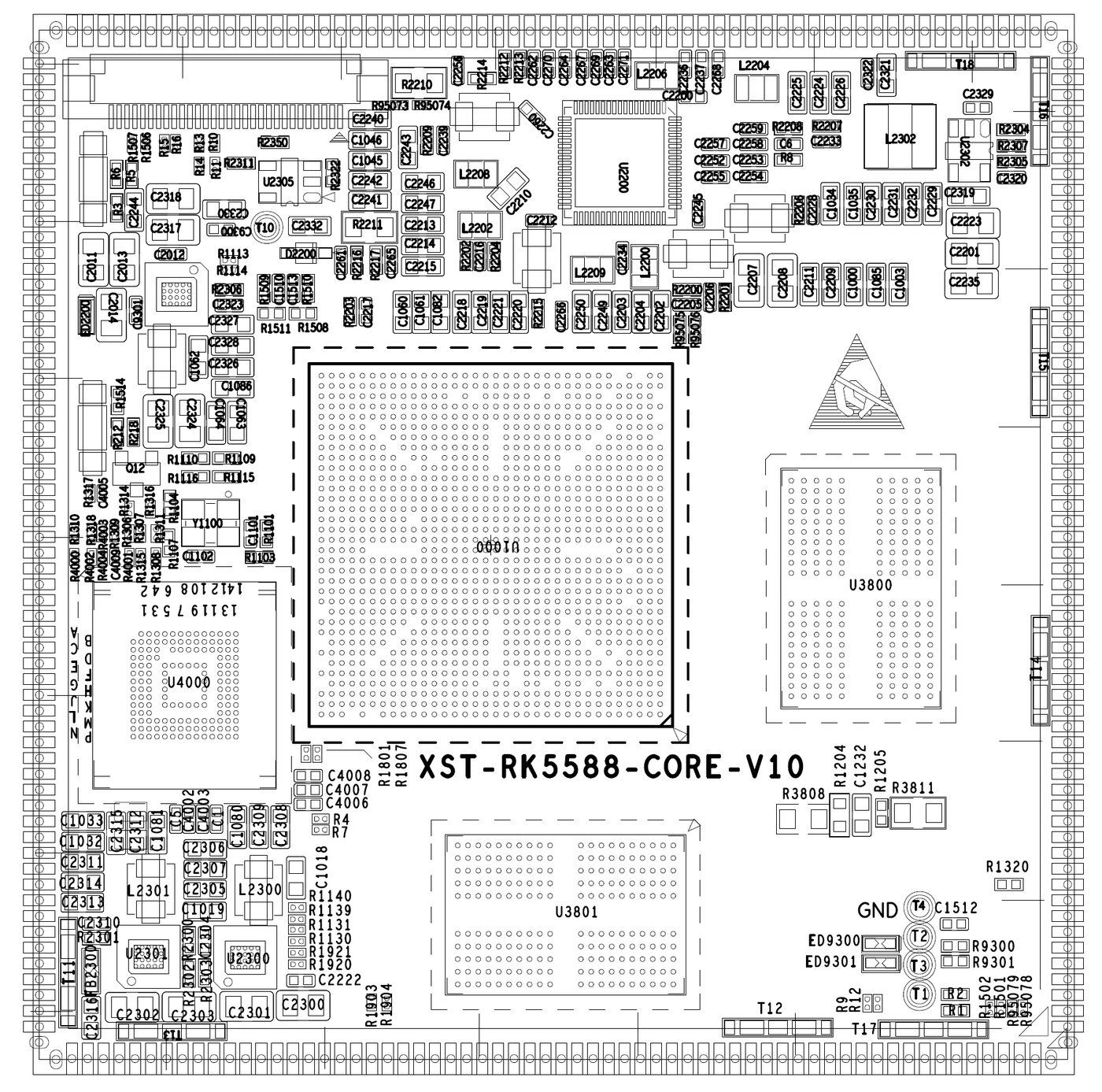

1.6 Appearance and Interface Diagram

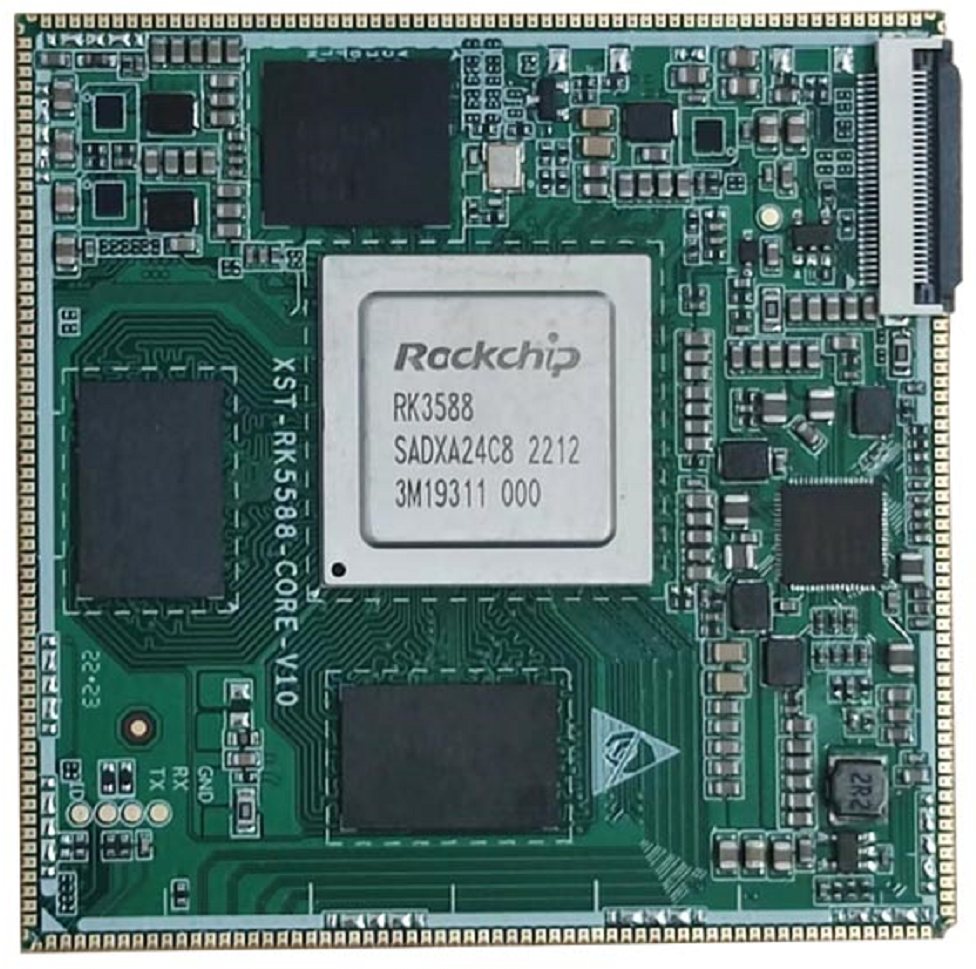

Front

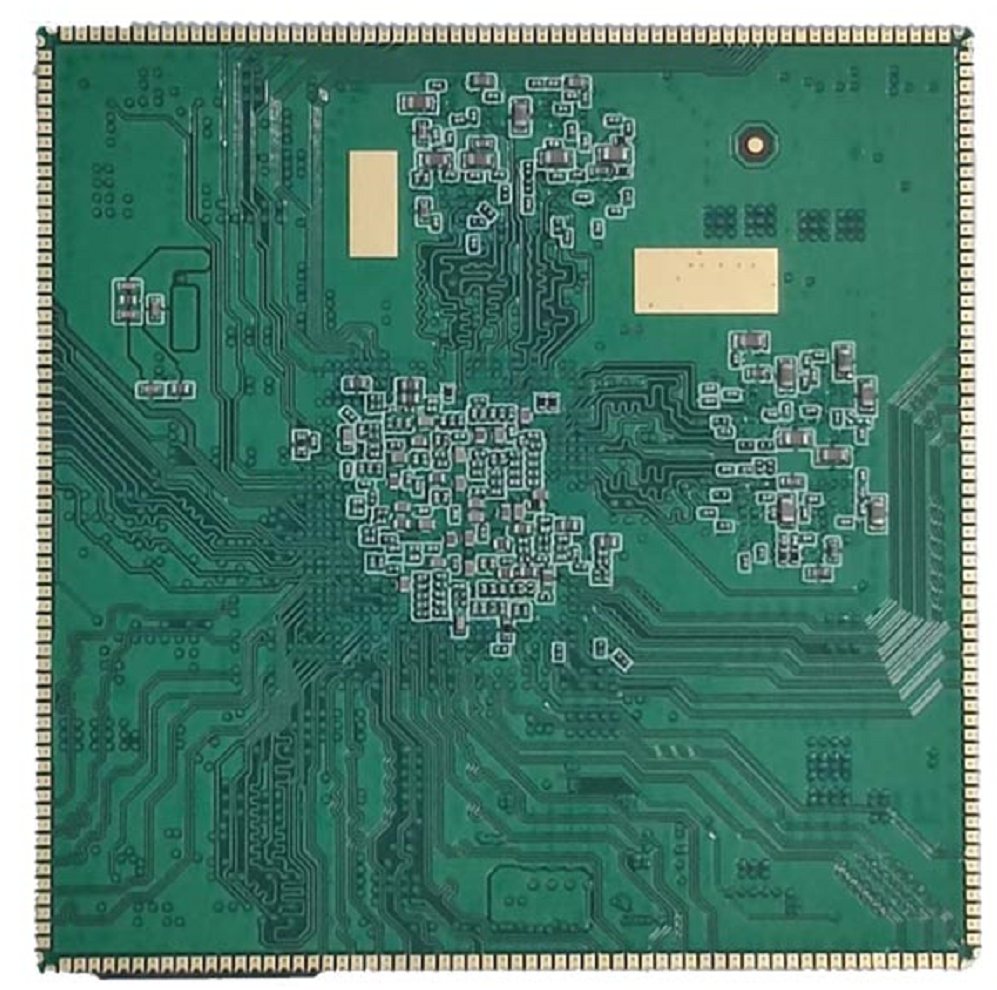

Back
**

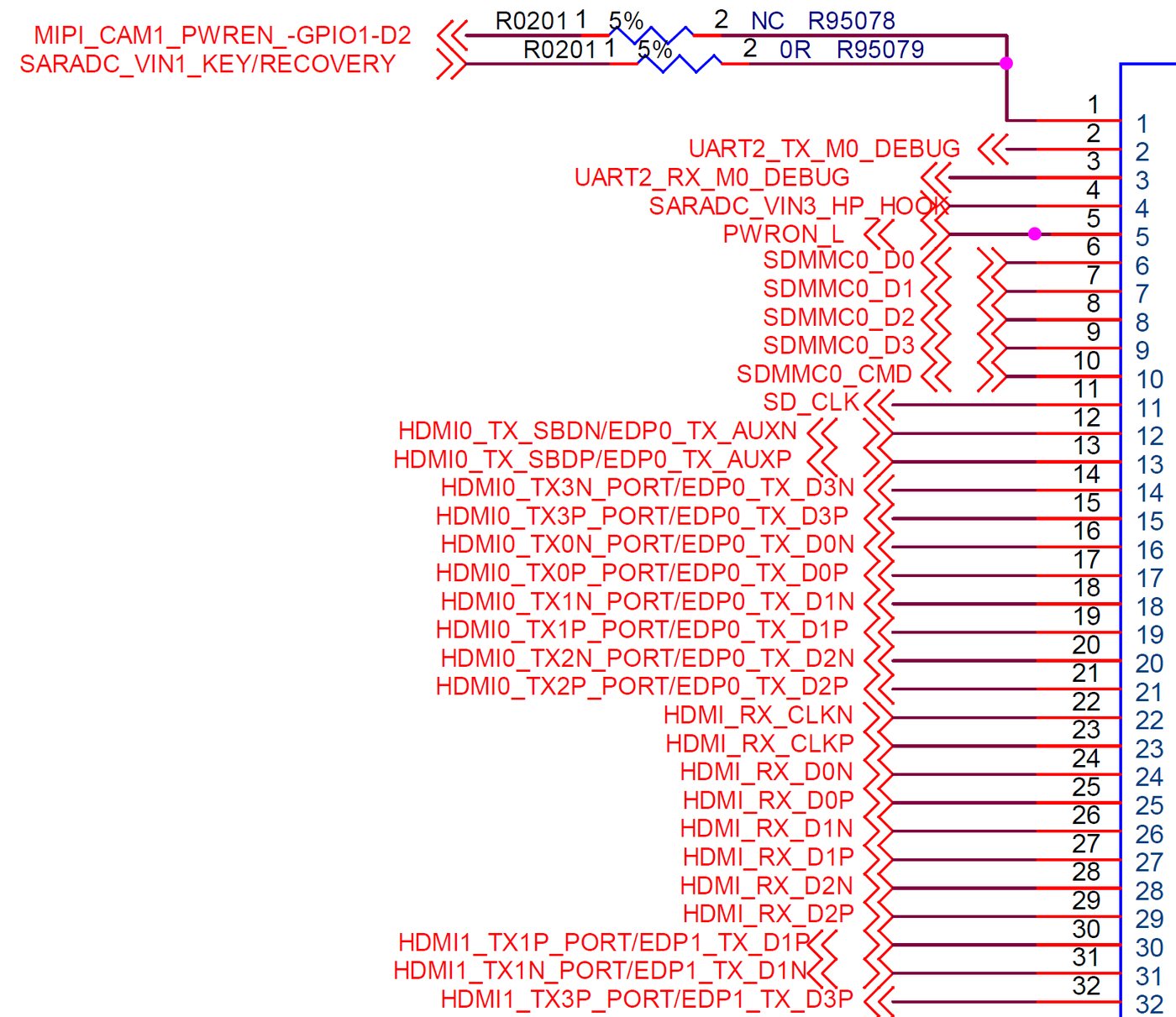

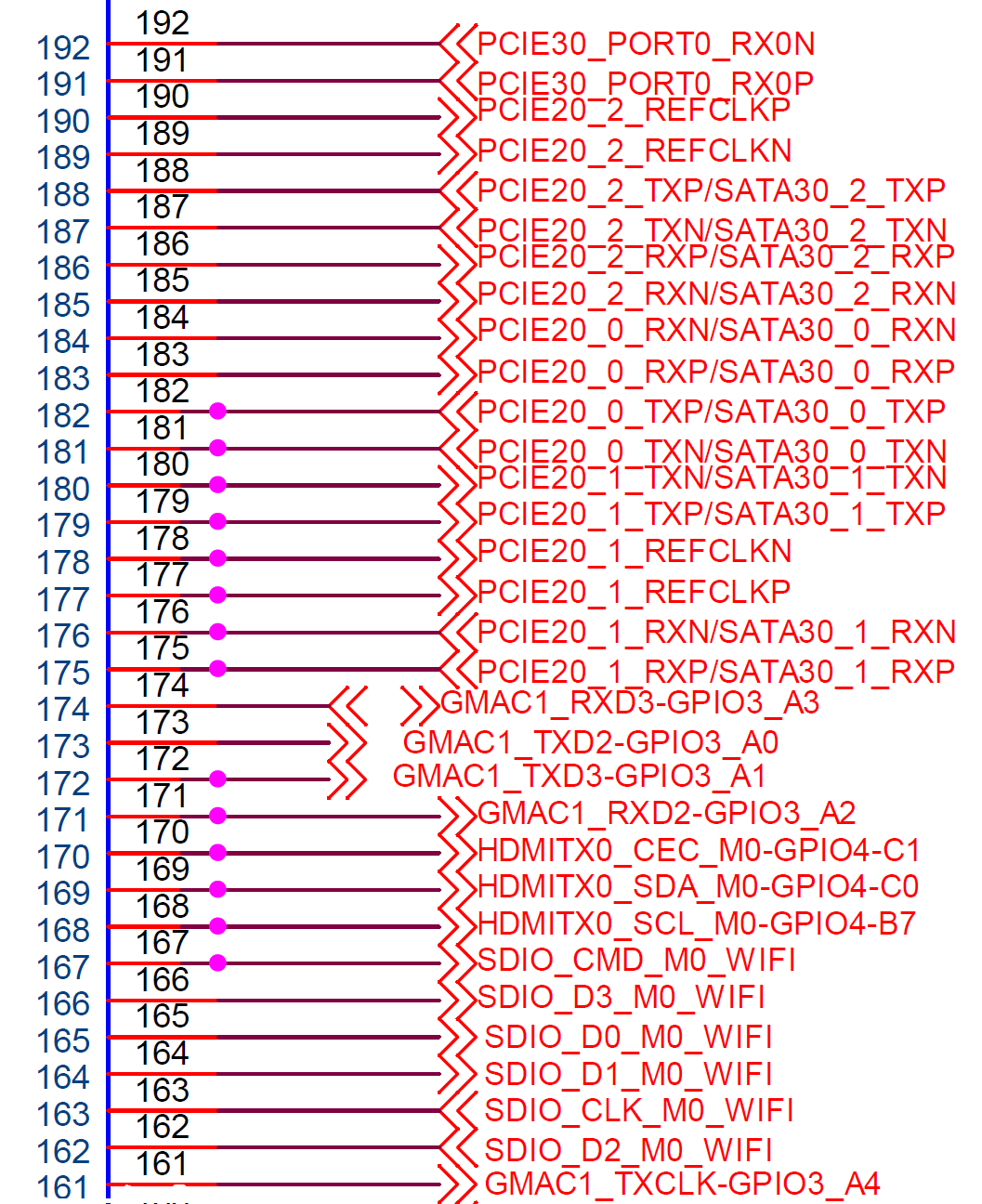

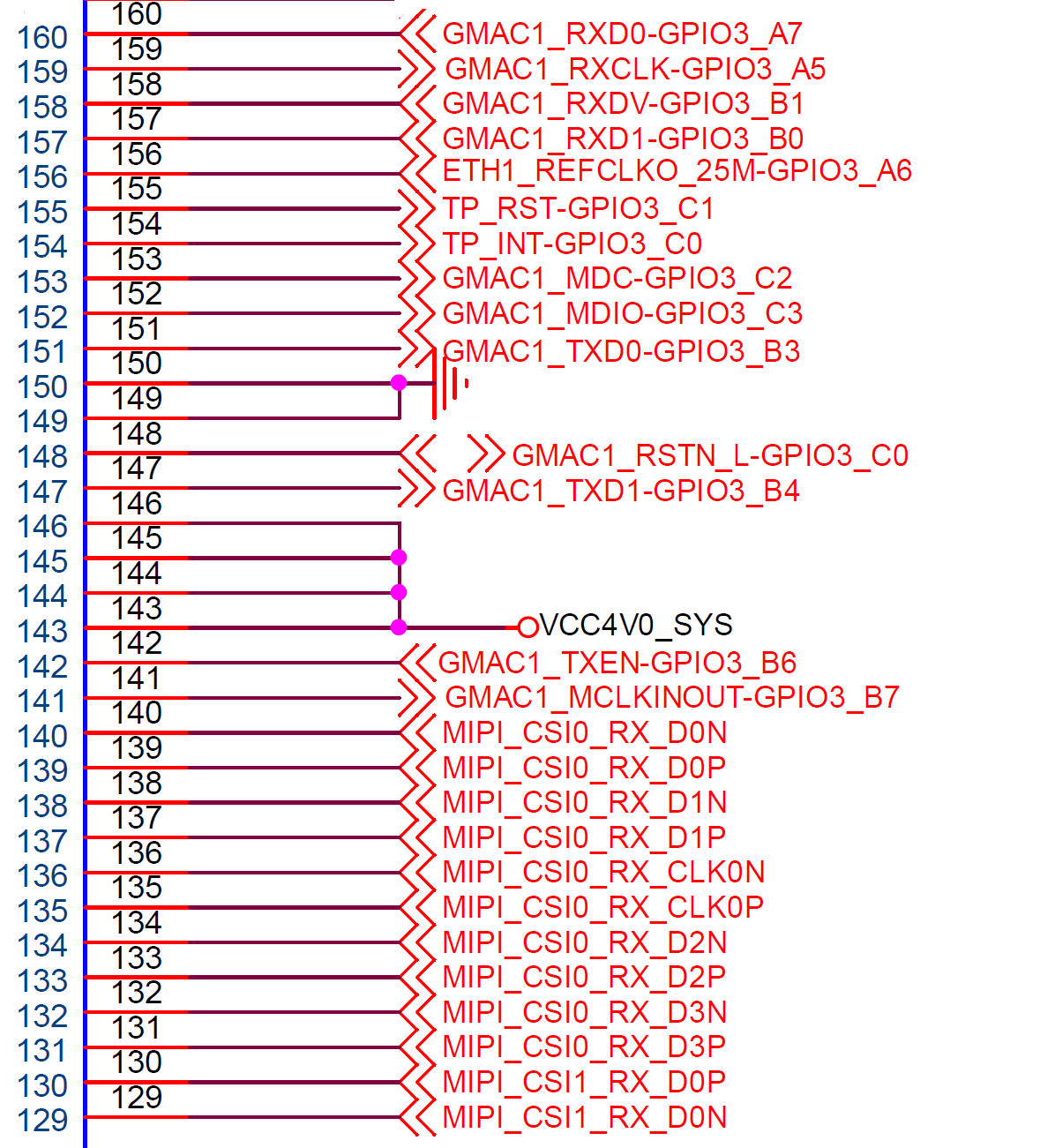

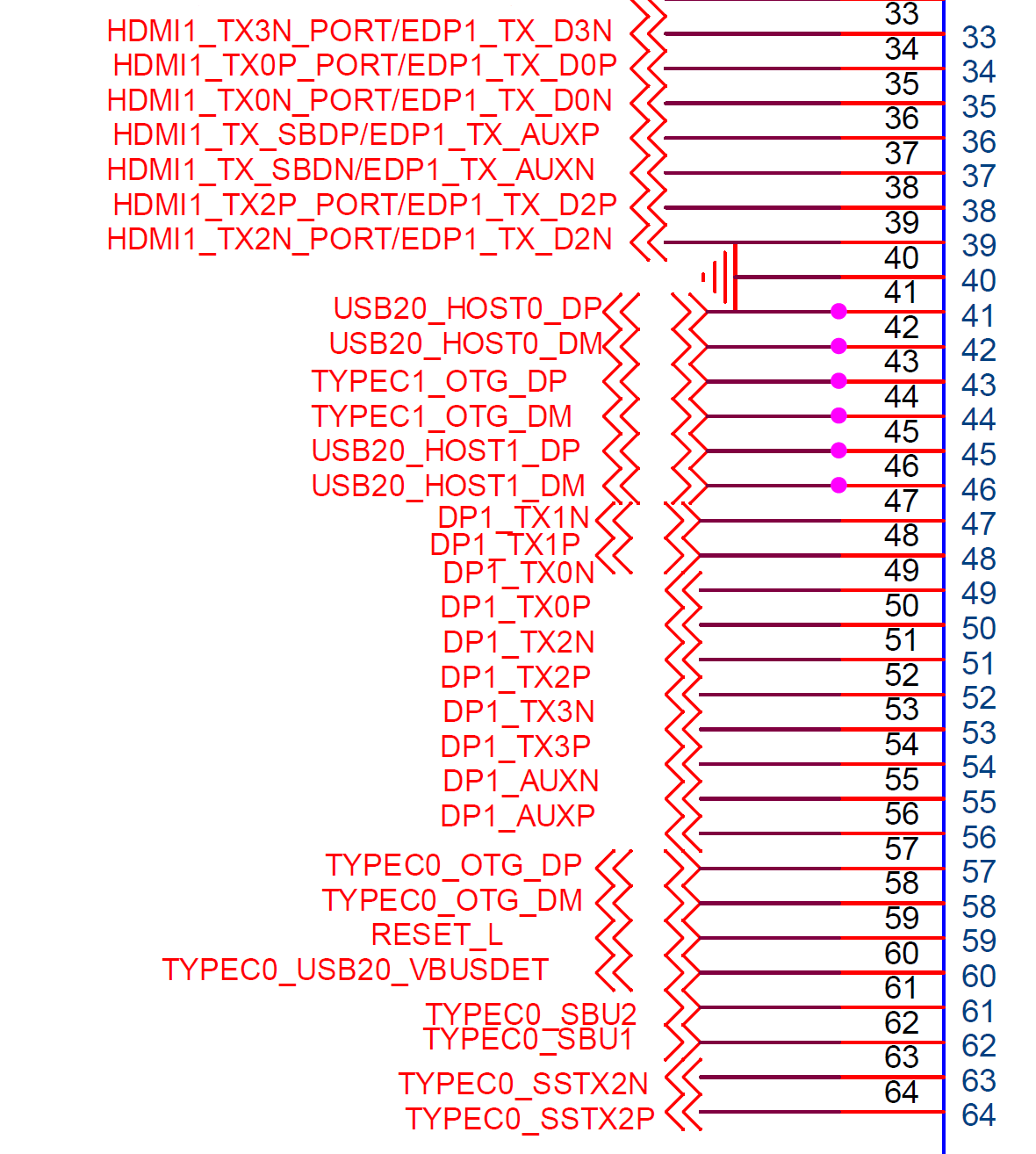

Chapter 2 Core Board Interface Definition
!
!
!
Appendix 1 (Encoding Capability Description)
◼ H.264 AVC/MVC Main10 L6.0 : 8K@30fps (7680x4320)
◼ VP9 Profile0/2 L6.1 8K@60fps (7680x4320)
◼ H.265 HEVC/MVC Main10 L6.1 : 8K@60fps (7680x4320)
◼ AVS2 Profile0/2 L10.2.6 8K@60fps (7680x4320)
◼ AV1 Main Profile 8/10bit L5.3 : 4K@60fps (3840x2160)
◼ MPEG-2 up to MP 1080p@60fps (1920x1088)
◼ MPEG-1 up to MP 1080p@60fps (1920x1088)
◼ VC-1 up to AP level 3 1080p@60fps (1920x1088)
◼ VP8 version2 1080p@60fps (1920x1088)
