RK3326 androidBoard

Dev Boards & Modules · Rockchip

Project: Board Introduction | page_id: 909

	Specifications
LCD/Touch Screen	Resolution 4.3 inch 480RGB*480
Brightness	450 (TYP) (lumens)
Contrast Ratio	500:1
Effective Viewing Angle	80/80/80/80
Touch Screen	Capacitive
Processor (CPU)	Rockchip RK3326, quad-core A35 64-bit
Multimedia	H.265 video decoder 1080p@60fps, H.264 video decoder 1080p@30fps MJPEG/JPEG Baseline encoder 1080p@60fps
Memory	1GB
EMMC	32GB
Operating System	Android 12
Serial Port	RS485/RS232/TTL
wifi	2.4G
Bluetooth	4.2
Operating Temperature	-20-80℃
Network	10/100Mbit
Power Supply	12V

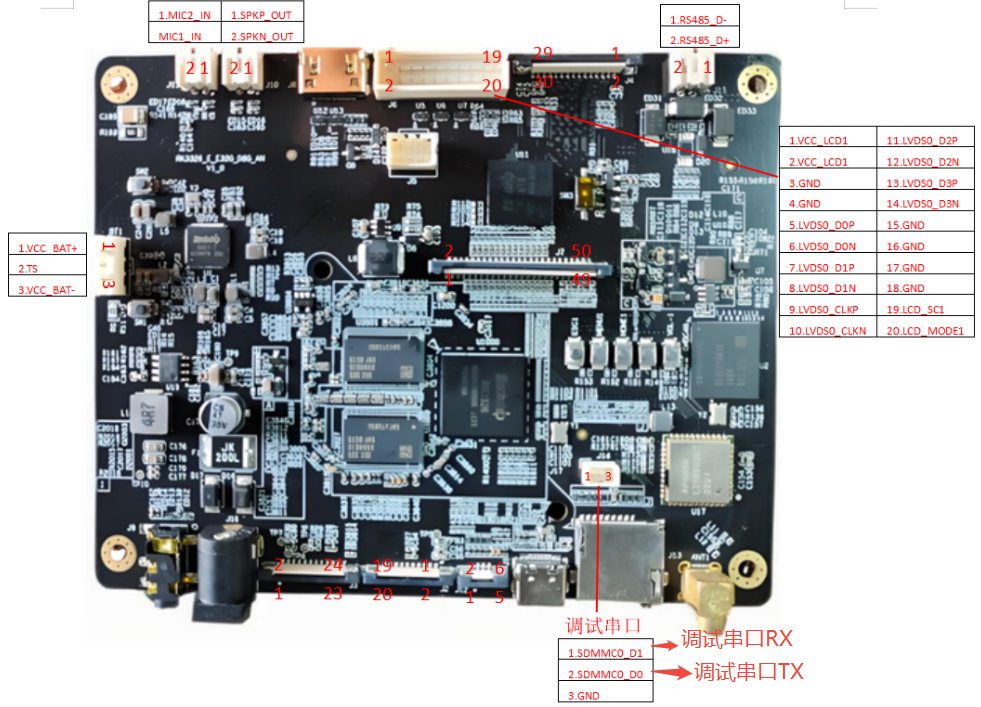

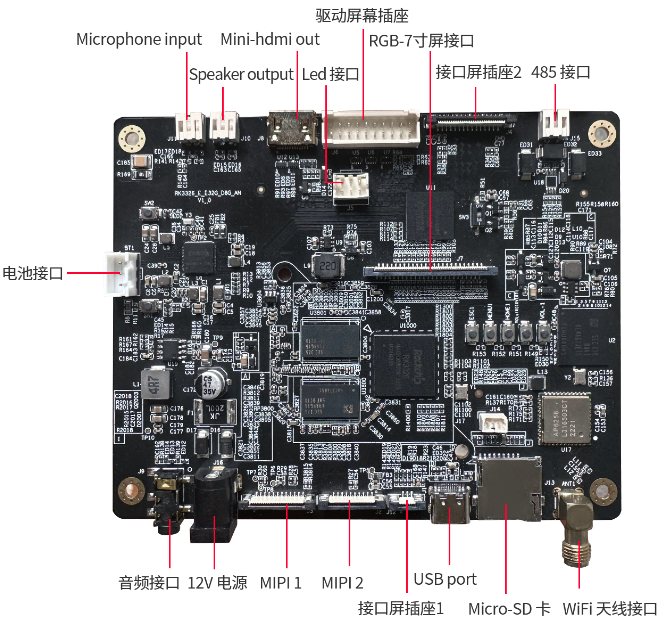

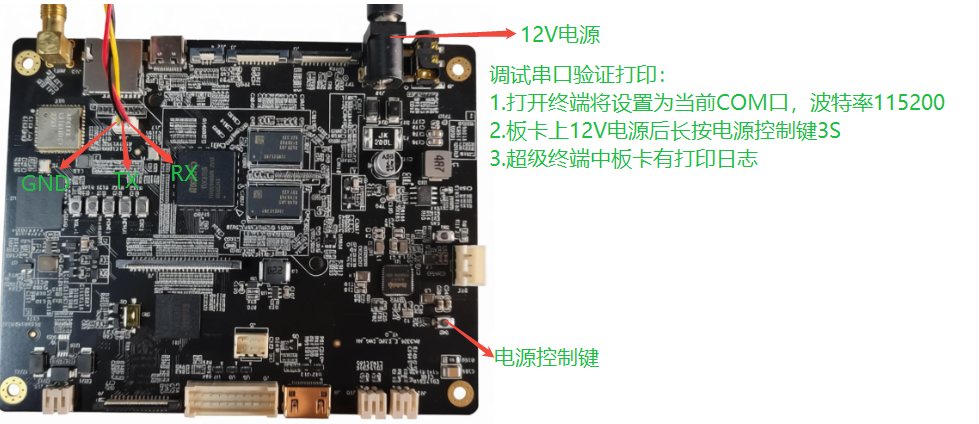

1. Product Images

Board size: 120*96mm

2. CPU Specifications

Description

• Quad-core Cortex-A35 up to 1.5GHz
• Mali-G31MP2 GPU
• DDR4/DDR3/DDR3L/LPDDR3/LPDDR2
• 1080P H.265/H.264/VC-1/MPEG/VP8 video decoder
• 1080P H.264/VP8 video encoder
• LVDS/MIPI-DSI/RGB interface
• 1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S

Features

CPU
• Quad-core Cortex-A35, up to 1.5GHz
GPU
• Mali-G31MP2 GPU, supports OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0
• Embedded high-performance 2D acceleration hardware
Multimedia
• Multi-format 1080P 60fps video decoding (H.265, H.264, VC-1, MPEG-1/2/4, VP8)
• 1080P video encoding, supports H.264, VP8
Display
• Supports RGB/LVDS/MIPI-DSI, resolution up to 1920x1080
Memory
• 32bits DDR4-1600/DDR3-1600/DDR3L-1600/LPDDR3-1600/LPDDR2-1066
• Supports MLC NAND, eMMC 4.51, Serial NOR FLASH
Interfaces
• Supports MIPI CSI and DVP sensor interfaces, built-in 8M ISP
• Supports 1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S/PCM
• SDIO3.0, USB2.0 OTG, I2C, UART, SPI

3. Interface Circuits

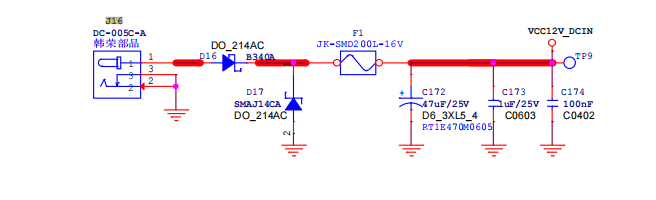

12V power supply

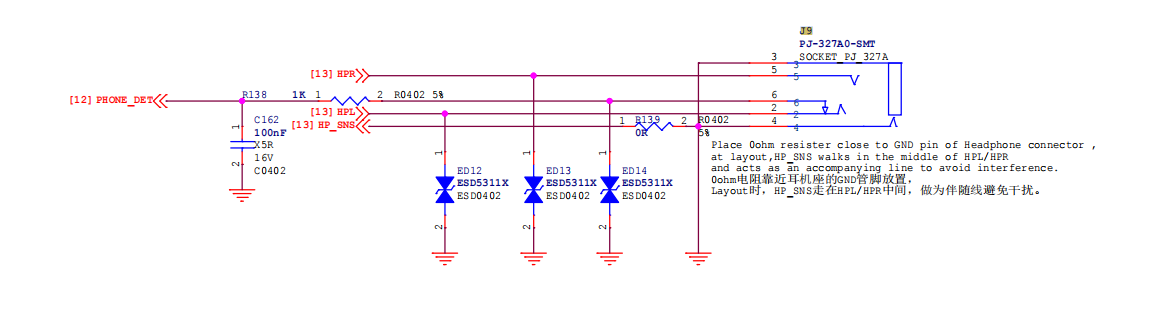

Audio interface

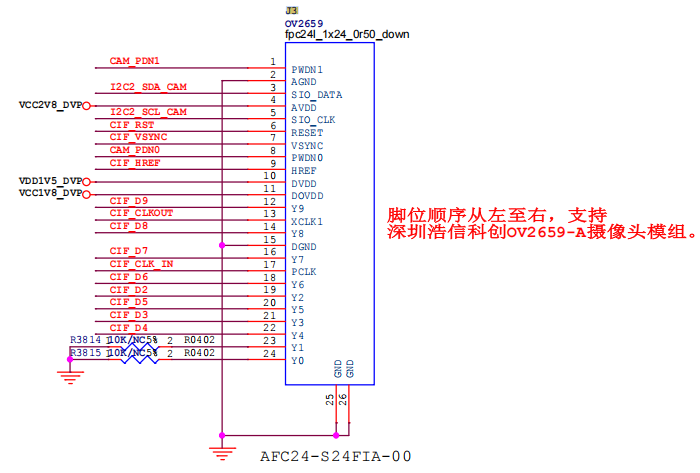

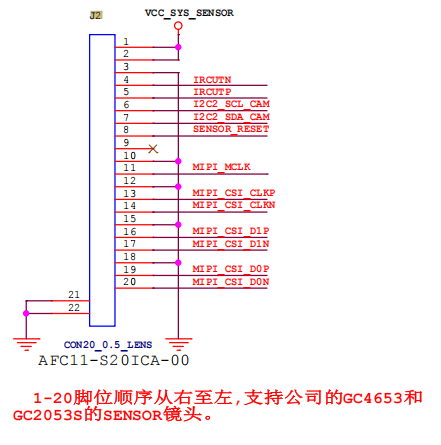

MIPI1

MIPI2

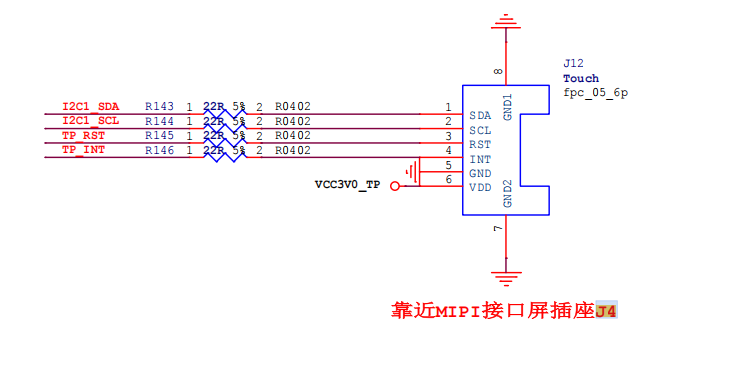

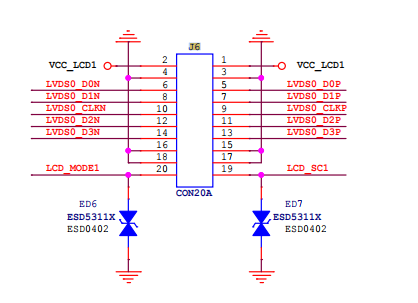

Screen connector socket 1
附件

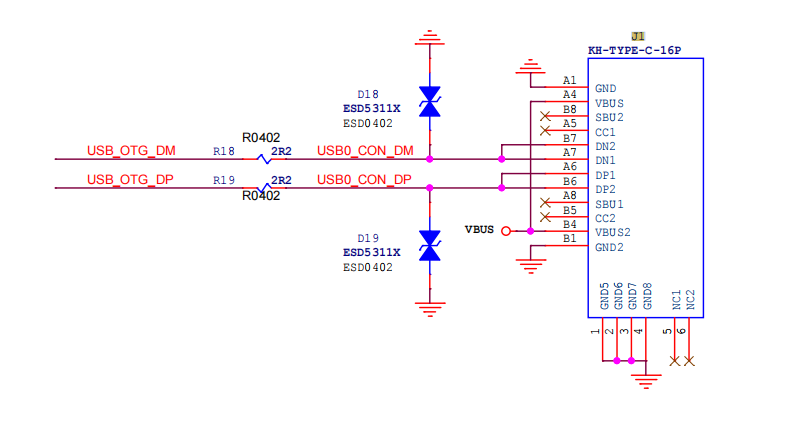

USB Port

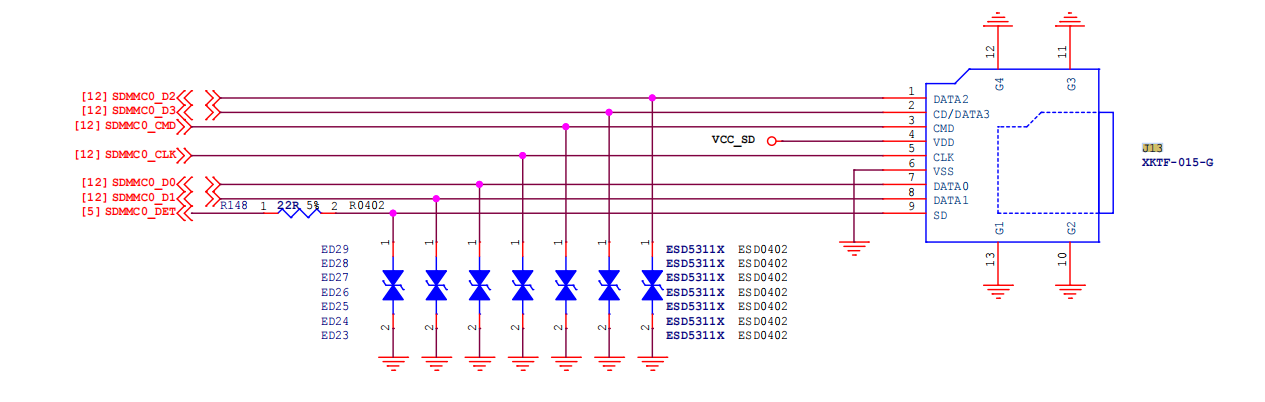

Micro-SD Card

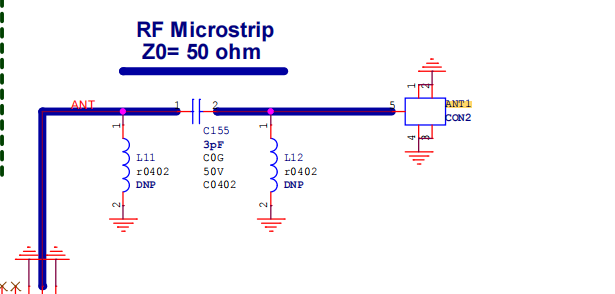

WiFi antenna interface

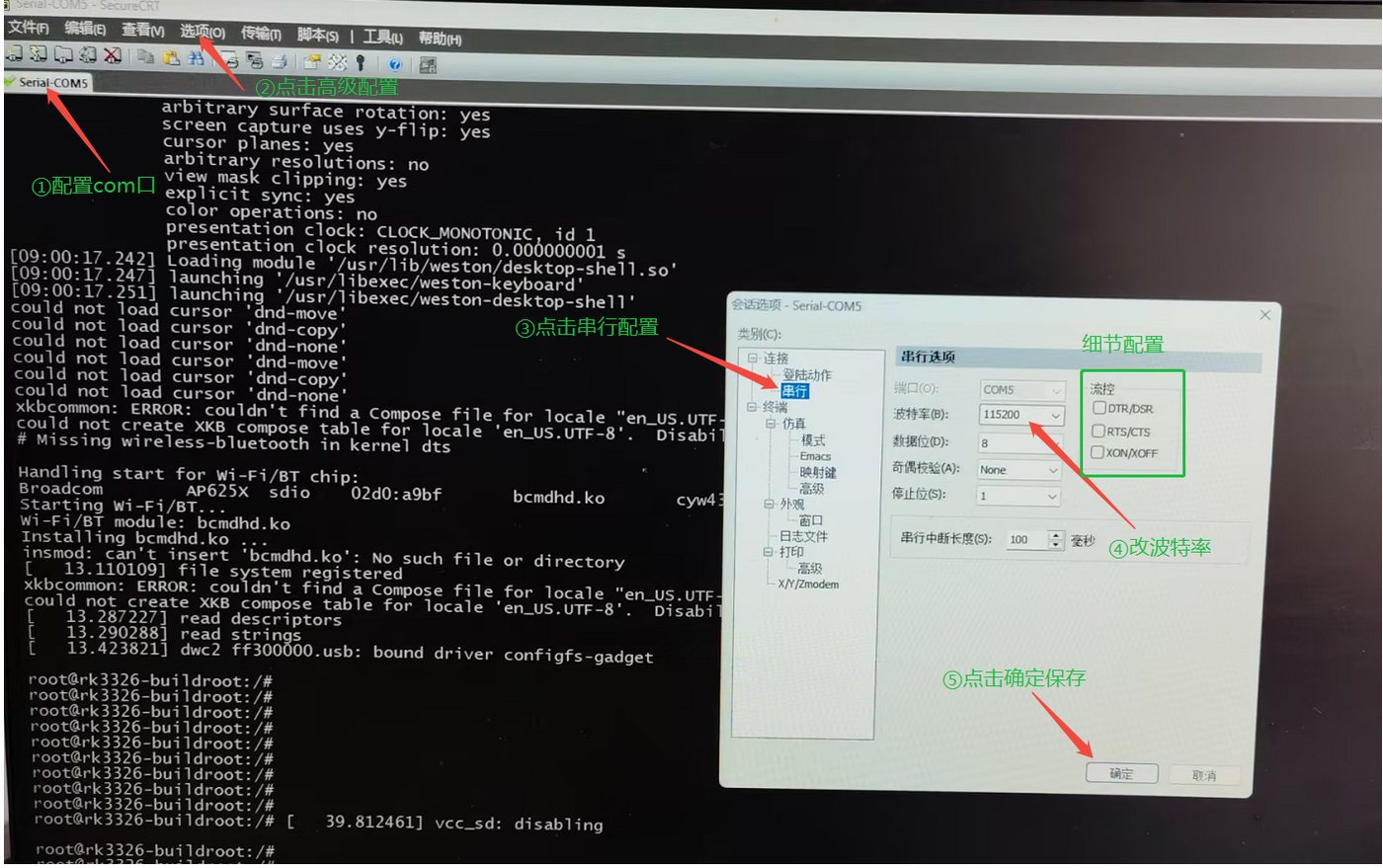

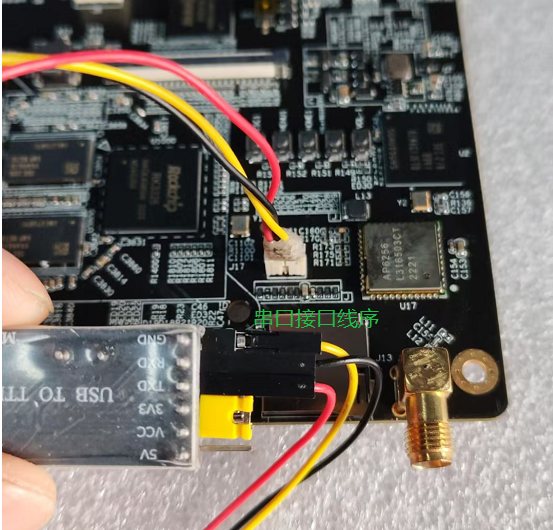

Debug serial port

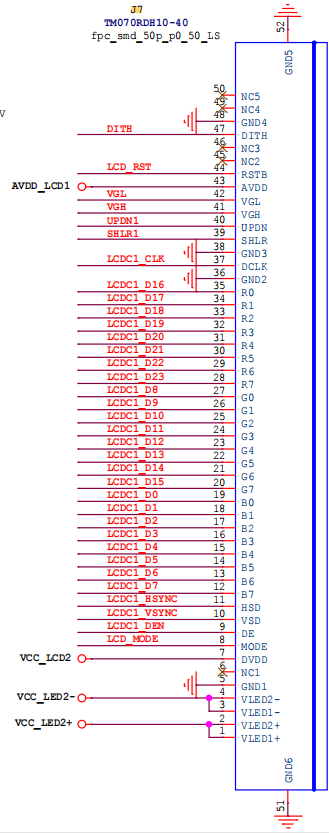

RGB - 7-inch screen interface

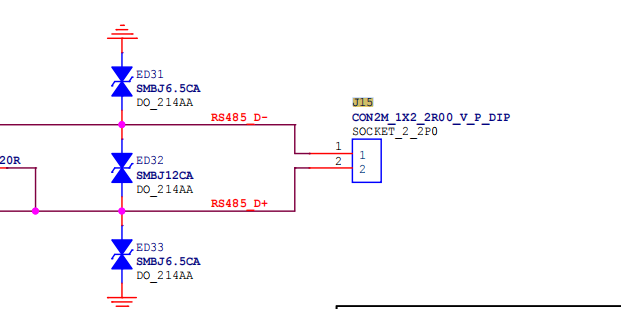

RS485 interface

Screen connector socket 2

Driver screen socket

LED interface

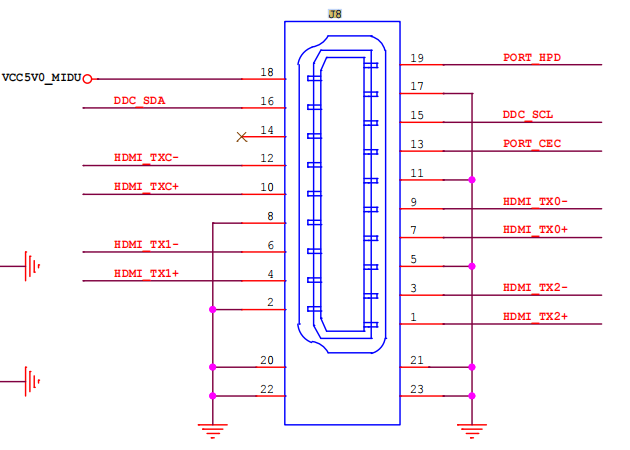

MiNi-HDMI OUT

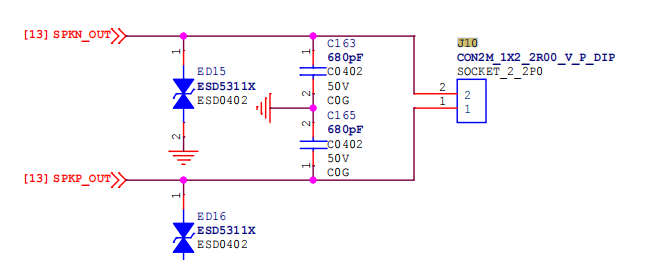

Speaker Output

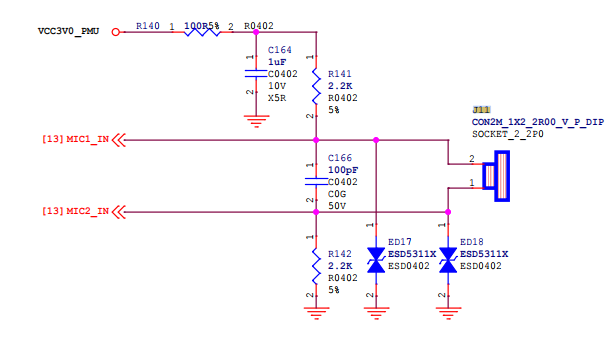

Microphone Input

Battery interface

4. FAQ

SDK download:
Linux：rk3326_linux_5.10_sdk_20250822_without_commit.tar.zst
Link: https://pan.baidu.com/s/1-bSk96BJpqpTZ7QsSozjBw?pwd=1122 Extraction code: 1122
