RK3568 Stamp-Hole Core Board (MIPI Version)
Project: Board Introduction | page_id: 911
| RK3568 Core Board | |
|---|---|
| Model | XSWTVR-8CT3568MIPI/TX |
| CPU | RK3568 quad-core A55 |
| Memory | Built-in 2GB |
| EMMC | Built-in 16GB |
| AI Performance | INT4/INT8/INT16, 0.8TOPS computing power; supports TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet |
| Video Encoding | See Appendix 1 |
| Video Decoding | Supports H.265/H.264, max 4K@60fps |
| IO Resources | Some display functions are not brought out |
| Network | RJ45 10/100/1000M x2 |
| Operating Temperature | 0 to 70℃; XSWTVR-8CT3568JMIPI/TX_I version -40~75 degrees |
| Service Life | Continuous operation lifespan of more than 5 years |

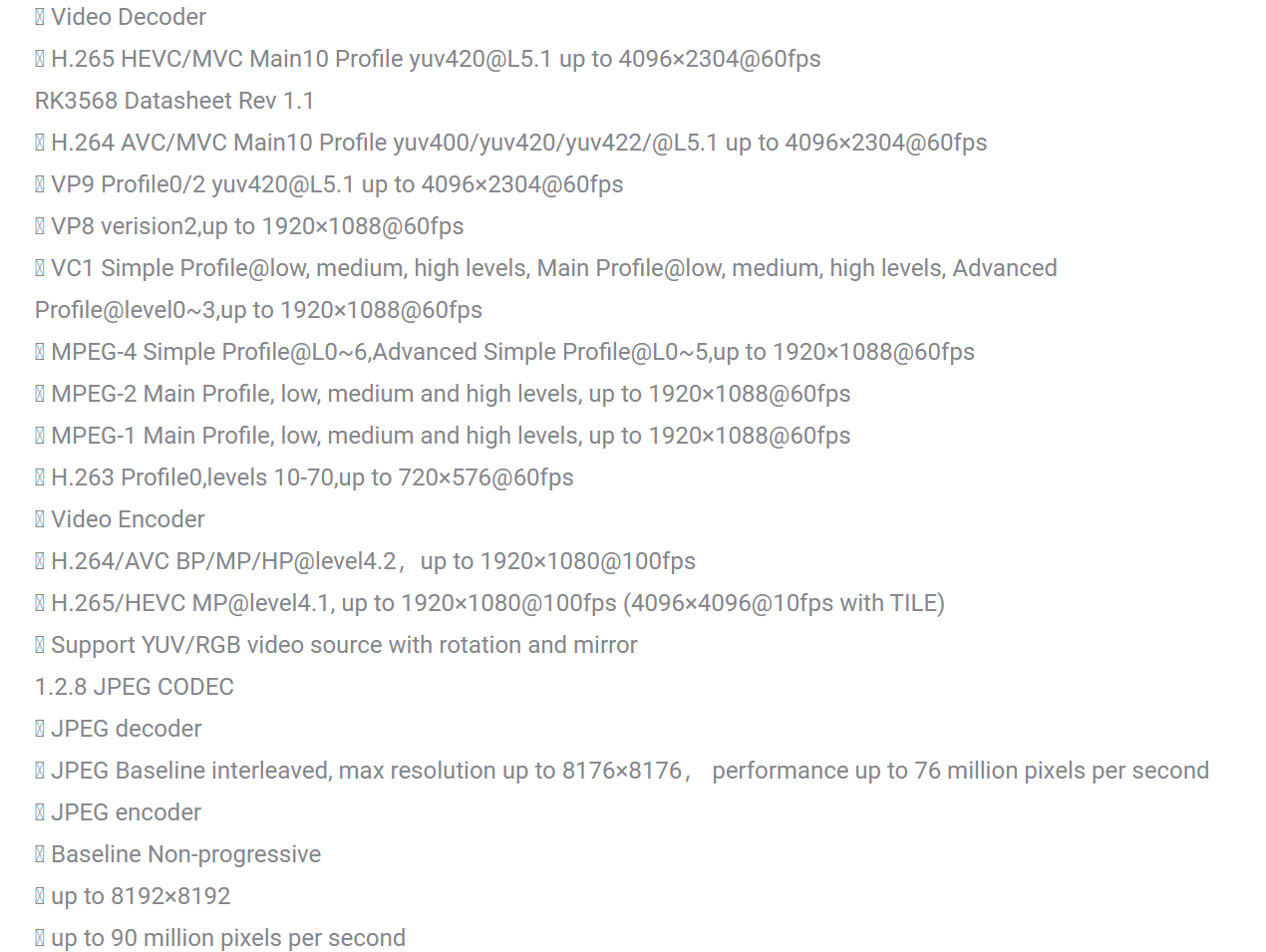

Appendix 1 (Encoding Capability Description)

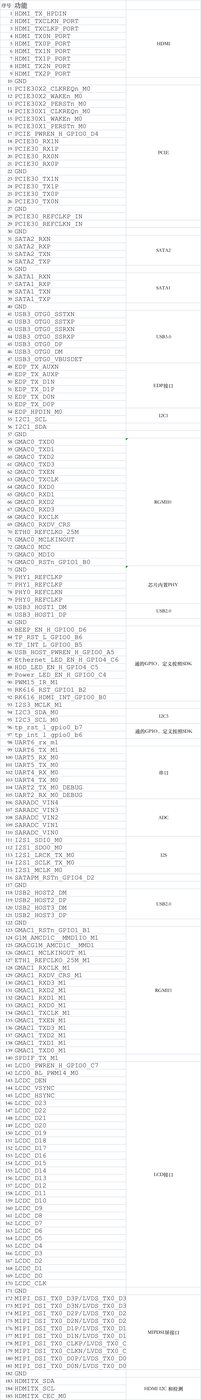

Pin Definition

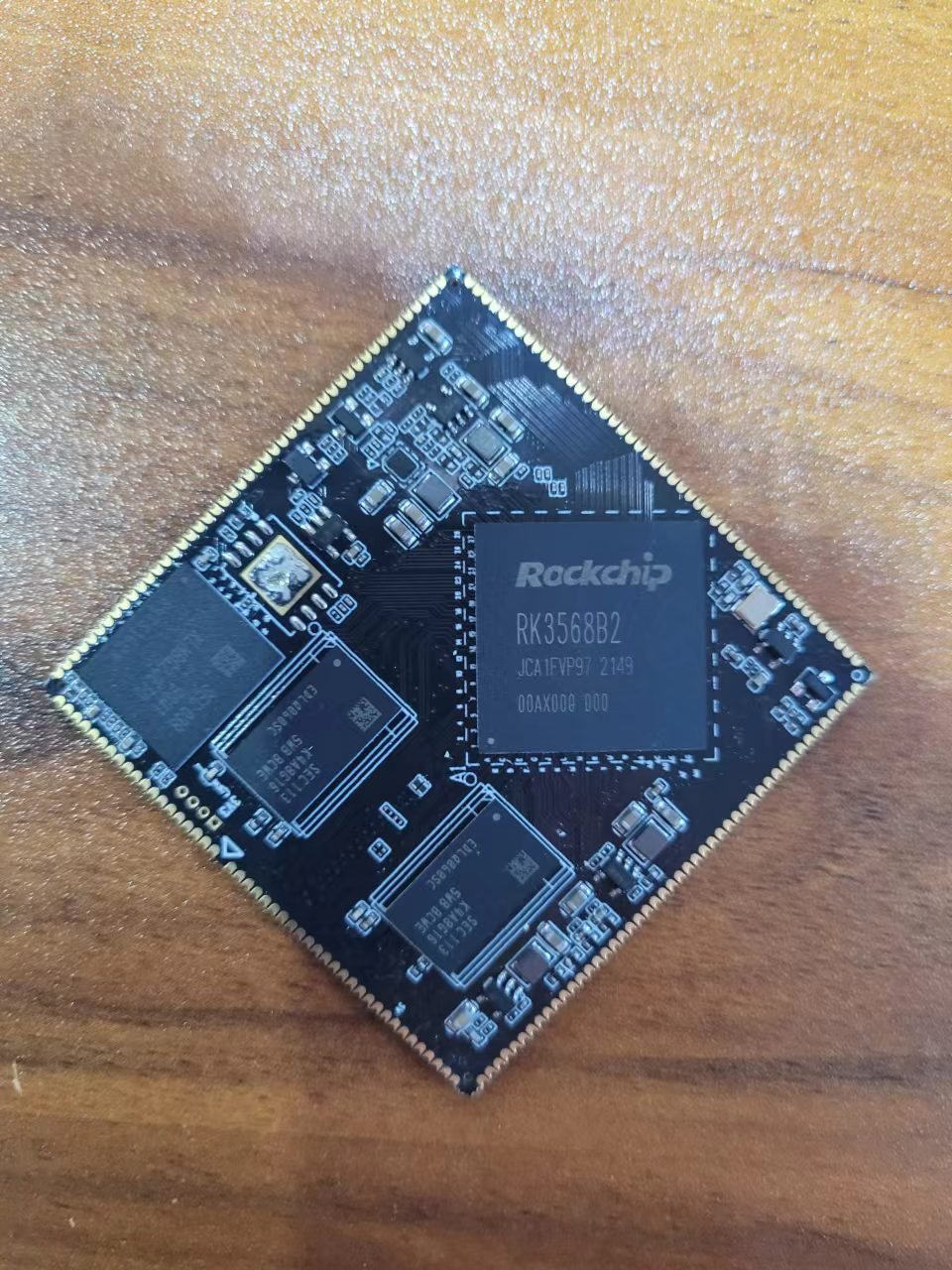

Board Resources
Memory 2GB LPDDR4
Storage (EMMC) 32GB

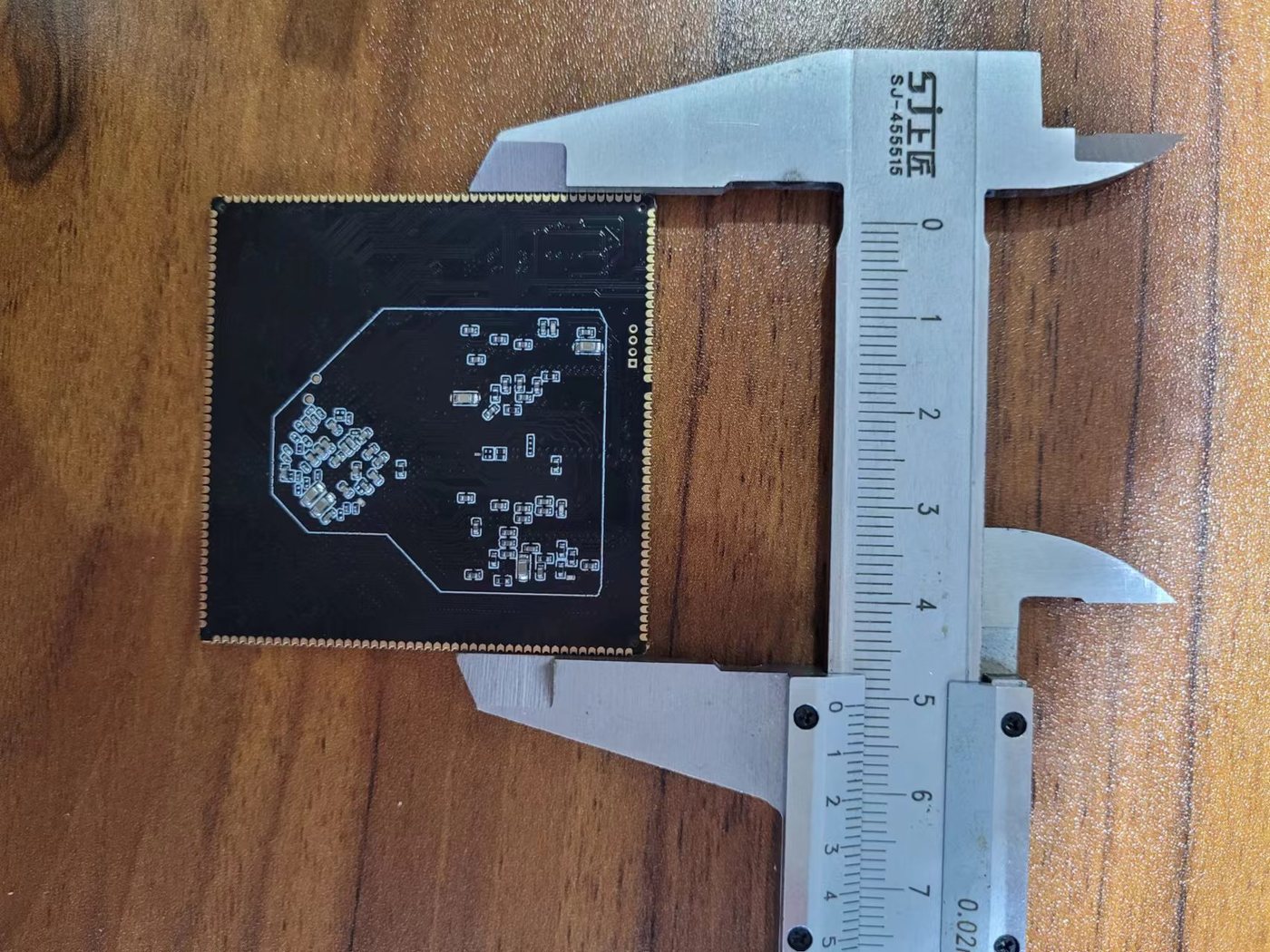

Ultra-small size 50mm*50mm, using stamp holes (castellated holes).
FAQ
| Question | Answer |
|---|---|
| 1. Is it Android or Linux? | Linux |
| 2. Is there an RKMPP development package? | Yes |
| 3. Does it support HarmonyOS? | Yes |
| 4. For the integrated GPU module, the image processing capability needs to reach 1204x768 at 60 frames per second. Can the GPU meet this requirement? | Yes |
| 5. Is the LVDS display interface not present on your board? | No, this one has 2 HDMI and 1 VGA |
| 6. Does the USB host interface support the driver for CY7C68013? | You need to debug it yourself; it requires some background |
| 7. Is the storage on this board EMMC or SPI? | The storage is EMMC, not SPI; a SPI NOR footprint is reserved |
