RK3568 4GIndustrialBoard
Project: Board Introduction | page_id: 1120
| RK3568 4G Industrial Control Board | |
|---|---|
| Model | XSWTVR-8CT3568G4/TX |
| CPU | RK3568 4-core A55 |
| Memory | Built-in 2GB |
| EMMC | Built-in 16GB |
| AI Performance | INT4/INT8/INT16 0.8TOPS computing power, supports TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet |
| Video Encoding | See Appendix 1 |
| Video Decoding | Supports H.265/H.264 encoding, maximum 4k@60fps |
| Video Output | HDMI x 1 VGA x1, HDMI and VGA can be non-same-source |
| Peripherals | USB2.0 x2 sata x1/msata x1 RTC |
| Peripheral Interfaces | RS485 x2 RS232 x1 TTL x2 Beidou/GPS |
| Network | RJ45 10/100/1000M x2 |
| Operating Temperature | 0 to 70℃; XSWTVR-8CT3568JG4/TX_I version -40~75℃ |
| Service Life | Continuous operation life of more than 3 years |

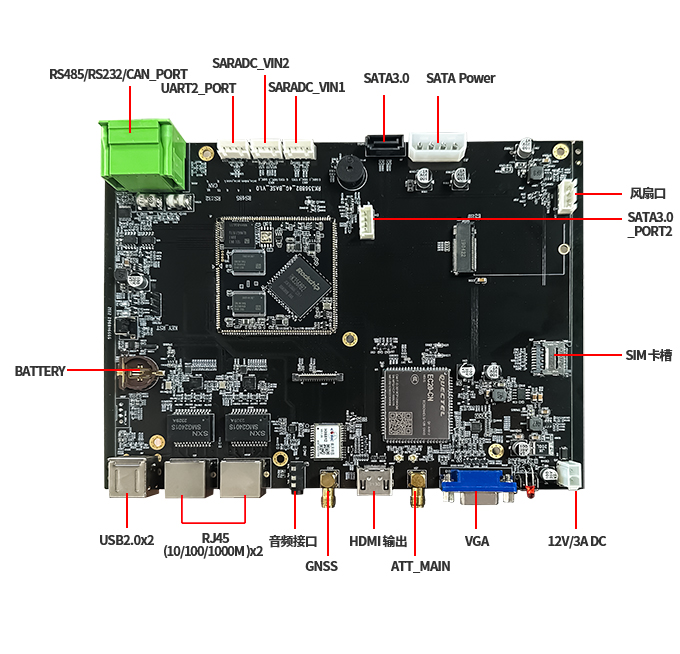

Board Photos and Interface Description: (to be added)
Appendix 1 (Encoding Capability Description)
FAQ
| Question | Answer |
|---|---|
| 1、Is it an Android system or a Linux system? | Linux/android/debian are all supported |
| 2、Is there an RKMPP development package? | Yes |
| 3、Does it support the HarmonyOS system? | Custom development is required |
| 4、The GPU-CPU integrated GPU module needs to be able to process 1204x768 images at 60 frames/second. Can the GPU meet this requirement? | Yes |
| 5、The LVDS display interface is not on your board, right? | No, this board has 1 HDMI and 1 VGA |
| 6、Does the USB host interface support the driver for CY7C68013? | You need to debug it yourself and have a certain foundation |
| 7、Is the storage on this board EMMC or SPI? | The storage is EMMC, not SPI; a position for spi nor is reserved |
