16-Channel Encoder with Audio & 4G
Project: Product Datasheet | page_id: 414
| 16-Channel 4G Video Encoder with Audio | |
|---|---|
| Model | XSWTVR-30M16ACH-4G |
| Network Device Discovery | ONVIF |
| Network Video Input Protocol | RTSP/RTMP/RTP/UDP-TS/HTTP-FLV |
| Network Video Output Protocol | HTTP-FLV/RTSP/RTMP/WS-FLV/WS-RAW/ONVIF/GB28181 |
| Input Video Encoding Format | H.264/H265 |
| Max Input Resolution | 1080P |
| Audio Input Protocol | RTSP/RTMP/RTP/UDP-TS/HTTP-FLV/3.5mm LINE IN input |
| Input Audio Encoding Format | AAC/G.711/MP3/MP2/AC3 |
| Output Video Encoding Format | H.264/H265 |
| Output Audio Encoding Format | AAC |
| Max Network Video Channels | 16 |
| Max Total Bitrate | 30Mbit (the actual value varies by protocol and encoding format) |
| Network | 1-channel 100Mbit Ethernet/4G full network access |
| Serial Port Passthrough | Supported |
| Recording | Supports 1 TF card of up to 512G |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters and remote playback of device recordings |
| Dimensions | 130x83x31mm |
| Weight | 210g |
| Power Supply | DC-12V |
| Operating Temperature | 0-70℃ |

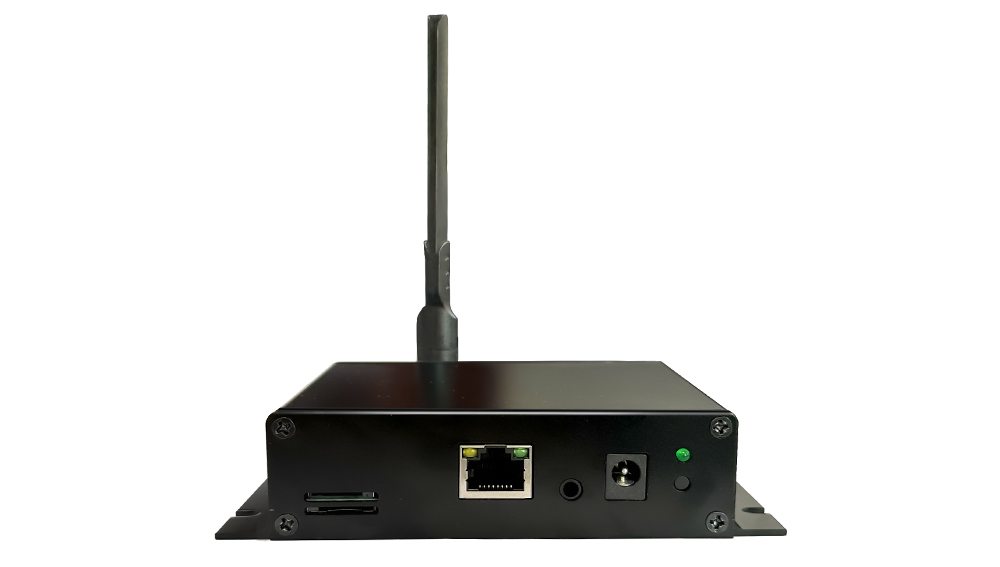

Product Images

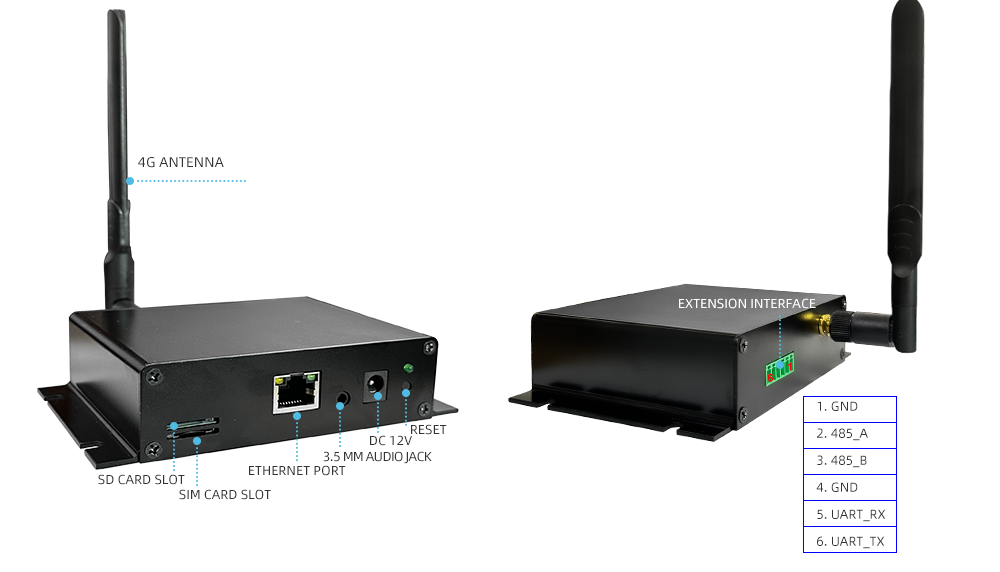

Which two interfaces are used for serial port passthrough?
Product Manual Link (Chinese Version)
In-site Docs Center
Video Encoder FAQ and Troubleshooting
In-site Docs Center
Device FAQ
| Question | Answer |
|---|---|
| 1, Does the 4G model have routing functionality? | Yes |
| 2, Can the 485 passthrough function be used now? | 485 passthrough can be done, but this function has not been added yet and cannot be used. The hardware supports it but it has not been implemented |
| 3, Are there restrictions on 4G cards? Are IoT cards OK? What about directional cards? | Unrestricted cards are supported. IoT cards are OK. For directional cards, you need to communicate with the operator to open these two domains and ports and add them to the whitelist |
| 4, Is 4G in Hong Kong supported? | Our 4G modules currently all use the E20 and are recommended for use in mainland China, Hong Kong and Macao. Hong Kong certification is voluntary, so the mainland China model works there. Taiwan is not supported — a different 4G module is required, available as a +¥70 swap, after which the device also works in Taiwan, Central Asia, Australia and New Zealand (excluding Iran and Russia) |
