100-Channel Video Encoder
Project: Product Specifications | page_id: 1086
| 100-Channel Streamer | |
|---|---|
| Model | XSWTVR-500M100CH |
| Network Device Discovery | ONVIF |
| Network Video Input Protocol | HTTP/RTSP/RTMP/RTP/UDP-TS/GB28181/WEBRTC |
| Network Video Output Protocol | HTTP-FLV/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF/GB28181/WEBRTC |
| Input Video Encoding Format | H.264/H.265 |
| Input Audio Encoding Format | AAC/G.711/MP3/AC3 |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Max Network Video Channels | 100 |
| Video Re-encoding Capability | Not supported |
| Number of Ethernet Ports | 2 |
| Max Total Bitrate | 500Mbit（the actual value varies with the protocol and encoding format） |
| Recording | Supports one hard disk of up to 16T; self-installation is not supported |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters and remote playback of device recordings |
| Operating Language | Chinese, English |
| Power Supply | AC 100-240V |
| Operating Temperature | 0～70℃ |
| Dimensions | 440X216X45mm (1U rack-mount housing) |
| Weight | 2014g |

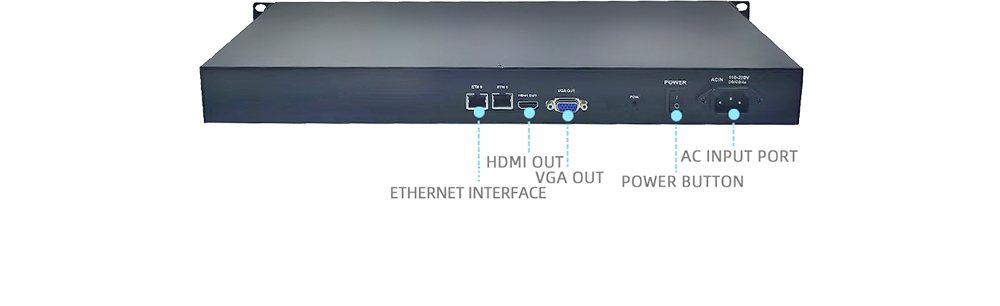

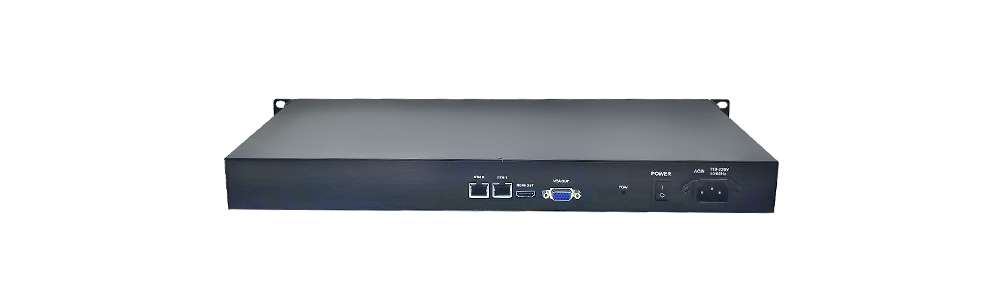

Product Images
Product Manual Link (Chinese Version)
In-site Docs Center
Streaming Media Server FAQ and Troubleshooting
In-site Docs Center
FAQ
| Question | Answer |
|---|---|
| 1、Are there any subsequent software usage fees? | No |
| 2、Which cameras are supported? | Any network camera |
| 3、Is external network viewing done through a browser? | Yes, both browser and mini program are OK |
| 4、The video source is HDMI, and the network TVs in each classroom need to see the video. How should it be deployed? | On the TV side, smart TVs can directly visit the web page to play; use an HDMI encoder + streaming media server |
| 5、There is no shutdown menu in the device. How do I shut it down? | There is a hardware switch |
| 6、How can I send a link to external network users so that they can play it directly? | Copy the address in the stream push management and send it out |
| 7、Which ports does this device map, TCP or UDP? | TCP; http is 80 and rtmp is 1935 |
| 8、Can the streaming media platform be deployed privately? | Paid private deployment is available |
| 9、Can the video output be in mpeg2 format? | No, only h.265 and h.264 |
| 10、Besides the camera, is other equipment needed for live streaming? Does the camera also need an encoder? | A camera plus a streaming media server is enough; it depends on whether it is a network camera or an HDMI camera. An HDMI camera needs an HDMI encoder |
| 11、If a 10m bitrate video is pushed to the streaming media server via RTSP and then pushed to the terminal via RTSP, will the video be compressed? | It will not be compressed; if the original bitrate is 10m, it will still be 10m |
| 12、How do I display it in my own cloud software? | The device generates a playback address, which can be called in the cloud software |
| 13、Can permission assignment be supported? For example, can a specified person only view certain specified camera images? | Permission assignment is supported; sub-account access permissions can be set in the backend |
| 14、Can I log in to the server system through ssh? | Yes, but you need to contact us to change the password separately, and once the password is opened, the warranty will be lost immediately, so please be careful |
| 15、How is the number of viewers determined? | If relayed through the cloud platform, there is no limit on the number of people, and it is charged by traffic at 0.4 yuan/GB. If you have a public IP and use local port mapping, there will be a limit. Different devices have different performance, and it needs to be determined according to the specific video bitrate and the number of viewers |
