24-Channel Video Encoder
Project: Product Datasheet | page_id: 148
| 24-channel Video Encoder | |
|---|---|
| Model | XSWTVR-40M24CH |
| Network Device Discovery | ONVIF |
| Network Video Input Protocol | HTTP/RTSP/RTMP/RTP/UDP-TS |
| Network Video Output Protocol | HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF/GB28181 |
| Input Video Encoding Format | H.264/H.265 |
| Input Audio Encoding Format | AAC/G.711 |
| Output Video Encoding Format | H.264/H.265 |
| Output Audio Encoding Format | AAC |
| Max Network Video Channels | 24 |
| Max Total Bitrate | 40Mbit (the actual value varies with the protocol and encoding format) |
| Recording | Not supported |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters and remote playback of device recordings |
| Dimensions | 150x110x27mm |
| Weight | 201g |
| Power Supply | DC-12V |
| Operating Temperature | 0～70℃ |

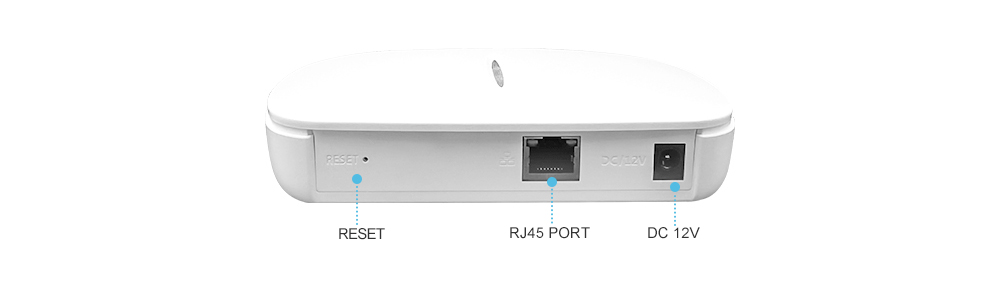

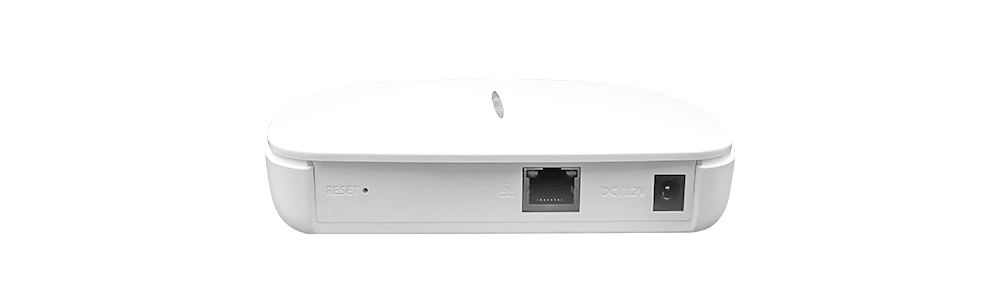

Product Images
