3rd-Gen Live Streamer
Project: Product Specifications | page_id: 1084
| 3rd Generation Live Streaming Box | |
|---|---|
| Model | XSWUVCR3-50M1CH |
| Network Device Discovery | ONVIF |
| USB Flash Drive Requirement | exfat format, single drive letter |
| Network Video Input Protocol | HTTP/RTSP/RTMP/RTP/UDP-TS |
| Network Video Output Protocol | HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF |
| External Volume Control | Knob type |
| Video Overlay Transparency Control | Knob type |
| Input Video Encoding Format | H.264/H.265 |
| Input Audio Encoding Format | AAC/G.711 |
| Output Video Encoding Format | MJPEG UVC |
| Output Audio Encoding Format | PCM UAC |
| Max Network Video Channels | 1 |
| Max Total Bitrate | 50Mbit (the actual value varies with the protocol and encoding format) |
| Recording | Supports recording to a USB flash drive |
| Remote Upgrade | Supported |
| Remote Management | Supports remote modification of device parameters and remote playback of device recordings |
| Dimensions | 130×80×25mm |
| Weight | 298.9g |
| Power Supply | DC-12V |
| Operating Temperature | 0～70℃ |

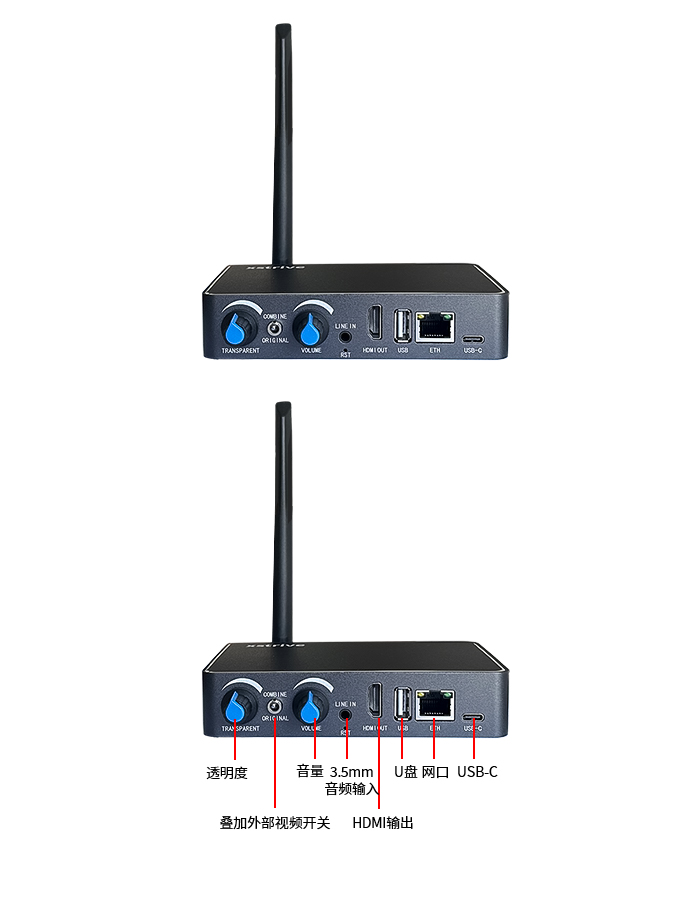

Product Images
Product Usage and Troubleshooting (Chinese Version)
In-site Docs Center
UVC Unattended Live Streaming Box Video Tutorial
UVC Unattended Live Streaming Box Simulated Camera - Live Streaming Demo of a LAN Camera Image Through the Kuaishou Live Companion
FAQ
| Question | Answer |
|---|---|
| 1、Is it a standard 1U chassis? | No |
| 2、Can the device avoid detection during unattended live streaming? ? | The device supports overlaying the camera image, supports external 3.5mm audio, and supports a series of functions such as dynamic frame dropping. These functions can provide a certain anti-detection effect. But it also has a lot to do with the live streaming material content. Repeated video content or no person appearing in the image, or a large amount of low-quality video content, copying other people's live videos, etc. may also cause risk control. Therefore, we recommend that you must use high-quality and as many video materials as possible to avoid risks |
| 3、UVC streamer common troubleshooting | In-site Docs Center |
| 4、Must a computer be used? Can it be done with a mobile phone? | A computer must be used; both desktop and laptop computers are OK |
| 5、Can automatic replies be implemented? | Currently Taobao and Kuaishou can be used with our auto-reply software to achieve automatic replies. In addition, an external audio version can support 3.5mm audio for real-time interaction |
| 6、Is there interaction in the live room? | Currently Taobao and Kuaishou can be used with our auto-reply software to achieve automatic replies; other platforms can only interact manually |
| 7、Can the computer be used for other things while live streaming? | Yes, it does not affect it |
| 8、The USB flash drive is not recognized? | Check whether the USB flash drive is in exFAT format. Connect the USB flash drive to the computer, then right-click Properties to view the SD card format. If it is not in exFAT format, you can format it and select the exFAT format |
| 9、Can only 1 video file be put in the USB flash drive? | Multiple videos are supported for random loop playback or sequential loop playback, and the videos need to be in MP4 format |
| 10、How long can the video be stored? | A 64G USB flash drive is included by default; you can also use a USB flash drive with a larger capacity |
| 11、Can the video be looped? | Both single video loop and multiple video loop are supported. The loop mode can be set to sequential loop playback or random loop playback |
| 12、Can real-person audio intervention be supported? | External 3.5mm audio is supported |
| 13、Does it support multiple accounts and multiple platforms? Which platforms are supported? | Currently we have tested this model on Douyin, Kuaishou and Bilibili without problems. Multiple platforms are supported, and 3 platforms can stream at the same time, with no limit on accounts. |
| 14、After connecting 3.5MM external audio, won't the sound of the video itself and the 3.5mm external audio be duplicated? | If 3.5mm external audio is connected, the sound of the video itself will be reduced by 80%, and the main sound will be the external audio. |
| 15、About violation issues | Regarding the video material, you need to prepare it yourself. Our suggestion is to prepare several non-repeating videos, for example 12 videos of 2 hours each, looping for 24 hours. Of course, the more videos the better, and it is recommended to use high-quality videos, and not to use other people's live screen recordings or repeatedly used videos |
| 16、Can it search for network cameras on the LAN? | Yes |
| 17、What is the purpose of the overlaid camera? If the camera image is overlaid, won't the material video be blocked? | The overlaid camera image is used to fool the platform's detection. In the backend you can adjust the transparency of the camera image so that viewers of the live stream cannot see the overlaid camera image |
| 18、What is included in the shipment? | The device includes the following accessories: dual-head USB cable, USB flash drive (64G by default), 1m network cable. If you purchase the version with a network camera, it will come with the camera and the camera power supply |
| 19、Can WeChat Channels be used for streaming? Can it announce the time? | Yes it can stream, but it cannot announce the time |
